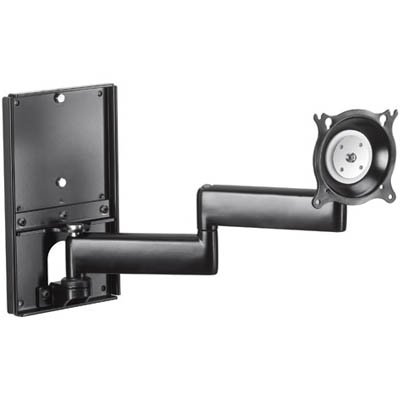

Chief FWDSKVB Steel Stud Swing Arm Wall Mount - 16" Extension

Chief FWDSKVB Steel Stud Swing Arm Wall Mount - 16" Extension

This product has been discontinued. See below for similar products we offer instead. We apologize for the inconvenience.

View Similar Products

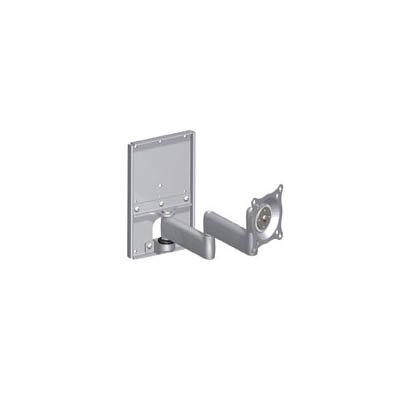

Chief FWDSKVB or FWDSKVS Small (10"-32") Steel Stud Dual Swing Arm Wall Mount - 16" Extension



General Information



Image of Warranty and Returns

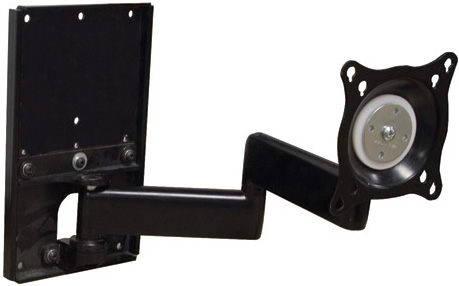

Chief FWDSKV Small Steel Stud Dual Swing Arm Wall Mount



Chief FWDSKV Small Steel Stud Dual Swing Arm Wall Mount









Features of Chief FWDSK-VB or FWDSK-VS:



  • Mounts a dual swing arm to single steel stud.

  • Centris Technology provides smooth, fingertip tilt.

  • Independently adjustable tension at pivot points for customized control.

  • Extends over 15" (381) to achieve the ideal viewing angle.

  • Quick, easy cable management.

  • VESA 75 x 75 mm and 100 x 100 mm compliant (interface brackets available for non-VESA compliant displays).






Technical Drawing of Chief FWDSK-V Small Steel Stud Dual Swing Arm Wall Mount



Technical Drawing of Chief FWDSK-V Small Steel Stud Dual Swing Arm Wall Mount









Description of Chief FWDSK VS or FWDSK VB:



Easily installs the Dual Swing Arm Wall Mount to a single steel stud and is great for use in commercial applications.









Specifications of Chief FWDSK V:



Certifications:

UL Listed

Color:

Black, Silver

Maximum Extension:

15.85" (402.6mm)

Minimum Depth:

2.85" (72.4mm)

Mounting Pattern Compatibility (Universal Versions):

75 x 75mm, 100 x 100mm, 200 x 100mm

Orientation:

Landscape, Portrait

Overall Dimensions (H x W x D):

10.8" x 10.3" x 2.9" (274 x 262 x 72mm)

Post Installation Leveling (Roll):

Yes

Solution Type:

Universal

Tilt:

+ 15°, - 15°

Typical Screen Sizes:

10 - 32"

Wall Stud Compatibility (inches):

Single Metal Stud

Weight Capacity:

40 lbs (18.1kg)







Literature (Please open the following documents for more technical information)




Chief FWDSKVB Small Steel Stud Dual Swing Arm Wall Mount - Installation Assembly

- pdf
Chief FWDSKVS Small (10-32") Steel Stud Dual Swing Wall Mount Arm - Technical Drawing

- pdf







Chief Logo



Hyperlink of all Chief products



Product Options/Accessories
Chief KSA1005B Security Hardware Kit

KSA1005 Security Hardware Kit (non Height-Adjustable)

$77.00 $30.80
Chief KSA1003B or KSA1003S Extension Arm Accessory

KSA1003 Extension Arm

$64.00 $51.20
Chief FSB4101B or FSB4101S Small Flat Panel Interface Bracket

FSB4101 Small Interface Bracket

$61.00 $40.00
Chief Dual Horizontal Monitor Accessory KMA220B

KMA220 Dual Horizontal Array

$243.00 $194.40
Chief Triple Horizontal Monitor Accessory KMA320B

KMA320 Triple Horizontal Array

$303.00 $242.40
Chief KSA1019B Centris Turntite Head Accessory

KSA1019 Centris Head Accessory

$64.00 $51.20
Chief FSB4100B or FSB4100S Small Flat Panel Interface Brackets

FSB4100 VESA Interface Bracket

$61.00 $40.00
Chief Centris Quick Connect Bracket KSA1024B

KSA1024 Quick Release Bracket

$77.00 $61.60
Chief FSBIB Portable iPad 1 Interface Bracket (VESA 100x100 mm)

FSBIB iPad Interface Bracket (100x100 mm)

$47.20
Chief FSBI2B Portable iPad Interface Bracket (VESA 100x100 mm)

FSBI2B Portable iPad Interface Bracket

$44.00 $26.32
Chief FSBI2TB iPad Secure Interface Bracket

FSBI2TB iPad Secure Interface Bracket

$135.00 $83.20
Frequently Asked Questions

No FAQs available for this product. Have a question? Ask us!

Product Information
  • Model FWDSKV
  • Manufacturer Chief Mounts
  • Part Number FWDSKV
  • Color Black, Silver
  • Maximum Extension 15.85" (402.6mm)
  • Minimum Depth 2.85" (72.4mm)
  • Mounting Pattern 75 x 75mm, 100 x 100mm, 200 x 100mm
  • Overall Dimensions 10.8" x 10.3" x 2.9" (274 x 262 x 72mm)
  • Tilt + 15 degree, - 15 degree
  • Screen Size 10 - 32 in
  • Weight Capacity 40 lbs (18.1kg)
