Chief FWP110B or FWP110S Small Pitch/Pivot Wall Mount (10-32")

Chief FWP110B or FWP110S Small Pitch/Pivot Wall Mount (10-32")

This product has been discontinued. See below for similar products we offer instead. We apologize for the inconvenience.

View Similar Products

Chief FWP110B or FWP110S Small (10-32") Flat Panel Pitch or Pivot Wall Mount



General Information



Image of Warranty and Returns

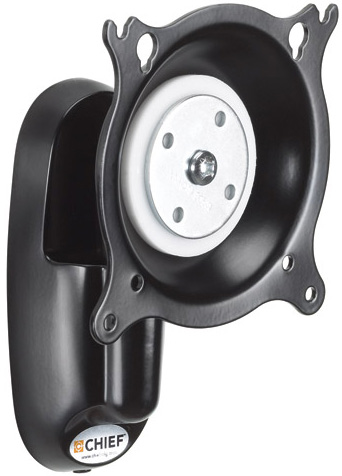

Chief FWP110 Small (10-32") Flat Panel Pitch or Pivot Wall Mount



Chief FWP110 Small (10-32") Flat Panel Pitch or Pivot Wall Mount









Features of Chief FWP 110:



  • Centris Fingertip Tilt provides smooth tilt adjustment in all directions and self-adjusts to securely hold different display weights.

  • Teardrop hole pattern makes mounting the screen quick and easy.

  • Independently adjustable tension at pivot points for customized control.

  • Portrait/landscape rotation 360°.

  • Quick, easy cable management.

  • Sleek, attractive design hides all hardware.

  • Ships assembled.

  • VESA 75 x 75mm and 100 x 100 mm compliant (interface brackets available for non-VESA compliant displays).

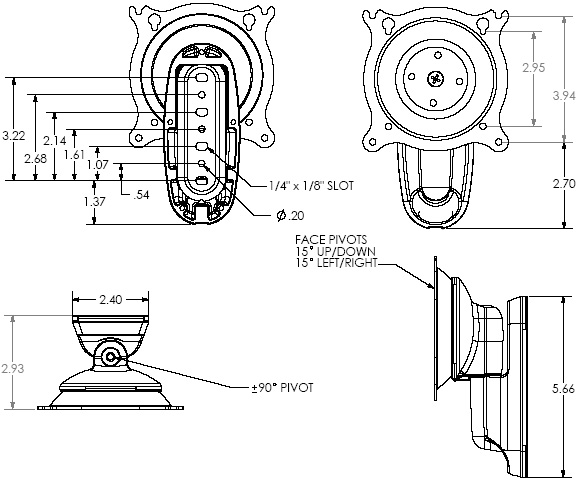

Technical Drawing of Chief FWP-110B or FWP-110S Small Pitch/Pivot Wall Mount



Technical Drawing of Chief FWP-110B or FWP-110S Small Pitch/Pivot Wall Mount









Description of Chief FWP-110:



Easily attaches flat panel monitors and TVs to the wall. Also provides smooth pivot and tilt adjustments for different viewing angles and ergonomic needs.

  • Ergonomic solution for the home or office providing excellent adjustability.

  • Folds in close to the wall for a low-profile appearance.







Specifications of Chief FWP 110B or FWP 110S:



Certifications:

UL Listed

Color:

Black, Silver

Minimum Depth:

2.95" (74.9mm)

Mounting Pattern (Universal Versions):

75 x 75mm,100 x 100mm

Orientation:

Landscape, Portrait

Overall Dimensions (H x W x D):

7.3" x 4.7" x 2.9" (184 x 119 x 75mm)

Post Installation Leveling (Roll):

Yes

Solution Type:

Universal

Tilt:

+ 15°, - 15°

Typical Screen Sizes:

10 - 32"

Wall Stud Compatibility (inches):

Single Stud

Weight Capacity:

40 lbs (18.1kg)







Literature (Please open the following documents for more technical information)




Chief FWP110B Small (10-32") Flat Panel Pitch/Pivot Wall Mount - Installation Assembly

- pdf
Chief FWP110S Small (10-32") Flat Panel Pitch/Pivot Wall Mount - Technical Drawing

- pdf







Chief Logo



Hyperlink of all Chief products



Product Options/Accessories
Chief KSA1005B Security Hardware Kit

KSA1005 Security Hardware Kit (non Height-Adjustable)

$77.00 $30.80
Chief KSA1022B Wall Track Accessory

Chief KSA1022B Wall Track Accessory

$274.00 $219.20
Chief KSA1013B Laptop Tray Adapter

KSA1013 Laptop Tray

$232.00 $92.80
Chief KSA1003B or KSA1003S Extension Arm Accessory

KSA1003 Extension Arm

$64.00 $51.20
Chief FSB4101B or FSB4101S Small Flat Panel Interface Bracket

FSB4101 Small Interface Bracket

$61.00 $40.00
Chief KSA1002B Desk Clamp Accessory

KSA1002 Desk Clamp Accessory

$240.00 $96.00
Chief Dual Horizontal Monitor Accessory KMA220B

KMA220 Dual Horizontal Array

$243.00 $194.40
Chief Triple Horizontal Monitor Accessory KMA320B

KMA320 Triple Horizontal Array

$303.00 $242.40
Chief KSA1011B Dual Monitor Y-Connector Accessory

KSA1011 Dual Monitor Y-Connector

$66.00 $26.40
Chief KSA1017B Pole Clamp Accessory

Pole Clamp Accessory - Chief KSA1017B

$60.00 $48.00
Chief KSA1019B Centris Turntite Head Accessory

KSA1019 Centris Head Accessory

$64.00 $51.20
Chief FSB4100B or FSB4100S Small Flat Panel Interface Brackets

FSB4100 VESA Interface Bracket

$61.00 $40.00
Chief Centris Quick Connect Bracket KSA1024B

KSA1024 Quick Release Bracket

$77.00 $61.60
Chief FSBIB Portable iPad 1 Interface Bracket (VESA 100x100 mm)

FSBIB iPad Interface Bracket (100x100 mm)

$47.20
Chief FSBI2B Portable iPad Interface Bracket (VESA 100x100 mm)

FSBI2B Portable iPad Interface Bracket

$44.00 $26.32
Chief KMA325B Widescreen Triple Horizontal Monitor Accessory

KMA325 Widescreen Triple 54" Horizontal Array

$450.00 $180.00
Chief FSBI2TB iPad Secure Interface Bracket

FSBI2TB iPad Secure Interface Bracket

$135.00 $83.20
Frequently Asked Questions

No FAQs available for this product. Have a question? Ask us!

Product Information
  • Model FWP110B, FWP110S
  • Manufacturer Chief Mounts
  • Part Number FWP110B, FWP110S
  • Color Black, Silver
  • Minimum Depth 2.95" (74.9 mm)
  • Mounting Pattern 75 x 75 mm ,100 x 100 mm
  • Overall Dimensions 7.3" x 4.7" x 2.9" (184 x 119 x 75 mm)
  • Tilt + 15 degree, - 15 degree
  • Screen Size 10 - 32 in
  • Weight Capacity 40 lbs (18.1 kg)
