Chief K1C250 KONTOUR Dynamic Column Clamp Mount, Dual Monitors
This product has been discontinued. See below for similar products we offer instead. We apologize for the inconvenience.
Similar Products
Related Products:
|
Part Number Description
|
| K1C250B Black KONTOUR Dynamic Column Desk Clamp Mount for Dual Monitors (10-30") up to 25 lbs/each |
| K1C250S Silver KONTOUR Dynamic Column Desk Clamp Mount for Dual Monitors (10-30") up to 25 lbs/each |

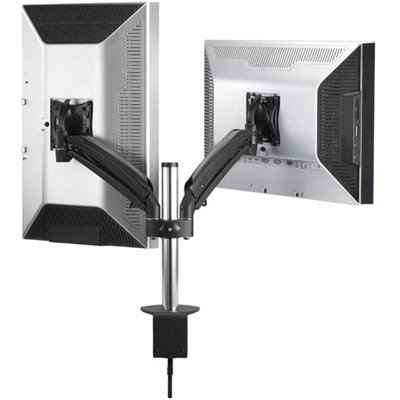

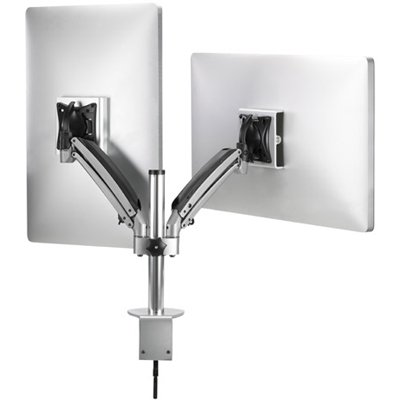

Chief K1C-250B or K1C-250S Kontour Dynamic Column Desk Clamp Mount for Dual Monitors
Features of Chief K1C 250B or K1C 250S:
- Sleek, solidly-constructed forged aluminum arms.
- Independently position monitors for optimal viewing comfort (sitting and/or standing).
- Dynamic height adjustment using gas-spring technology with additional adjustment along the column. Ideal for sit-stand applications.
- Simple 3-step installation and integrated quick-release interface for easy mounting and maintenance.
- Tool-free cable management covers for a clean, professional look.
- Patented Centris Extreme Tilt. Tilts -75/+10 for an ultimate ergonomic solution.
- Easily clamps to edge of desk (grommet and bolt through accessory available, separately).
- Provides a low profile mounting solution for two monitors while installed next to a cubical wall or adjacent desk.

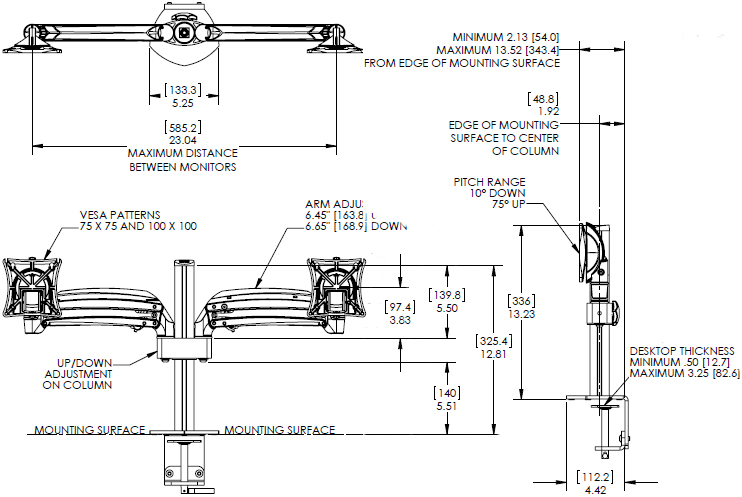

Technical Drawing of Chief K1C250 Series Kontour Dynamic Column Desk Clamp Mount
Description of Chief K1C 250 Series:
Whether in the office, in healthcare facilities or at home, Kontour monitor arms create a more productive and comfortable workspace. Elegantly designed with a forged aluminum body, Kontour mounts will stand the test of time both functionally and aesthetically.
- Provides a low profile mounting solution for two monitors while installed next to a cubical wall or adjacent desk.
Specification of Chief K1C-250 Series:
| Color: | Black, Silver |
| Desktop Thickness Range: | 0.5 - 3.25" (13 - 83mm) |
| Dynamic Height Adjustment: | 13" (330mm) |
| Equipment Width Range: | up to 22.5" (572mm) |
| Manual Height Adjustment: | 10.75" (273mm) |
| Maximum Extension: | 8.9" (226mm) |
| Minimum Depth: | 2.13" (54mm) |
| Mounting Pattern Compatibility (Universal Versions): | 75 x 75 mm, 100 x 100 mm |
| Notes: | Maximum Monitor Width: 22.5" (572mm). |
| Number of Monitors: | 2 |
| Orientation: | Landscape, Portrait |
| Overall Dimensions (H x W x D): | 15 x 27.04 x 2.13" (381 x 687 x 53mm) |
| Post-Installation Leveling (Roll): | Yes |
| Solution Type: | Universal |
| Tilt: | +75°,-10° |
| Typical Screen Sizes: | 10-30" |
| Weight Capacity: | 5-25 lbs (2.3-11.3kg) |
Frequently Asked Questions
No FAQs available for this product. Have a question? Ask us!
Product Information
- Model K1C250B, K1C250S
- Manufacturer Chief Mounts
- Part Number K1C250B, K1C250S
- Color Black, Silver
- Desktop Thickness Range 0.5 - 3.25" (13 - 83mm)
- Dynamic Height Adjustment 13" (330mm)
- Equipment Width Range Up to 22.5" (572mm)
- Manual Height Adjustment 10.75" (273mm)
- Maximum Extension 8.9" (226mm)
- Minimum Depth 2.13" (54mm)
- Mounting Pattern 75 x 75mm, 100 x 100mm
- Overall Dimensions 15 x 27.04 x 2.13" (381 x 687 x 53mm)
- Tilt +75, -10 degree
- Screen Size 10 - 30 in
- Weight Capacity 5 - 25lbs (2.3 - 11.3kg)
