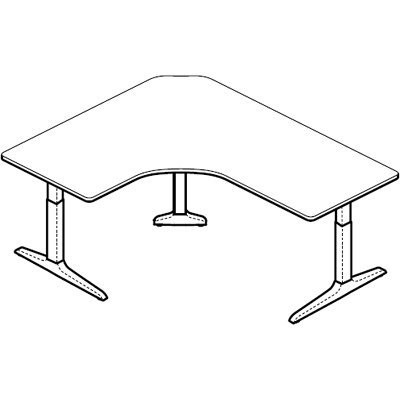

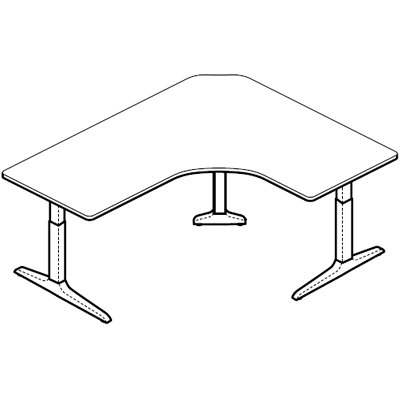

WorkRite Sierra HXL Electric Offset Corner 3 Legs Workcenter

Description

Making the Move to Sit-Stand. Outfitting your office with sit-to-stand workcenters is now within reach. Recent research has documented the dramatic positive health benefits of alternating between standing and seated positions throughout the workday. Sierra HXL is Workrite's answer to companies who are seeking an entry level sit to stand workcenter that can provide your employees with the ability to reduce stress, improve blood flow and alertness and maximize personal comfort.

Moving to a more comfortable position is just a fingertip adjustment away. The HXL motor quickly and quietly repositions the worksurface to just the right height. All your tools move with you as the HXL can support up to 225 lbs of material on the worksurface. The HXL features a sturdy open frame design with no visible crossbar so you have the maximum open space below desk for your ped, processor or personal property.

The Workrite Sierra HXL frame set is a great solution for companies who want to add limited sit-stand capabilities to the workplace. Sierra HXL features a limited height range that adjusts from 25.5"-43" and will accommodate the average male or female worker, whether seated or standing.

The Sierra HXL can handle payloads of 225–300 pounds, is available in 3 contemporary finishes and comes in a wide range of mix and match feature options that can be selected to build the best workcenter for each specific application.

Dimensions

Features

• Frame options: 2-leg and 3-leg frames 24" or 30" depths
• Widths from 34" to 84" depending on shape
• Finish options: Silver, Charcoal, and White

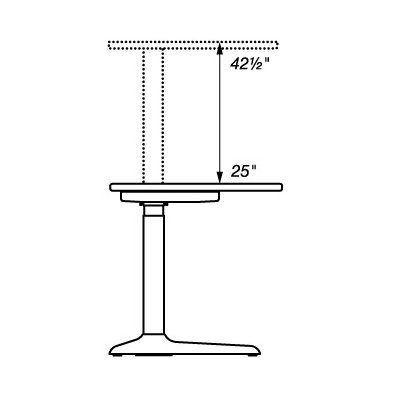

• Height Range: 25.5" to 43"
• Payload Capacity: 225 pounds for 2-leg models, 300 pounds for 3-leg models
• Travel Speed: 1.6 inches per second
• Max Power Draw: 120 V, 60 Hz, 2.9 A (2-leg) 5 A (3-leg)
• Standby Power: 0.1 W

Option 1 and 2: Desk Top Position and Surface Dimensions

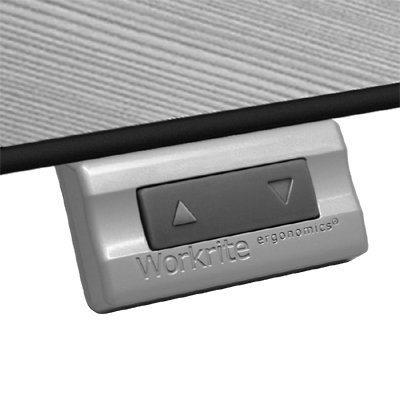

Option 3: Switch Type

Option 4: Base Frame Colors

Option 5: Laminate Top Colors

Option 6: Edge Treatments

Option 7: Foot Set

Option 8: Casters

Sierra Locking Casters

Features

• Low profile locking casters 2" W x 1.5" H
• Casters raise work centers by 1" versus installed adjustable glides
• Can be used with all Workrite adjustable work centers, recommended for Sierra workcenters
• Four (4) casters required for 2 leg workcenters, five (5) casters required for 3 leg workcenters

The following Casters are available

• 95234 - 4 casters for 2 leg tables
• 95235 - 5 casters for 3 leg tables

Workcenter Ordering Information

Determining the correct size and shape of your worksurface is extremely important. Combining a Workrite worksurface with any height adjustable base requires 1" of clearance at each side and in the back of the worksurface to avoid pinching or scraping. All Workrite worksurfaces are manufactured to the dimensions required to provide these clearances.

Worksurfaces are pre-drilled with mounting location for frame sets or bases.

Joining kits are provided with all two piece worksurfaces.

Standard lead time for our laminated worksurfaces is 20 business days for quantities of 10 or less. Lead times for larger product orders will be provided upon receipt of the order.

Important Notes:

• Workcenters ship unassembled and require simple hand tools to install.
• If using customer’s own worksurfaces, pre-drill pilot holes for all screws to ensure the most secure attachment.
• If installing a keyboard arm or track, the electric motor control box may need to be repositioned from its pre-drilled location.
• All workcenters have adjustable glides providing 0.5" of adjustment.
• Mobile pedestals may limit lower height range.
