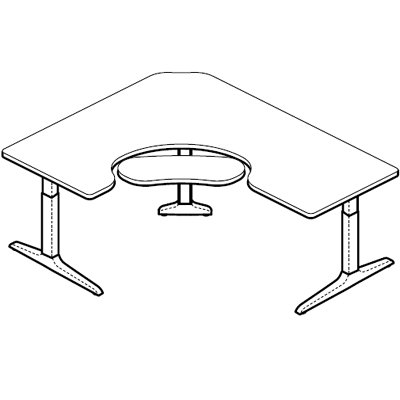

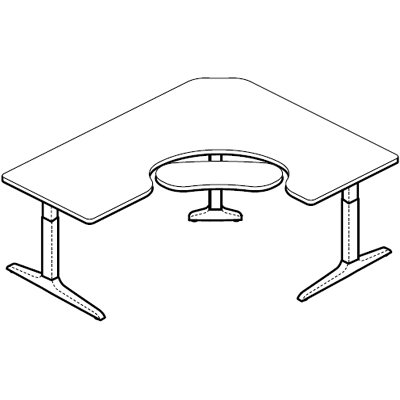

WorkRite Sierra HXL Electric Offset Corner Keyboard Cutout Table

Description

Outfitting your office with sit-to-stand workcenters is now within reach. Recent research has documented the dramatic positive health benefits of alternating between standing and seated positions throughout the workday. Sierra HXL is Workrite's answer to companies who are seeking an entry level sit to stand workcenter that can provide your employees with the ability to reduce stress, improve blood flow and alertness and maximize personal comfort.

Moving to a more comfortable position is just a fingertip adjustment away. The HXL motor quickly and quietly repositions the worksurface to just the right height. All your tools move with you as the HXL can support up to 225 lbs of material on the worksurface. The HXL features a sturdy open frame design with no visible crossbar so you have the maximum open space below desk for your ped, processor or personal property.

For an even more stylish configuration, top off your workcenter with a Silhouette top. Whisper thin yet sturdy as a redwood, Silhouette worksurfaces are available in 8 colors and 3 edge trim options.

Specifications

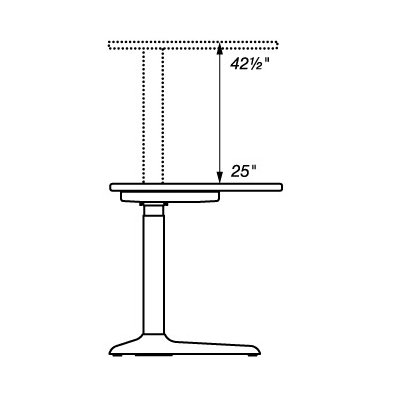

Height Range, Base and Leg Dimensions

Features

• Hidden crossbar for greater knee clearance and under desk storage

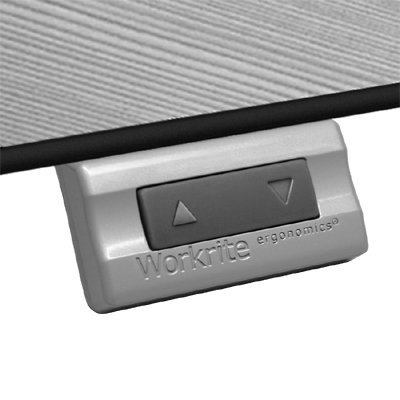

• Up/down control located under front of worksurface
• Adjusts 25"- 42½" at 1.6" per second
• Load capacity on worksurface: two leg workcenter 225 lbs; three leg workcenter 300 lbs.
• Available in 24 worksurface styles in over 60 laminate options
• Available in Sierra silver or charcoal finish
• Base only or full workcenter
• Compatible with full line of tool bar and rail system accessories

Environmental Considerations

• LEED Credit Eligibility
• Material & Resources Credit 4.1–4.2 (1-2 points)
• LEED Base Only: 26-28%
• LEED with laminate: 31-37%
• LEED with Silhouette: 13-18%
• Innovation in Design Credit 1.1-1.4 (1-4 points)
• Standby power use is only 0.1W
• GREENGUARD Silhouette top material
• VOC free powdercoat

Option 1 and 2: Choose your Desk Top Position and Surface Dimensions

Left (Long side at left, Short side at right)	Right (Long side at right, short side at left)
SEHXL604824A: 60" x 48" x 24" Surface Dimensions	SEHXL486024A: 48" x 60" x 24" Surface Dimensions
SEHXL724824A: 72" x 48" x 24" Surface Dimensions	SEHXL487224A: 48" x 72" x 24" Surface Dimensions
SEHXL726024A: 72" x 60" x 24" Surface Dimensions	SEHXL607224A: 60" x 72" x 24" Surface Dimensions
SEHXL844824A: 84" x 48" x 24" Surface Dimensions	SEHXL488424A: 48" x 84" x 24" Surface Dimensions
SEHXL604830A: 60" x 48" x 30" Surface Dimensions	SEHXL486030A: 48" x 60" x 30" Surface Dimensions
SEHXL724830A: 72" x 48" x 30" Surface Dimensions	SEHXL487230A: 48" x 72" x 30" Surface Dimensions
SEHXL726030A: 72" x 60" x 30" Surface Dimensions	SEHXL607230A: 60" x 72" x 30" Surface Dimensions
SEHXL844830A: 84" x 48" x 30" Surface Dimensions	SEHXL488430A: 48" x 84" x 30" Surface Dimensions

Option 3: Switch Position

Option 4: Choose your Base Frame Colors

Colors and patterns are representative only. Actual colors and patterns may vary slightly

Option 5: Choose your Laminate Top Colors

Classic Collection Laminates

Colors and patterns are representative only. Actual colors and patterns may vary slightly

Designer Collection Laminates

Colors and patterns are representative only. Actual colors and patterns may vary slightly

Option 6: Choose your Edge Treatments

Edge Treatments for Laminated Surfaces

Standard Colors 01 - 05	Wedge Black only - 06	Ripple Black only - 07

Standard Edge Colors

Colors and patterns are representative only. Actual colors and patterns may vary slightly

Option 7: Choose your Casters

Sierra Locking Casters

Features

• Low profile locking casters 2" W x 1.5" H
• Casters raise work centers by 1" versus installed adjustable glides
• Can be used with all Workrite adjustable work centers, recommended for Sierra workcenters
• Four (4) casters required for 2 leg workcenters, five (5) casters required for 3 leg workcenters

The following Casters are available

• 95234 - 4 casters for 2 leg tables
• 95235 - 5 casters for 3 leg tables

Option 8: Pinch Points

Dimensions provided above are nominal. Actual widths of all tables are reduced by 2" and depths by 1". For example, a nominal 42" × 42" × 24" corner table has an actual dimension of 40" × 40" × 23", and a 72" × 30" rectangular table has an actual dimension of 70" × 29".

Option 9: HX Spacers

HX Accessory Spacers

Attach the spacer to the leg motor with the #M6x12 mm Button Cap Screws

Secure the support angle to the table top with the #12x3/4" Pan Head Hex Sheet Metal Screws

Features

• Provides 3" or 5" of additional mounting depth under worksurface for accessories including keyboard platforms
• 3" spacer can mount to either 24"D or 30"D workcenters; 5" spacer can only be used on 30"D workcenters
• For 3 leg dual depth workcenters, order spacer for narrowest side
• Quantity 2 spacers provided

The following Spacers are available

• SHX-24SPCR: 3" depth spacer, weight 4 lbs
• SHX-30SPCR: 5" depth spacer, weight 7 lbs

Workcenter Ordering Information

Classic Collection Laminates - 10 working days for quantity 20 or less

Silhouette Collection Laminates - 10 working days for quantity 10 or less

Designer Collection Laminates - 20 working days for quantity 10 or less

Modular, high strength steel frame mounts to worksurface; exceeds ergonomic knee clearance requirements.

All tables have adjustable glides providing ½" adjustment. Table surfaces are predrilled with mounting location for bases. Silhouette surfaces include screws to mount accessory items under the worksurface. Special drill bit required, can be ordered separately.

All tables and bases ship unassembled. Weight information is shipped weight for laminate option only. Sierra HXL Electric legs rated at 175 lbs maximum force per leg. Control box powered by 120V / 60Hz. May draw 2.9 amps maximum under full load. Standby power is 0.1W. 10' power cord with IEC type connection at control box provided.

Cable management spool provided to manage excess control cables; optional cable mount accessories are available.

Literature (Please open the following documents for more technical information)
