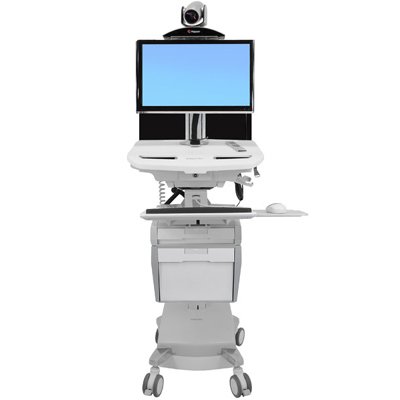

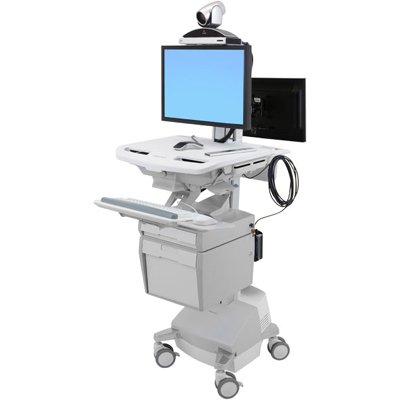

Ergotron SV42-57E1-1 SV Telepresence Cart, Back-to-Back Monitor

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 24"

17.7 kg

43 cm

Part Number

SV42-57E1-1

Description

StyleView Telepresence Cart, Back-to-Back Monitor, SLA Powered (white, grey and polished aluminum)

Includes

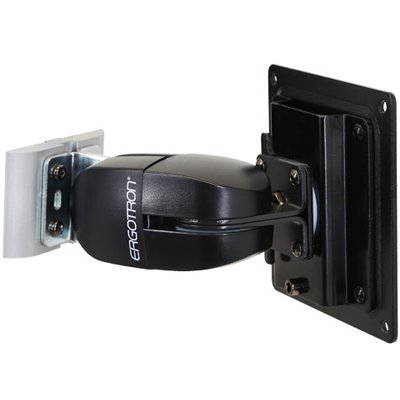

• Front LCD pivot
• Rear LCD pivot
• Auto-locking drawer system (ADS)
• Primary top drawer
• Drawer dividers
• Large lower drawer
• Worksurface
• Camera shelf

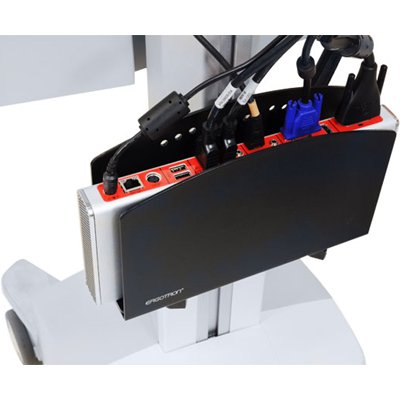

• Codec/CPU holder
• Medical-grade power strip
• CPU lock
• Secure CPU compartment
• Four-port USB hub
• Scanner holder bracket
• Mouse holder
• Wrist rest

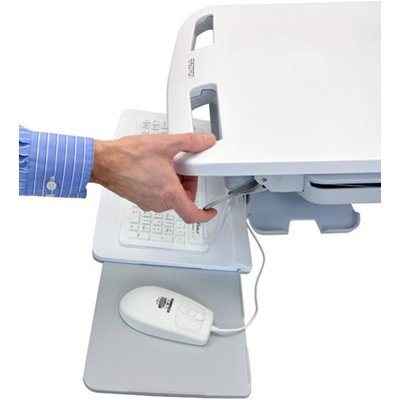

• Back-tilt keyboard tray
• Left/right mouse tray
• Rear handle
• Storage basket
• Cable storage
• Four casters (two locking)
• Two-battery 66 Ah power system
• 10-foot (3 m) coiled cord
• Three AC outlets
• Power system user interface
• StyleLink software

Not Included

Video camera, monitors, codec, and telepresence and computing equipment

Weight Capacity

Total maximum load on height-adjustment assembly = 39 lbs (17.7 kg). This is the sum of the following components: front LCD pivot = 5–14 lbs (2.3–6.4 kg); camera shelf ≤ 2 lbs (1 kg); worksurface ≤ 5 lbs (2.2 kg); keyboard tray ≤ 2 lbs (1 kg); CPU compartment ≤ 13 lbs (5.9 kg); drawer ≤ 2 lbs (1 kg). Total maximum load attached to back of cart’s main column = 25 lbs (11.4 kg). This is the sum of the following components: rear LCD pivot ≤ 23 lbs (10.5 kg); codec/CPU holder ≤ 25 lbs (10.5 kg); storage basket = 5 lbs (2.2 kg)

Note

Locking the height of the front LCD lift pivot changes the weight capacity to ≤ 20 lbs (9.1 kg), allowing it to accommodate heavier displays and all-in-one computers. When calculating load on front pivot, also include weight of camera. Combined weight of front LCD and camera should not exceed 20 lbs (9.1 kg). Combined weight of front LCD, camera and CPU should not exceed 27 lbs (12.3 kg)

Front LCD and Worksurface

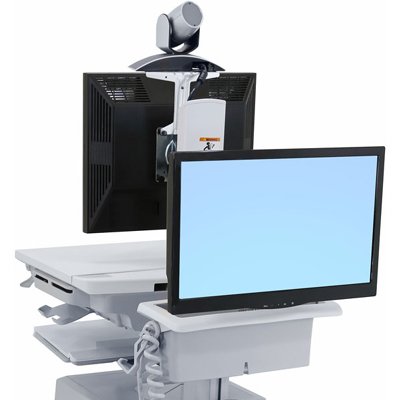

Adjust 12" (30 cm) in tandem; front LCD Pivot adjusts 5" (13 cm) independently; maximum front LCD height adjustment = 17" (43 cm). Rear LCD is not height adjustable; tilt and pan adjustment range of rear LCD = 180°

Portrait Screen Orientation

May be incompatible with widescreen displays > 19"

True Ergonomics

• Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity
• Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters, height adjustment, LCD tilt and pan all require just a touch

Safe

• For patient and caregiver safety the entire power system and the FULL cart are in process of being certified to UL and CAN/CSA-C22.2 No. 60601-1:08. Complies with EMI limits of FCC Part 15 Class A
• Power System User Interface integrated conveniently on the worksurface (includes visual and audible battery status indicator)
• Surfaces are treated with antimicrobial for product protection; handles are smooth and continuous for improved clean ability
• Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant
• Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control
• Large, smooth worksurface; easy-to-clean design promotes infection control
• Lockable, ventilated enclosed storage for closed notebook, thin client or CPU. Keys and locks are heavy-duty
• Locking casters
• CPU lock provided inside the storage compartment for additional security
• Designed to meet guidelines established by the American National Standards Institute for computer use

Service

• Includes FREE StyleLink with enterprise capabilities: Install, access and manage your StyleView power systems from a remote location across WAN, LAN, or VPN
• Covered by Global Service Program - 24/7 coverage

All the Details Covered

• Drawer dividers are included, allowing compartments to be customized to match your workflow requirements
• Four amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off
• Button for LED lights is located conveniently on worksurface
• Rear basket keeps task-related items where they can be quickly accessed
• A unique cable management system conceals and organizes cords, making cleaning easy
• Ships fully assembled and is easily accessible from container
• Quick, easy access to CPU storage compartment: One-hand operation of secure latch with slide-out worksurface ensures easy access. Security cable in compartment deters CPU theft
• Four-port USB hub
• TAA (Trade Agreements Act) compliant
• Easy access to components for field replacement and serviceability: keyboard LEDs, PC boards (including the user interface). Easier, faster upkeep and service means less down time
• Pre-routed cables provide quicker integration with equipment

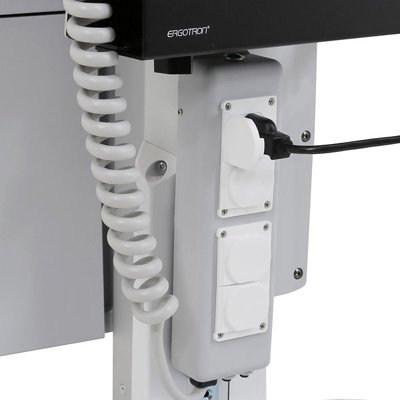

• Three-receptacle power strip located in the CPU storage compartment
• Four (4) ultra-smooth gliding casters for extremely easy push/pull mobility; locking casters ensure lock-in-place stability

Compatibility and Dimensions

• Internal Dimensions: primary top drawer = 2.5"H x 12"W x 10.5"D (63.5 x 305 x 267 mm) - includes dividers to configure up to 16 compartments; large lower drawer: 10"H x 12"W x 10.5"D (254 x 305 x 267 mm); codec/CPU holder: 1-3/8" to 3-3/4" (35 to 95 mm) wide
• Open-architecture design accommodates multiple configurations, closed notebooks with monitor (even widescreen with up to 17.3" diagonal size), CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades
• Storage compartment for closed notebook, thin client or CPU: 17.75"W x 14.75"D x 3.75"H (45 x 37.5 x 9.5 cm); computers can also attach to rear of cart in the codec/CPU holder
• Compact Wheel-to-Wheel Base Dimensions: 15.5" x 17" (394 x 432 mm)
• Worksurface Dimensions: 22.4"W x 19.75"D (567 x 502 mm)
• Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
• VAC: 120V/60Hz
• Grounded Plug: NEMA 5-15P Hospital Grade
• 66 Ah Power System with two (2) 33 Ah, 12 V DC, Sealed Lead Acid (SLA), Absorbed Glass Mat (AGM), valve-regulated batteries with supporting electronics

Shipping Dimensions

24.5"W x 34"D x 56"H (62 x 87 x 142 cm)

Shipping Weight

217 lbs (97.5 kg); actual cart weight = 180 lbs (81.7 kg)

Warranty

Five (5) years for cart’s mechanical components, two (2) years on power module
