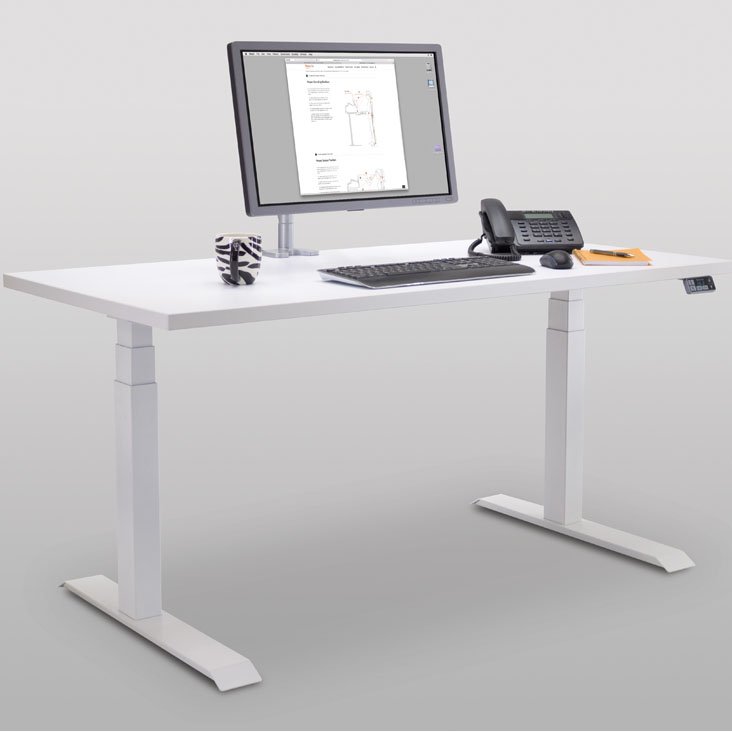

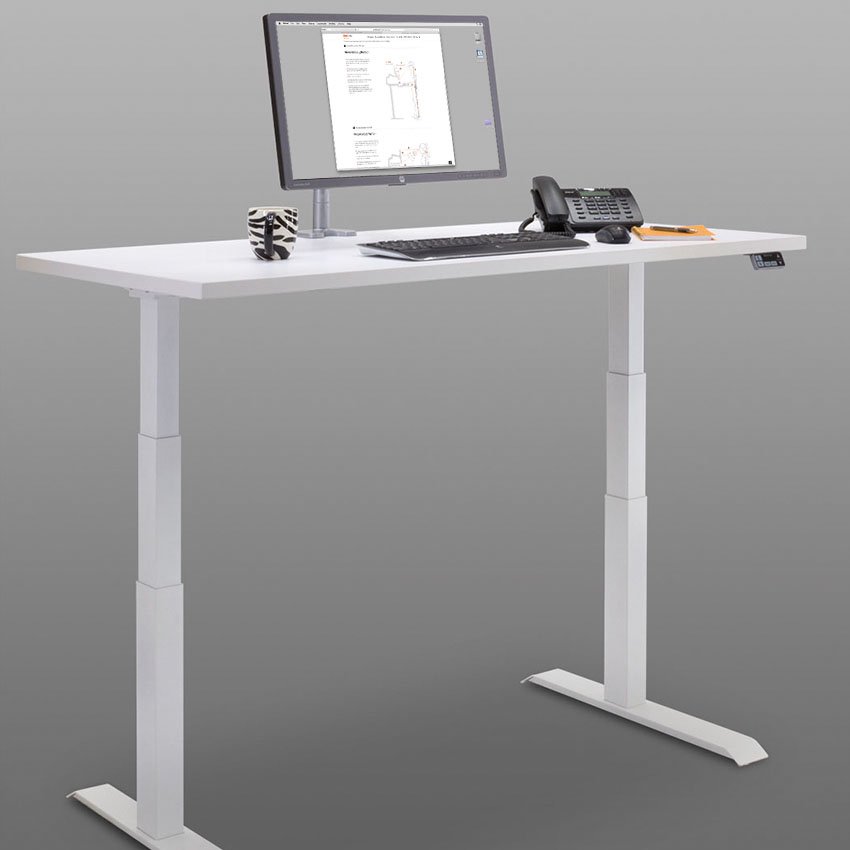

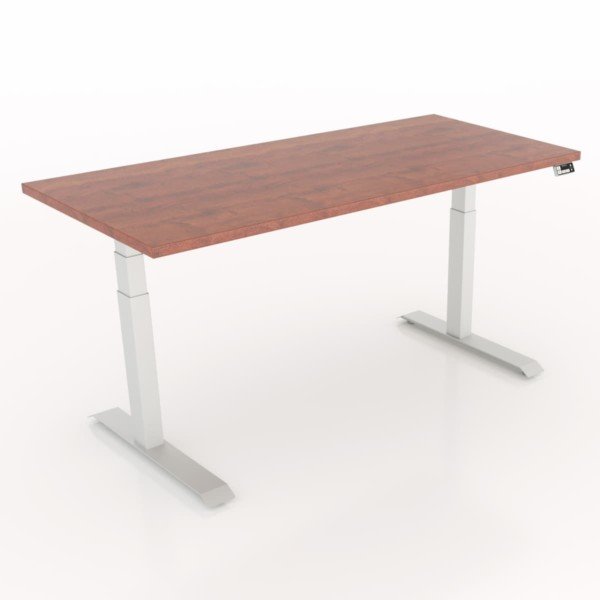

Workrite Essentia Electric Rectangular 2 Leg Workcenter

Lead time for standard laminate work surface is 10 business days for quantities of 10 or less. Please call 888-456-3746 for delivery time on non-standard and special size laminate tops.

5 out of 5 (based on 1 review)
Product ID: 18411
Highlights
  • Electric height adjustable desk
  • Available in 2 and 3 leg sizes
  • Height range: 22.5 - 48.7"
  • Weight capacity: 225 lbs on a 2 leg and 300 lbs on a 3 leg frame
  • Travel speed:  1.6" per second
  • 5 year warranty on electrical parts
  • Opening on 30 - 48" frame sets to allow installation of a keyboard
  • Connecting support bar on 54 - 72" frame sets
Options
List Price: $1,229.00
Our Price: $737.40
Shipping: $0.00 * See delivery options below
* applies to Contiguous United States

Description

Greater flexibility for workspace design. The Essentia base sets include all parts required to assemble the full frame including motors, controls, brackets, hardware and choice of foot size and switch type to meet your needs. The Essentia bases feature seamless European profile designs and motors and controls that meet the BIFMA G1-2013 ergonomic height adjustment requirements. Available control options including our unique inductive touch control with six user memory presets.

The Essentia adjustable hidden cross bar design provides ultimate user knee clearance and comfort. Essentia’s high weight capacities handle the most intensive user equipment loads. Our wide range of sizes, configurations, and colors make Essentia an elegant choice for your office.

Dimensions

Workrite Essentia Frame Set Dimensions

Frame Set Features

  • Available for 24" and 30" deep worksurfaces

  • Widths range from 30" to 90" wide

  • Finish options: silver, charcoal, white

  • Height range of 22.5" to 48.7" meets BIFMA G1-2013 requirements

  • Adjustment speed: 1.6" per second

  • Maximum current draw: 8 A at 120 V, 60 Hz

  • Standby power: 0.3 W

  • 10′ power cord

  • 5 year warranty

  • Meets or exceeds BIFMA x5.5 standards

  • GREENGUARD GOLD certified

  • UL962 certified


2-Leg Frame Set Features

  • Payload carry capacity: 225 lbs (after top)

  • Gross load capacity: 352 lbs (not including top and safety factor)

  • Includes software based anti-collision


3-Leg Frame Set Features

  • Payload carry capacity: 300 lbs (after top)

  • Gross load capacity: 528 lbs (not including top and safety factor)

Option 1: Surface Dimensions

Worksurface 34" x 23" ST3423-B3 and Frame Set ES3E30-48
Worksurface 40" x 23" ST4023-B3 and Frame Set ES3E30-48
Worksurface 46" x 23" ST4623-B3 and Frame Set ES3E30-48
Worksurface 52" x 23" ST5223-B3 and Frame Set ES3E54-72
Worksurface 58" x 23" ST5823-B3 and Frame Set ES3E54-72
Worksurface 64" x 23" ST6423-B3 and Frame Set ES3E54-72
Worksurface 70" x 23" ST7023-B3 and Frame Set ES3E54-72
Worksurface 88" x 23" ST8823-B3 and Frame Set ES3E78-90
Worksurface 34" x 29" ST3429-B3 and Frame Set ES3E30-48
Worksurface 40" x 29" ST4029-B3 and Frame Set ES3E30-48
Worksurface 46" x 29" ST4629-B3 and Frame Set ES3E30-48
Worksurface 52" x 29" ST5229-B3 and Frame Set ES3E54-72
Worksurface 58" x 29" ST5829-B3 and Frame Set ES3E54-72
Worksurface 64" x 29" ST6429-B3 and Frame Set ES3E54-72
Worksurface 70" x 29" ST7029-B3 and Frame Set ES3E54-72
Worksurface 88" x 29" ST8829-B3 and Frame Set ES3E78-90

Option 2: Laminate Top Colors

Colors and patterns are representative only. Actual colors and patterns may vary slightly

Tier 1

Laminate White SW811SD

White

SW811SD

Laminate Folkstone Gray SG241SD

Folkstone Gray

SG241SD

Laminate Slate SG228SD

Slate

SG228SD

Laminate Hardrock Maple WM791SD

Hardrock Maple

WM791SD

Laminate Millwork Cherry WC431SD

Millwork Cherry

WC431SD

Laminate Formal Mahogany WY031SD

Formal Mahogany

WY031SD

Laminate Walnut Grove WW050SD

Walnut Grove

WW050SD

Tier 2

Laminate Beigewood 0785060

Beigewood

0785060

Laminate River Cherry 0793738

River Cherry

0793738

Laminate Pinnacle Walnut 0799238

Pinnacle Walnut

0799238

Laminate Monticello Maple 0792538

Monticello Maple

0792538

Laminate Wild Cherry 0705460

Wild Cherry

0705460

Laminate Persian Cherry 0798938

Persian Cherry

0798938

Laminate Shadow Zephyr 0485760

Shadow Zephyr

0485760

Laminate Misted Zephyr 0484360

Misted Zephyr

0484360

Tier 3

Laminate Grey Elm 8201K12

Grey Elm

8201K12

Laminate Fawn Cypress 8208K16

Fawn Cypress

8208K16

Laminate Veranda Teak 8209K28

Veranda Teak

8209K28

Laminate Phantom Cocoa 8213K28

Phantom Cocoa

8213K28

Laminate Studio Teak 7960K18

Studio Teak

7960K18

Laminate Phantom Charcoal 8214K28

Phantom Charcoal

8214K28

Laminate Skyline Walnut 7964K12

Skyline Walnut

7964K12

Laminate Walnut Heights 7965K12

Walnut Heights

7965K12

Laminate Figured Mahogany 7040K78

Figured Mahogany

7040K78

Laminate Black Velvet 0159538

Black Velvet

0159538

Option 3: Base Frame Color

Colors and patterns are representative only. Actual colors and patterns may vary slightly

Base Frame Color Silver

Silver (S)

Base Frame Color Charcoal

Charcoal (C)

Base Frame Color White

White (W)

Option 4: Control Switch

Standard Switch ES-B-SWITCH

Standard Switch ES-B-SWITCH

  • Simple up/down button control switch
  • Compatible with Essentia workstations ONLY

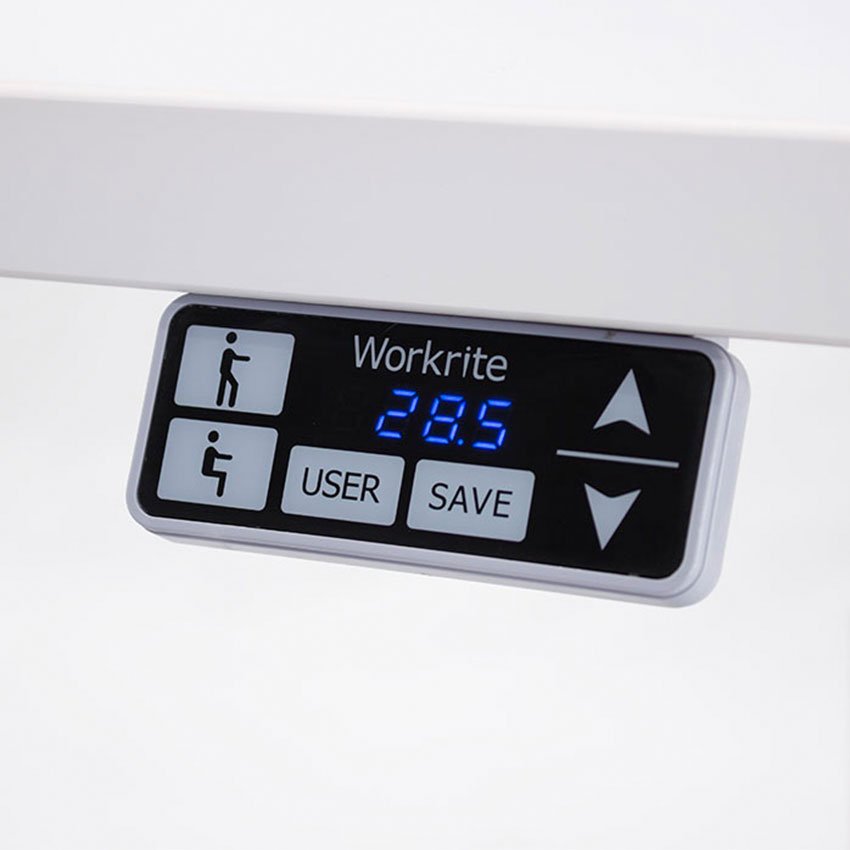

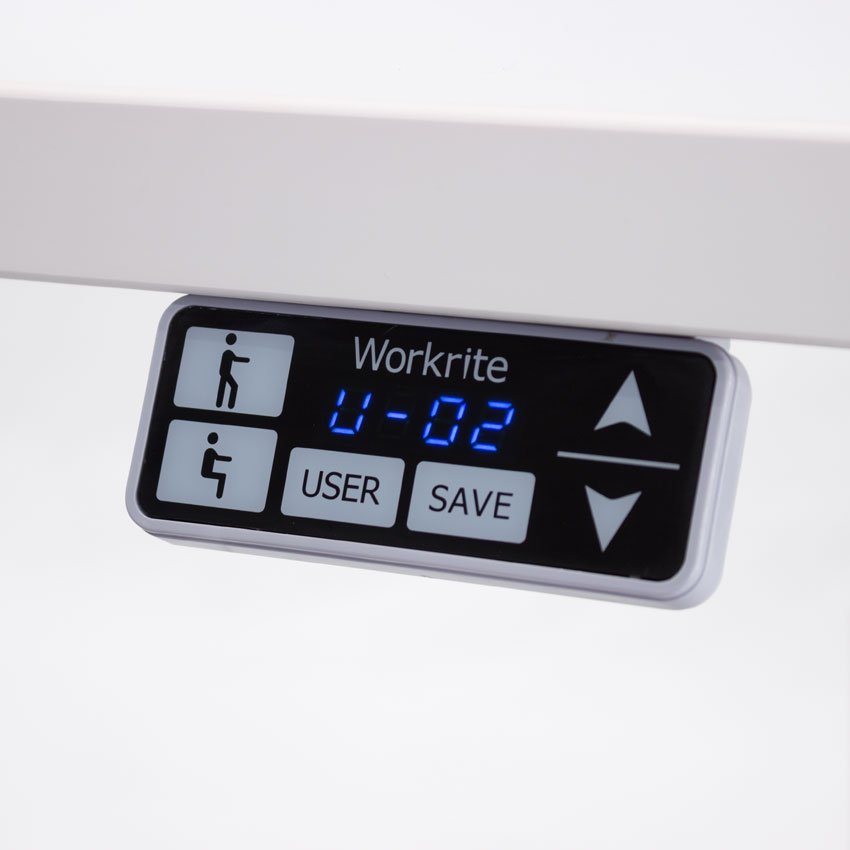

Programmable Switch ES-P-SWITCH

Programmable Switch ES-P-SWITCH

  • Inductive touch control prevents accidental movement
  • Six memory pre-sets to program sit or stand positions
  • Manual up/down control buttons
  • User lock feature
  • User programmable upper and lower height limits
  • Compatible with Essentia workstations ONLY

Option 5: Foot Type

Flat Foot Set

Flat Foot Set

Flat foot Kit is used with any Workrite electric height adjustable workcenter. Foot options are available in finishes that coordinate with our frame sets and in 24" or 30" depths.

Option 6: Casters - Wheels

Low Profile Casters

Low Profile Casters

  • Dual wheel casters designed for use on carpet floors
  • Low profile 2" w x 1.5" h, locking, 37 mm diameter black wheels
  • Casters raise work centers by 1"
  • Use with all Styled Foot and Flat Foot Kits (not available on Cascade Work centers)
  • 95234 - Four casters for 2-leg work centers, 95235 - five casters for 3-leg work centers
  • 400 lbs gross capacity

Premium Polyurethane Casters

Premium Polyurethane Casters

  • Compatible with carpet and hard flooring
  • Locking casters with smooth rolling 1"w × 3"h translucent polyurethane wheels
  • Casters raise work centers by 3.5"
  • Use with all Styled Foot and Flat Foot Kits (not available on Cascade Work centers)
  • ACC-CASTER-4PK3IN-CP - Four casters for 2-leg work centers, 400 lbs gross load capacity
  • ACC-CASTER-5PK3IN-CP - Five casters for 3-leg work centers, 500 lbs gross load capacity

Workcenter Ordering Information

Workrite’s laminated worksurfaces feature a wide variety of popular Wilsonart high pressure decorative laminates and coordinated 3 mm edgeband. The core is constructed from 1.125" thick, 45 pound density industrial grade particleboard and is backed with high quality phenolic to ensure balanced panel construction and prevent warping over the life of the product.

Our worksurfaces are available in a wide variety of shapes and sizes and are the perfect finishing touch for any of Workrite’s height adjustable frame sets or bases.

Determining the correct size and shape of your worksurface is extremely important. Combining a Workrite worksurface with any height adjustable base requires 1" of clearance at each side and in the back of the worksurface to avoid pinching or scraping. All Workrite worksurfaces are manufactured to the dimensions required to provide these clearances.

Worksurfaces are pre-drilled with mounting location for frame sets or bases.

Joining kits are provided with all two piece worksurfaces.

Standard lead time for our laminated worksurfaces is 20 business days for quantities of 10 or less. Lead times for larger product orders will be provided upon receipt of the order.

Important Notes:

  • Workcenters ship unassembled and require simple hand tools to install.

  • If using customer’s own worksurfaces, pre-drill pilot holes for all screws to ensure the most secure attachment.

  • If installing a keyboard arm or track, the electric motor control box may need to be repositioned from its pre-drilled location.

  • All workcenters have adjustable glides providing 0.5" of adjustment.

  • Mobile pedestals may limit lower height range.

Comparison Chart for Workrite Ergonomics Electric Desks


WorkRite Sierra HX Rectangular Electric Height Adjustable Table
WorkRite Fundamentals EX Electric Rectangular 2 Leg Workcenter
This item: Essentia Electric Rectangular 2 Leg Table
ISE Ascent Electric Rectangular 2 Leg Height Adjustable Workcenter
Workrite Fundamentals LX Electric Rectangular 2 Leg Workcenter
Warranty Limited Lifetime 10 Years 5 Years 5 years 10 Years
Height Range 22.5" - 48.7" 22.5" - 48.7" 22.5" - 48.7" 24" - 49.5" 27.5" - 47"
Lifting Capacity 225 lbs 125 lbs 225 lbs 250 lbs 125 lbs
Travel Speed 1.6" per second 1.6" per second 1.6" per second 1.4" 1.6" per second
Motor Manufactured in Denmark Denmark Poland China Denmark
Base Frame Set Price 722.40 695.40 737.40 653.40 581.40
  Details Details Details Details
Model Rectangular
Manufacturer Workrite Ergonomics
Part Number Rectangular
Height Range 22.5" - 48.7"
Lifting Capacity 225 lbs
Desk Type Electric
Desktop Shape Rectangular Top
Travel Speed 1.6" per second
Warranty 5 Years
Motor Manufactured in Poland
Base Frame Set Price 737.40
Width Range 30" - 90"

Review this product

Workrite Essentia Electric Rectangular 2 Leg Workcenter

Workrite #1, Sep 29, 2017
by Charlie, Novato
Workrite has been a pioneer in office ergonomics and sit-stand desks for over 25 years. Excellent quality and customer service!
0 of 0 voted this review as helpful Was this review helpful to you?

Warranty

Workrite warrants to the original purchaser that the products it manufactures are free from defects in design, material and workmanship. Subject to the limitations below, Workrite warrants each product in this catalog to be free from defects in materials and workmanship for the life of the product in its original installation. With prompt written notice, Workrite will repair or replace, free of charge, any product, part or component which fails under normal use as a result of such defect.

  • Sierra HX Height Adjustable Workcenter components - Limited Lifetime
    Electric components, motors, frames, brackets and feet.

All of the following exceptions to the limited lifetime warranty apply:

  • Fundamentals Electric Height Adjustable Workcenter components - 10 years
    Electric components, motors, frames, brackets and feet

  • Essentia Height Adjustable Workcenter components - 5 years
    Electric components, motors, frames, brackets and feet

  • Laminated worksurfaces and modesty panels - 5 years

  • Sierra HXL Crank Height Adjustable Workcenter components - 5 years
    Including crank mechanisms

  • Cascade Height Adjustable Workcenter components - 5 years
    Including counter-balance mechanisms

  • Line of Sight electrical components and manual lifts - 5 years

  • Line of Sight frames and metal desk parts - 5 years

  • Monitor supports and mounts - 10 years

  • Solace Clamp-on sit-stand products - 5 years

  • Solace Desktop sit-stand products - 2 years

  • LED and florescent lighting fixtures - 5 years

  • Lighting transformers and fluorescent ballasts - 1 year

  • Tranquility Wool & PET Felt panels and mounts - 5 years

  • Tranquility Poly Panels - 2 years

  • Fabrics, modesty panels, custom products and special order items - 2 years

  • Mousing surfaces and Slide Guide - 1 year
