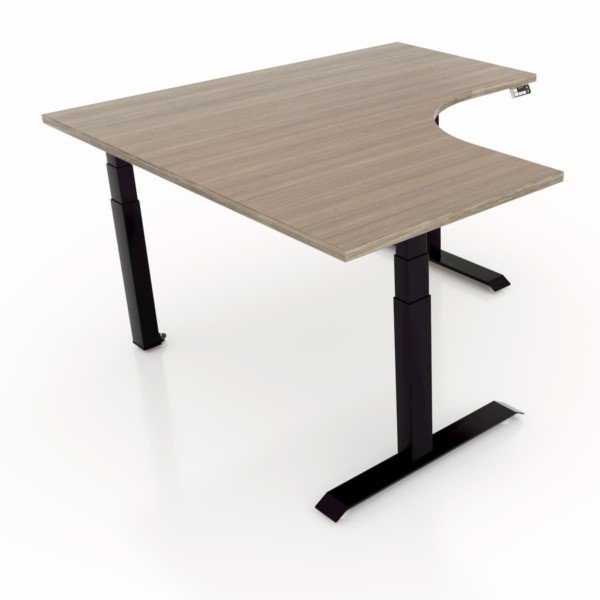

Workrite Essentia Electric Large Equal Corner 3 Leg Workcenter
Lead time for standard laminate work surface is 10 business days for quantities of 10 or less. Please call 888-456-3746 for delivery time on non-standard and special size laminate tops.
Description

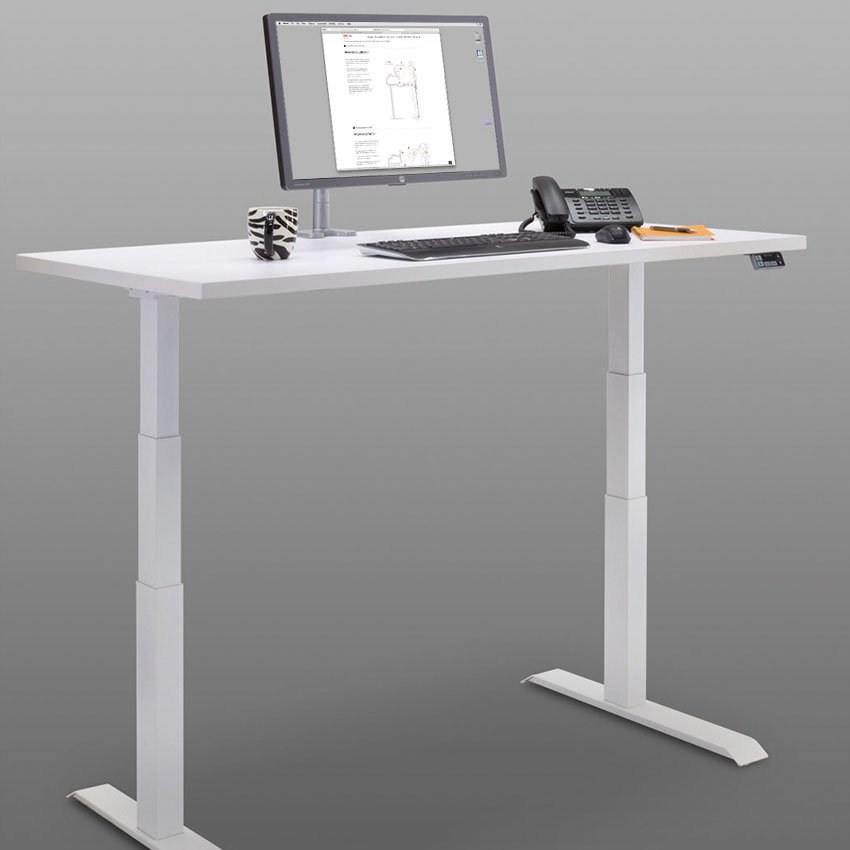

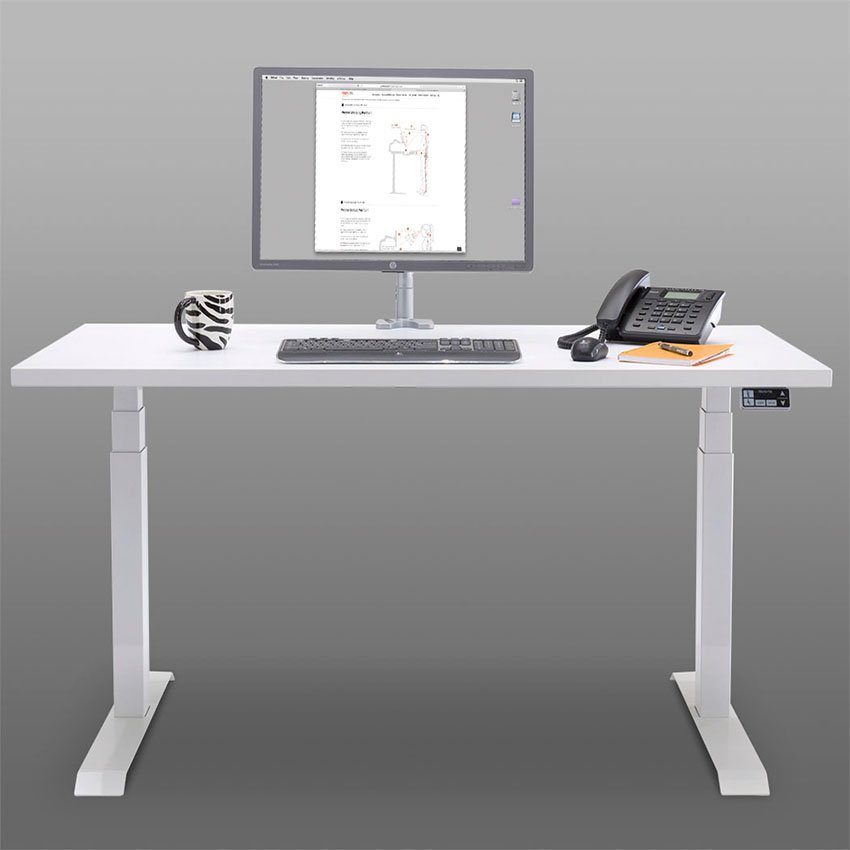

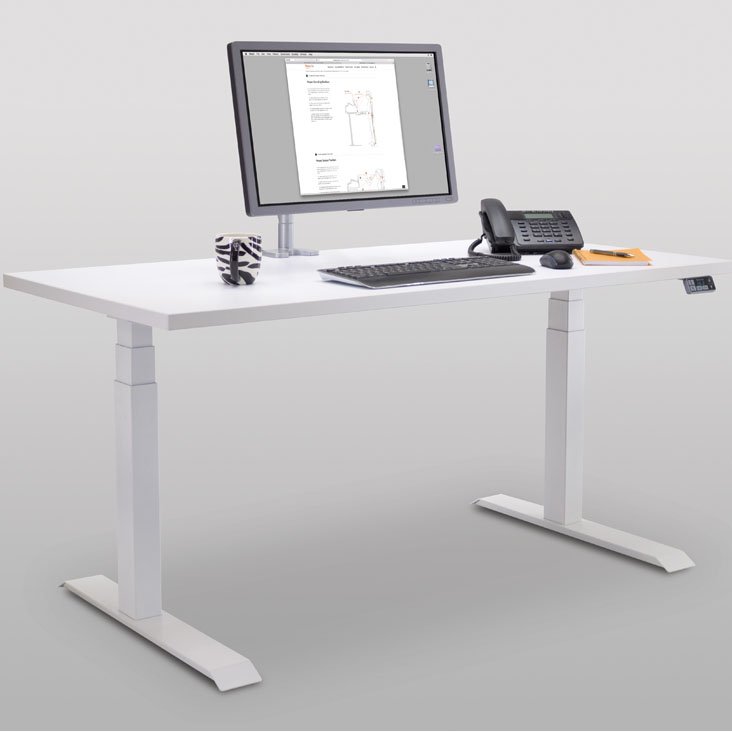

Greater flexibility for workspace design. The Essentia base sets include all parts required to assemble the full frame including motors, controls, brackets, hardware and choice of foot size and switch type to meet your needs. The Essentia bases feature seamless European profile designs and motors and controls that meet the BIFMA G1-2013 ergonomic height adjustment requirements. Available control options including our unique inductive touch control with six user memory presets.
The Essentia adjustable hidden cross bar design provides ultimate user knee clearance and comfort. Essentia’s high weight capacities handle the most intensive user equipment loads. Our wide range of sizes, configurations, and colors make Essentia an elegant choice for your office.
Dimensions
Frame Set Features
Available for 24" and 30" deep worksurfaces
Widths range from 30" to 90" wide
Finish options: silver, charcoal, white
Height range of 22.5" to 48.7" meets BIFMA G1-2013 requirements
Adjustment speed: 1.6" per second
Maximum current draw: 8 A at 120 V, 60 Hz
Standby power: 0.3 W
10′ power cord
5 year warranty
Meets or exceeds BIFMA x5.5 standards
GREENGUARD GOLD certified
UL962 certified
2-Leg Frame Set Features
Payload carry capacity: 225 lbs (after top)
Gross load capacity: 352 lbs (not including top and safety factor)
Includes software based anti-collision
3-Leg Frame Set Features
Payload carry capacity: 300 lbs (after top)
Gross load capacity: 528 lbs (not including top and safety factor)
Option 1: Surface Dimensions
Worksurface 58" x 58" x 23" ST585823-B3 and Frame Set ES3E5472-4272EOC |
Worksurface 64" x 64" x 23" ST646423-B3 and Frame Set ES3E5472-4272EOC |
Worksurface 70" x 70" x 23" ST707023-B3 and Frame Set ES3E5472-4272EOC |
Worksurface 58" x 58" x 29" ST585829-B3 and Frame Set ES3E5472-4272EOC |
Worksurface 64" x 64" x 29" ST646429-B3 and Frame Set ES3E5472-4272EOC |
Worksurface 70" x 70" x 29" ST707029-B3 and Frame Set ES3E5472-4272EOC |
Option 2: Laminate Top Colors
Colors and patterns are representative only. Actual colors and patterns may vary slightly
Tier 1
Tier 2
Option 3: Base Frame Color
Option 4: Control Switch
Standard Switch ES-B-SWITCH
- Simple up/down button control switch
- Compatible with Essentia workstations ONLY

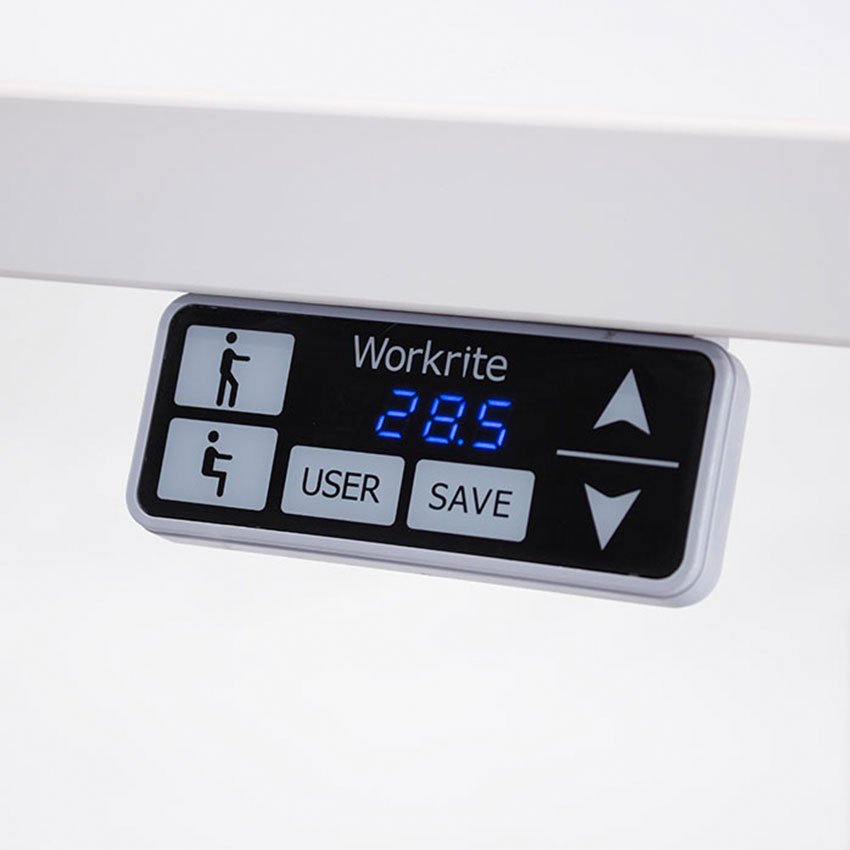

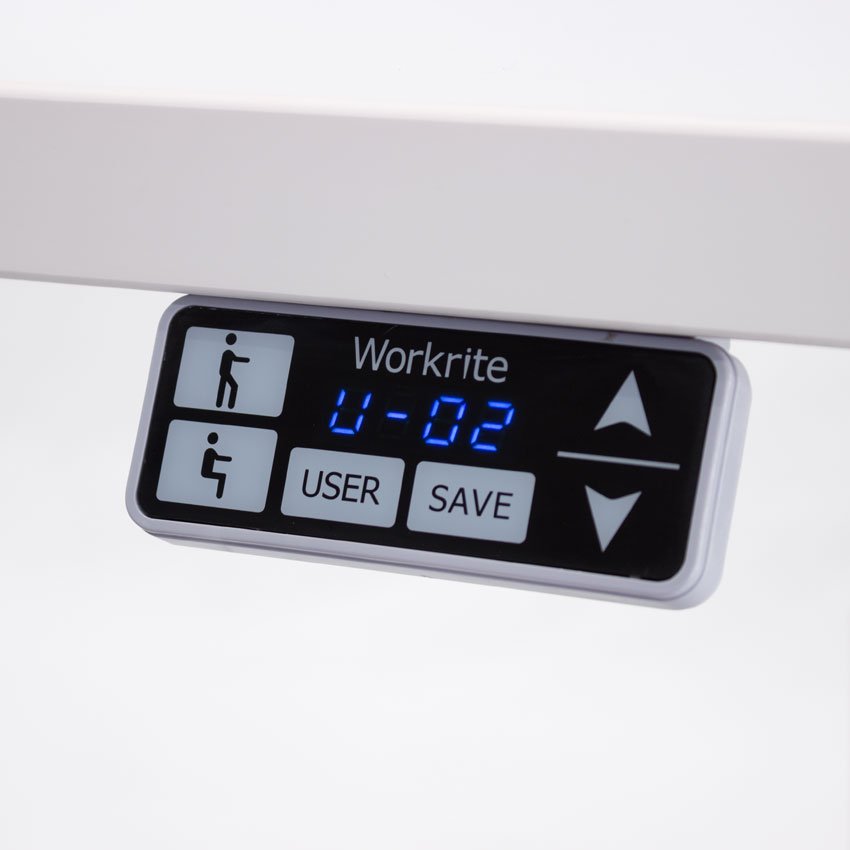

Programmable Switch ES-P-SWITCH
- Inductive touch control prevents accidental movement
- Six memory pre-sets to program sit or stand positions
- Manual up/down control buttons
- User lock feature
- User programmable upper and lower height limits
- Compatible with Essentia workstations ONLY
Option 5: Foot Type
Flat Foot Set
Flat foot Kit is used with any Workrite electric height adjustable workcenter. Foot options are available in finishes that coordinate with our frame sets and in 24" or 30" depths.
Option 6: Casters - Wheels
Low Profile Casters
- Dual wheel casters designed for use on carpet floors
- Low profile 2" w x 1.5" h, locking, 37 mm diameter black wheels
- Casters raise work centers by 1"
- Use with all Styled Foot and Flat Foot Kits (not available on Cascade Work centers)
- 95234 - Four casters for 2-leg work centers, 95235 - five casters for 3-leg work centers
- 400 lbs gross capacity
Premium Polyurethane Casters
- Compatible with carpet and hard flooring
- Locking casters with smooth rolling 1"w × 3"h translucent polyurethane wheels
- Casters raise work centers by 3.5"
- Use with all Styled Foot and Flat Foot Kits (not available on Cascade Work centers)
- ACC-CASTER-4PK3IN-CP - Four casters for 2-leg work centers, 400 lbs gross load capacity
- ACC-CASTER-5PK3IN-CP - Five casters for 3-leg work centers, 500 lbs gross load capacity
Workcenter Ordering Information
Workrite’s laminated worksurfaces feature a wide variety of popular Wilsonart high pressure decorative laminates and coordinated 3 mm edgeband. The core is constructed from 1.125" thick, 45 pound density industrial grade particleboard and is backed with high quality phenolic to ensure balanced panel construction and prevent warping over the life of the product.
Our worksurfaces are available in a wide variety of shapes and sizes and are the perfect finishing touch for any of Workrite’s height adjustable frame sets or bases.
Determining the correct size and shape of your worksurface is extremely important. Combining a Workrite worksurface with any height adjustable base requires 1" of clearance at each side and in the back of the worksurface to avoid pinching or scraping. All Workrite worksurfaces are manufactured to the dimensions required to provide these clearances.
Worksurfaces are pre-drilled with mounting location for frame sets or bases.
Joining kits are provided with all two piece worksurfaces.
Standard lead time for our laminated worksurfaces is 20 business days for quantities of 10 or less. Lead times for larger product orders will be provided upon receipt of the order.
Important Notes:
Workcenters ship unassembled and require simple hand tools to install.
If using customer’s own worksurfaces, pre-drill pilot holes for all screws to ensure the most secure attachment.
If installing a keyboard arm or track, the electric motor control box may need to be repositioned from its pre-drilled location.
All workcenters have adjustable glides providing 0.5" of adjustment.
Mobile pedestals may limit lower height range.
Product Options/Accessories












Model | Large Equal Corner |
Manufacturer | Workrite Ergonomics |
Part Number | Large Equal Corner |
Height Range | 22.5" to 48.7" |
Lifting Capacity | 300 lbs |
Desk Type | Electric |
Desktop Shape | Large Equal Corner |
Travel Speed | 1.6" per second |
Warranty | 5 Years |
Motor Manufactured in | Poland |
Width Range | 30" - 90" |
