Ergotron 45-544-216 LX Desk Mount Dual Direct Arm, No Clamp
This product has been discontinued. See below for similar products we offer instead. We apologize for the inconvenience.
Similar Products
Description
Ergotron 45-544-216 creates a fully adjustable side-by-side monitor
configuration that lifts both LCD screens simultaneously to where
they’re easier to see while reclaiming valuable desktop space. For
additional flexibility, this model allows you to choose the clamp that
best fits your work space: two-piece clamp, under mount c-clamp, top
mount c-clamp or grommet mount (sold separately).
Reposition your LCDs with just a touch. Up. Down. Forward. Back. The
low–profile crossbow allows monitors to move simultaneously with ease.
Monitors pivot up and down independently providing a compact range of
motion and optimal monitor alignment.

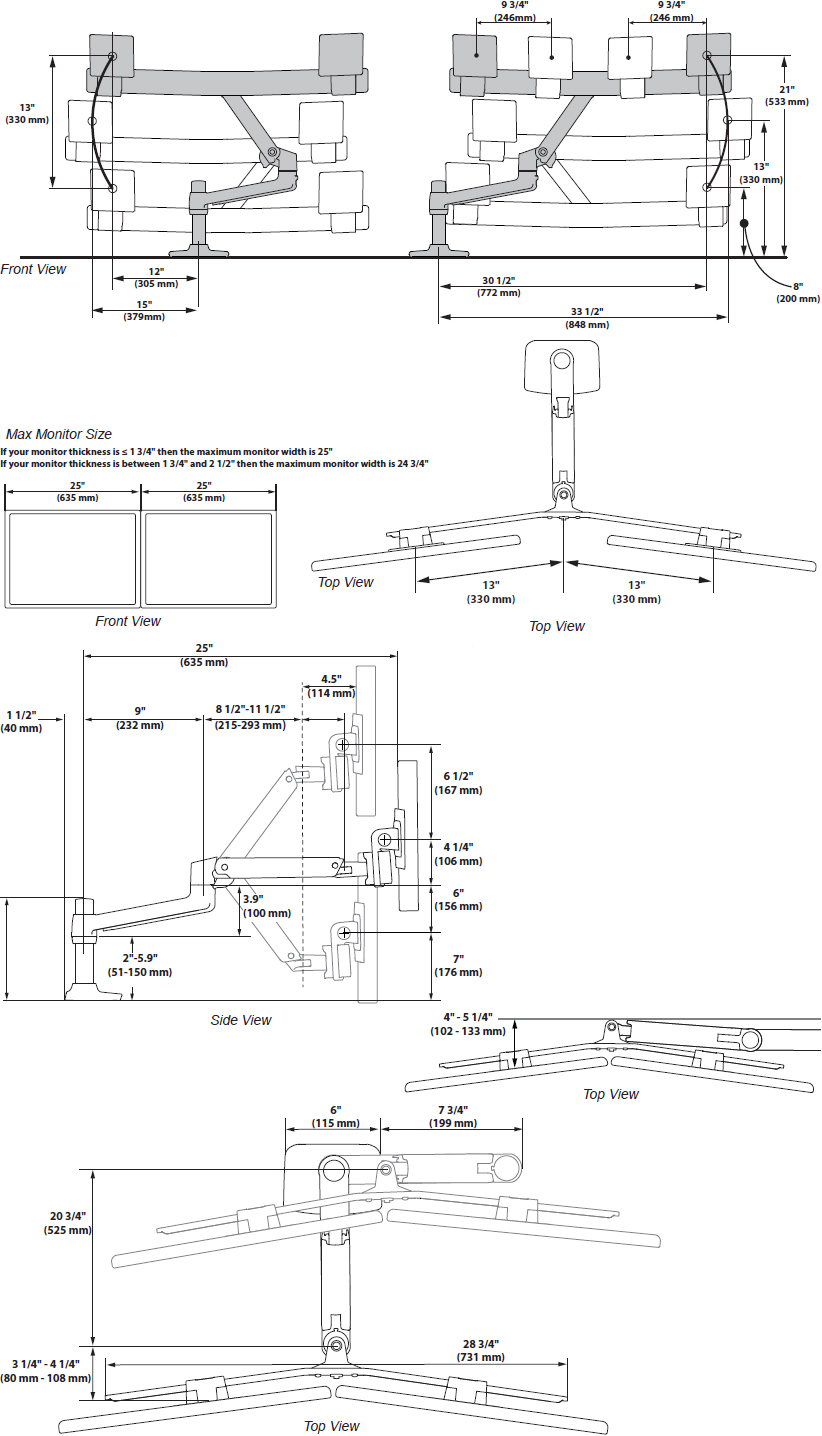

Technical Drawing
Technical Specifications
 |
 |
 |
 |
 |
 |
 |
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 25" |
2 - 11 lbs 0.9 - 5.0 kg |
13" 33.0 cm |
30° | 360° | 360° | MIS-D |
Product Information
| Part Number | 45-544-216 (white) |
| Description | LX Desk Dual Direct Arm, No Clamp |
| Includes |
|
| Mounting Options | Mounting clamp not included. Choose the mounting option that best fits your workspace: two-piece clamp, under mount c-clamp, top mount c-clamp or grommet mount (sold separately) |
| Cable Management | Streamline cable management that routes cables under arm and within extension |
| Portrait/Landscape Rotation | Portrait/landscape rotation with lockout |
| Handle | Handle for Dual Direct Arm available as an accessory (98–037–062) |
| Mounting Standards | VESA FDMI MIS–D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) |
| Weight Capacity | Maximum individual LCD weight = 2–11 lbs (1–5 kg) per monitor. Total weight capacity = 4–22 lbs (1.8–9.9 kg) |
| Note | If installed on WorkFit-T or WorkFit-TL, maximum allowable individual monitor weight is reduced to 4.8 lbs (2.2 kg). A separately order Grommet Mount (98-017) is required for attachment |
| Tilt Range | 15° backward, 15° forward |
| Extended Reach | Up to 24.3" (61.7 cm) |
| Vertical Height Adjustment | 13" (33 cm) vertical height adjustment with total monitor weight less than 17 lbs (7.7 kg). If total monitor weight greater than 17 lbs (7.7 kg), the vertical range of motion may be reduced up to 4.5" (11 cm) for a total height range of 8.5" (22 cm) |
| Maximum Outside Width of Display | Maximum outside width of display is 25.1" (63.8 cm) when displays are 1.8" (4.8 cm) thick; 24.8" (63 cm) wide when monitor is 2.6" (6.6 cm) thick. Accommodates most displays with screen–size up to 25" as well as some displays with screens as large as 27". Actual allowable width of displays will vary slightly depending on display thickness |
| Product Weight | 11.3 lbs (5.1 kg) |
| Shipping Dimensions | 32.8" x 12.8" x 7" (83 x 32 x 18 cm) |
| Shipping Weight | 14.6 lbs (6.6 kg) |
| Warranty | Ten (10) years |
Benefits
Allows you to choose the clamp that best fits your workspace: two-piece clamp, under mount c-clamp, top mount c-clamp or grommet mount (sold separately)
Increases viewing comfort: Helps reduce eye, back and neck strain
The low-profile monitor cross-bar provides a compact range of motion
Easily move two monitors simultaneously
Each monitor has individual tilt
Position LCD screens for maximum ergonomic comfort - promotes wellness in any work area
Free up your desktop to increase your workspace
Easy to use - simple installation and effortless operation
Patented CF motion technology provides premium ease-of-use display adjustment
Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment
Product Options/Accessories
Frequently Asked Questions
No FAQs available for this product. Have a question? Ask us!
Product Information
- Model 45-544-216
- Manufacturer Ergotron
- Part Number 45-544-216
- Color White
- Monitor Size Up to 25"
- Weight Capacity Maximum individual LCD weight = 2–11 lbs (1–5 kg) per monitor. Total weight capacity = 4–22 lbs (1.8–9.9 kg)
- Lift (33.0 cm) 13 in
- Tilt 30 degree
- Pan 360 degree
- Rotation 360 degree
- Mounting Pattern VESA FDMI MIS–D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
- Maximum Extension Up to 24.3" (61.7 cm)
- Weight 11.3 lbs (5.1 kg)
- Shipping Dimensions 32.8" x 12.8" x 7" (83 x 32 x 18 cm)
- Shipping Weight 14.6 lbs (6.6 kg)
- Warranty Ten (10) years
