Ergotron 28-484-180 HD Combo Arm with Small CPU Holder 28484180 DISCONTINUED

This product has been discontinued. See below for similar products we offer instead. We apologize for the inconvenience.

View Similar Products

Similar Products

Ergotron 45-270-026 StyleView® Sit-Stand Combo System, Worksurface

Accessories for Ergotron 28-484-180 HD Combo Arm Small CPU Holder

HD Extender grey

44-396-180

Quick Release

60-589-060

Motion Computing Interface Bracket

60-499-200

Animated Image for Ergotron 28-484-180 HD Combo Arm with Small CPU Holder Grey

Ergotron 28-484-180 HD Combo Arm with Small CPU Holder Grey

General Information

Buy from an Authorized Dealer

Please check Ergotron's "Where to Buy" section and look for a list of Authorized Dealers

sorted alphabetically

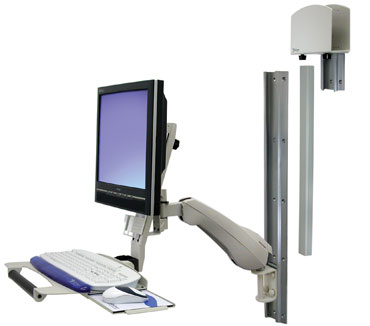

Ergotron 28-484-180 HD Combo Arm with Small CPU Holder Grey

Ergotron 28-484-180 HD Combo Arm with Small CPU Holder Grey

Ergotron 28-484-180 HD Combo Arm with Small CPU Holder Grey

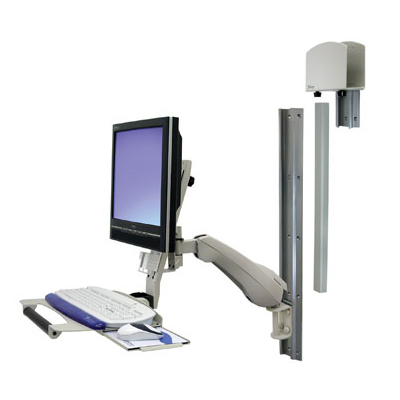

Complete system: one part number accommodates all your computer hardware. The HD Combo holds a monitor and keyboard on the same arm, providing easy, single-motion height adjustment.

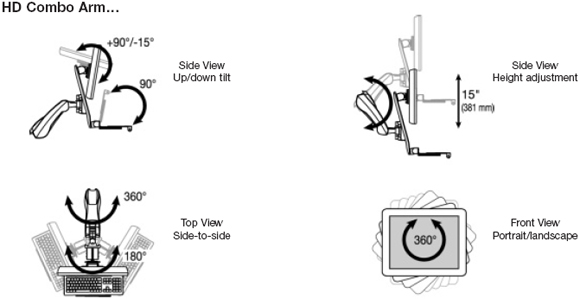

Dimensional Diagram for HD Combo Arm

Technical Specifications:

LCD Size

Wt. Capacity

Lift

Tilt

Pan

Rotation

VESA

up to 22.9"

up to 58.3 cm

up to 25 lbs

up to 11.3 kg

15"

38.1 cm

105°

180°

360˚ P/L

MIS-D

Product Information:

Part Number	28-484-180
Description	HD Combo Arm with Small CPU Holder on 10" Wall Track (grey), also available in black
Includes	34" Wall Track, 24" cable channel, mouse pad, mouse pouch, gel wrist rest, anchor hardware kit
Weight Capacity	Display = 25 lbs (11.3 kg); keyboard = 15 lbs (6.8 kg); CPU = 50 lbs (22 kg)
CPU Size Range	1-3/8" to 3-3/4" (35 to 95 mm) wide
Mounting Standards	VESA FDMI, MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
OSHPD	Pre-approval Number OPA-0620
Shipping Dimensions	45" x 20" x 10" (1143 x 508 x 254 mm)
Shipping Weight	56 lbs (25.5 kg)
Warranty	Five (5) years

Benefits:

Maintains the relative position of screen and keyboard throughout full range of motion

Adjusts 15 " vertically accommodating a wide range of user heights

Integrated cable management

OSHPD pre-approved for California hospital requirements

Images:

Ergotron 28-484-180 HD Combo Arm with Small CPU Holder Grey

Wall Track

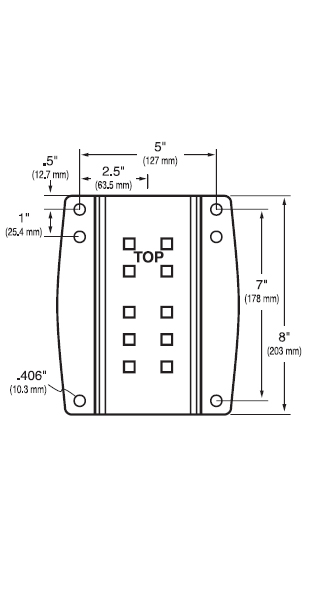

Wall Plate for HD Arms


Literature (Please open the following documents for more technical information)

Description	File Type
Dimensional Illustration of the HD Combo Arm	- pdf
Installation Instruction of the HD Combo Arm	- pdf
Product Sheet of the HD Combo Arm	- pdf
