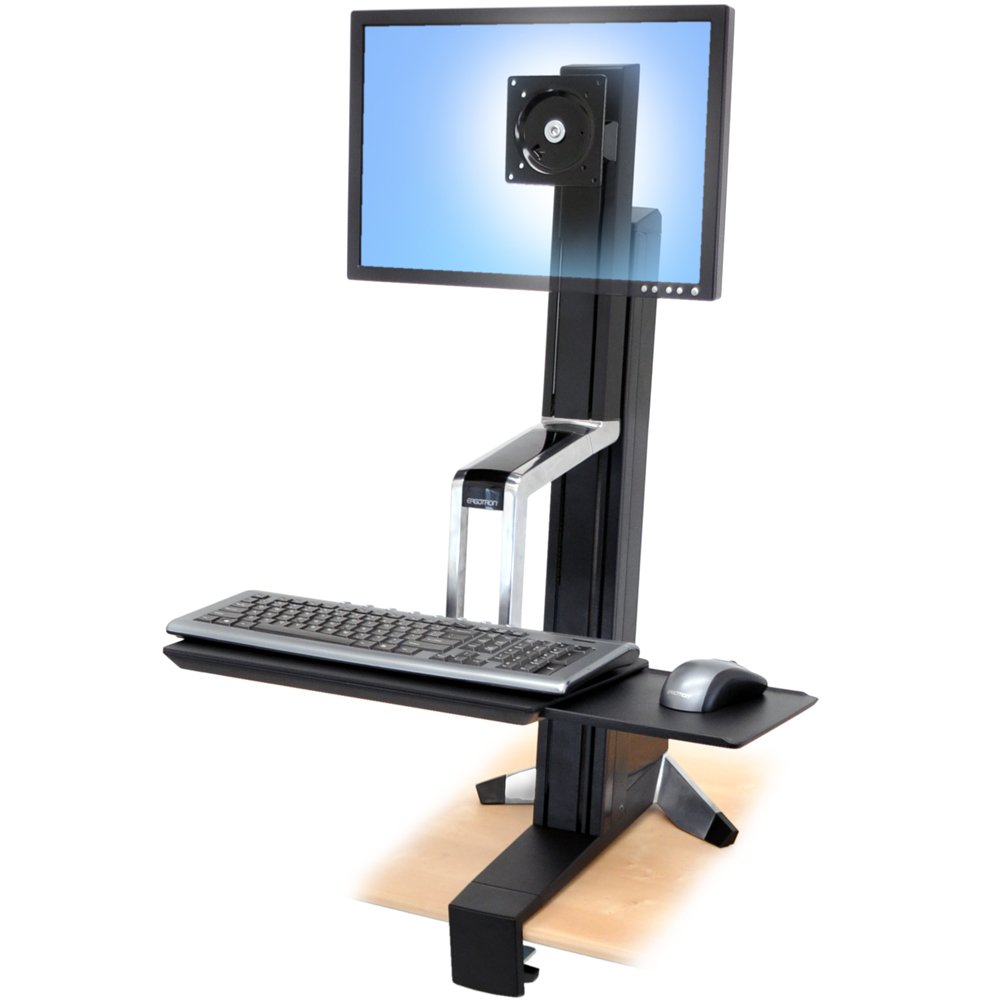

Ergotron 33-342-200 WorkFit-S, Single LD Sit-Stand Workstation

4 out of 5 (based on 2 reviews)
Product ID: 16205
Highlights
  • Sit-stand workstationConverts your desk so that you can sit or stand while working
  • 23" height adjustment: Maximum monitor height adjustment is 23"
  • 24" screen sizeSupports a monitor up to 24" in screen size
  • 6-16 lbs weight: Carries a monitor weighing 6-16 lbs
  • Keyboard tray: with a sliding mouse tray (left or right)
  • Please see, if you have a heavier, larger monitor
  • Sit-Stand video
  • Click here to see WorkFit-S Sit-Stand Comparison Chart
Recommended Accessories
List Price: $725.00
Our Price: $419.00
Shipping: $19.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States
Animation of Ergotron 33-342-200 WorkFit-S, Single LD Sit-Stand Workstation

Description

Economically priced, Ergotron 33-342-200 is an affordable entry into the sit-stand workstation market. Easy to install, the 33-342-200 can convert your desktop into a sit-stand enabled work area. Convert any surface into an adjustable-height standing desk with the attachment of the WorkFit-S. Make computing comfortable for prolonged periods - stand up whenever you want.

This sit-stand workstation is extraordinarily simple to use. With the push or pull of a hand, you can instantly raise or lower your keyboard and display in one easy motion, yet all the while the system will remain stable throughout your work routine.

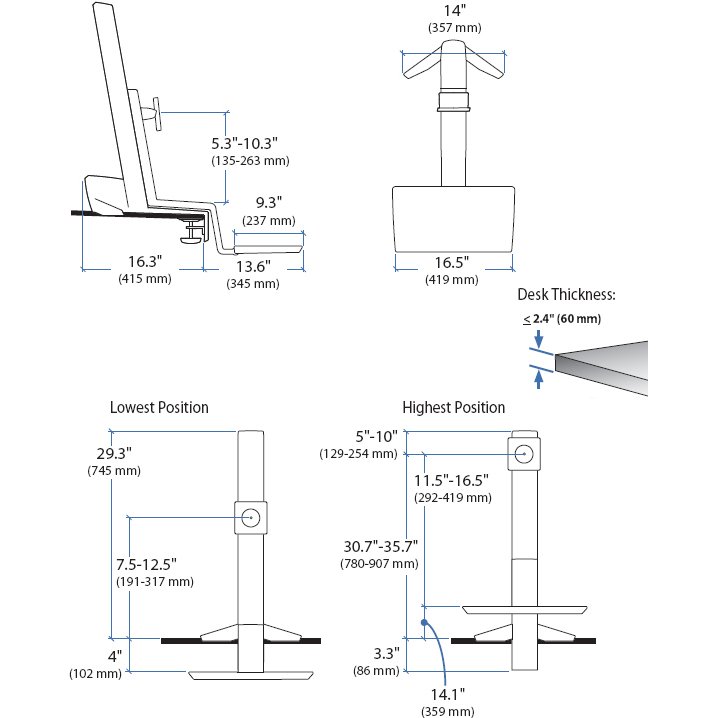

Technical Drawing

Technical Drawing for Ergotron 33-342-200 Single LD Workstation

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 24"

24 lbs

11 kg

23"

58 cm

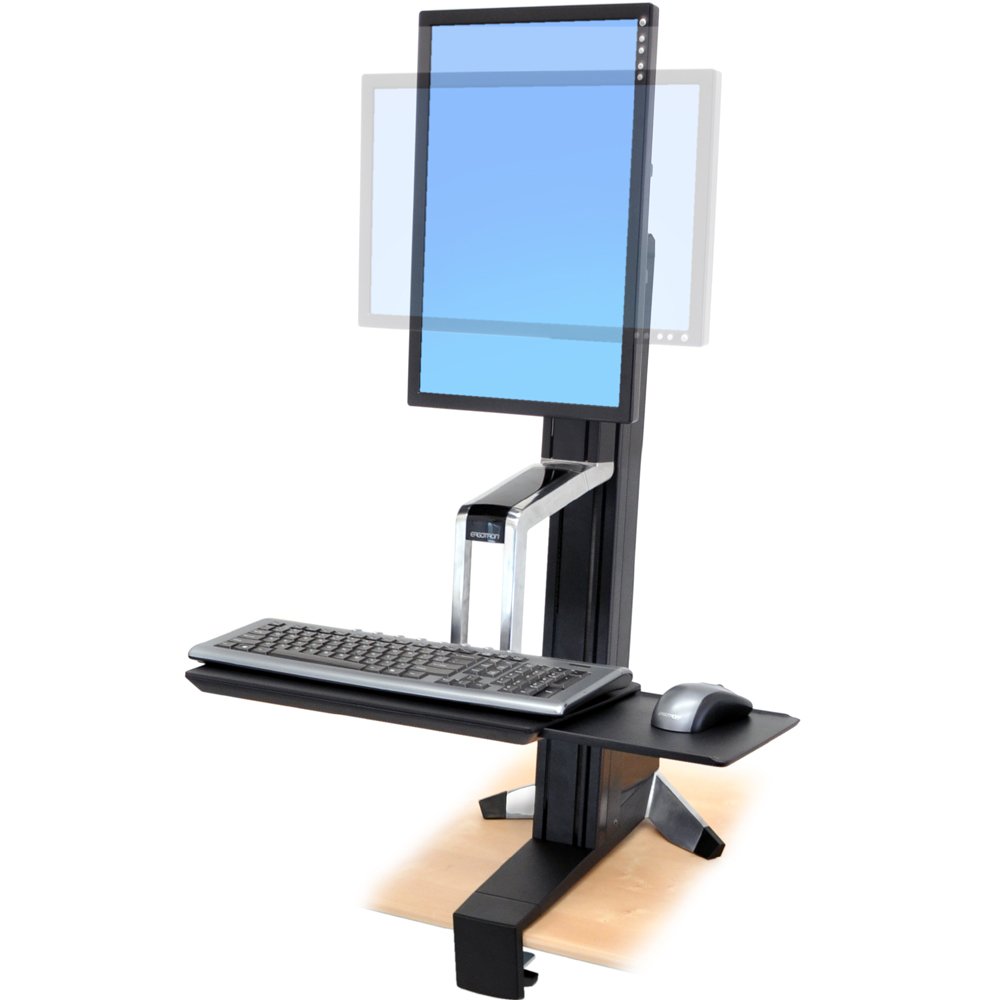

30° - 360° MIS-D

Product Information

Part Number 33-342-200
Description WorkFit-S Sit-Stand Workstation for Single LCD Monitor, LD, with Surface Mount Base (black and polished aluminum)
Includes
  • Height-adjustment column
  • Desk clamp
  • LCD pivot
  • Keyboard tray with left/right mouse tray

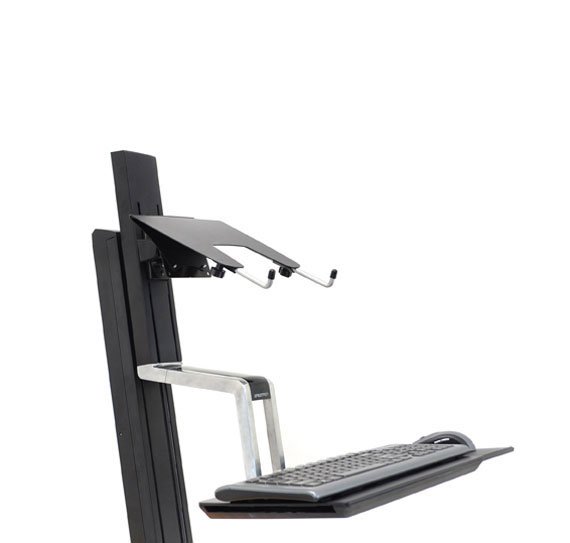

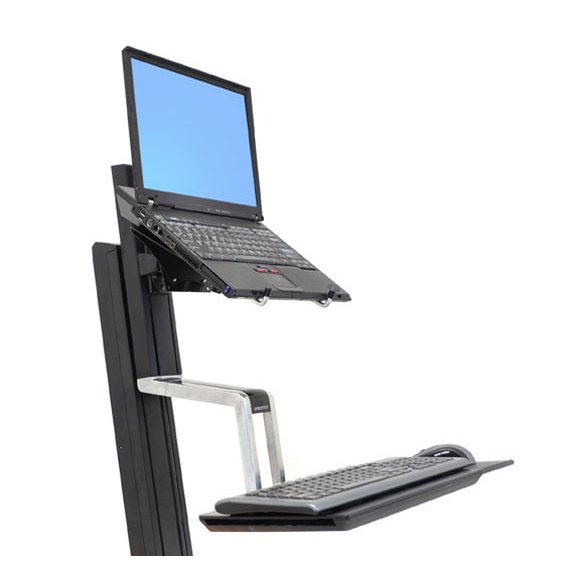

Notebook Tray Can be configured to hold a laptop instead of a monitor: also order accessory Notebook Tray (50-193-200)
Weight Capacity Maximum total load on height-adjustment assembly = 24 lbs (11 kg). LCD weight = 6–16 lbs (2.7–7.3 kg), keyboard tray ≤ 5 lbs (2.3 kg). For proper operation the total weight of components when added together should not exceed 24 lbs (11 kg)

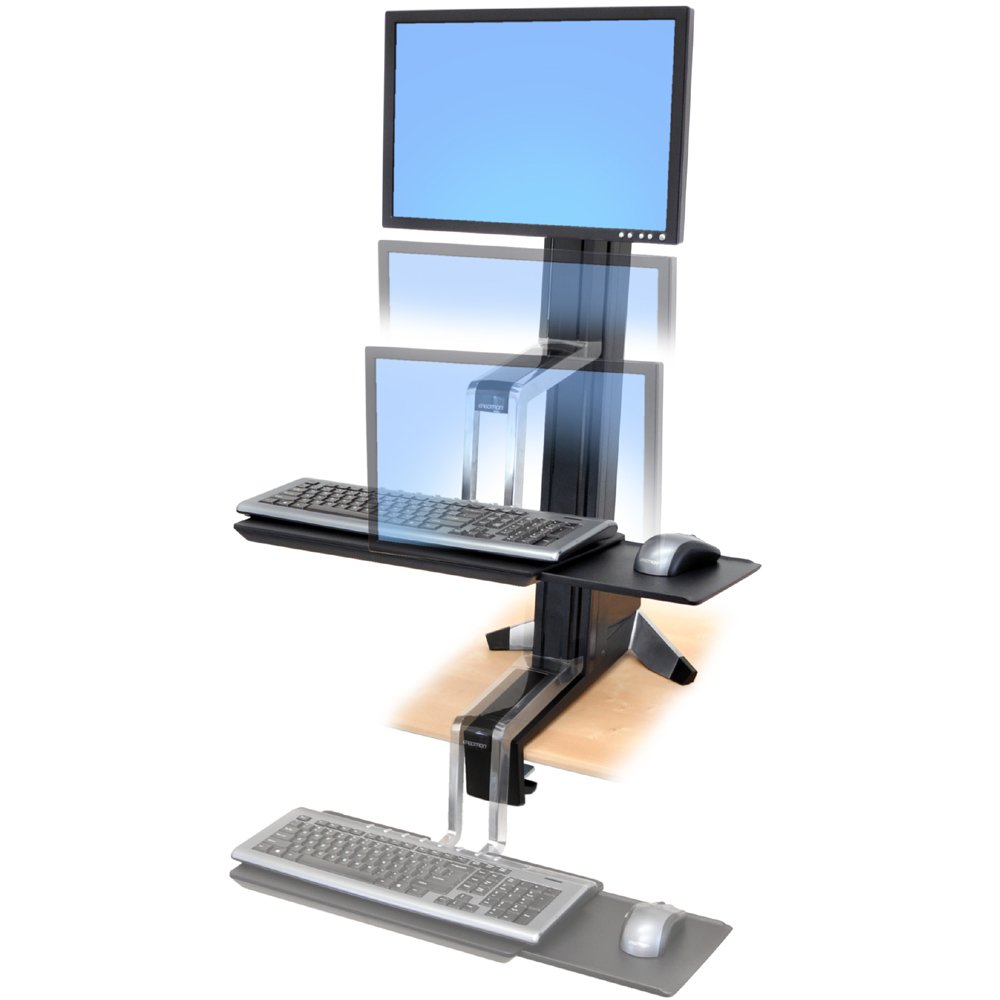

Lift Range LCD and keyboard adjust 18" (46 cm) in tandem; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 23" (58 cm)

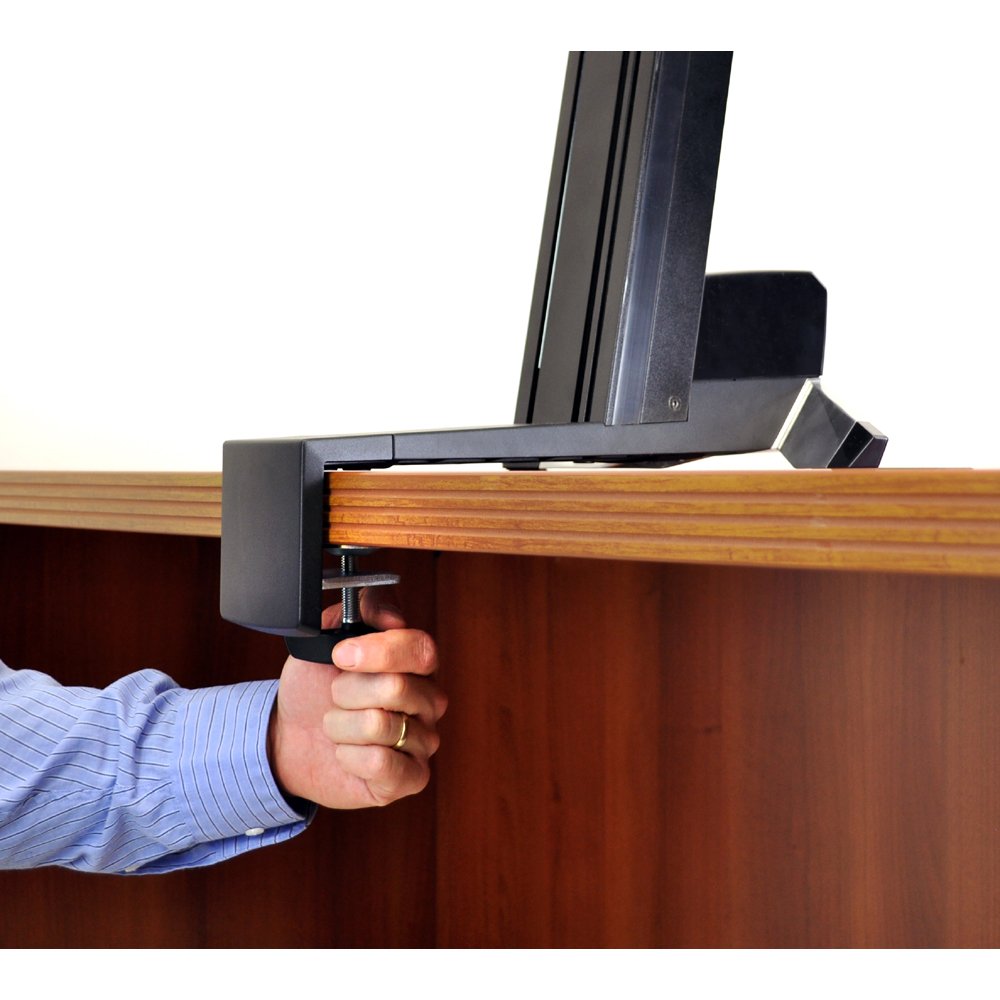

Desk Thickness Desk Clamp attaches to surface edge .47" to 2.4" (1.2 to 6 cm) thick
Keyboard Tray
  • Ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity
  • Keyboard tray includes mouse tray that installs on left or right
Exterior Durable, easy-to-clean exterior composed of aluminium, high-grade plastic and powder coated painted steel

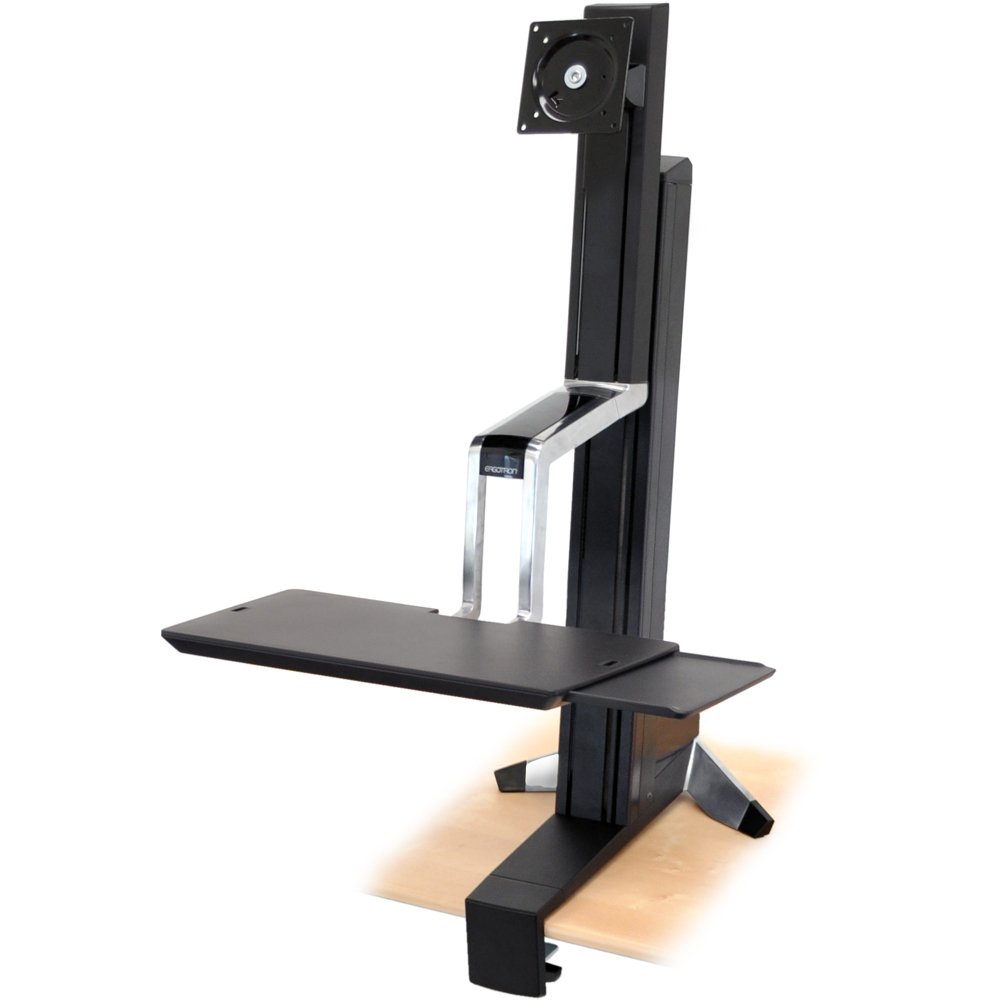

Mounting Standards VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Certified This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)
Note
  • Extra-long cables may be required to span between standing and sitting heights
  • Because mounting surface materials can vary widely, it is imperative that you make sure mounting surface is strong enough to handle mounted product and equipment
Shipping Dimensions 8"H x 23"W x 44"D (20 x 58 x 115 cm)
Shipping Weight 38.5 lbs (17.5 kg)
Warranty Five (5) years

Benefits

Premium Ergonomics

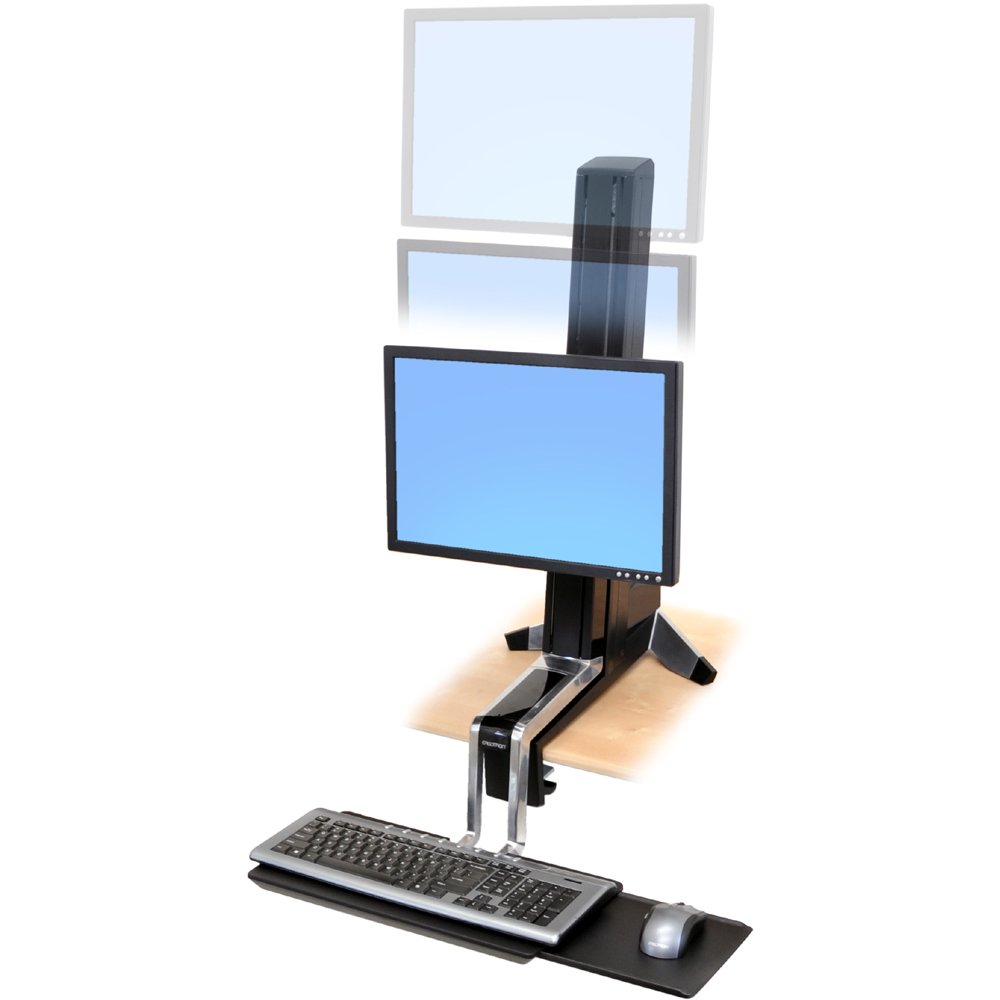

  • When sitting, lower your keyboard below desktop height to proper ergonomic position
  • Independent monitor screen adjustment
  • Easily and simultaneously lift keyboard and monitor to your height for unsurpassed comfort
  • Counterbalanced adjustment points using patented Constant Force technology allow instantaneous, tool-free re-positioning while you work

For Computer Users

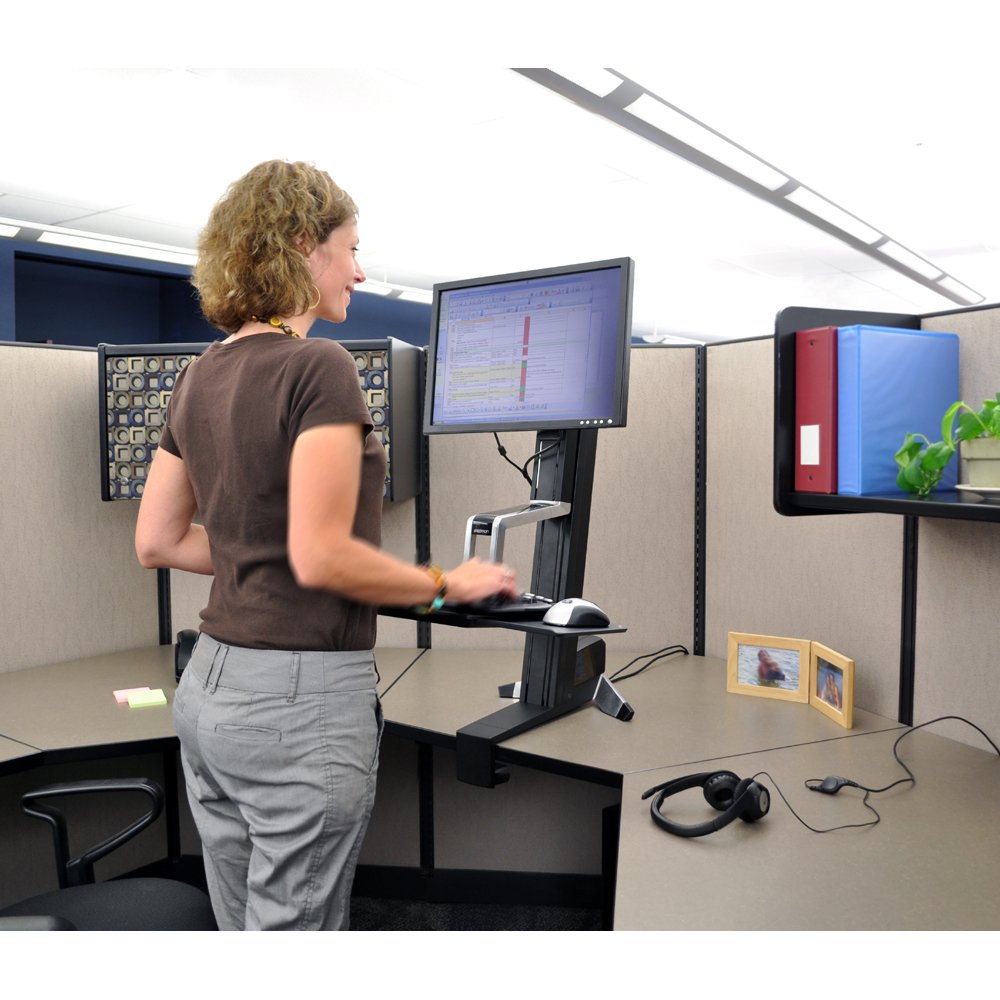

  • Improve your energy and productivity by standing or sitting as you work, and then switch positions whenever you choose. This work style encourages healthy movement throughout the day
  • Promote fitness and comfort as you compute, reducing potential back and neck pain by adding movement into your work routine in a truly ergonomic workstation
  • Burn more calories by choosing to stand for periods of your work-day; periodic standing also promotes greater bone density and better sleep at night. WorkFit-S counteracts an increasingly sedentary workstyle

For IT and Facilities Staff

  • IT deployment friendly - convert most work areas into a productive and complete computer workstation in minutes
  • Modify existing office spaces or cubes by simply clamping a WorkFit-S on an existing worksurface, without the cost of expensive professional installers
  • Safe and neat routing of cables
  • Flexible, open-architecture design is scalable for future computer equipment

For Company Cost Savings

  • Manage the cost of healthcare premiums by promoting wellness in the daily work routine
  • Provide standing work platforms for employees without having to buy expensive height-adjustable chairs
  • Comfortable computing offers provable ROI on investment - healthcare costs associated with unhealthy computing and missed time are reduced while productivity increases
  • Standing supports healthy neck and back conditions. According to the 2007 OE Medicine Journal, back and neck pain are cited as the most costly conditions affecting employees
  • Studies in office ergonomics show productivity increases 12%–18% following an ergonomic intervention where employees are provided with well-designed ergonomic furniture

WorkFit-S Comparison Chart


Ergotron 33-342-200 WorkFit-S, Single LD Sit-Stand Workstation
This item: 33-342-200 WorkFit-S Single LD Desk Mount
Ergotron 33-344-200 WorkFit-S, Single HD Sit-Stand Workstation
Standing Desk Converter, Ergotron 33-349-200 WorkFit-S Dual Monitor with Worksurface
Ergotron 33-350-200 WorkFit-S, Single LD with Worksurface
Ergotron 33-351-200 WorkFit-S, Single HD with Worksurface
Screen Size Up to 30 in Up to 24 in Up to 24 in Up to 30 in
Monitor Weight 6-16 lbs 16–28 lbs (7.3–12.7 kg) 6–12 lbs (2.7–5.5 kg) each 6–16 lbs (2.3–7.3 kg) 16–28 lbs (7.3–12.7 kg)
Lift (58 cm) 23 in (58 cm) 23 in (58 cm) 22.8 in (58 cm) 22.8 in (58 cm) 22.8 in
Tilt 30 degree 30 degree 0 degree 30 degree 30 degree
Suspended Keyboard Yes Yes Yes Yes Yes
Keyboard Tray Dimensions 24" W x 7.9" D 16.5" W x 9.3" D 0.25"H x 27"W x 9"D (6 x 685 x 226 mm) 0.25"H x 27"W x 9"D (6 x 685 x 226 mm) 0.25"H x 27"W x 9"D (6 x 685 x 226 mm)
Worksurface No No Yes Yes Yes
Worksurface Dimensions -- 0.25"H x 23"W x 15"D (6 x 585 x 380 mm) 0.25"H x 23"W x 15"D (6 x 585 x 380 mm) 0.25"H x 23"W x 15"D (6 x 585 x 380 mm)
Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm). For displays that use a 200 x 100 mm, 200 x 200 mm, 400 x 200 mm, 400 x 300 mm or 400 x 400 mm hole pattern, the VESA Bracket Adaptor Kit (97-759) can be ordered separately VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm)
Warranty Five (5) years Five (5) years Five (5) years Five (5) years Five (5) years
Shipping Weight 38.5 lbs (17.5 kg) 38.5 lbs (17.5 kg) 44 lbs (20 kg) 44 lbs (20 kg) 44 lbs (20 kg)
Shipping Dimensions 8"H x 23"W x 44"D (20 x 58 x 115 cm) 8"H x 23"W x 44"D (20 x 58 x 115 cm) 8"H x 23"W x 44"D (20 x 58 x 115 cm) 8"H x 23"W x 44"D (20 x 58 x 115 cm) 8"H x 23"W x 44"D (20 x 58 x 115 cm)
  Details Details Details Details
Model 33-342-200
Manufacturer Ergotron
Part Number 33-342-200
UPC 698833012644
Weight Capacity 24 lbs (11 kg)
Lift (58 cm) 23 in
Tilt 30 degree
Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Shipping Weight 38.5 lbs (17.5 kg)
Shipping Dimensions 8"H x 23"W x 44"D (20 x 58 x 115 cm)
Warranty Five (5) years
Color Black and polished aluminum
Rotation 360 degree
Desktop Thickness Range Desk Clamp attaches to surface edge .47" to 2.4" (1.2 to 6 cm) thick
Mounting Options Desk
Desk Type Desk Mount
Monitor Weight 6-16 lbs
Suspended Keyboard Yes
Keyboard Tray Dimensions 24" W x 7.9" D
Worksurface No
Monitor Arm Types Sit-Stand Workstation
Monitor Size Up to 24"
Price $400 - $499

Review this product

Ergotron 33-342-200 WorkFit-S, Single LD Sit-Stand Workstation

Amazing, Oct 24, 2016
by Christopher P, San diego, California
So happy with this product. Easy to set up. Extremely sturdy and simple to adjust. I am now a stand up desk convert.
2 of 2 voted this review as helpful Was this review helpful to you?
Treads not clean, Nov 2, 2015
by Donald G, California
Some of the machine threads are not clean and make it very hard to put together without chasing the threads with a tap before use.

There are holes in metal that have threads for machine screws. The screws will not screw in because the threads are not clean. I don't know what the problem is (maybe too much paint, maybe a warn tap at the factory, maybe a little of both). All I know is I had to take a tap and run it thought some of the holes before I could put the machine screws in. On the last one it was the threaded holes that hold the key board tray in place. On an earlier one I had gotten (a month or so ago) it was the threaded holes that hold the bar for the two monitors.
2 of 2 voted this review as helpful Was this review helpful to you?
