Ergotron 33-351-200 WorkFit-S, Single HD with Worksurface

Product ID 16976
HIGHLIGHTS

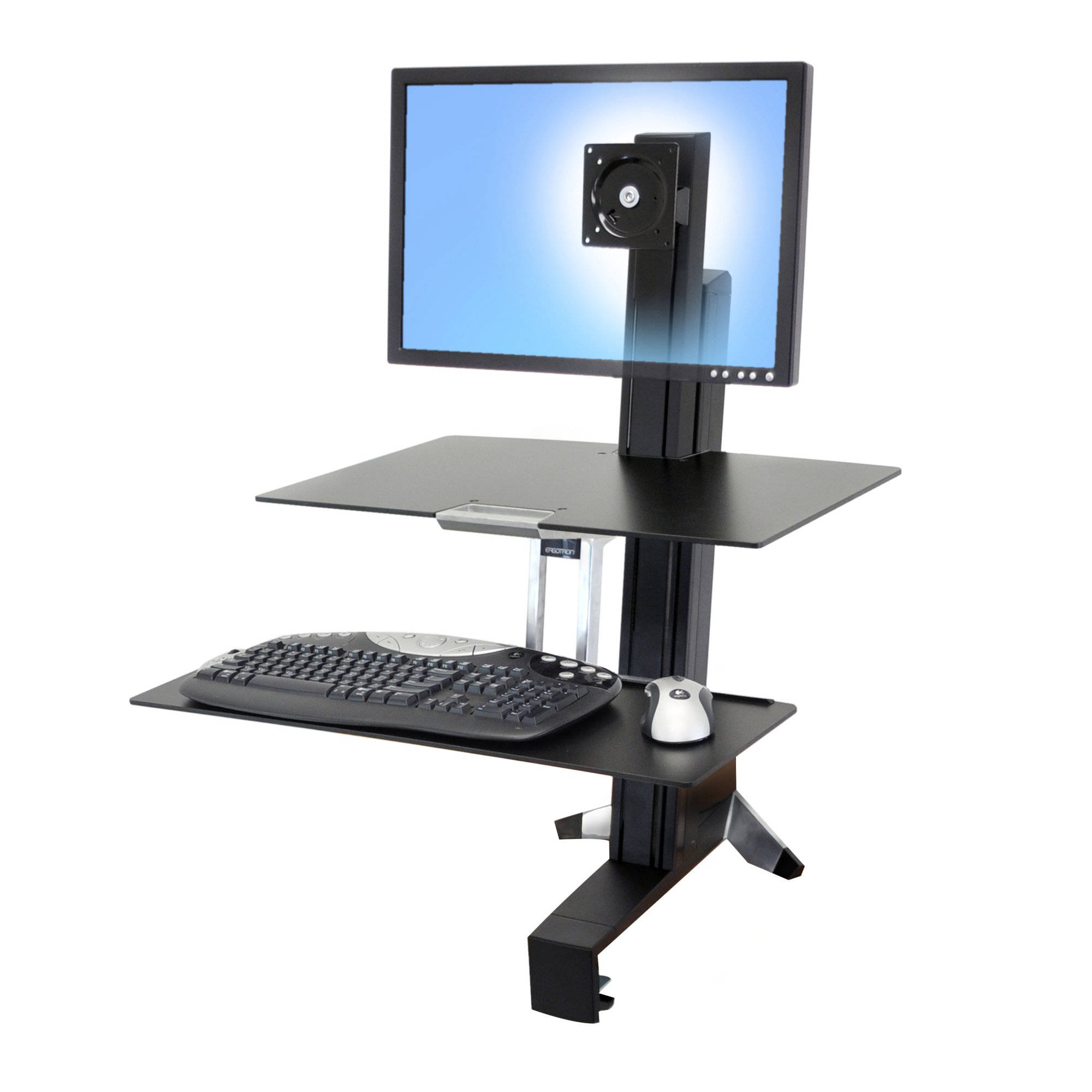

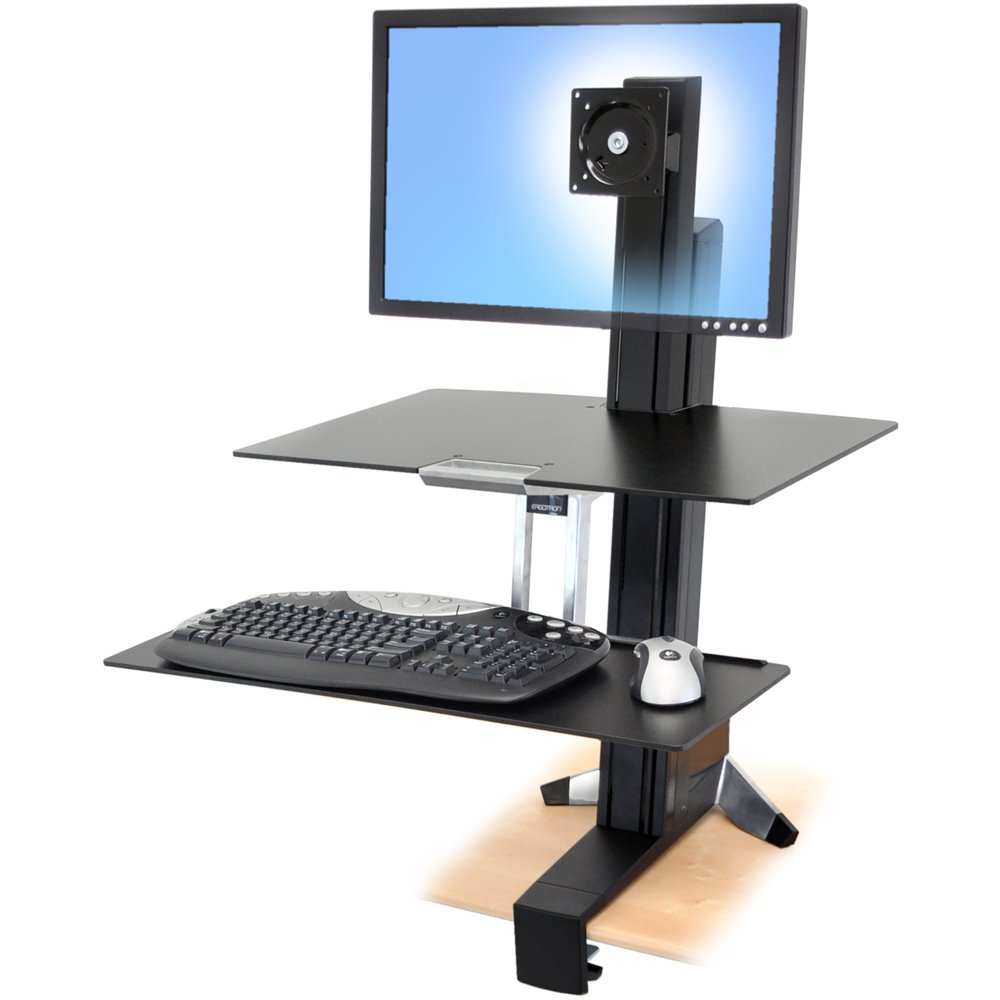

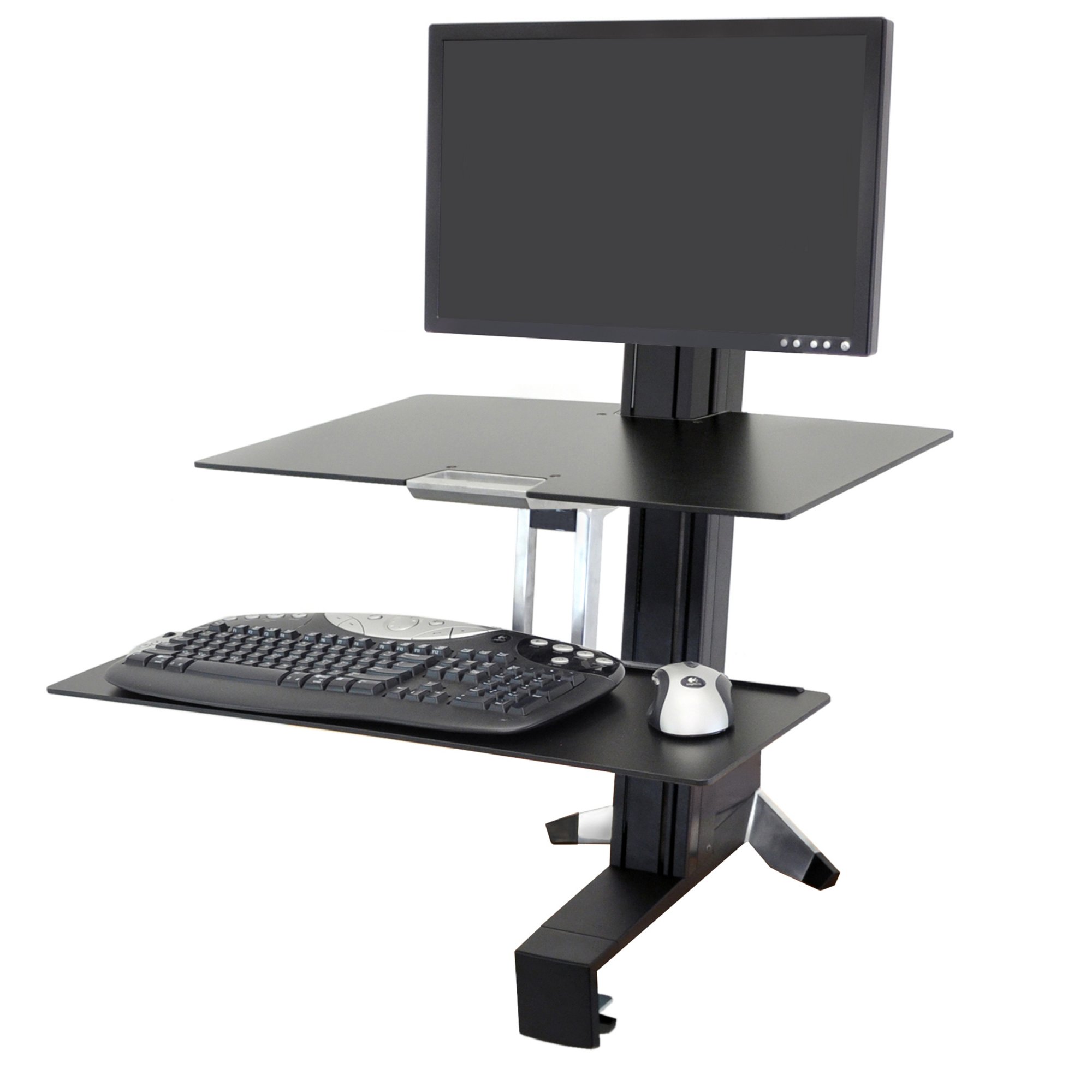

Ergotron 33-351-200 WorkFit-S, Single HD with Worksurface
Ergotron 33-351-200 WorkFit-S, Single HD with Worksurface

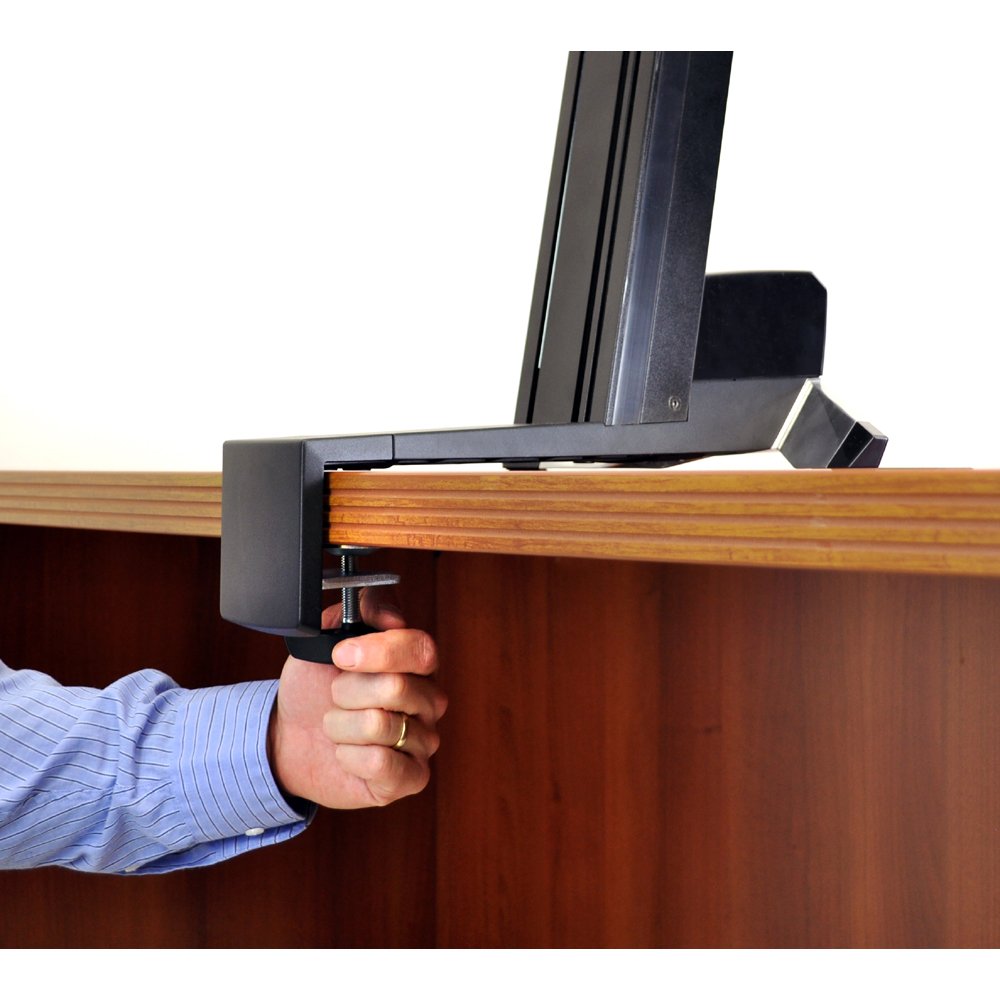

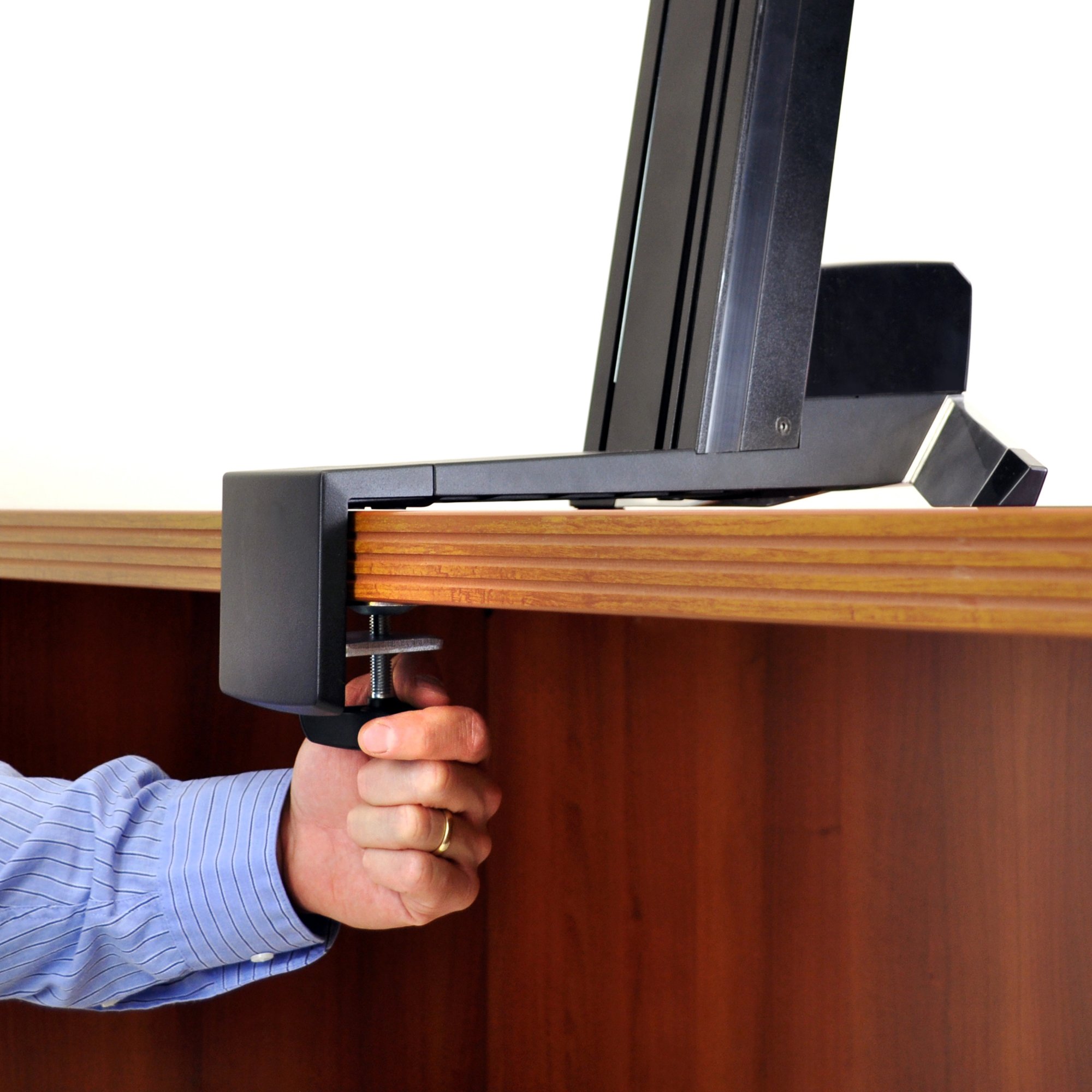

Desk clamp of Ergotron 33-351-200 WorkFit-S

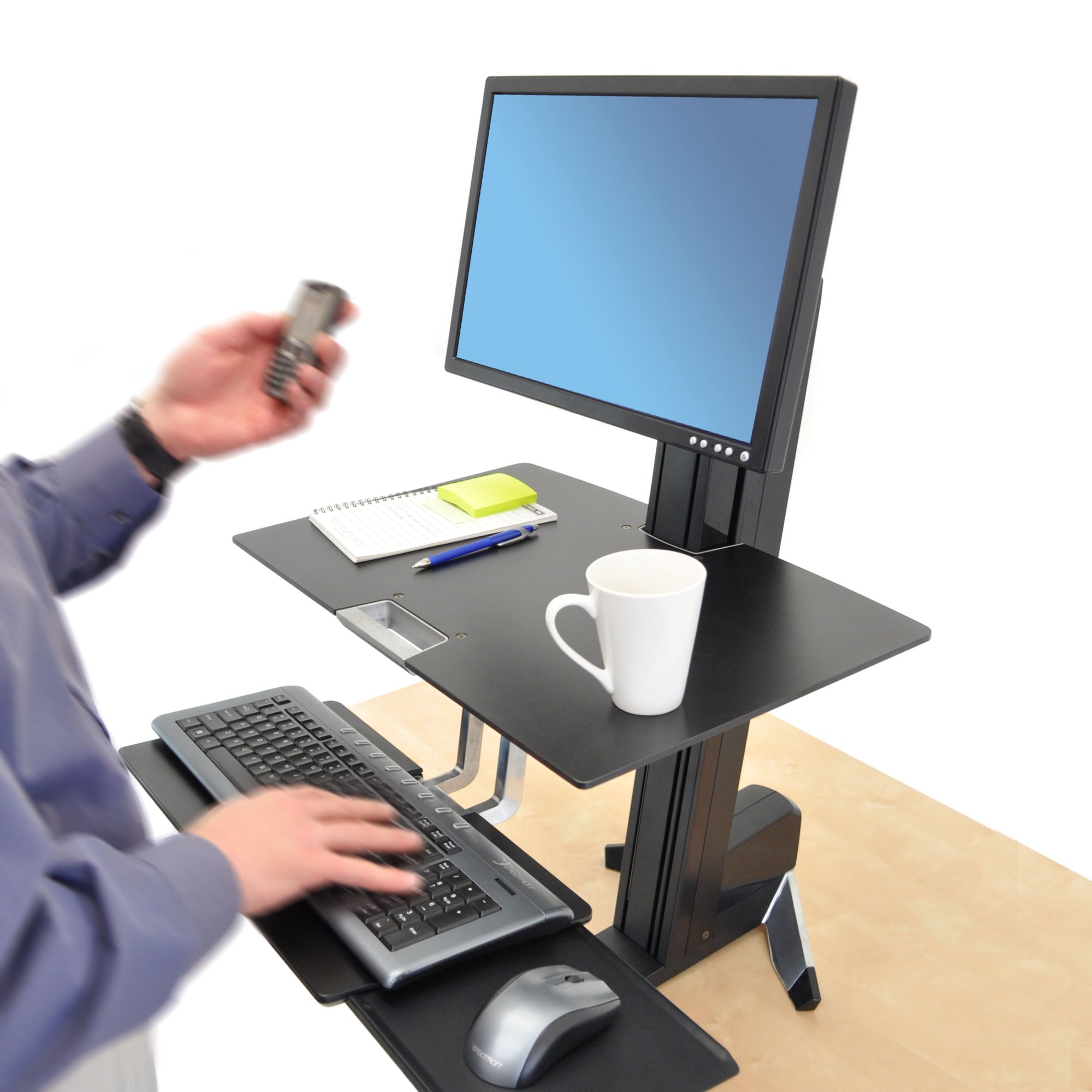

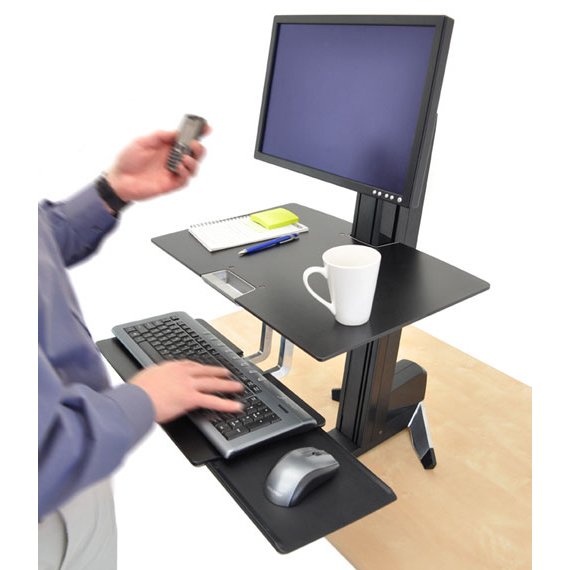

Ergotron 33-351-200 at work!
Technical drawing of Ergotron 33-351-200 Sit-Stand Workstation

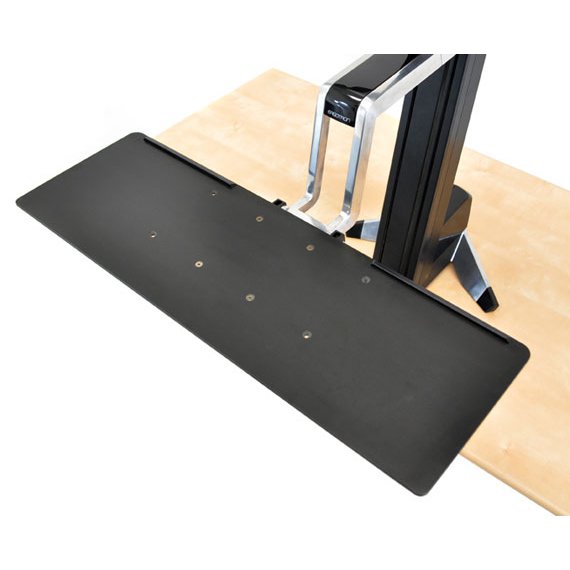

Large Keyboard Tray of Ergotron 33-351-200 WorkFit-S
Desk clamp of Ergotron 33-351-200 WorkFit-S
Ergotron 33-351-200 at work!
Ergotron 33-351-200 WorkFit-S, Single HD with Worksurface
Ergotron 33-351-200 WorkFit-S, Single HD with Worksurface
Desk clamp of Ergotron 33-351-200 WorkFit-S
Ergotron 33-351-200 at work!
Technical drawing of Ergotron 33-351-200 Sit-Stand Workstation
Large Keyboard Tray of Ergotron 33-351-200 WorkFit-S
Desk clamp of Ergotron 33-351-200 WorkFit-S
Ergotron 33-351-200 at work!

Highlights

  • Sit-Stand workstationConverts your desk to a sit-stand workstation
  • 22.8" height adjustment: Enables sitting or standing while working
  • 30" screen sizeSupports single monitor up to 30" in screen size
  • 16-28 lbs monitor weight: Carries a monitor weighing from 16-28 lbs
  • 23"x15" Worksurface dimensions
  • 27"x9" Keyboard tray
  • Please see, if you have a smaller, lighter monitor
  • Please see, if you want this WorkFit-S in white color
  • Click here to see WorkFit-S Sit-Stand Comparison Chart

Description

Ergotron 33-351-200 converts your working desk into an ergonomic workstation that lets you work sitting or standing. A large keyboard tray and extra worksurface to hold the phone, tablet and other writing material make the workstation self-sufficient.

Convert any surface into an adjustable-height standing desk with the attachment of the WorkFit-S. Make computing comfortable for prolonged periods - stand up whenever you want.

This sit-stand workstation is extraordinarily simple to use. With the push or pull of a hand, you can instantly raise or lower your keyboard and display in one easy motion, yet all the while the system will remain stable throughout your work routine.

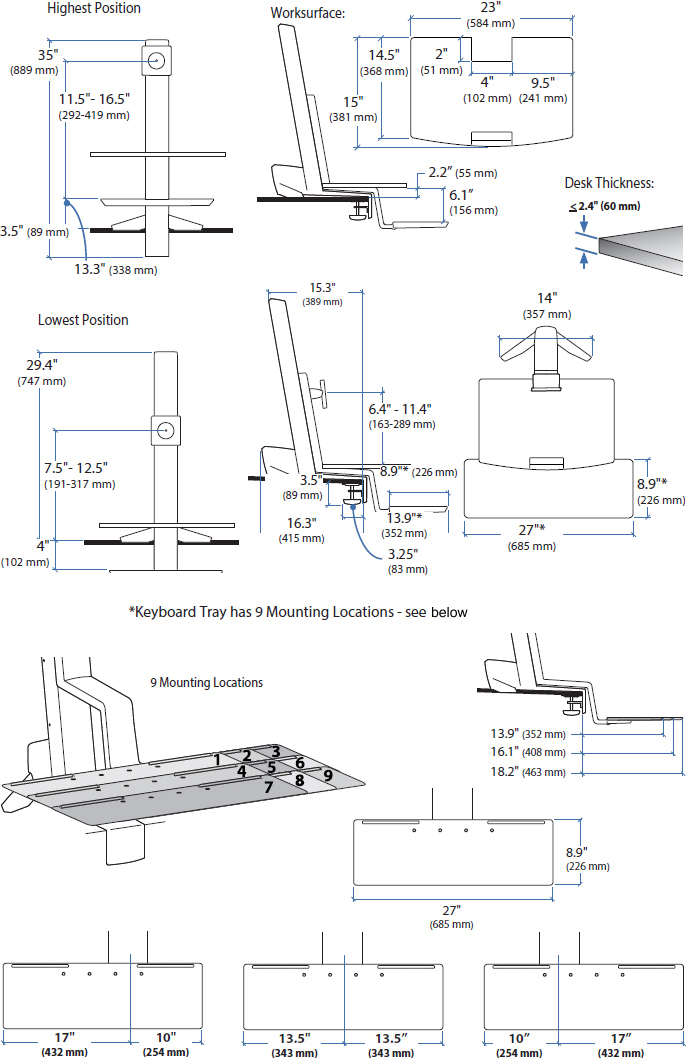

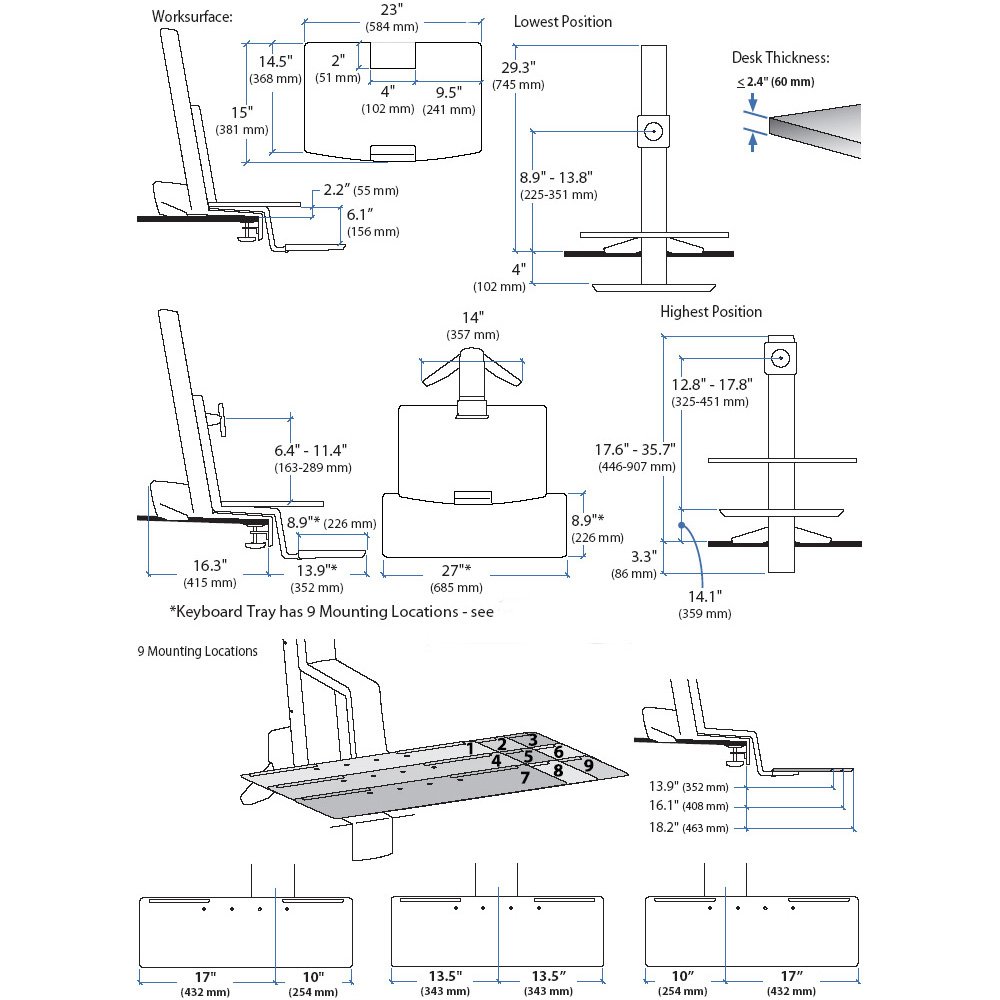

Technical Drawing

Technical drawing for Ergotron 33-351-200 WorkFit-S, Single HD with Worksurface

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 30"

16 - 29 lbs

7.3 - 13.2 kg

22.8"

57.9 cm

30° - 360° MIS-D

Product Information

Part Number 33-351-200
Description WorkFit-S Sit-Stand Workstation for Mid-Size Monitor, HD, with Worksurface and Large Keyboard Tray (black)
Includes
  • Height-adjustment column
  • Desk clamp
  • LCD pivot
  • Worksurface
  • Large keyboard tray
Weight Capacity

Maximum total load on height-adjustment assembly = 29 lbs (13.2 kg). LCD weight = 16–28 lbs (7.3–12.7 kg), worksurface ≤ 5 lbs (2.3 kg), keyboard tray ≤ 5 lbs (2.3 kg).

For proper operation the total weight of components when added together should not exceed 29 lbs (13.2 kg)

Lift Range

LCD and keyboard adjust 18" (46 cm) in tandem; LCD adjusts 4.8" (12.2 cm) independently; maximum LCD height adjustment = 22.8" (58 cm).

The worksurface restricts the vertical travel range of the LCD lift pivot; height adjustment of LCD without worksurface is 5" (13 cm)

Mounting Standards

VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm).

For displays that use a 200 x 100 mm, 200 x 200 mm, 400 x 200 mm, 400 x 300 mm or 400 x 400 mm hole pattern, the VESA Bracket Adaptor Kit (97-759) can be ordered separately

Desk Clamp Desk Clamp attaches to surface edge .47" to 2.4" (1.2 to 6 cm) thick
Keyboard Tray
  • Ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity
  • Keyboard tray can be installed in nine potential locations relative to the monitor: centered or off-set to left or right; at standard focal distance or 2.2" (5.6 cm) or 4.4" (11.2 cm) farther away
Worksurface Dimensions 0.25"H x 23"W x 15"D (6 x 585 x 380 mm)
Keyboard Tray Dimensions 0.25"H x 27"W x 9"D (6 x 685 x 226 mm)
Exterior Durable, easy-to-clean exterior composed of aluminium, high-grade plastic and powder coated painted steel
Certified This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)
NOTE
  • Extra-long cables may be required to span between standing and sitting heights
  • Because mounting surface materials can vary widely, it is imperative that you make sure mounting surface is strong enough to handle mounted product and equipment
Shipping Dimensions 8"H x 23"W x 44"D (20 x 58 x 115 cm)
Shipping Weight 44 lbs (20 kg)
Warranty Five (5) years

Benefits

Premium Ergonomics

  • Install keyboard tray at focal distance that is right for you: closer or farther; left, right or centered
  • When sitting, lower your keyboard below desktop height to proper ergonomic position
  • Independent monitor screen adjustment
  • Easily and simultaneously lift keyboard and monitor to your height for unsurpassed comfort
  • Counterbalanced adjustment points using patented Constant Force technology allow instantaneous, tool-free re-positioning while you work!

For Computer Users

  • Improve your energy and productivity by standing or sitting as you work, and then switch positions whenever you choose. This work style encourages healthy movement throughout the day
  • Promote fitness and comfort as you compute, reducing potential back and neck pain by adding movement into your work routine in a truly ergonomic workstation
  • Burn more calories by choosing to stand for periods of your work-day; periodic standing also promotes greater bone density and better sleep at night. WorkFit-S counteracts an increasingly sedentary workstyle

For IT and Facilities Staff

  • IT deployment friendly - convert most work areas into a productive and complete computer workstation in minutes
  • Modify existing office spaces or cubes by simply clamping a WorkFit-S on an existing worksurface, without the cost of expensive professional installers
  • Safe and neat routing of cables
  • Flexible, open-architecture design is scalable for future computer equipment

For HR/Risk Management and Company Cost Savings

  • Manage the cost of healthcare premiums by promoting wellness in the daily work routine
  • Provide standing work platforms for employees without having to buy expensive height-adjustable chairs
  • Comfortable computing offers provable ROI on investment - healthcare costs associated with unhealthy computing and missed time are reduced while productivity increases
  • Standing supports healthy neck and back conditions. According to the 2007 OE Medicine Journal, back and neck pain are cited as the most costly conditions affecting employees
  • Studies in office ergonomics show productivity increases 12%–18% following an ergonomic intervention where employees are provided with well-designed ergonomic furniture

Frequently Asked Questions

q I don't understand about the clamp at the bottom. My surface is a long table 17" deep x36" long. Is the clamp extra?
a

The clamp comes with the workstation and is used to mount the workstation to your desk. Your desk is 17" deep and this workstation requires 16.3" space for mounting so it should be fine.

q I want to convert my single monitor setup of 33-351-200 to a dual monitor setup. Will the 97-783 adapter work?
a

Yes, the Ergotron 33-351-200 Single HD WorkFit-S can be converted to a dual mount with 97-783 adapter. However please note that the single WorkFit-S comes in LD version (33-350-200) and HD version (33-351-200). They both look the same. The LD version, 33-350-200, however cannot be converted to a dual setup. The HD version, 33-351-200, can. So please make sure which model you have before looking into conversion.

Model 33-351-200
Manufacturer Ergotron
Part Number 33-351-200
UPC 698833022209
Screen Size Up to 30 in
Weight Capacity 16 - 29 lbs (7.3 - 13.2 kg)
Lift (57.9 cm) 22.8 in
Tilt 30 degree
Rotation 360 degree
Worksurface Dimensions 0.25"H x 23"W x 15"D (6 x 585 x 380 mm)
Keyboard Tray Dimensions 0.25"H x 27"W x 9"D (6 x 685 x 226 mm)
Shipping Dimensions 8"H x 23"W x 44"D (20 x 58 x 115 cm)
Shipping Weight 44 lbs (20 kg)
Warranty Five (5) years
Mounting Pattern VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm)
Desktop Thickness Range Desk Clamp attaches to surface edge .47" to 2.4" (1.2 to 6 cm) thick
Color Black
Desk Type Desk Mount
Worksurface Yes
Suspended Keyboard Yes
Monitor Weight 16–28 lbs (7.3–12.7 kg)
Mounting Options Desk
Monitor Arm Types Sit-Stand Workstation

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)

Warranty

All Ergotron and OmniMount durable products will remain free of defects in material and workmanship for a period of five years from the date of receipt of the product, subject to any exclusions and limitations as set forth below.

Exceptions

  • Ten-year warranty on all HX Products, as well as LX and MX Products purchased on or after August 1, 2014

  • Zip and YES Charging Systems: Lifetime material/workmanship; three years electrical components; one year cables (power/Ethernet)

  • Ten-year warranty on LearnFit Sit-Stand Desks

  • Three-year warranty on all Neo-Flex Ergotron Products

  • Two-year warranty on WorkFit-Z Mini

  • Elevate and accessories: Lifetime material/workmanship. Five (5) years on electrical components. Cords, cables and plugs not warranted

  • The Peanut, Zido and accessories: Lifetime material/workmanship; five (5) years for pneumatic cylinder

  • One-year warranty on electronic components. For example: Auto Lock Drawers, Auto Lock Systems, Keyboard Lights, User Interface, Coiled Cord, Battery Harness, Cables from User I/F to Power Module (excludes AA batteries)

  • Two-year warranty on Power Modules by Ergotron

  • Sealed Lead-Acid (SLA) Power Systems, SLA Batteries

  • Two-year warranty on all SLA power system components by Ergotron

  • Up to one-year capacity warranty on SLA batteries (refer to Further Exclusions and Limitations section)

  • Six-month warranty against Manufacturer’s Defects on SLA batteries, or as mandated by local law

  • Lithium Iron (LiFe) Power Systems, LiFe Batteries

  • LiFe battery capacity is warranted for two years or 1200 discharge cycles, whichever comes first (refer to Further Exclusions and Limitations section)

  • Five-year warranty against Manufacturer’s Defects on LiFe factory-installed batteries (excludes LiFe replacement batteries). Factory-installed LiFe batteries are covered at 100% for the first three years; coverage for years four and five are prorated at 1/60th per month (refer to Further Exclusions and Limitations section)

  • Service Programs - 30-day warranty

  • Refurbished StyleView Carts - one-year warranty for Mechanical Components and Power Module (excludes batteries and cosmetic defects). The appropriate battery-type warranty applies

  • Original Equipment Manufacturer (OEM) Products resold by Ergotron are warranted by the respective manufacturer

  • StyleView Electric Lift motor: Three (3) years on motor and switch

Further Exclusions and Limitations

SLA Batteries

  • In Dual SLA battery systems, replacement of both batteries must occur at the same time (in accordance with the Ergotron User Manual), or the Warranty is automatically void

  • Warranties on SLA batteries (fully-charged or fully-uncharged) left in an unused state for more than three consecutive months are automatically void

  • Factory-installed SLA batteries, and replacement SLA batteries carry a Six-month Warranty Against Manufacturer’s Defects and a 90-day Performance Warranty, or as mandated by local law

  • The 90-day Performance Warranty on factory-installed SLA batteries (excludes SLA replacement batteries) is extended to one-year provided that:
  1. StyleLink software is installed and remains continually operational to show compliance with exclusions and limitations

  2. SLA Battery is not discharged below 25% capacity more than 25 times as recorded by the StyleLink software history

  3. SLA Battery is fully recharged at least once every 36 hours as recorded by the StyleLink software history


LiFe Batteries

  • LiFe batteries that fail to deliver 70% of their rated capacity during the first 1200 discharge cycles of battery life are deemed not to have met performance standards (capacity retention)

  • The LiFe battery discharge cycle is defined as starting at the fully-charged state through the fully discharged state and back to the fully-charged state. Discharge cycle counts are calculated by the software within the battery.

These warranties do not cover product abuse, modification and failure to adhere to product instructions, improper operations and/or misuse. Ergotron is not responsible for damage arising from failure to follow instructions relating to the product’s intended use. Ergotron is not responsible for injury or loss caused by or associated with the installation and/or use of equipment in any manner other than in strict conformance with the instructions set forth in its installation manuals, supplemental assembly and installation instruction sheets, technical bulletins and/or product literature. You will provide Ergotron immediate written notice of any personal injury resulting from the use of Ergotron products.

Ergotron does not warrant damages or defects to the Ergotron product under the following conditions: an Act of God, unauthorized service or repair of the Ergotron products, damage from electrical power problems, usage of parts or components not supplied by Ergotron, failure to follow product instructions and guidelines, unauthorized changes to the Ergotron product, shipping damage (other than original shipment from Ergotron), failure to perform preventative maintenance, or damage caused by peripherals or software or from other external sources.


Exclusive Remedy

Warranty Repair: In the event that any Ergotron equipment becomes defective in material or workmanship during the warranty period, Ergotron will determine with you if the product defect is covered under warranty. Ergotron, at its sole discretion, may replace or repair the unit determined to be under warranty at a designated Ergotron location or at your location. The labor costs associated with the repair of the product may be the responsibility of Ergotron if determined to be under warranty. You must receive pre-approval by Ergotron for the labor costs prior to repair or replacement of warranty products. You must contact Ergotron to obtain a Return Material Authorization (RMA) number. An RMA number may be obtained by contacting Ergotron Customer Care online or by telephone within your specific region. Contact information is available to you on the Ergotron web site at www.ergotron.com. Performance of any repair or replacement on product under warranty does not renew or extend the warranty period.

Non-Warranty Repair: You may return a product for repair that is not covered by warranty only if you have received a preapproved RMA number from Ergotron Customer Care. Labor costs and freight charges associated with non-warranty repair will be the sole responsibility of the customer, reseller or installer/integrator. A standard repair fee, specific to the product, is charged for any product that is repaired outside of the warranty period. Repairs on products out of warranty also carry a 90-day warranty, effective the day that you receive the item after repair.


For products that are not covered under warranty, Ergotron offers you the following options:
  1. You may upgrade to a newer, functionally equivalent product at a normal MSR list price

  2. Ergotron will return the product to you

  3. You can request in writing that Ergotron appropriately dispose of the product for you. A fee may apply for this service as designated by local law

Non-Defective Products: You are notified if, after examining and testing a returned product, Ergotron concludes that the product is not defective. The product is returned to you and you would be responsible for the freight charges associated with the return.


Warranty Disclaimer

Except as expressly set forth in this Limited Warranty and to the greatest extent allowed by law, Ergotron makes no other representations, warranties or conditions, express or implied, including any implied representations, warranties or conditions of merchantability, fitness for a particular purpose, non-infringement, and non-interference. Ergotron does not warrant that your use of the Ergotron product will be uninterrupted or error free. Any implied warranties that may be imposed by law are limited in duration to the Limited Warranty period, to the greatest extent allowed by law. Some states or countries do not allow a limitation on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages for consumer products. In such states or countries, some exclusions or limitations of this Limited Warranty may not apply to you. This Limited Warranty is subject to change without notification.

Ergotron devices are not intended to cure, treat, mitigate or prevent any disease.


Warranty Transferability

This Limited Warranty is available only to the original end consumer and is non-transferable. For this warranty to be valid, the Ergotron product must have been purchased directly from an authorized distributor, reseller and/or authorized representative of Ergotron.

WorkFit-S Comparison Chart


Ergotron 33-342-200 WorkFit-S, Single LD Sit-Stand Workstation
Ergotron 33-350-200 WorkFit-S, Single LD with Worksurface
This item: 33-351-200 WorkFit-S Single HD Workstation with KB Tray, Worksurface
Standing Desk Converter, Ergotron 33-349-200 WorkFit-S Dual Monitor with Worksurface
Warranty Five (5) years Five (5) years Five (5) years Five (5) years
Screen Size Up to 27 in Up to 30 in Up to 24 in
Lift (58 cm) 23 in (57.9 cm) 22.8 in (57.9 cm) 22.8 in (57.9 cm) 22.8 in
Tilt 30 degree 30 degree 30 degree 0 degree
Shipping Dimensions 8"H x 23"W x 44"D (20 x 58 x 115 cm) 8"H x 23"W x 44"D (20 x 58 x 115 cm) 8"H x 23"W x 44"D (20 x 58 x 115 cm) 8"H x 23"W x 44"D (20 x 58 x 115 cm)
Shipping Weight 38.5 lbs (17.5 kg) 44 lbs (20 kg) 44 lbs (20 kg) 44 lbs (20 kg)
Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm) VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Worksurface Dimensions 0.25"H x 23"W x 15"D (6 x 585 x 380 mm) 0.25"H x 23"W x 15"D (6 x 585 x 380 mm) 0.25"H x 23"W x 15"D (6 x 585 x 380 mm)
Keyboard Tray Dimensions 24" W x 7.9" D 0.25"H x 27"W x 9"D (6 x 685 x 226 mm) 0.25"H x 27"W x 9"D (6 x 685 x 226 mm) 0.25"H x 27"W x 9"D (6 x 685 x 226 mm)
Monitor Weight 6-16 lbs 6–16 lbs (2.3–7.3 kg) 16–28 lbs (7.3–12.7 kg) 6–12 lbs (2.7–5.5 kg) each
Suspended Keyboard Yes Yes Yes Yes
Worksurface No Yes Yes Yes
  Details Details Details
