The below item has been discontinued. See above for similar products that we offer instead. We apologize for this inconvenience.

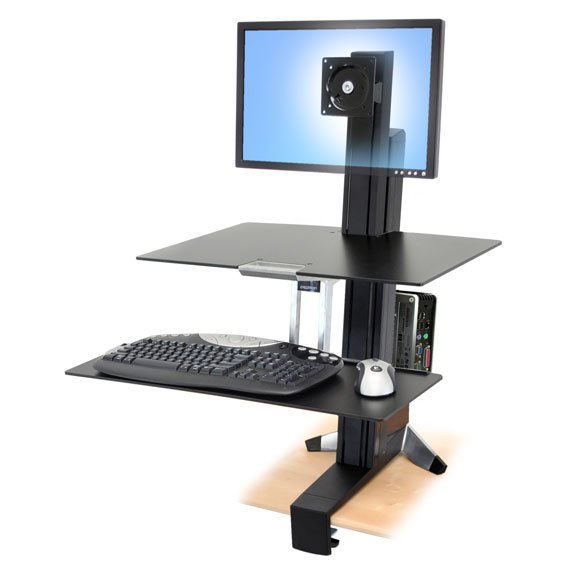

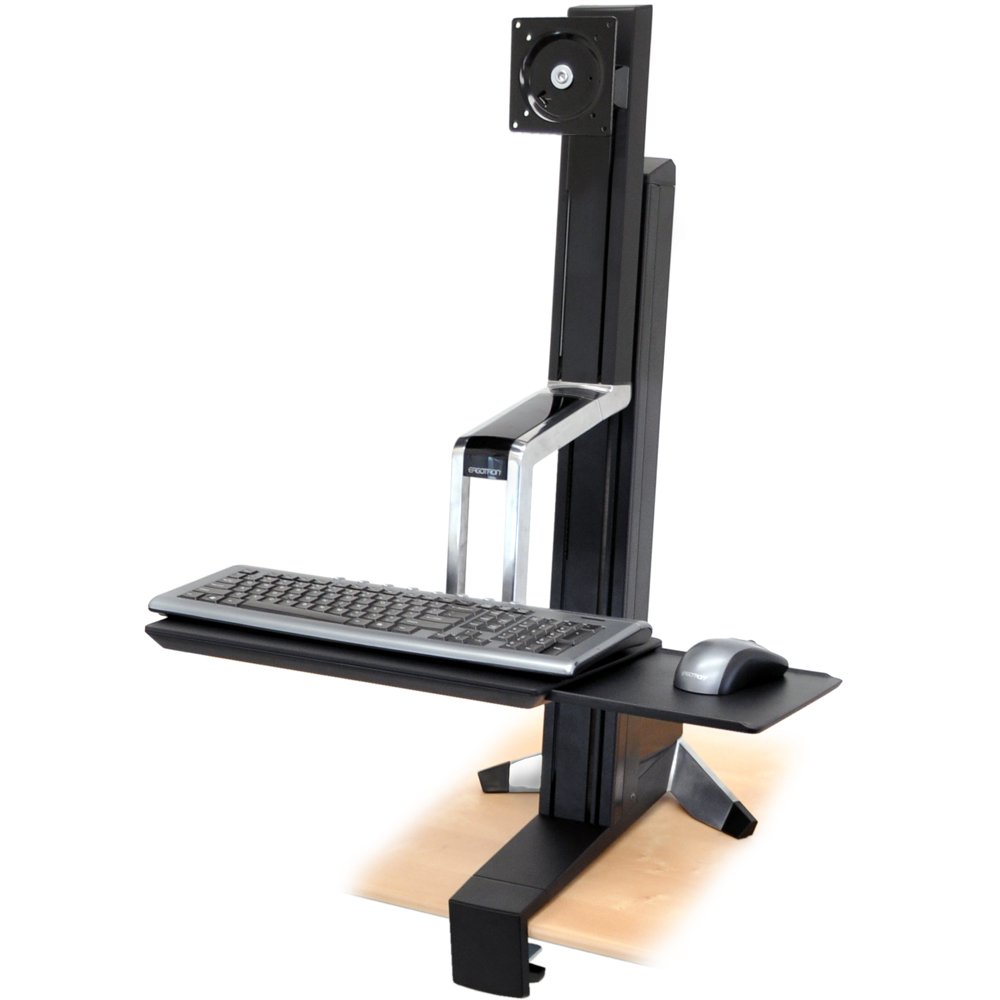

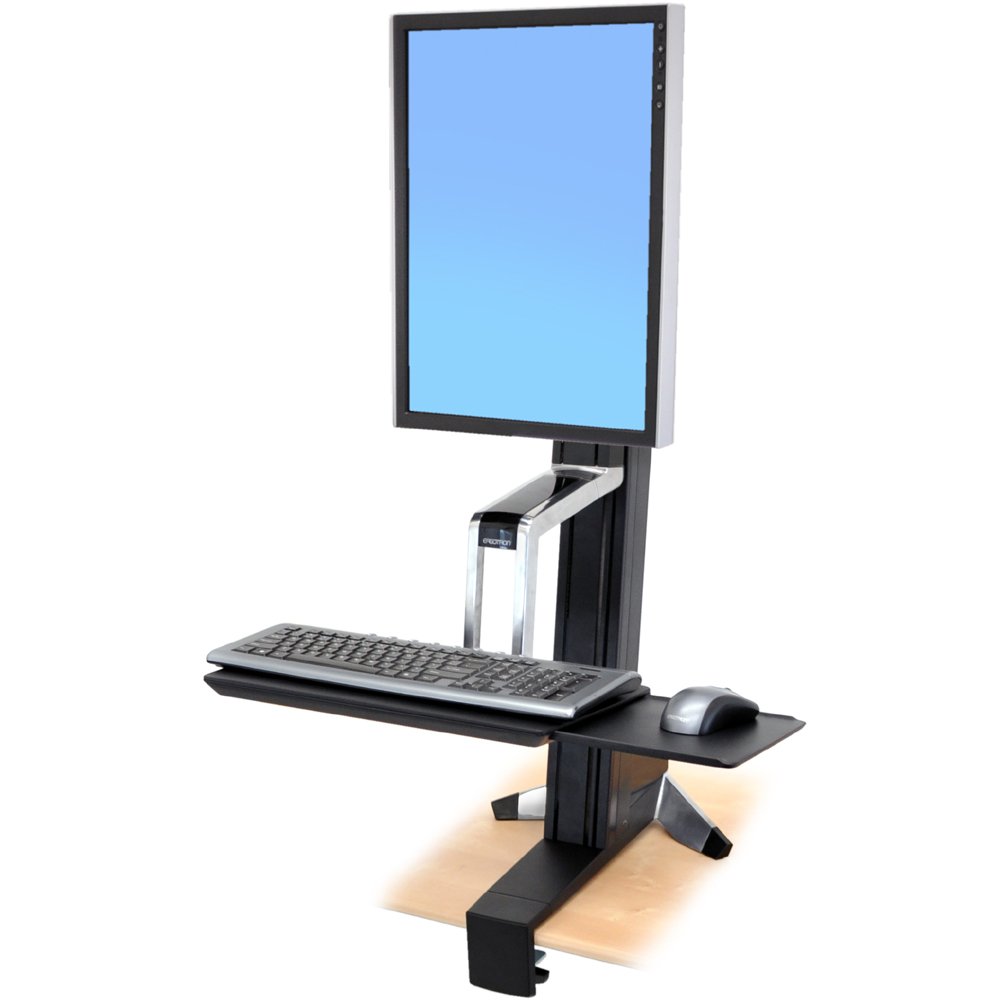

Ergotron 33-344-200 WorkFit-S, Single HD Sit-Stand Workstation

0 out of 5 (based on 0 review). Be the first to review this product
Product ID: 16206
Highlights
  • Sit-stand workstation: Converts your desk so that you can sit or stand while working
  • 23" height range: Maximum monitor height adjustment is 23"
  • 30" screen size: Supports a single heavy duty (HD) monitor up to 30"; Add a dual monitor kit to convert the workstation to a dual monitor workstation, part 97-783. This kit adds 6 lbs to the workstation and reduces the total weight capacity from 35 lbs to 29 lbs.
  • Weight capacity:  Carries a monitor weighing 16-28 lbs
  • Mouse tray: Part of keyboard tray, mouse installs on the left or right
  • Please see, if you have a smaller, lighter monitor
  • Sit-Stand video
  • Click here to see WorkFit-S Sit-Stand Comparison Chart
Recommended Accessories
List Price: $720.00
Our Price: $442.65
Shipping: $19.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States

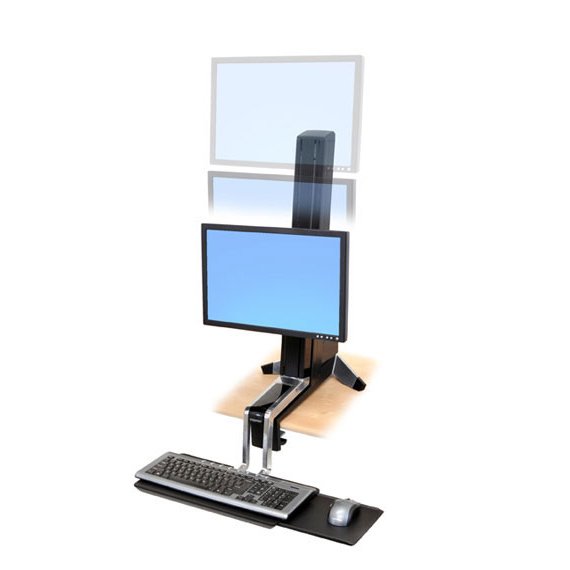

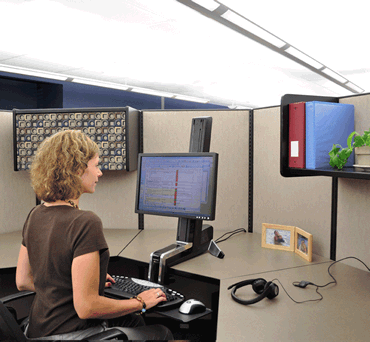

Animation of Ergotron 33-344-200 WorkFit-S, Single HD Sit-Stand Workstation

Description

Ergonomically priced, Ergotron 33-344-200 is an affordable entry into the sit-stand workstation market. Easy to install, the 33-344-200 can transform your desktop in such a way that you can sit or stand while working.
Convert any surface into an adjustable-height standing desk with the attachment of the WorkFit-S. Make computing comfortable for prolonged periods - stand up whenever you want.

Ergotron 33-344-200 sit-stand workstation is extraordinarily simple to use. With the push or pull of a hand, you can instantly raise or lower your keyboard and display in one easy motion, yet all the while the system will remain stable throughout your work routine.

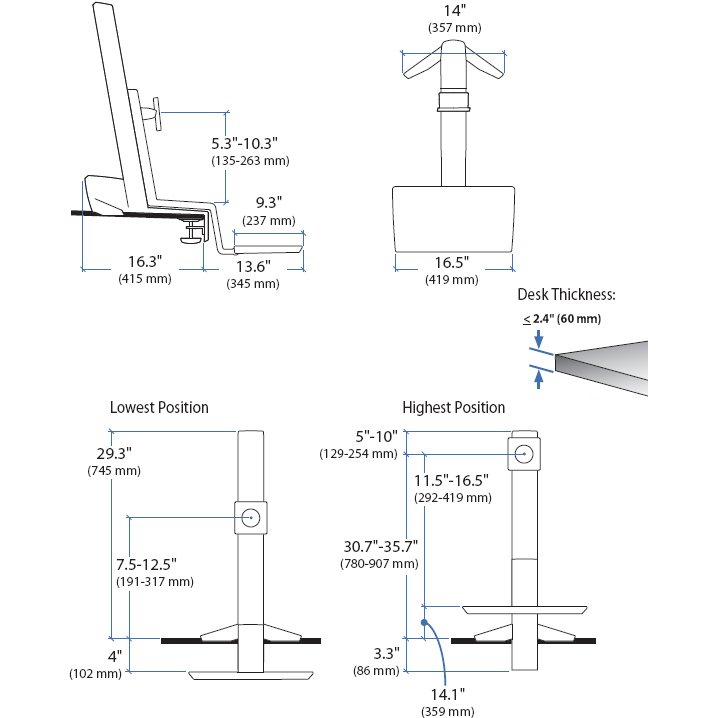

Technical Drawing

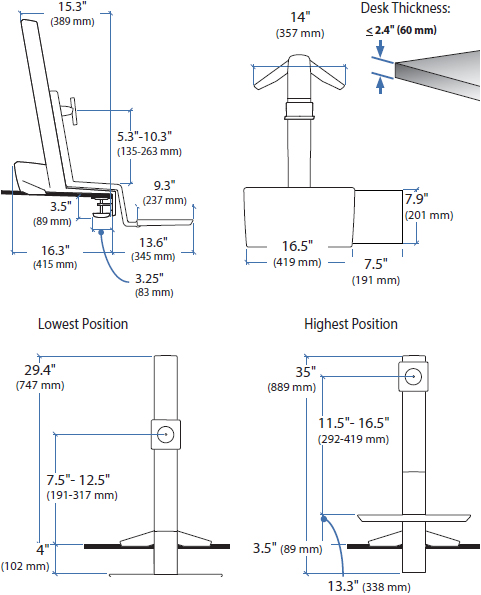

Technical Drawing for Ergotron 33-344-200 WorkFit-S, Single HD Sit-Stand Workstation

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 30"

Up to 35 lbs

16 kg

23"

58 cm

 30° - 90° MIS-D

Product Information

Part Number 33-344-200
Description WorkFit-S Sit-Stand Workstation for Mid-Size Monitor, HD, with Surface Mount Base (black and polished aluminum)
Includes

  • Height-adjustment column

  • Desk clamp

  • LCD pivot

  • Keyboard tray with left/right mouse tray
Weight Capacity Maximum total load on height-adjustment assembly = 35 lbs (16 kg). LCD weight = 16–28 lbs (7.3–12.7 kg), keyboard tray ≤ 5 lbs (2.3 kg). For proper operation the total weight of components when added together should not exceed 35 lbs (16 kg)
Recommended For some Apple displays, such as legacy 27" iMac (late 2009 to mid 2011 models). If considering attachment to an Apple display, first check the Compatibility Guide
Lift Range LCD and keyboard adjust 18" (46 cm) in tandem; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 23" (58 cm)
Mounting Standards VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm). For displays that use a 200 x 100 mm, 200 x 200 mm, 400 x 200 mm, 400 x 300 mm or 400 x 400 mm hole pattern, the VESA Bracket Adaptor Kit (97-759) can be ordered separately

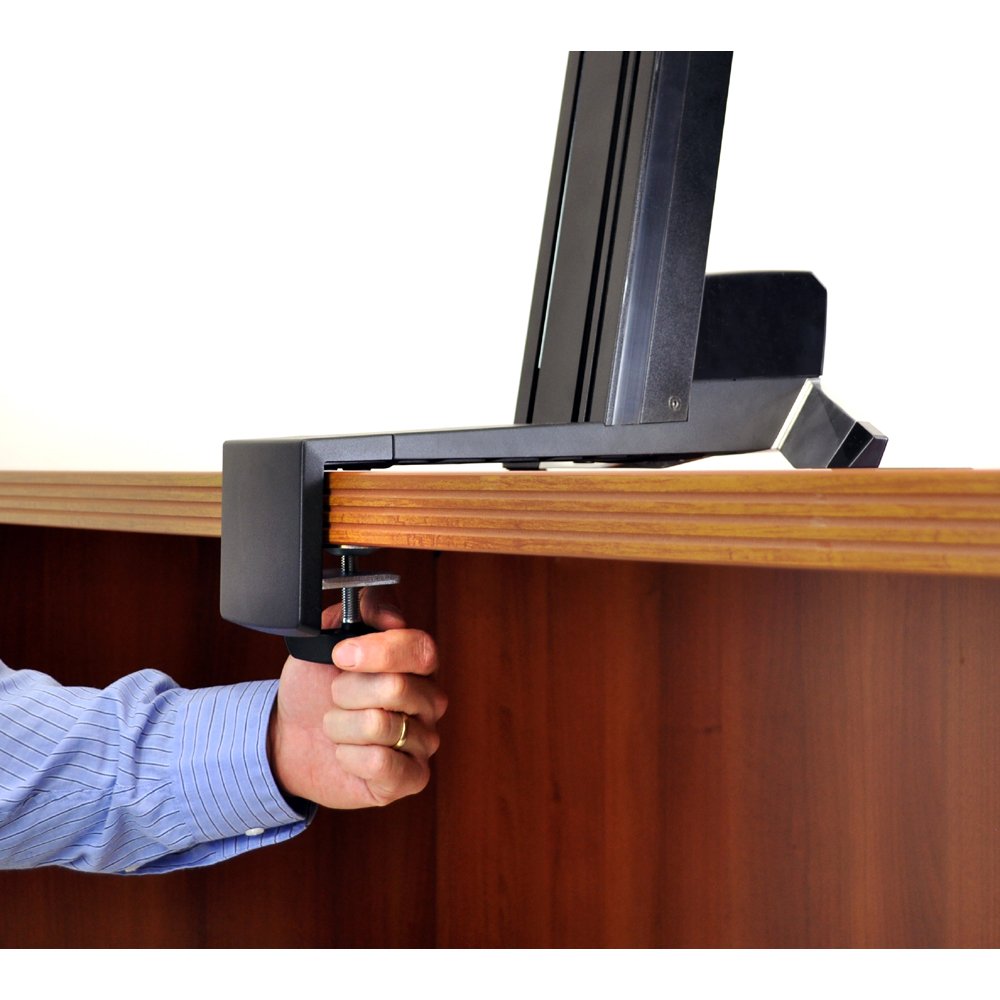

Desk Clamp Attaches to surface edge .47" to 2.4" (1.2 to 6 cm) thick
Keyboard Tray

  • Ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity

  • Keyboard tray includes mouse tray that installs on left or right
Exterior Durable, easy-to-clean exterior composed of aluminium, high-grade plastic and powder coated painted steel
Certified This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)
Note

  • Extra-long cables may be required to span between standing and sitting heights

  • Because mounting surface materials can vary widely, it is imperative that you make sure mounting surface is strong enough to handle mounted product and equipment
Shipping Dimensions 8"H x 23"W x 44"D (20 x 58 x 115 cm)
Shipping Weight 38.5 lbs (17.5 kg)
Warranty Five (5) years

Benefits

Premium Ergonomics

  • When sitting, lower your keyboard below desktop height to proper ergonomic position

  • Independent monitor screen adjustment

  • Easily and simultaneously lift keyboard and monitor to your height for unsurpassed comfort

  • Counterbalanced adjustment points using patented Constant Force technology allow instantaneous, tool-free re-positioning while you work


For Computer Users

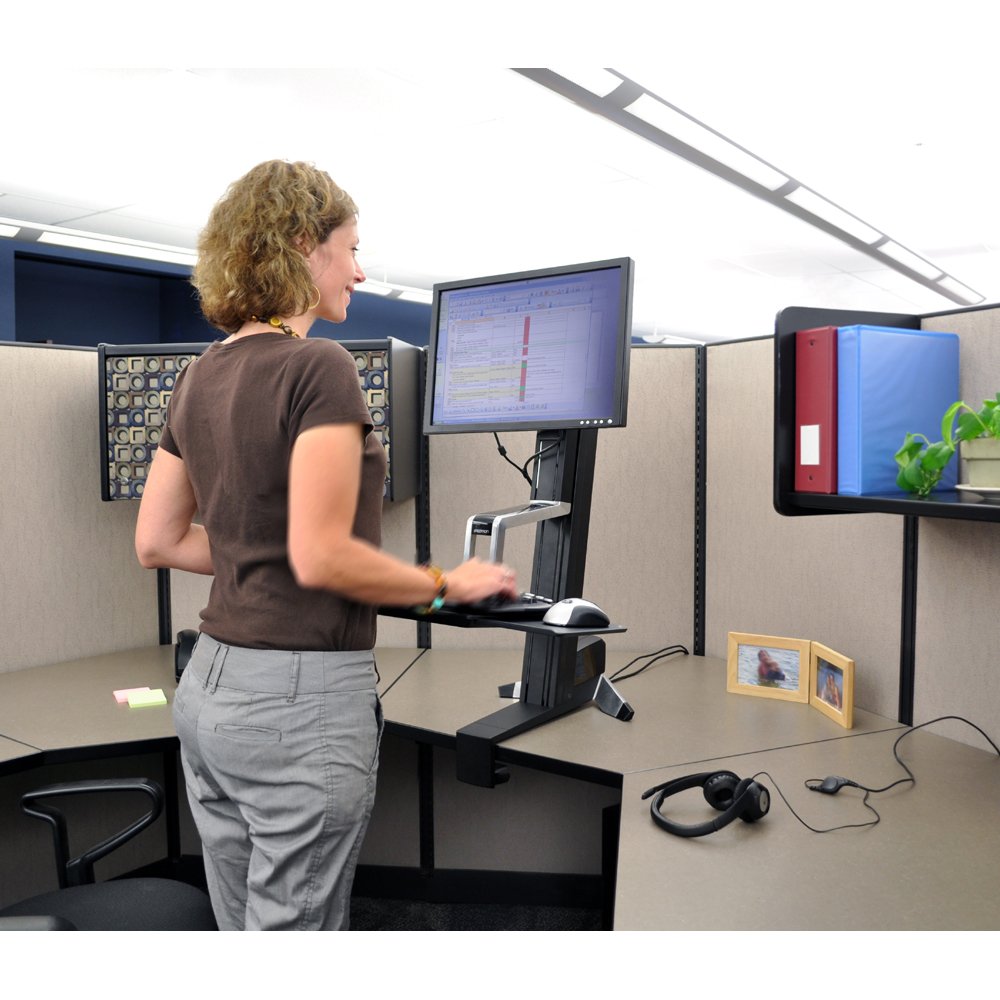

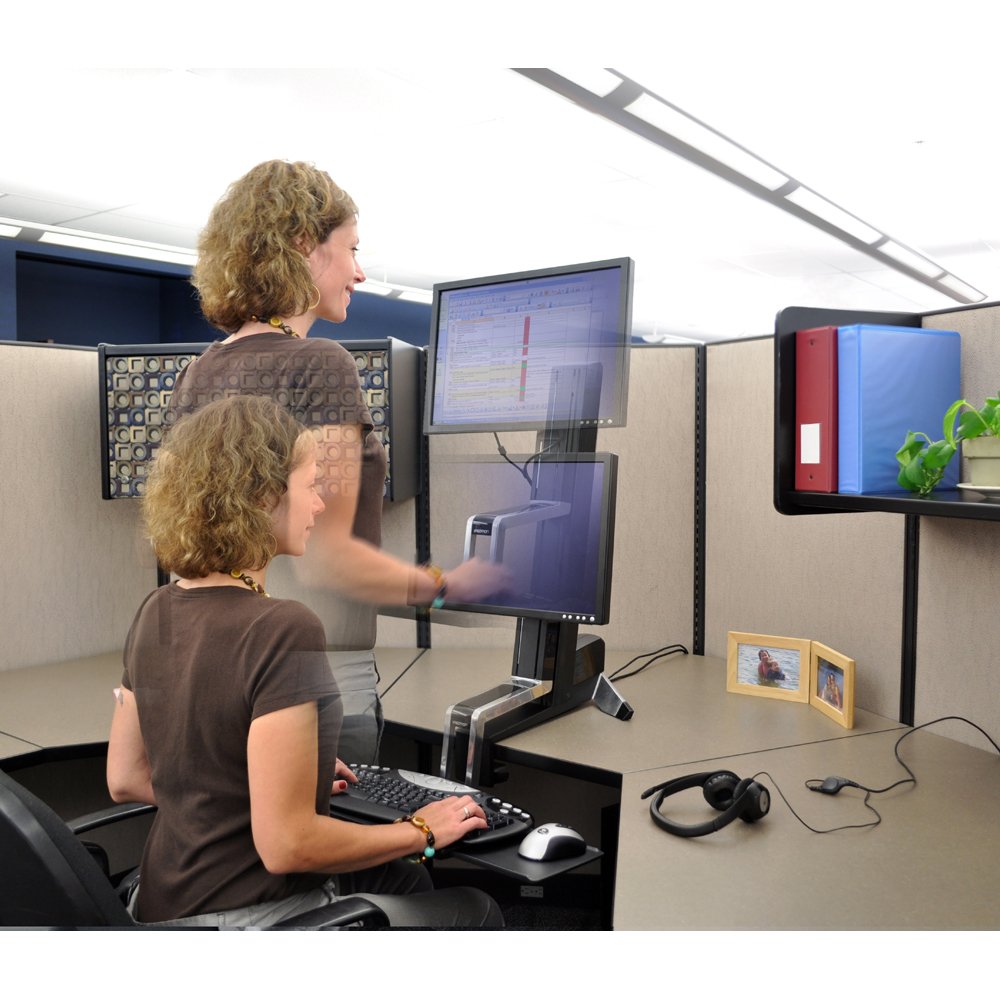

  • Improve your energy and productivity by standing or sitting as you work, and then switch positions whenever you choose. This work style encourages healthy movement throughout the day

  • Promote fitness and comfort as you compute, reducing potential back and neck pain by adding movement into your work routine in a truly ergonomic workstation

  • Burn more calories by choosing to stand for periods of your work-day; periodic standing also promotes greater bone density and better sleep at night. WorkFit-S counteracts an increasingly sedentary workstyle


For IT and Facilities Staff

  • IT deployment friendly - convert most work areas into a productive and complete computer workstation in minutes

  • Modify existing office spaces or cubes by simply clamping a WorkFit-S on an existing worksurface, without the cost of expensive professional installers

  • Safe and neat routing of cables

  • Flexible, open-architecture design is scalable for future computer equipment


For HR/Risk Management and Company Cost Savings

  • Manage the cost of healthcare premiums by promoting wellness in the daily work routine

  • Provide standing work platforms for employees without having to buy expensive height-adjustable chairs

  • Comfortable computing offers provable ROI on investment - healthcare costs associated with unhealthy computing and missed time are reduced while productivity increases

  • Standing supports healthy neck and back conditions. According to the 2007 OE Medicine Journal, back and neck pain are cited as the most costly conditions affecting employees

  • Studies in office ergonomics show productivity increases 12%–18% following an ergonomic intervention where employees are provided with well-designed ergonomic furniture

WorkFit-S Comparison Chart


Ergotron 33-342-200 WorkFit-S, Single LD Sit-Stand Workstation
Ergotron 33-350-200 WorkFit-S, Single LD with Worksurface
Ergotron 33-351-200 WorkFit-S, Single HD with Worksurface
Standing Desk Converter, Ergotron 33-349-200 WorkFit-S Dual Monitor with Worksurface
Warranty Five (5) years Five (5) years Five (5) years Five (5) years
Screen Size Up to 27 in Up to 30 in Up to 24 in
Lift (58 cm) 23 in (57.9 cm) 22.8 in (57.9 cm) 22.8 in (57.9 cm) 22.8 in
Tilt 30 degree 30 degree 30 degree 0 degree
Shipping Dimensions 8"H x 23"W x 44"D (20 x 58 x 115 cm) 8"H x 23"W x 44"D (20 x 58 x 115 cm) 8"H x 23"W x 44"D (20 x 58 x 115 cm) 8"H x 23"W x 44"D (20 x 58 x 115 cm)
Shipping Weight 38.5 lbs (17.5 kg) 44 lbs (20 kg) 44 lbs (20 kg) 44 lbs (20 kg)
Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm) VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Worksurface Dimensions 0.25"H x 23"W x 15"D (6 x 585 x 380 mm) 0.25"H x 23"W x 15"D (6 x 585 x 380 mm) 0.25"H x 23"W x 15"D (6 x 585 x 380 mm)
Keyboard Tray Dimensions 24" W x 7.9" D 0.25"H x 27"W x 9"D (6 x 685 x 226 mm) 0.25"H x 27"W x 9"D (6 x 685 x 226 mm) 0.25"H x 27"W x 9"D (6 x 685 x 226 mm)
Monitor Weight 6-16 lbs 6–16 lbs (2.3–7.3 kg) 16–28 lbs (7.3–12.7 kg) 6–12 lbs (2.7–5.5 kg) each
Suspended Keyboard Yes Yes Yes Yes
Worksurface No Yes Yes Yes
  Details Details Details Details
Back to top

Product Options/Accessories

Ergotron 85-025-079 Mouse Pad 85-025-079 Mouse Pad Discontinued $20.00 $10.76 Ergotron 80-063-200 Vertical Small CPU Holder Black 80-063-200 Small Vertical CPU Holder $105.00 $80.85 Ergotron 99-033-085 Mouse Holder (black) 99-033-085 Mouse Holder $20.00 $17.50 Ergotron 97-505 Foam Wrist Rest 97-505 Foam Wrist Rest $45.00 $34.63 Ergotron 97-563-057 Cable Management Kit 97-563-057 Cable Management Kit $55.00 $43.99 Ergotron 80-105-064 Universal CPU Holder 80-105-064 Universal CPU Holder $85.00 $60.54 Ergotron 97-558-200 Tablet/Document Holder for WorkFit-S 97-558-200 Tablet or Document Holder $50.00 $42.00 Ergotron 97-533 Wrist Rest, Antimicrobial 97-533 Wrist Rest, Antimicrobial $55.00 $41.64 Ergotron 97-581-019 Worksurface for WorkFit-S 97-581-019 Worksurface for WorkFit-S $155.00 $125.00 Ergotron 97-620-060 WorkFit Anti-Fatigue Floor Mat 97-620-060 WorkFit Floor Mat $495.00 $275.00 ED30 Extra Wide 30" Computer Laptop Keyboard Tray with 2 Mousing Areas ED30 Extra Large 30" Wide Keyboard Laptop Tray $120.00 $98.25 Ergotron 97-651 Deep Keyboard Tray for WorkFit-S 97-651 Deep Keyboard Tray for WorkFit-S Discontinued $67.17 Ergotron 97-653 Large Keyboard Tray for WorkFit-S 97-653 Large Keyboard Tray for WorkFit-S $85.00 $69.00 Ergotron 97-649-085 Grommet Mount for WorkFit-S 97-649-085 WorkFit-S Grommet Mount Discontinued $35.00 $23.06 Ergotron 97-711 Power Strip 97-711 Six Outlet Power Strip $135.00 $104.18 Ergotron 97-747 - 6-ft. USB 2.0 Extension Cable 97-747 USB 2.0 Extension Cable 6' $20.00 $19.00 Ergotron 97-749 - 10-ft. Power Cord 97-749 Power Cord 10' $35.00 $33.00 Ergotron 97-748 - 10-ft. SVGA/VGA Monitor Cable 97-748 - 10 ft. SVGA/VGA Monitor Cable with RGB Coax $55.00 $46.00 Ergotron 97-750 - 10-ft. DVI Dual-Link Monitor Cable 97-750 DVI Dual Link TMDS Cable $60.00 $52.00 Ergotron 97-759 VESA Bracket Adaptor Kit 97-759 VESA (400 x 400 mm) Bracket Adaptor Kit $70.00 $54.24 Ergotron 97-783 Dual Monitor and Handle Kit Ergotron 97-783 Dual Monitor & Handle Kit $109.00 Ergotron 97-845 Tall-User Kit for WorkFit Single Display Ergotron 97-845 Tall-User Kit for WorkFit Single Display $30.00 $25.00 Ergotron 97-898 Corner Keyboard Tray for WorkFit Ergotron 97-898 Corner Keyboard Tray for WorkFit $105.00 $79.00 Ergotron 97-897 Deep Keyboard Tray for WorkFit-S, WorkFit-A Ergotron 97-897 WorkFit Deep Keyboard Tray $105.00 $79.00 Ergotron WorkFit Integration, Fit Check, Tier 2 and 3 Integration Ergotron WorkFit Integration, Fit Check, Tier 2 and Integration $276.14 Ergotron 98-080-060 WorkFit Anti-Fatigue Floor Mat, Small Ergotron 98-080-060 WorkFit Floor Mat, Small $260.00 $199.00 Ergotron 98-076 Neo-Flex Anti-Fatigue Floor Mat Ergotron 98-076 Anti-Fatigue Floor Mat $165.00 $133.00 Ergotron 98-078 Neo-Flex Anti-Fatigue Floor Mat, Small Ergotron 98-078 Anti-Fatigue Floor Mat, Small Discontinued $85.00 $51.41

Frequently Asked Questions

Question: Does this model work with the dual monitor and handle kit, part # 97-783? Answer: Yes, the dual monitor and handle kit is compatible with this workstation.
Question: I would like to purchase either an Ergotron 33-344-200 HD or the 33-342-200 LD. My current monitor is a ViewSonic VS2265wm (model VS12394), which I can see will work with the LD model 33-342-200. But in future I will probably end up with a larger monitor so I am thinking that I would be better off buying the HD model 33-344-200. Question is will my current monitor work with the HD model 33-344-200. Answer: Your current monitor ViewSonic VS2265wm weighs 7.68 lbs without the stand. It will work with the 33-342-200 but it cannot work with the 33-344-200 because the minimum weight of a monitor to be compatible with the 33-344-200 is 16 lbs. So you have the choice of getting a bigger monitor now and then you can purchase the 33-344-200 or if you buy the 33-342-200 and want to upgrade later to a bigger monitor, the weight of that new monitor cannot exceed 16lbs. Weight capacity : 33-344-200 16-28lbs, 33-342-200 6-16lbs
Model 33-344-200
Manufacturer Ergotron
Part Number 33-344-200
UPC 698833013467
Weight 39.00 lb(s)
Weight Capacity 35 lbs (16 kg). LCD weight = 16–28 lbs (7.3–12.7 kg), keyboard tray ≤ 5 lbs (2.3 kg)
Lift (58 cm) 23 in
Tilt 30 degree
Mounting Pattern VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm). For displays that use a 200 x 100 mm, 200 x 200 mm, 400 x 200 mm, 400 x 300 mm or 400 x 400 mm hole pattern, the VESA Bracket Adaptor Kit (97-759) can be ordered separately
Shipping Weight 38.5 lbs (17.5 kg)
Shipping Dimensions 8"H x 23"W x 44"D (20 x 58 x 115 cm)
Warranty Five (5) years
Desktop Thickness Range Desk Clamp attaches to surface edge .47" to 2.4" (1.2 to 6 cm) thick
Color Black and polished aluminum
Rotation 90 degree
Mounting Options Desk Mount
Monitor Arm Types Sit-Stand Workstation
Desk Type Desk Mount
Screen Size Up to 30 in
Monitor Weight 16–28 lbs (7.3–12.7 kg)
Suspended Keyboard Yes
Worksurface No
Worksurface Dimensions --
Keyboard Tray Dimensions 16.5" W x 9.3" D
Price $400 - $499
