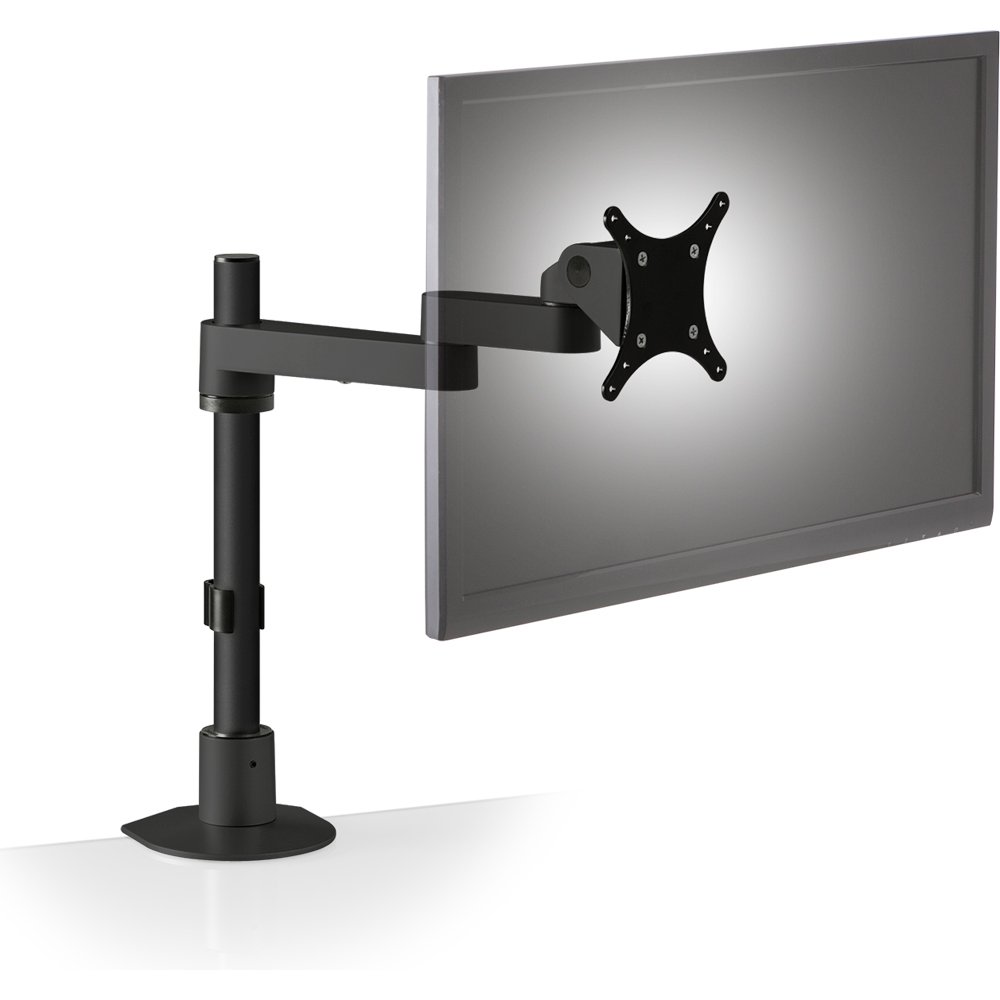

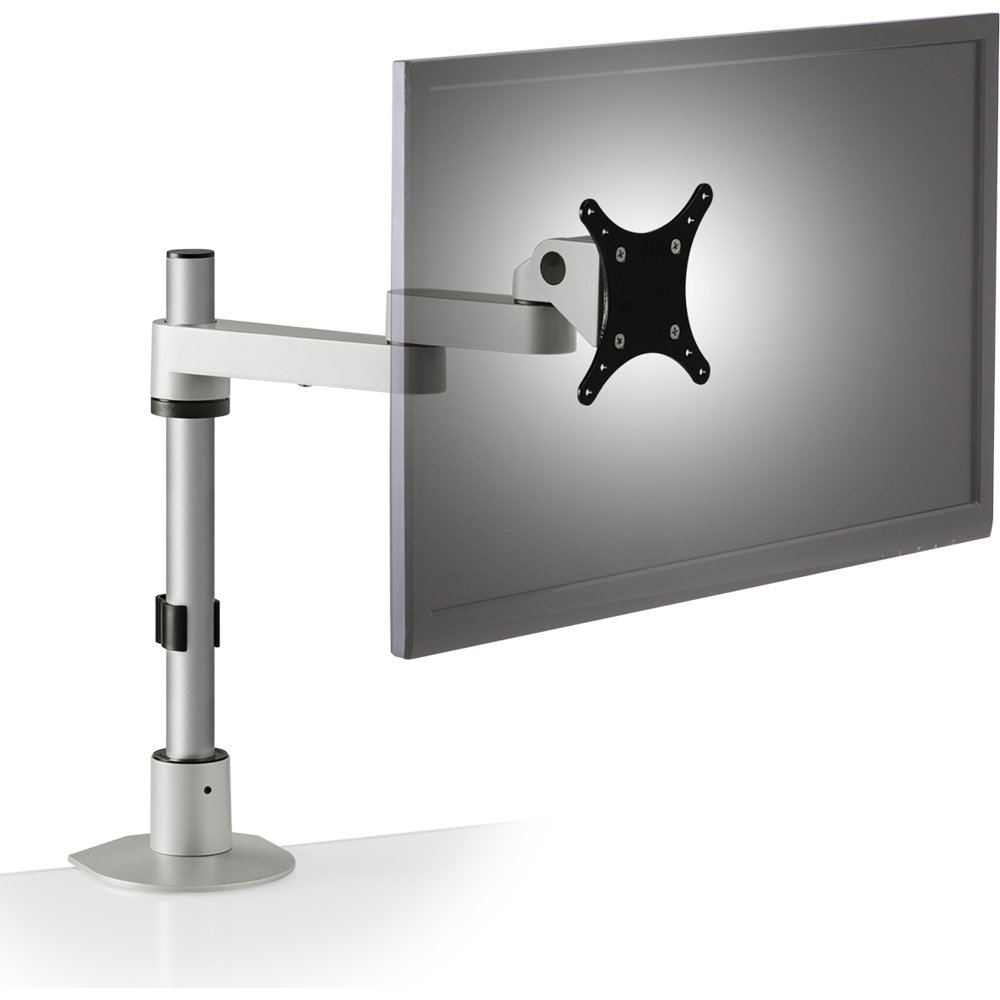

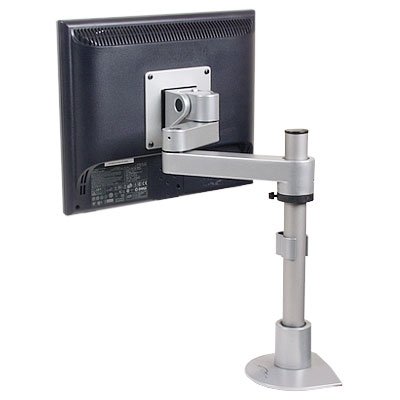

Innovative 9112-S-28 Articulating Monitor Mount Arm with 28" Pole

This monitor mount is special order and custom-made. Please note that this product is NOT returnable.

Now includes Next Generation Tilter 8500 (not shown in the image). Please see Description for more details.

Product ID 16489


  • Articulating Monitor Mount on a 28" Pole
  • Weight capacity: 40 lbs per monitor
  • Horizontal reach: 14"
  • Usable pole length: 28"; 29.6" before the mount
  • Outer diameter of the pole: 1 3/16"
  • Mount not included
  • Please note that this product has 20 business days lead time

Innovative FLEXmount

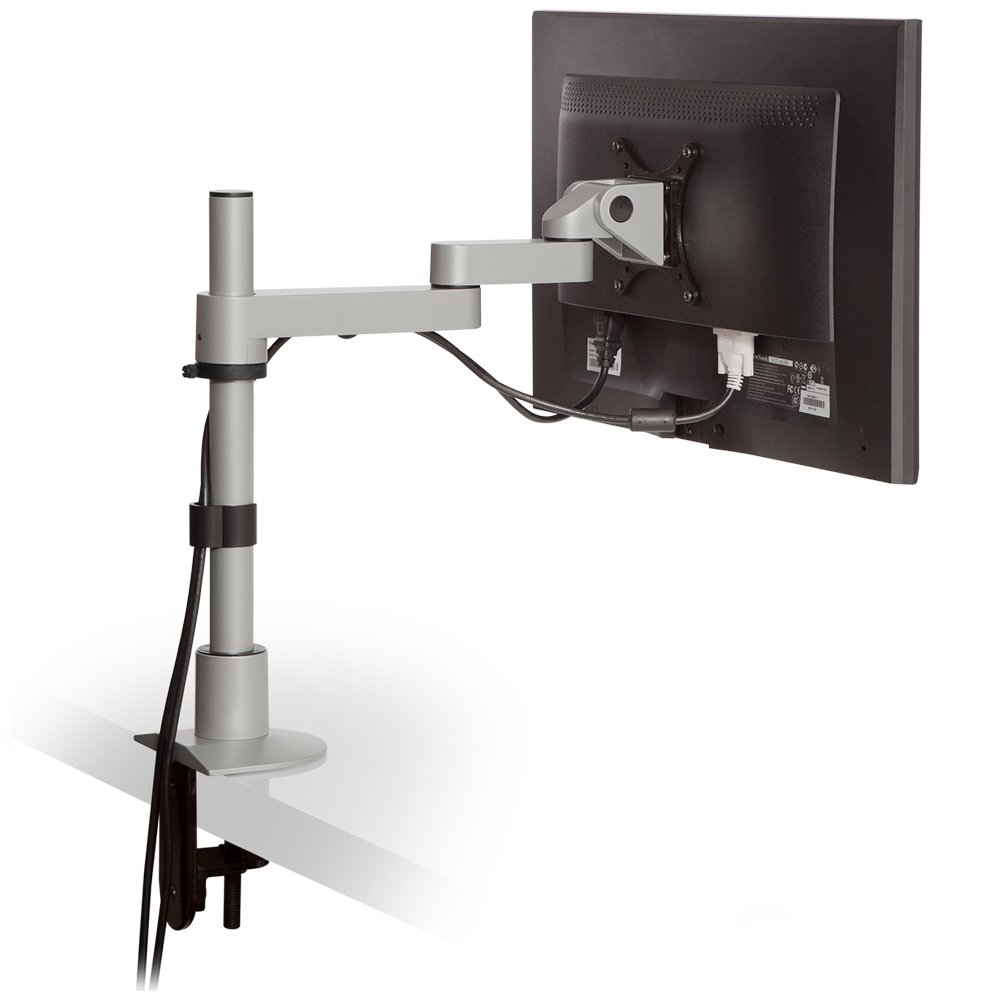

Innovative 9112-S-28 features foldable arms which adjust vertically up and down a 28" pole. The arms can fold up to fit in about 3" of space and extend out 14". Various pole lengths and extensions are available or can be designed to fit any application you may be looking for. Unique cable management allows cables to tucked under the forearm extensions.

The 9112-S-28 articulating monitor arm mounts directly to the desktop for space-saving ergonomic comfort. Easily adjust the monitor arm vertically along the 28" pole mount.


Please note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded this part.

Tilter - A tilter is the part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot and tilt to desired position.  This monitor arm is now available with Next Gen Tilter 8500. This new tilter apart from being slim and sleek has a quick release bracket, which makes installation and release easy and fast. It has a 30 lb weight capacity. However please bear in mind that the Next Gen Tilter 8500 comes with 100mm VESA adapter unlike the earlier standard tilter which comes with 75mm and 100mm adapter plate. If your monitor has only 75x75mm VESA pattern, please contact us through monitor arm finder. We will find the best monitor arm that matches your needs.

Innovative 8500 Quick Release Monitor Tilter
8500 Quick Release Monitor Tilter
Innovative 8336 Standard Monitor Tilter Head
8336 Standard Monitor Tilter

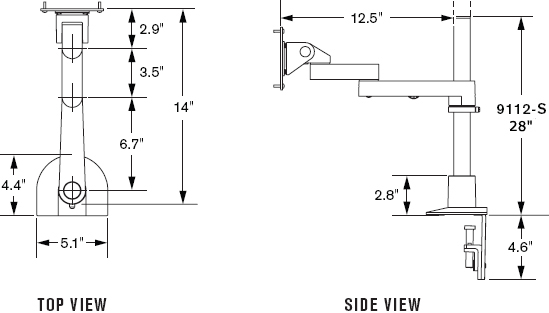

Technical Drawing

Technical Drawing for Innovative 9112-S-28 Articulating Monitor Mount Arm with 28

Technical Specifications

Color 104 - Vista Black, 124 - Silver
Screen Size Up to 32"
Extension Range 14"
Pivot Landscape / Portrait
Rotation Three rotation joints
Pole Height 28" (72 cm)
Monitor Tilt 200 degrees
Mount Configurations Desk Edge, Thru-Desk, Grommet, Wall, Reverse Wall, Side Bolt
VESA Compatibility 100mm adapter included
Weight Capacity Up to 40 lbs (18.1) per monitor
Warranty 10 years


  • Features a 28" standard pole mount; custom pole lengths are available

  • Mount rotates 360 degrees at three joints

  • Monitor tilter mechanism can tilt over 200 degrees

  • Features adjustable tension at joints, ideal for touch-screen applications

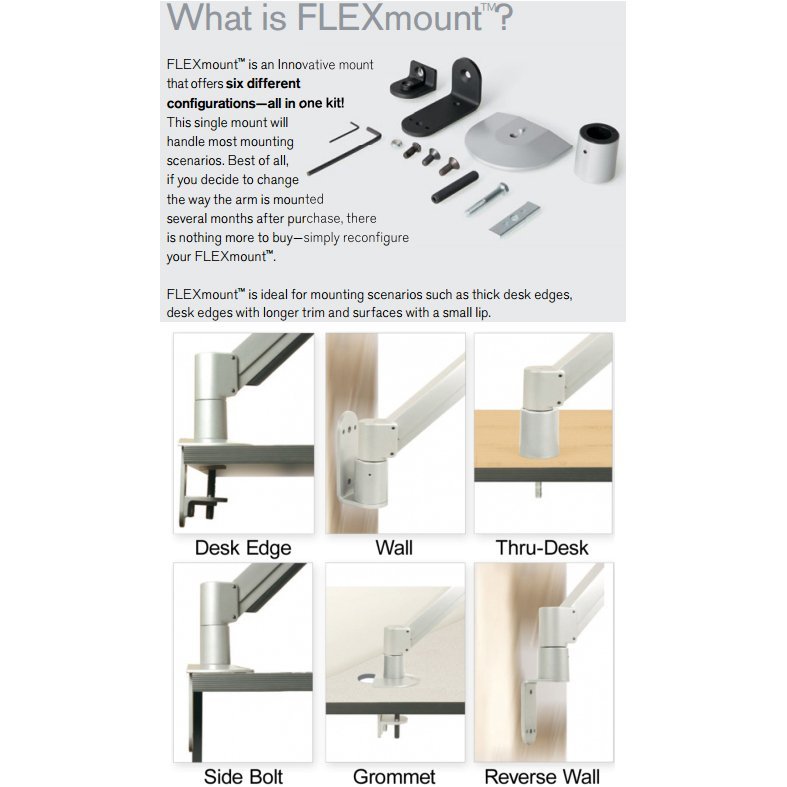

  • FLEXmount with six mounting options is available

  • Monitor arm is ideal for slatwall mounting; can be combined with all Innovative mount options (sold separately)

  • VESA-monitor compatible - 100mm VESA adapter included; please call for non-VESA options

  • Optional upgrade to quick install/release monitor bracket; consult your sales rep for details

Model 9112-S-28
Manufacturer Innovative LCD Arms
Part Number 9112-S-28
Mounting Options Desk
Mounting Options Wall
Mounting Options Slatwall
Monitor Arm Types 1 Monitor
Number of Monitors 1 Monitor
Color 104 - Vista Black, 124 - Silver
Pole Length 28"
Horizontal Range 14" from back of pole
Tilt 200 degree
Rotation 360 degree
Mounting Pattern VESA 100mm
Monitor Weight Up to 40 lbs per monitor
Pivot Landscape to portrait
Monitor Size Up to 32"
Warranty 10 years
