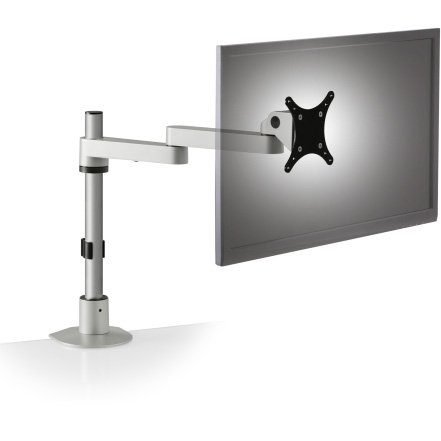

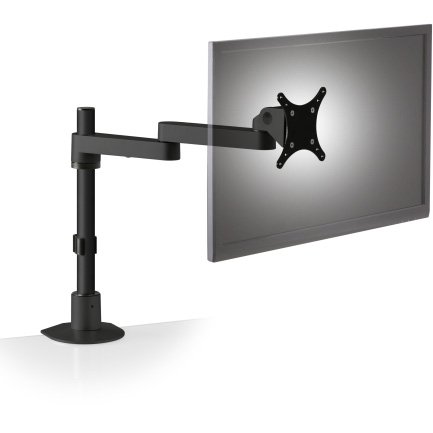

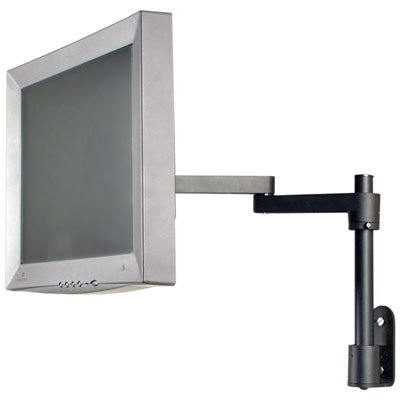

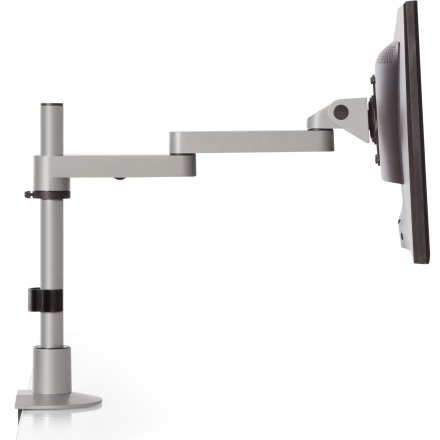

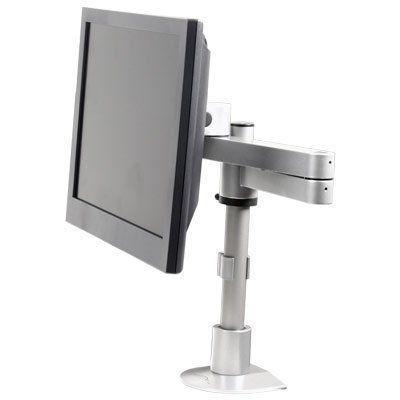

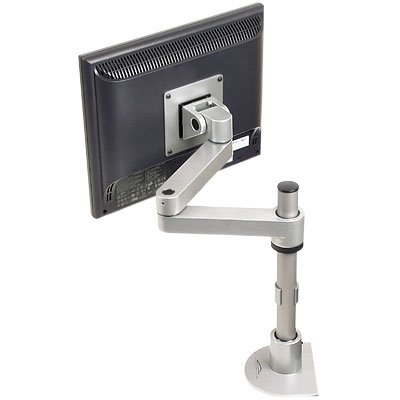

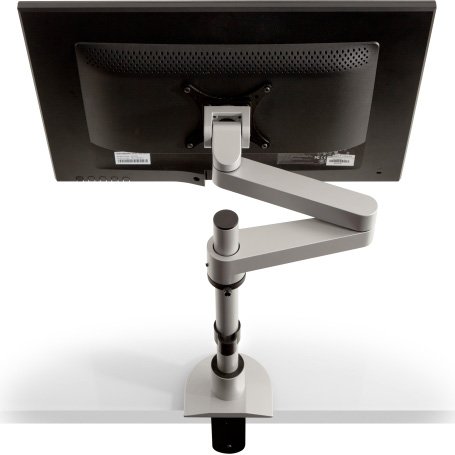

Innovative 9130-S-28 Long Reach Flat Panel Monitor Mount - 28" Pole

This monitor mount is special order and custom-made. Please note that this product is NOT returnable.
Now includes Next Generation Tilter 8500 (not shown in the image). Please see Description for more details.
Product ID 16491

Innovative FLEXmount

Description

Innovative 9130-S-28 Double LCD arm has foldable components. It adjusts vertically up and down along the 28" usable part of the pole (pole length is 29.2" before mount), whose outer diameter is 1-3/16". The arm folds to fit about 3" of space, extends out 16" and has a weight capacity of 40 lbs.

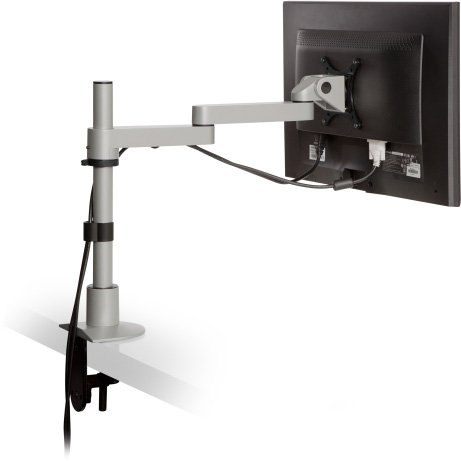

Various pole lengths are available or can be designed to fit any application you may be looking for. Call for information. Unique cable management allows cables to be tucked under forearm extensions. You will receive a 100mm VESA Bracket with your set-up.




Please note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded this part.

Tilter - A tilter is the part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot and tilt to desired position.  This monitor arm is now available with Next Gen Tilter 8500. This new tilter apart from being slim and sleek has a quick release bracket, which makes installation and release easy and fast. It has a 30 lb weight capacity. However please bear in mind that the Next Gen Tilter 8500 comes with 100mm VESA adapter unlike the earlier standard tilter which comes with 75mm and 100mm adapter plate. If your monitor has only 75x75mm VESA pattern, please contact us through monitor arm finder. We will find the best monitor arm that matches your needs.

Innovative 8500 Quick Release Monitor Tilter
8500 Quick Release Monitor Tilter
Innovative 8336 Standard Monitor Tilter Head
8336 Standard Monitor Tilter

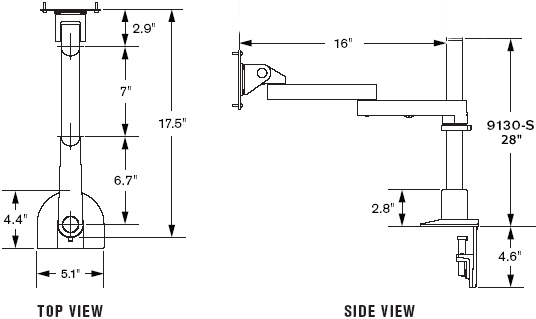

Technical Drawing

Technical Drawing for Innovative 9130-S-28 Long Reach Flat Panel Monitor Mount - 28

Technical Specifications

Color 104 - Vista Black, 124 - Silver
Screen Size Up to 32"
Extension Range 17.5" (44.5 cm)
Pivot Landscape / Portrait
Rotation Three rotation joints
Pole Height 28" (71.12 cm)
Monitor Tilt 200 degrees
Mount Configurations Desk Edge, Thru-Desk, Grommet, Wall, Reverse Wall, Side Bolt
VESA Compatibility  100mm adapter included
Weight Capacity Up to 40 lbs (18.1) per monitor
Warranty 10 years

Features

  • Arm joints rotate 360 degrees and the monitor can tilt over 200 degrees

  • FLEXmount with six mounting options is available

  • Features a 28" standard pole mount; custom pole lengths are available

  • Foldable monitor arm is adjustable vertically up and down along the pole

  • Users can position the LCD arm with the touch of a finger

  • Accessory products are available for holding keyboards or notebook computers

  • VESA-monitor compatible - 100mm VESA adapter included; please call for non-VESA options

  • The monitor mount can be combined with all Innovative mount options (sold separately)

  • Optional upgrade to quick install/release monitor bracket; consult your sales rep for details

Model 9130-S-28
Manufacturer Innovative LCD Arms
Part Number 9130-S-28
Mounting Options Desk
Mounting Options Wall
Mounting Options Slatwall
Monitor Arm Types 1 Monitor
Number of Monitors 1 Monitor
Color 104 - Vista Black, 124 - Silver
Horizontal Range 16"
Pole Length 28"
Tilt 200 degree
Pivot Landscape to portrait
Mounting Pattern VESA 100mm
Monitor Weight Up to 40 lbs (18 kg)
Rotation 360 degree
Mounting Options All-in-one

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)

Warranty

Seller warrants that its products will be free from defects in material and workmanship when the title passes to the buyer. Seller will repair or replace, at its discretion, any defective product without charge (shipping charges excluded) for a period of 10 years (exception: 1 year for Busby, 5 years for Winston Workstation, Winston-E, Winston Desk and Freedom Desk, 3 years for Tablik and 1 year for Bild motorized column) after the original date of sale, unless the product damage resulted from normal wear and tear, buyer abuse, misuse or negligence or failure to follow instructions related to the products’s installation or intended use. Seller may require proof of purchase before performing any repairs or replacing any products during the warranty period. Except as specifically set forth above, seller makes no warranties, express or implied and specifically disclaims any warranty of merchantability or fitness for a particular purpose. Repair or replacement of the product ordered from seller shall be buyer’s exclusive remedy.
