Ergotron 45-304-026 Height Adjustable Wall Mount Arm for TV, VHD

Product ID 17221


  • Wall Mount Arm for TV
  • 20" Height adjustment: TV can be adjusted vertically for a total of 20"
  • 20.75" Horizontal adjustment: Side-to-side motion allows for a rich viewing experience
  • 30-60" Screen size: Accommodates TVs with screen size in the range 30"-60"
  • 35 lbs-70 lbs weight capacity: Carries TVs weighing up to 70 lbs
  • Extension, retraction: Extends TV 28" from wall, retracts to 6.5" when not in use
  • Please see, if you want a LD version, HD version of this arm

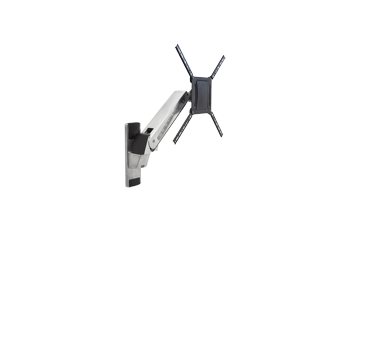

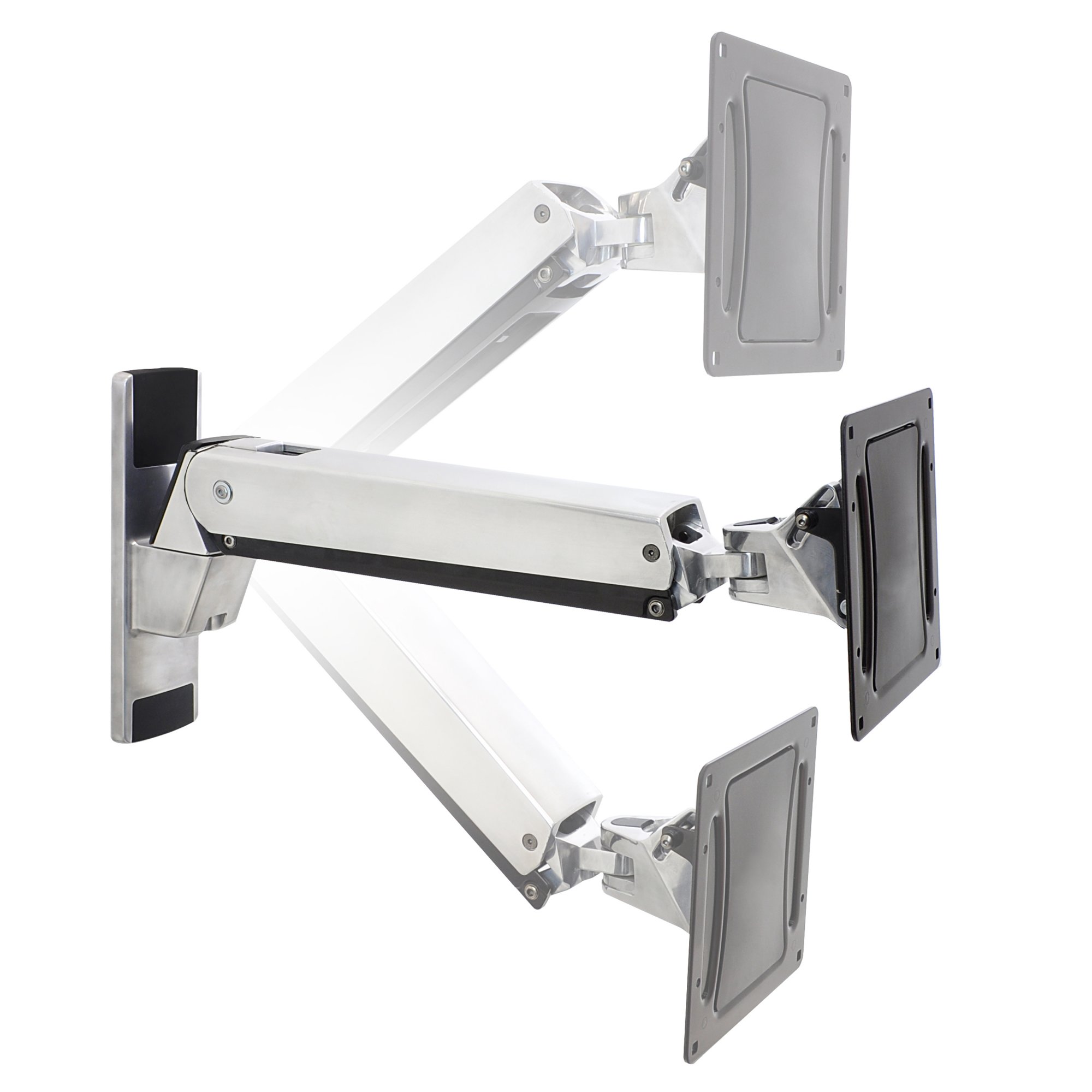

Animation of Ergotron 45-304-026 Height Adjustable Wall Mount Arm for TV, VHD


Ergotron 45-304-026 is ideal for today's varied needs for TV. Mount your big screen TV on this Ergotron VHD arm and move it into multiple positions with just a touch of the hand. With vertical adjustability of up to 20", lower your TV and participate in a yoga lesson, adjust the TV to play With with your children or watch a football game with your friends. Your screen will seemingly float on air, being easily adjusted between standing and seated heights. This arm features 20 inches (51 cm) of vertical adjustment and 20.75-inch (53 cm) motion adjustment to either side to accommodate a variety of such needs.

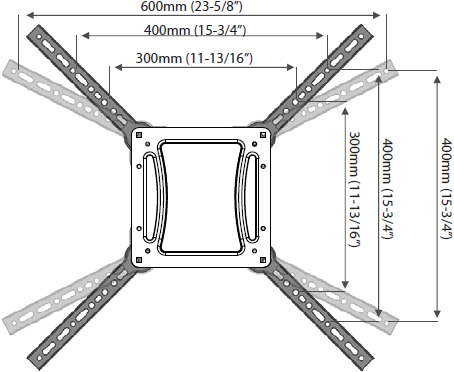

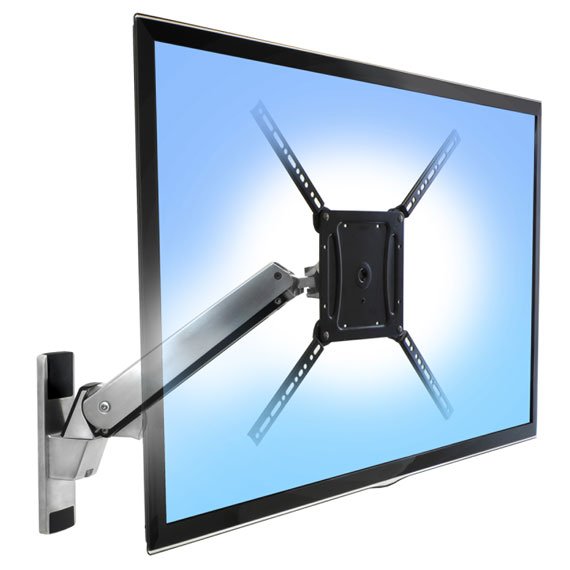

VESA Hole Pattern for ergotron 45-304-026 VHD Interactive TV Arm

Now anyone can effortlessly move their TV into multiple positions with only a light touch. Your screen will seemingly float on air, being easily adjusted between standing and seated heights. No more awkward viewing angles and sore necks.

Technical Drawing

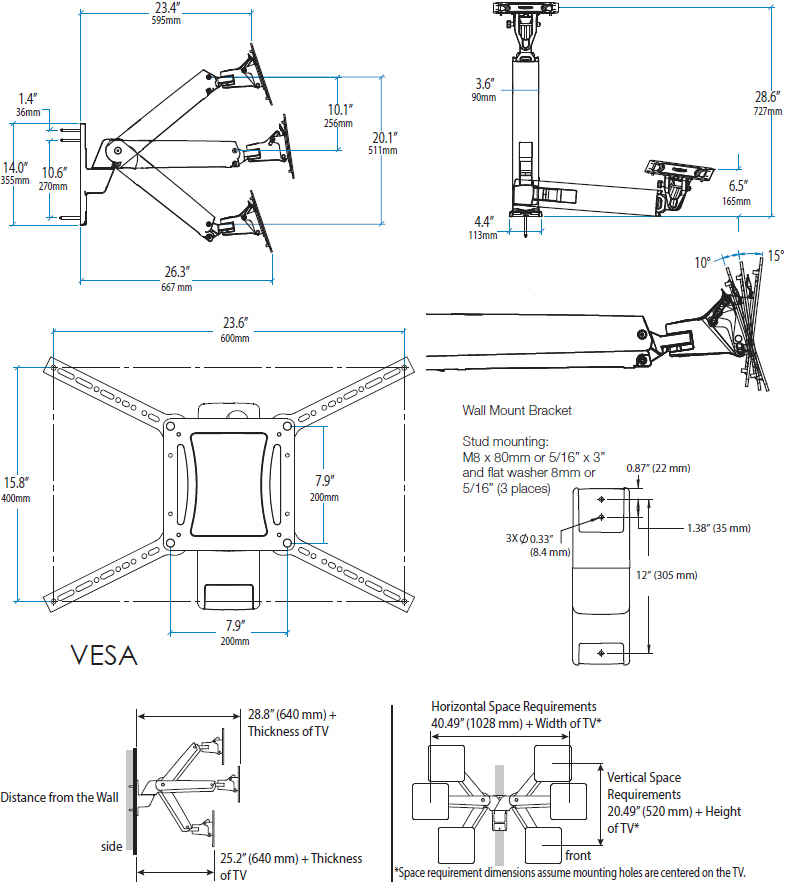

Technical Drawing for Ergotron 45-304-026 Height Adjustable Wall Mount Arm for TV, VHD

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
40" - 63"

35 - 70 lbs

15.9 - 31.8 kg


50.8 cm

25° 180° 10° MIS-E/F

Product Information

Part Number 45-304-026
Description Interactive Arm, VHD, Very Heavy Duty (polished aluminum)
  • Arm

  • Wall mount bracket

  • VESA adapter brackets

  • Complete hardware kit

Tilts Tilts forward 15°, tilts back 10°
Rotation Rotation of +/-5° provides leveling adjustment of screen in any position
Mounting Standards VESA FDMI MIS-E (hole pattern: 200 x 100 mm); VESA FDMI MIS-F (200–600 mm by 200–400 mm)
Lock-down Knob To fix the tilt position of the display in place, use the lock-down knob on the gravity pivot
Product Weight 26.2 lbs (11.9 kg)
Shipping Dimensions 30.5" x 13" x 8" (77.5 x 33 x 20 cm)
Shipping Weight 31.5 lbs (14.3 kg)
Warranty Five (5) years


  • Patented Constant Force technology enables light-touch adjustments

  • Extends 28" (71 cm) from wall when in use and can be fully retracted to 6.5" (17 cm) when not in use

  • The revolutionary design allows interaction with your TV by moving the screen to where you want it when watching movies, gaming, exercising and more

  • Provides smooth, continuous vertical and horizontal movement of the TV/display in all directions

  • Gravity pivot enables tilting capabilities without the need of knobs or levers

  • Improves ergonomic viewing for TVs/displays mounted high on the wall

  • Constructed from polished aluminum and black trim for maximum strength and bold aesthetics

  • Tilt and pan for maximum viewing flexibility

  • Level the screen at any position with +/- 5º of post-installation rotation

  • Cable management clips on the underside of the arm route and hide wires

  • Passes Ergotron’s 7,500-cycle motion test, which ensures a minimum of five years trouble-free height adjustment

Frequently Asked Questions

q Can I affix this mount to a table surface instead of a wall? I have a built in bookcase that has a desk surface which is attached to the floor. It can support up to 150Lbs and I can stand on it. Please let me know if this arm is capable of being mounted in this fashion vs a wall.

This model can only be used on the wall.

Model 45-304-026
Manufacturer Ergotron
Part Number 45-304-026
UPC 698833021905
Color Polished aluminum
Monitor Size 30" and above
Weight Capacity 35–70 lbs (15.9–31.8 kg)
Lift (51 cm) 20 in
Tilt Forward 15 degree, back 10 degree
Pan 180 degree
Rotation 10 degree
Mounting Pattern VESA FDMI MIS-E (hole pattern: 200 x 100 mm); VESA FDMI MIS-F (200–600 mm by 200–400 mm)
Shipping Dimensions 30.5" x 13" x 8" (77.5 x 33 x 20 cm)
Shipping Weight 31.5 lbs (14.3 kg)
Warranty Five (5) years
Extension Extends 28" (71 cm) from wall when in use and can be fully retracted to 6.5" (17 cm) when not in use
