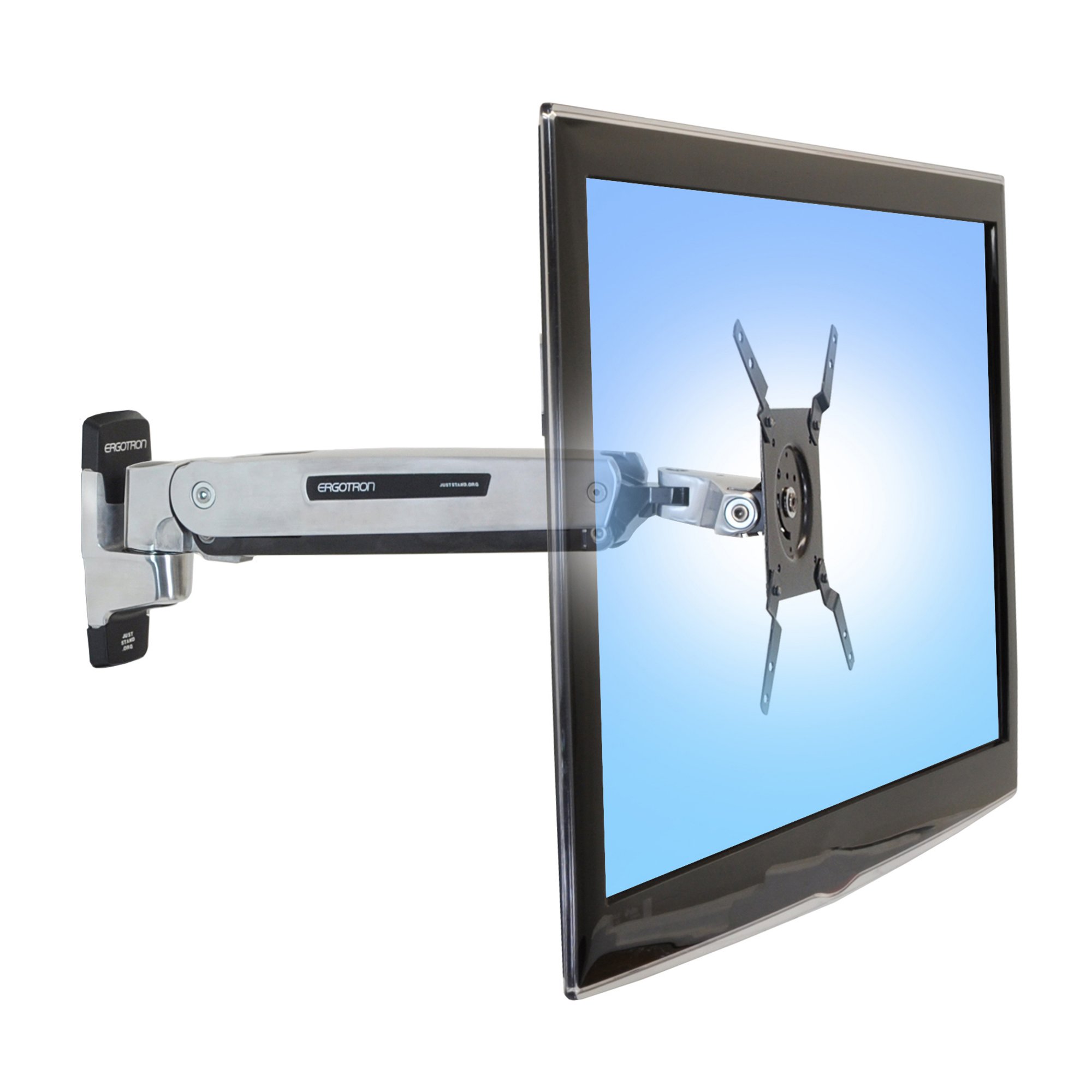

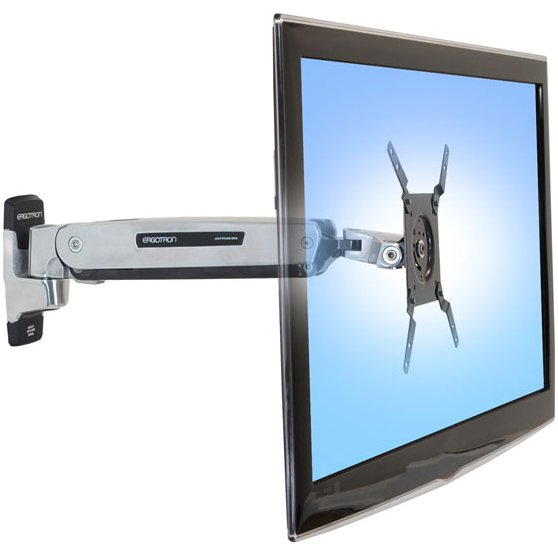

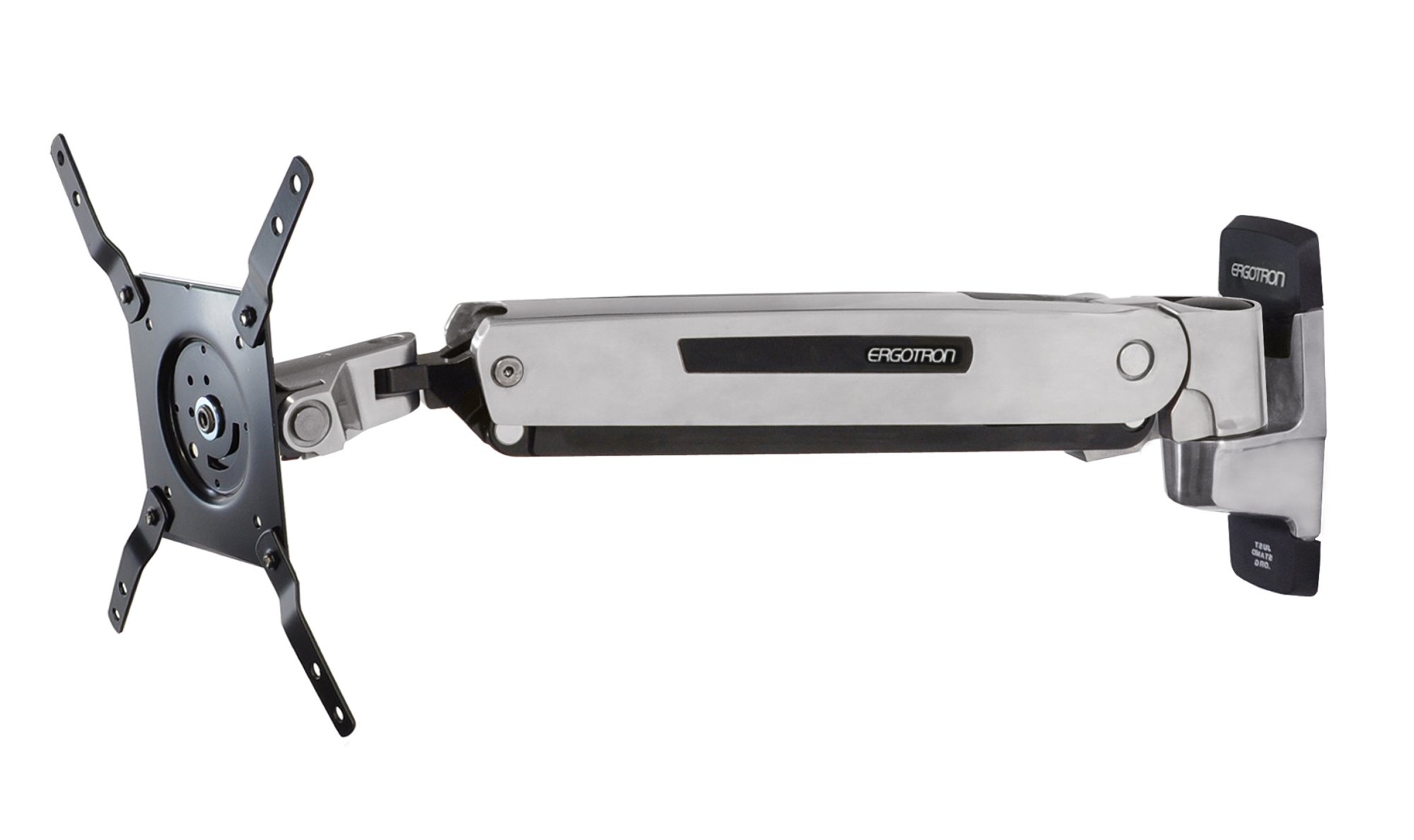

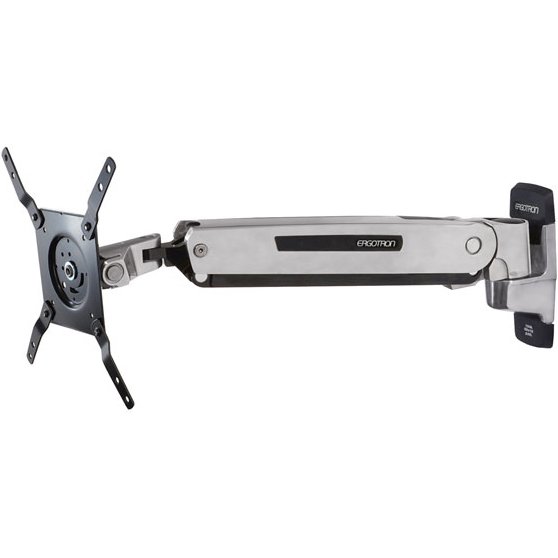

Ergotron 45-361-026 Height Adjustable Wall Mount Arm for TV, LD
Ergotron 45-361-026 accommodates the active TV positioning needs of
today and tomorrow. Lift, swing or turn your display in any direction.
Features 20 inches (51 cm) of vertical adjustment and 15-inch (38 cm)
motion adjustment to either side.
Lift, swing or turn your TV/display. Position the screen to relieve eye, neck and back strain. Equipped with patented Constant Force technology, the arm provides fluid, light-touch adjustments for effortless TV/display movement.
Up to 42"
7 - 25 lbs
3.2 - 11.3 kg
|Description||Interactive Arm, LD, Light Duty (polished aluminum)|
|Notebook Tray||Can be configured to hold a laptop instead of an LCD display; also order the Notebook Tray accessory (50-193-200)|
|Quality Tested||10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment|
|Weight Capacity||7 to 25 lbs (3.1 to 11.3 kg)|
|Tilts||Monitor tilts 70° up and 5° down|
|Rotation Stop||Rotation Stop on wall-mount base limits turn of arm-base connection to 180°, preventing arm from contacting wall|
|Locking Connections||Locking connections between arm and base offer increased theft deterrence and prevent potential disconnections caused by jarring or impacts|

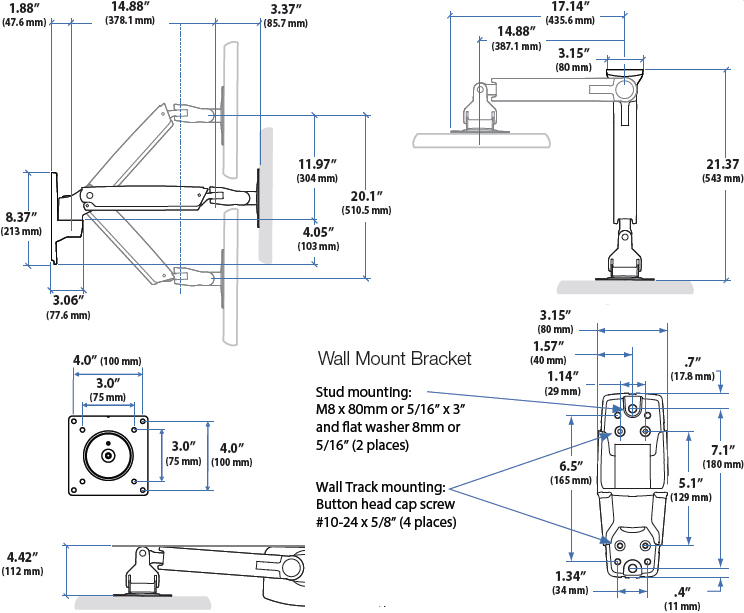

|Mounting Standards||VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm|

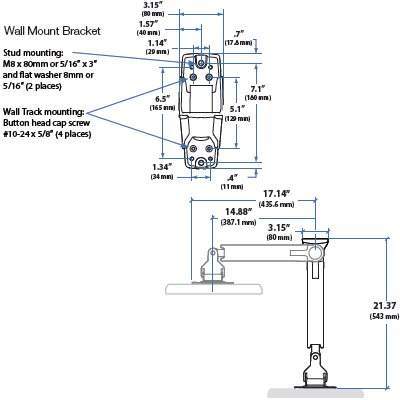

|Mounting Options||Attaches directly to sturdy vertical surfaces. Where applicable, install to wood stud. Also attaches to Wall Plate, or to Wall Track using bracket (97-091, order separately)|
|Base||Base includes theft-deterrent anchor holes for cable locks|
|Note||Displays mounted on this product may require extra long USB, power or video cables in order to span between standing and sitting heights|
|Product Weight||8.75 lbs (4 kg)|
|Shipping Dimensions||22.1" x 10.9" x 6.5" (56 x 28 x 17 cm)|
|Shipping Weight||10.2 lbs (4.6 kg)|
|Warranty||Five (5) years|

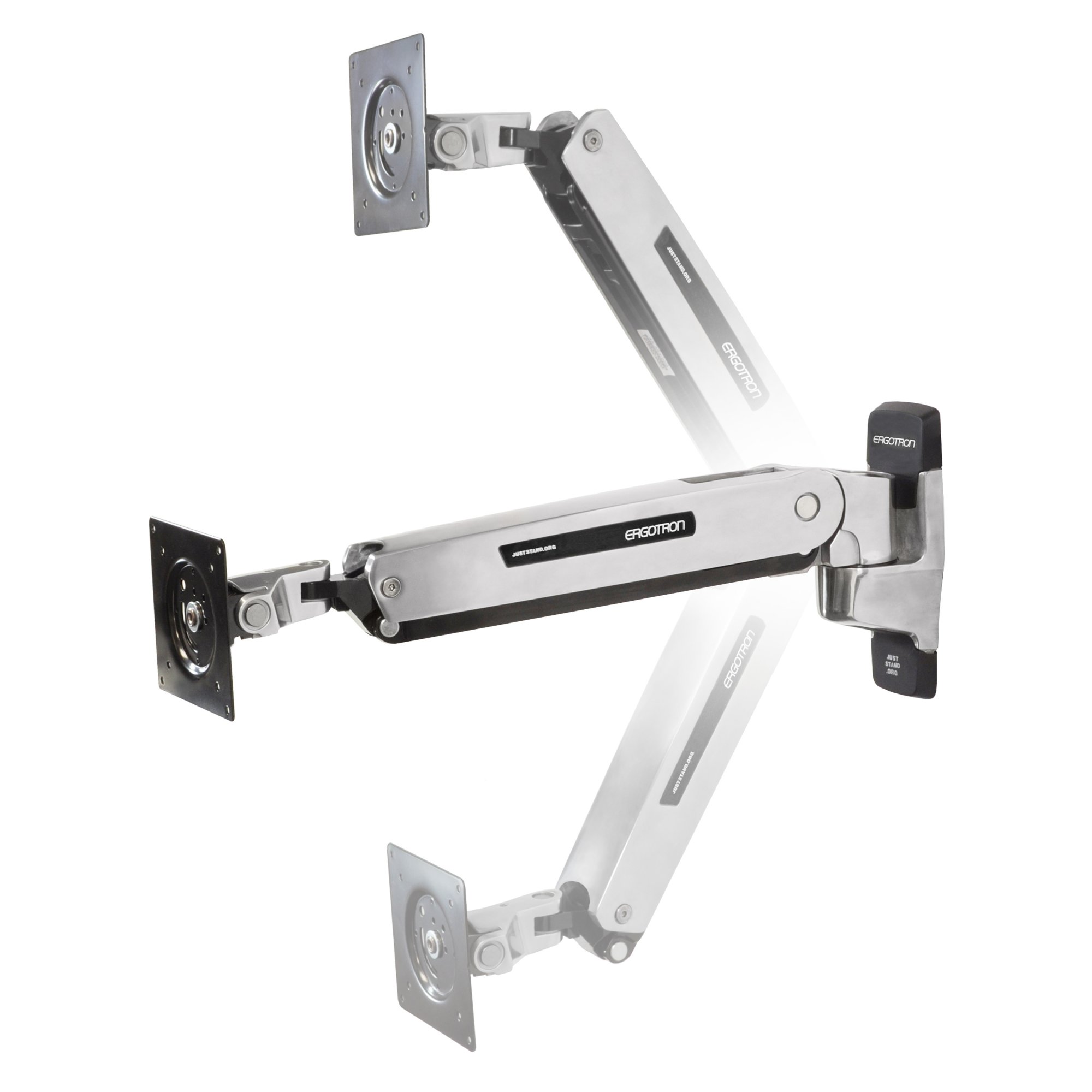

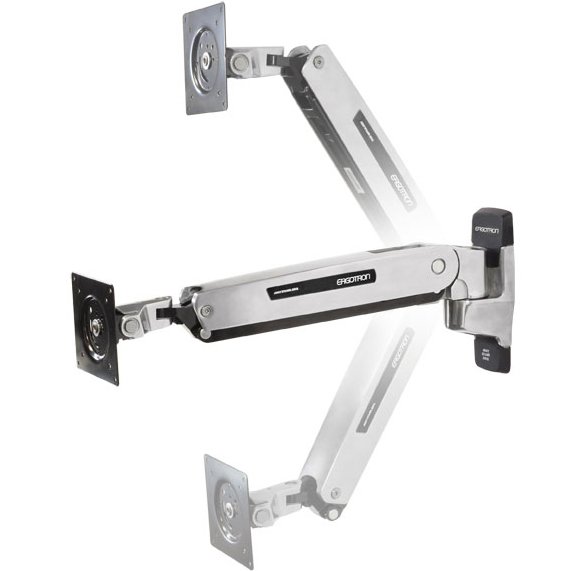

20-inch (51 cm) height range allows users to move between sitting and standing positions while they interact with the display
Extends LCD up to 17" (43 cm); push your display out of the way when not in use

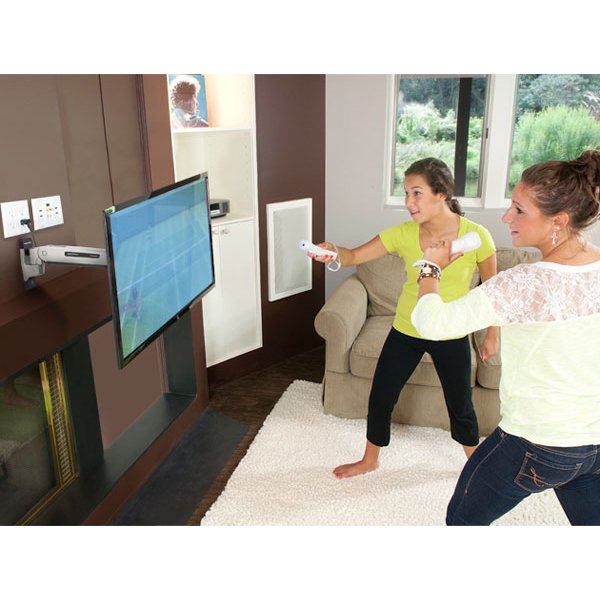

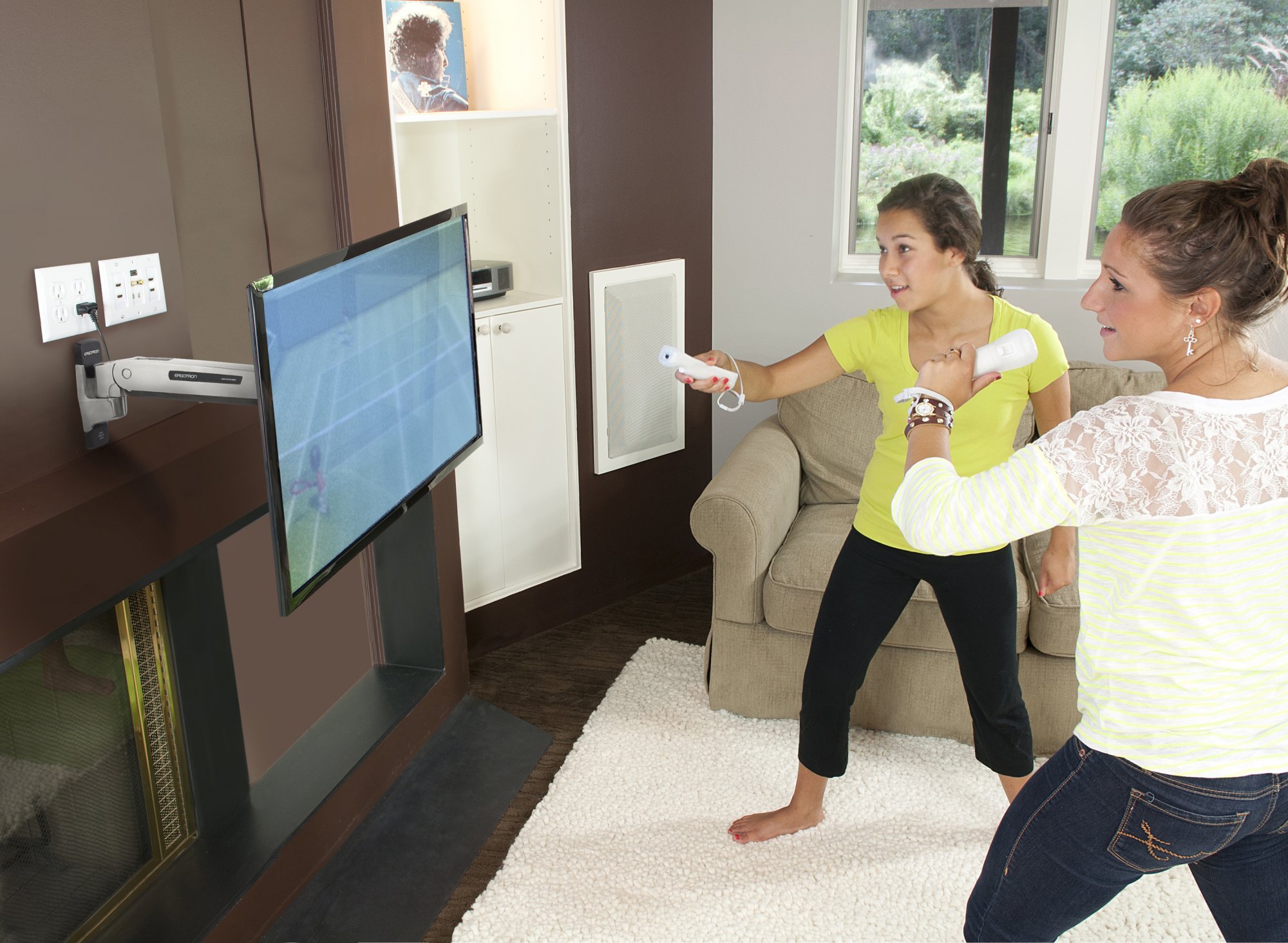

The revolutionary design allows interaction with your TV by moving the screen to where you want it when watching movies, gaming, exercising and more
Provides smooth, continuous vertical and horizontal movement of the TV/display in all directions
Patented CF motion technology provides premium ease-of-use adjustment
Cable management clips on the underside of the arm route and hide wires
Ideal for space-constrained spaces - folds to within 4.5" (11 cm) of wall in storage position
Secure installation - locking connection between arm and base
Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-free height adjustment
|Monitor Size||Up to 42"|
|Weight Capacity||7–25 lbs (3.2–11.3 kg)|
|Tilt||Up 70 degree and down 5 degree|
|Mounting Pattern||VESA MIS-D, 75/100 (100 x 100 mm & 75 x 75 mm), MIS-E (200 x 100 mm), MIS-F (200 x 200 mm ONLY). Optional VESA Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm|

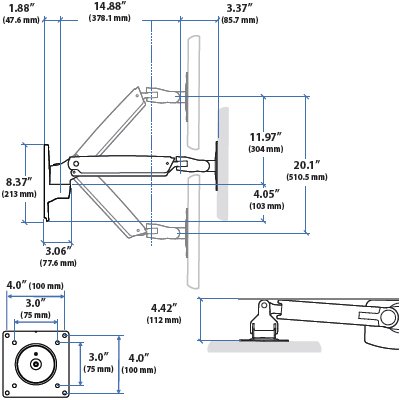

|Adjustments||20" (51 cm) of vertical adjustment and 15" (38 cm) motion adjustment to either side|
|Extension||Extends LCD up to 17" (43 cm)|
|Weight||8.75 lbs (4 kg)|
|Shipping Dimensions||22.1" x 10.9" x 6.5" (56 x 28 x 17 cm)|
|Shipping Weight||10.2 lbs (4.6 kg)|
|Warranty||Five (5) years|
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 1
by James R, Washington, Sep 18, 2015
This was the only mount I could find that fulfilled several criteria for me in installing a flat screen TV in a motorhome. It was not an easy installation (because of being in a motorhome, not because of the mount itself) but with some modification to the mount it worked out perfectly and allows me to watch from three diffefent places and store when traveling. I've been using it for 3 months now with no problems or issues. Recommend it to anyone.
