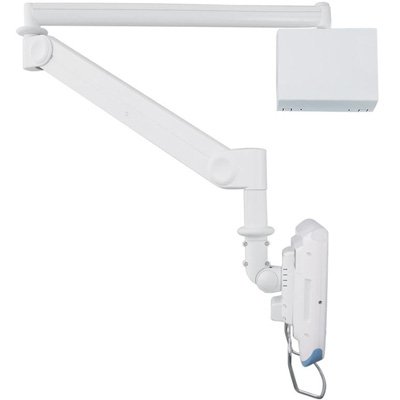

Cotytech MW-M125WBN Wall Mount Long Reach Medical Arm
Description
Our new Long Reach LCD Monitor Arm MW-M125WBN features built-in gas pneumatic spring design for easy and smooth movements, allowing instant floating of LCD monitor from position to position. This LCD wall mount provides maximum of 73" (185.7cm) straight extension. The articulating arm is a perfect solution if you need to float your LCD monitor around or above settings like workstation, manufacturing equipment, assembly line etc.
The wall mount solution can be rotated 370° at arm, 370° at monitor end and 180° at the wall connection for optimal viewing angles. When not in use, the unit can be folded up and out of the way, an excellent space-saving feature for any room. Concealed cable management not only makes the whole unit more neat looking but also enhances secure performance. This simple and contemporary looking durable arm is made of aluminum alloy with plastic cover outside. It's ergonomic, space saving attributes and contemporary look make the LCD wall mount a practical choice in businesses, office, doctors’ office, clinics, dental operatories, hospitals and factories.
Specifications
|
Part Number |
MW-M125WBN |
|
Weight Capacity |
Supports 13.2 - 26.4 lb (6 - 12 kg) |
|
Tilt |
15°/- 40° (display) and 20°/- 60° (arm) |
|
Maximum Extension |
72" (182.5cm) |
|
Rotation |
370° (arm); 370° (display); 180° (wall) |
|
Mounting Pattern |
VESA compliant: 75x75 to 100x100 |
|
Color |
White |
Mounting Pattern
You may usually find mounting patterns dimensions on the technical drawing page of your owner’s manual. Otherwise you can simply measure from the center of one hole to the center of the next (both vertical and horizontal). Please remember to measure in millimeters. Feel free to contact us if the mounting pattern of your LCD is different and we are very glad to help you out!
Comparison Chart
|
Model |
Ceiling |
Wall |
Weight Capacity |
Keyboard Holder |
Monitor Back Cable Cover |
Wall Box |
|
- |
Yes |
13.2 lbs |
Optional |
Yes |
- |
|
|
- |
Yes |
13.2 lbs |
Yes |
Yes |
- |
|
|
- |
Yes |
13.2 lbs |
Optional |
Yes |
Yes |
|
|
- |
Yes |
13.2 lbs |
Yes |
Yes |
Yes |
|
|
- |
Yes |
26.4 lbs |
Optional |
Yes |
- |
|
|
- |
Yes |
26.4 lbs |
Yes |
Yes |
- |
|
|
- |
Yes |
26.4 lbs |
- |
Yes |
Yes |
|
|
- |
Yes |
26.4 lbs |
Yes |
Yes |
Yes |
|
|
- |
Yes |
15.4 lbs |
Optional |
Yes |
- |
|
|
Yes |
- |
13.2 lbs |
Optional |
Yes |
N/A |
|
|
Yes |
- |
13.2 lbs |
Yes |
Yes |
N/A |
|
|
- |
Yes |
26.4 lbs |
Optional |
Yes |
N/A |
|
|
Yes |
- |
26.4 lbs |
Yes |
Yes |
N/A |
|
|
- |
Yes |
26.4 lbs |
Optional |
Yes |
Yes |
|
|
- |
Yes |
26.4 lbs |
Yes |
Yes |
Yes |
Product Options/Accessories
| Model | MW-M125WBN |
| Manufacturer | Cotytech |
| Part Number | MW-M125WBN |
| Color | White |
| Weight Capacity | 13.2 - 26.4 lb (6 - 12 kg) |
| Tilt | (display) 15 / -40 degree & (arm) 20 / -60 degree |
| Maximum Extension | 72" (182.5cm) |
| Rotation | (arm) 370 degree; (display) 370 degree; (wall) 180 degree |
| Mounting Pattern | VESA 75x75 to 100x100 |
| Mounting Options | Wall |
| Monitor Arm Types | 1 Monitor |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 1
- 5 stars 0
by Nate, California, Jul 14, 2016
The arm was easy to install and setup. It is stable and easy to adjust. The lower grab handle interferes with the monitor power connection and could not be used. Internal cable routing path is too small for standard VGA and power cable connectors. I would purchase this unit again.
