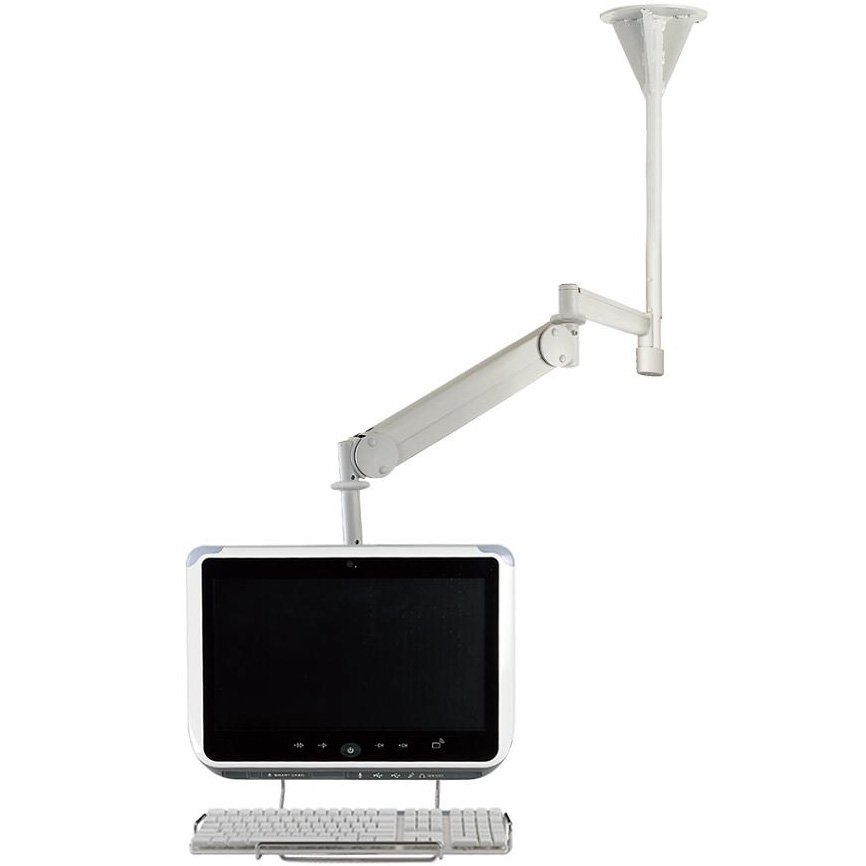

Cotytech CM-M25KN Long Reach LCD Medical Arm Ceiling Mount

Monitor back cable cover is included. Comes with front keyboard holder.

Product ID 17886


  • Long reach arm extends up to 72" with ease and smoothness

  • Ceiling mount type for flat panel ranges 13.2 lbs to 26.4 lbs

  • Built-in gas pneumatic spring design for extreme ease of operation and movements

  • Instantly and effortlessly float flat screen from position to position

  • Maximum adjustment rendered by tilting, swiveling and rotation

  • Comes with front keyboard holder; dimensions: 11.6" - 19.7" (W) (295 - 500mm); 9" (D) (229mm)

  • Covers can be opened to put in cables (cables not included)

  • Concealed cable management for neatness and secure performance

  • Monitor back cable cover is included

  • Sturdy construction made of aluminum alloy with outside plastic covers

  • Easy installation and dis-installation

  • Color: White


Our new Ceiling Monitor Mount for LCD Screen - Long Reach CM-M25KN features built-in gas pneumatic spring design for easy and smooth movements, allowing instant floating of LCD monitor from position to position. This LCD ceiling mounting bracket provides maximum of 72” (182.5cm) straight extension. The articulating arm is a perfect solution if you need to float your LCD monitor around or above settings like workstation, manufacturing equipment, assembly line etc.

The LCD ceiling mount solution can be rotated 270° and 370° at arms, 370° at monitor end for optimal viewing angles. When not in use, the unit can be folded up and out of the way, an excellent space-saving feature for any room. Handle design facilitates easy operation and movement. This simple and contemporary looking durable arm is made of aluminum alloy with plastic cover outside. It's ergonomic, space saving attributes and contemporary look make the ceiling VESA mount a practical choice in businesses, office, doctors’ office, clinics, dental operatories, hospitals and factories. Please note that monitor is not included.


Color White
Weight Capacity Supports 13.2 - 26.4 lbs (6 - 12 kg)
Tilt 15° / - 40° (display) & 20° / - 60° (arm)
Maximum Extension 72" (182.5cm)
Rotation 270° & 370° (arms); 370° (display)
Mounting Pattern VESA compliant: 75x75 to 100x100; Optional 200x200

Mounting Pattern

You may usually find mounting patterns dimensions on the technical drawing page of your owner’s manual. Otherwise you can simply measure from the center of one hole to the center of the next (both vertical and horizontal). Please remember to measure in millimeters. Feel free to contact us if the mounting pattern of your LCD is different and we are very glad to help you out!

VESA Mounting Pattern

Comparison Chart

Model Ceiling Wall Weight Capacity Keyboard Holder Monitor Back Cable Cover Wall Box
MW-M123PN - Yes 13.2 lbs Optional Yes -
MW-M23PKN - Yes 13.2 lbs Yes Yes -
MW-M123WBN - Yes 13.2 lbs Optional Yes Yes
MW-M23WBKN - Yes 13.2 lbs Yes Yes Yes
MW-M125PN - Yes 26.4 lbs Optional Yes -
MW-M25PKN - Yes 26.4 lbs Yes Yes -
MW-M125WBN - Yes 26.4 lbs - Yes Yes
MW-M25WBKN - Yes 26.4 lbs Yes Yes Yes
MW-M16P - Yes 15.4 lbs Optional Yes -
CM-M123N Yes - 13.2 lbs Optional Yes N/A
CM-M23KN Yes - 13.2 lbs Yes Yes N/A
MW-M125PN - Yes 26.4 lbs Optional Yes N/A
CM-M25KN Yes - 26.4 lbs Yes Yes N/A

Product Options/Accessories

Frequently Asked Questions

q Does this Long Reach Medical Arm have a mouse option?

There is no mouse platform option for this arm.

Model CM-M25KN
Manufacturer Cotytech
Part Number CM-M25KN
Color White
Weight Capacity 13.2 - 26.4 lb (6 - 12 kg)
Tilt (display) 15 / -40 degree & (arm) 20 / -60 degree
Maximum Extension 72" (182.5cm)
Rotation (arms) 270 degree & 370 degree; (display) 370 degree
Mounting Pattern VESA 75x75 to 100x100
Mounting Options Ceiling
Monitor Arm Types 1 Monitor
Keyboard Tray Dimensions 11.6" - 19.7" (W) (295 - 500mm); 9" (D) (229mm)
