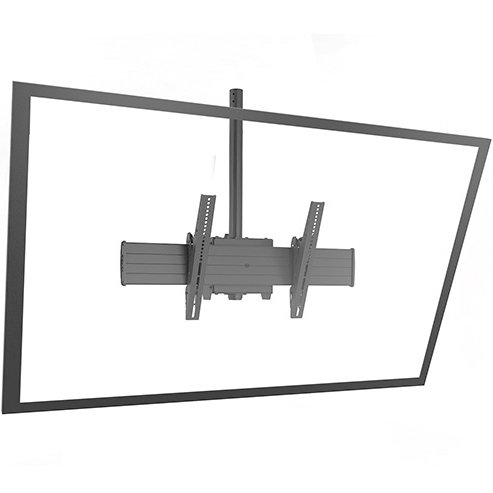

Chief XCM1U FUSION X-Large Single Pole Flat Panel Ceiling Mount
Chief XCM1U FUSION X-Large Single Pole Flat Panel Ceiling Mount


Chiefs FUSION Flat Panel Ceiling Mounts are installer inspired and offer perfect TV positioning and flexible adjustments for X-large flat panel screens. Great for digital signage installations. Chief XCM1U is a single pole drop ceiling mount perfect for XL displays 5" deep and thinner. For deeper and heavier displays, see Chief's XCM7000 for a dual drop solution.

  • Ceiling Plate and extension column are required and must be ordered separately

  • Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems

  • Ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility

  • CPA ceiling plates and CPA columns for pin connection compatibility

Provide aesthetic covering to the rear side of the displays, components and mount using the Chief Fusion Universal Back Covers.

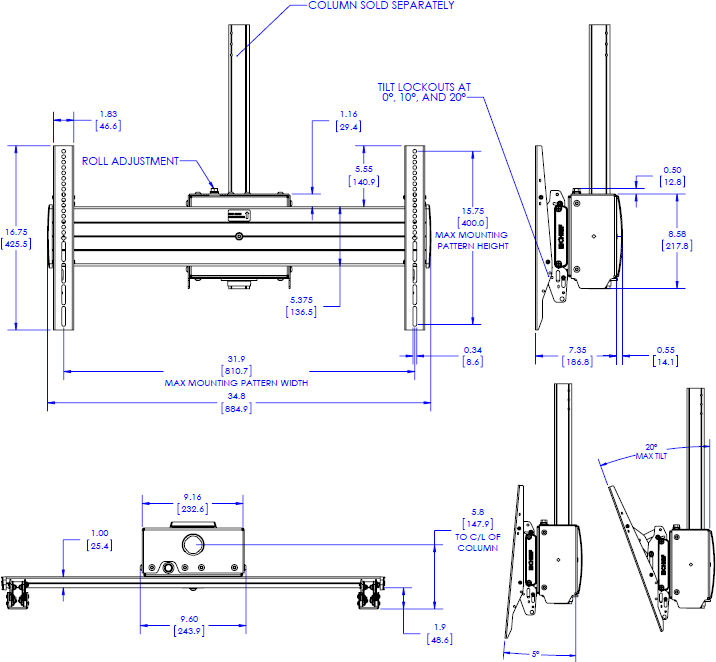

Technical Drawing

Technical Drawing for Chief XCM1U FUSION X-Large Single Pole Flat Panel Ceiling Mount


Certifications UL Listed, TAA Compliant
Color Black
Mounting Pattern Compatibility (Universal Versions) 200 x 100 mm - 800 x 400 mm
Overall Dimensions 16.8" x 34.8" x 7.9" (423 x 885 x 200mm)
Number of Monitors 1
Post-Installation Leveling Roll Yes
Shipping Weight 26 lbs (11.79 kg)
Tilt + 5°, - 20°
Typical Screen Sizes 55 - 100"
Weight Capacity 250 lbs (113.4 kg)
Orientation Landscape


  • Repeatability - Continuous tilt ranges with four set locking points to eliminate guess work when adjusting multiple screens

  • Accessibility - Simple on/off connection for ease of installation and service

  • Centris Fingertip Tilt - Effortlessly adjust display using Centris fingertip tilt technology

  • Simple & Secure - Tool free screen engagement with optional padlock security

  • Flexibility - Mount swivels to any preferred viewing angle

  • TAA compliant

Model XCM1U
Manufacturer Chief Mounts
Part Number XCM1U
UPC 841872159393
Color Black
Mounting Pattern 200 x 100 mm - 800 x 400 mm
Overall Dimensions 16.8" x 34.8" x 7.9" (423 x 885 x 200mm)
Shipping Weight 26 lbs (11.79 kg)
Tilt + 5 degree, - 20 degree
Monitor Size 55 - 100"
Weight Capacity 250 lbs (113.4 kg)
Number of Monitors 1 Monitor
Post-Installation Leveling Roll Yes
Orientation Landscape
