The below item has been discontinued. See above for similar products that we offer instead. We apologize for this inconvenience.

Ergotron 45-179-194 LX Desk Mount LCD Arm Silver DISCONTINUED REPLACED by 45-241-026

Be the first to review this product
Product ID: 14346
Our Price: $142.15
Shipping: $11.25 * - UPS Ground
Usually ships in 2 to 3 business days
* applies to Contiguous United States





Accessories for Ergotron 45-179-194 LX Desk Mount Arm

Ergotron 45-189-194 LX Extension Arm Silver 45189194

Ergotron 45-189-194 LX Extension Arm

Ergotron 60-589-060 Quick Release LCD Bracket 60589060

Ergotron 60-589-060 Quick Release LCD Bracket

Ergotron 60-499-200 Interface Bracket for Motion Computing FlexDock 60499200

Ergotron 60-499-200 Interface Bracket

Ergotron 60-579-200 Motion Computing Tablet Interface Bracket for PC 60579200

Ergotron 60-579-200 Motion Computing Interface Bracket



Ergotron 97-435-009 Display Security Bracket 97435009

Ergotron 97-435-009 Display Security Bracket

Ergotron 80-102-064 Universal CPU Holder 80102064

Ergotron 80-102-064 Universal CPU Holder

Humanscale 900 Standard Keyboard Tray Platform System

Humanscale 900 Standard Keyboard Tray System

WorkRite UB2110D-25 or UG2110D-26 Dual Mouse-Under Advantage keyboard Platform

WorkRite UB2110D Dual Mouse-Under keyboard Tray

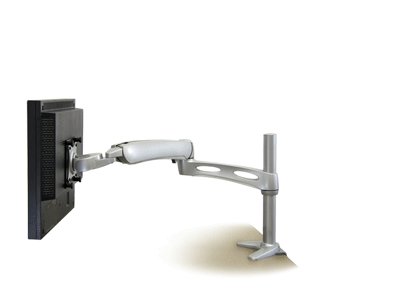

Animation of Ergotron 45-179-194 LX Desk Mount LCD Arm Silver





Ergotron LX Mount LCD Arm Video





General Information

Image of Warranty and Returns



Nationwide Delivery Image

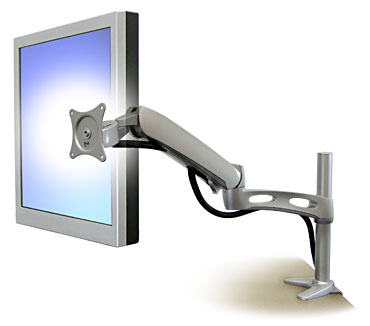

Ergotron 45-179-194 LX Desk Mount LCD Arm 45179194 Silver



Ergotron 45-179-194 LX Desk Mount LCD Arm Silver









Description of Ergotron 45-179-194:

Sleek and streamlined, the LX frees up space and allows positioning of your display for greater productivity. Reposition your LCD with just a touch. Up. Down. Forward. Back. The LX provides unparalleled range of motion.

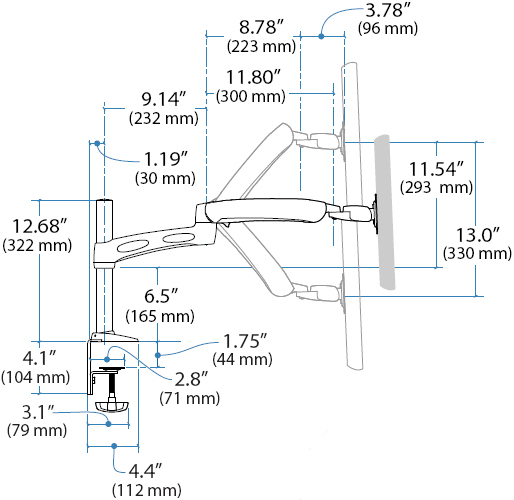

Technical Drawing for Ergotron 45-179-194 LX Desk Mount LCD Arm Silver



Ergotron 45-179-194 LX Desk Mount Dimensional Diagram









Technical Specifications:








     LCD Size

 Wt. Capacity

     Lift

Tilt

Pan

Rotation

VESA

up to 20"

up to 51 cm

5 - 20 lbs

2.3 - 9.1 kg

13"

33 cm

 80° 180°

90° P/L

MIS-D







Product Information:

Part Number:

45-179-194

Description:

Ergotron LX Desk Mount LCD Arm (silver)

Included:

Desk clamp and grommet mount bases

Mounting Options::

 Desk Clamp attaches to surface edge 1/2" to 1 - 7/8" (13 to 47 mm) thick; Grommet Mount attaches through surface holes 5/16" to 2" (8 to 51 mm) wide and up to 2 - 1/2" (63 mm) thick.

Mounting Standards:

VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)

Weight Capacity:

7 to 20 lbs (3.2 to 9.1 kg) - new and enhanced

Monitor Depth:

Monitor depth greater than 2" (5 cm) may diminish capacity. Arms sold during or prior to 2008 have different depth tolerance

Shipping Dimensions:

19" x 16" x 6" (483 x 406 x 152 mm)

Shipping Weight:

11 lbs (5 kg)

Warranty:

Five (5) years









Benefits of Ergotron 45179194:

    1.  Upgrade LCD monitors and TVs with improved ergonomic adjustment.



    2.  Patented CF motion technology provides premium ease-of-use display adjustment.



    3.  Cable management feature routes cables under the arm, out of the way.



    4.  Extends/retracts LCD up to 24", push your display out of the way when not in use.



    5.  13" height range meets the ergonomic needs of more than nine out of ten adults.



    6.  Compact design frees up space.







More Images:

Ergotron 45-179-194 LX Desk Mount LCD Arm Silver inuse picture

Ergotron 45-179-194 LX Desk Mount LCD Arm Silver inuse picture




Ergotron 45-179-194 LX Desk Mount LCD Arm Silver inuse picture Ergotron 45-179-194 LX Desk Mount LCD Arm Silver motion range picture





Ergotron Clamp Mount

Clamp: Clamp attaches to surface edge 1/2" to

1-7/8" (13 to 47 mm) thick

Ergotron Grommet Mount

Grommet: Grommet Mount attaches through surface holes 5/16" to 2" (8 to 51 mm) wide and up to 2-1/2" (63 mm) thick

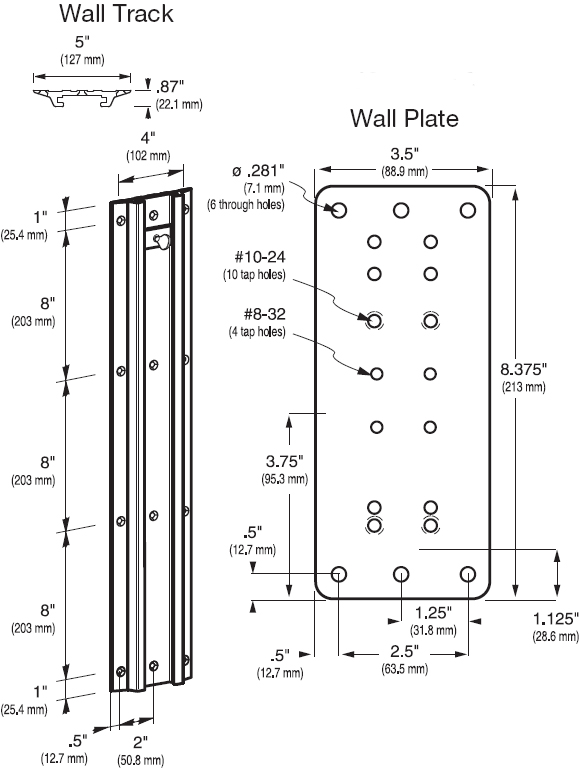

Dimensional Diagram for Ergotron Wall Plate and Wall Track






Literature (Please open the following documents for more technical information)

Description

File Type

Ergotron 45-179-194 LX Desk Mount LCD Arm - Product Sheet

reader-14.jpg - pdf

Ergotron 45 179 194 LX Desk Mount LCD Arm Silver - Dimensional Illustrations

reader-14.jpg - pdf

Ergotron 45-179-194 LX Desk Mount LCD Arm - Installation Manual

reader-14.jpg - pdf

Ergotron 45-179-194 LX Desk Mount LCD Arm Silver - 3D Animation

reader-14.jpg - pdf
