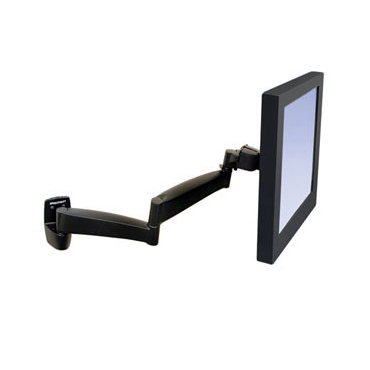

Ergotron 28-096-200 Wall Mount 200 Series Arm (black)
Ergotron 28-096-200 Wall Mount 200 Series Arm (black)
Extend or retract, swing, tilt or turn your flat panel monitor for maximum efficiency and ergonomic comfort. The 200’s slim profile saves space, yet gets your screen to where you need it most.

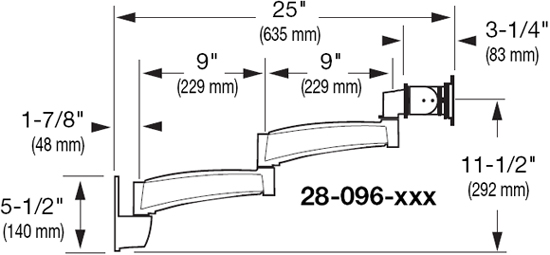

Dimensional Diagram for 200 Series Wall Mount Arm
Technical Specifications:
LCD Size
Wt. Capacity
Lift
Tilt
Pan
Rotation
VESA
up to 24"
up to 25 lbs
up to 11.3 kg
-
180°
180°
360° P/L
MIS -D
Product Information:
Part Number:
Ergotron 28-096-200
Description:
200 Series Wall Mount LCD Arm (black)
Weight Capacity:
25 lbs (11.3 kg)
Mounting Options:
Mounts to sturdy vertical surfaces. Where applicable, attach to wood stud. To increase support, a separately-ordered Wall Plate or Wall Track accessory is recommended
Mounting Standards:
VESA FDMI, MIS-D, 75/100, C (hole pattern: 100 x 100 mm (3.937" x 3.937") and 75 x 75 mm (2.952" x 2.952"))
Shipping Dimensions:
24" x 15" x 7.2" (610 x 381 x 183 mm)
Shipping Weight:
14 lbs (6.3 kg)
Warranty:
Five (5) years
Benefits:
Easily extend and retract your LCD to the point of need: extension range is 23.
Rotate your screen for portrait/landscape viewing.
Integrated cable management.
Sturdy steel construction is extremely durable and stable.
Weight capacity when adding extensions:
When adding extension to 300 or 200 Series system, use the formula below to calculate the maximum allowable load:
D x L =maximum inch-lbs (not to exceed 900)
Distance (D) = The measurement in inches on horizontal plane from the center-line of the mounting bracket the center-of-gravity (C/G) of the monitor.
Load (L) = The Weight in pounds of the monitor.

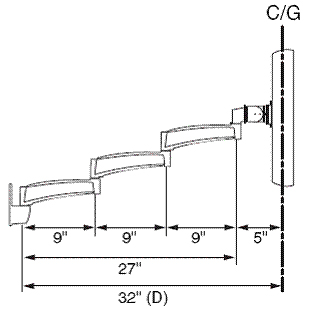

Example :
Monitor weighing 25 lbs using three 9" Extensions and Single Pivot with P/L.
Therefore:
D = (3 x 9") + 5" = 32"
L= 25 lbs
32" x 25 lbs= 800 inch-lbs
As 800 is less than 900, your component can be used in this configuration.
Wall Track
Wall Plate
