Peerless PRS-UNV-S Universal PRS Series Projector Ceiling Mount up to 25 lbs

Peerless PRS-UNV-S Universal PRS Series Projector Ceiling Mount up to 25 lbs

This product has been discontinued.

Peerless PRS-UNV-S Projector Mount




Peerless PRS-UNV PRS Projector Ceiling Mount for Multimedia Projectors

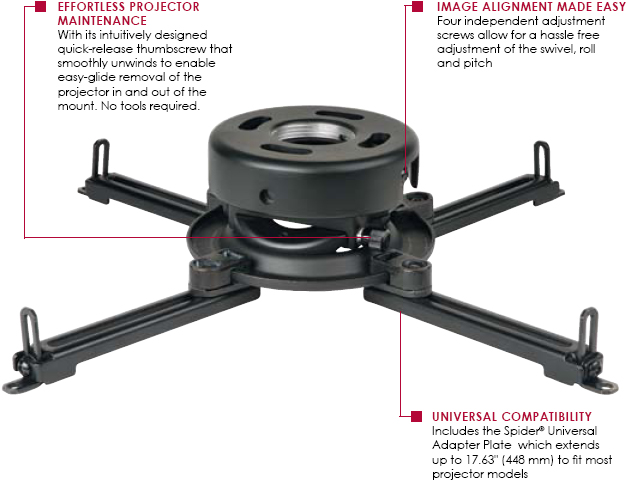

Features of Peerless PRS UNV S:



  • Mount ships completely pre-assembled.

  • Quick-release for easy projector removal and maintenance.

  • Pitch: +5°/ -20°, Roll: ± 10°, Swivel: 360° with extension column (30° swivel when flush mounted).

  • Easy cord management via access opening.

  • Comes with hardware for installation to wood joist or concrete.

  • Secured with Armor Lock at every connection point.

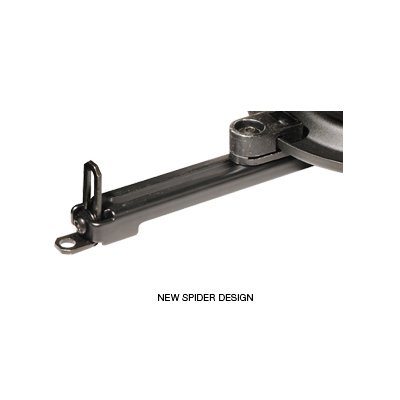

  • Works with Spider Universal Adapter plate, model-specific adapter plates or universal clamp-style adapter plates.

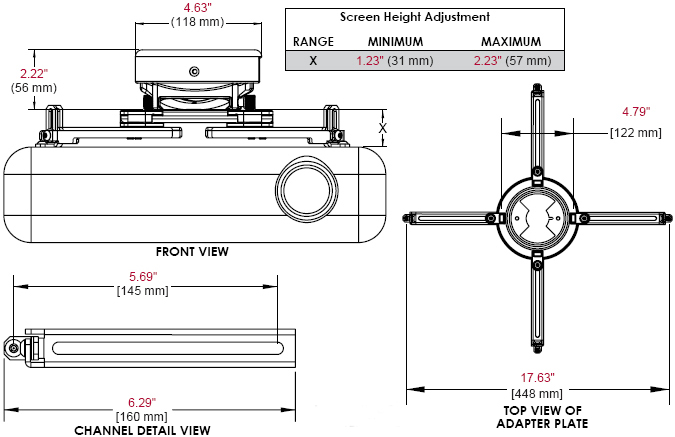

Technical Drawing of Peerless PRS-UNV-S Projector Ceiling Mount



Technical Drawing of Peerless PRS-UNV PRS Projector Ceiling Mount









Description of Peerless PRS-UNV-S:

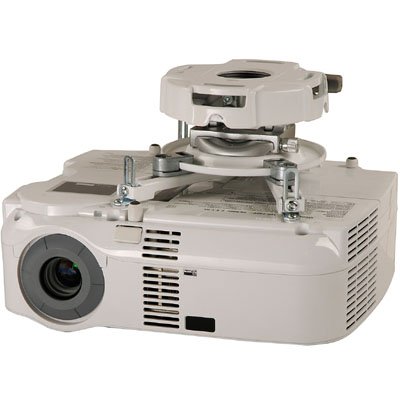

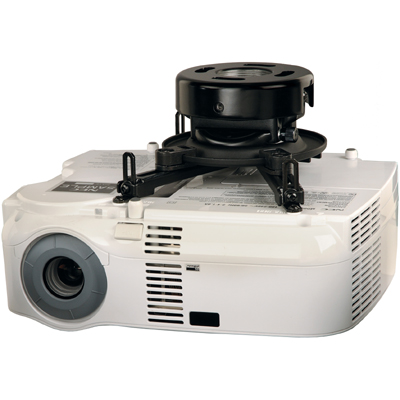

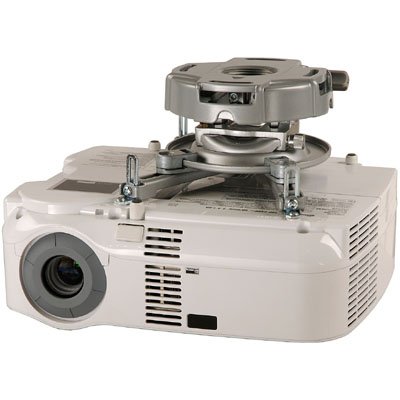

The PRS projector mount comes pre-assembled for quick and easy installation. Its low profile design and three alignment functions allow unmatched versatility for most mounting applications. Peerless UL rated the PRS which includes a quick release mechanism for projector maintenance or removal. Available colors; black, silver and white.









Specifications of Peerless PRS-UNV-S:



Color:

Silver

Mounting Pattern:

Up to 17.63" (448 mm)

Tilt:

+5°/-20°

Swivel:

360° (±15° when flush mounted)

Roll:

±10°

Mounting Surfaces:

Wood joist, concrete and other structures (Other structures require accessory)

Product Dimensions (W x H x D):

8.5"-17.63" x 3.44"-4.44" x 8.5"-17.63"'

(216-448 x 87-113 x 216-448 mm)

Product Weight:

2.83 lbs (1.3 kg)

Load Capacity:

25 lbs (11 kg)

Finish:

Scratch resistant fused epoxy

Package Size (W x H x D):

12.25" x 9.63" x 4" (311 x 244 x 102 mm)

Package Ship Weight:

3.5 lb (1.6 kg)

Package Contents:

  • PRS Series Projector Mount

  • Spider Universal Adapter Plate

  • Mounting and projector attachment hardware

  • Assembly instructions

Units in Package:

1







Literature (Please open the following documents for more technical information)




Peerless PRS UNV S PRS Series Projector Mount - Catalog Page

- pdf
Peerless PRSUNVS  PRS Series Projector Ceiling Mount - Drawing

- pdf
Peerless PRS-UNV-S  Projector Ceiling Mount - Installation

- pdf
Peerless PRS Series Projector Ceiling Mount - Accessories

- pdf


Product Options/Accessories
Peerless PWA-14 Projector Wall Mount Arm PWA-14S PWA-14W

PWA-14 Projector Wall Mount Arm

$135.31 $121.80
Peerless EXT006 Fixed 6" Length Extension Columns for Jumbo Mounts EXT-006

EXT006 Fixed 6" Length Extension Columns for Jumbo Mounts

$49.00 $44.10
Peerless ACC558 or ACC559 Single Monitor I-Beam Clamp

ACC558 or ACC559 I-Beam Clamp

$170.00 $153.00
Peerless ACC120 Internal Wood Joist Ceiling Plate

Peerless ACC120 Internal Wood Joist Ceiling Plate

$189.00 $170.10
Peerless ACC550 Unistrut Adapter for Truss Ceiling

ACC550 Unistrut Adapter for Truss Ceiling

$71.00 $63.90
Peerless ACC570 or ACC570W Round Ceiling Plate

ACC570 Projector Round Ceiling Plate

$76.00 $68.40
Peerless ACC912 Lightweight Cathedral Ceiling Plate for Projector

Peerless ACC912 Lightweight Cathedral Adapter up to 75 lbs

$69.00 $62.10
Peerless ACC840 Wood Joist/ACC845 Unistrut Anti-Vibration Ceiling Plate

ACC840 or ACC845 Anti-Vibration Ceiling Plate

$159.00 $143.10
Peerless CMJ300 or CMJ310 Unistrut and Structural Ceiling Plate

Peerless CMJ300 or CMJ310 Unistrut & Structural Ceiling Plate

$58.00 $52.20
Peerless CMJ455 LightWeight Suspended Ceiling Plate for Projector

Peerless CMJ455 LightWeight Suspended Ceiling Plate

$224.00 $201.60
Peerless CMJ470 Wood Joists or Structural Concrete Ceiling Plate

CMJ470 Wood Joists or Structural Concrete Ceiling Plate

$69.00 $62.10
Peerless ACC810 Threaded Rod Adapter for Projector Mounts

Peerless ACC810 Threaded Rod Adapter

$34.00
Peerless EXA-W Adjustable (8.7"-12.8") Ceiling or Wall Extension Kit

Peerless EXA-W Adjustable (8.7"-12.8") Ceiling/Wall Extension Kit

$54.00 $40.99
Peerless EXB Adjustable Projector Ceiling/Wall Mount Extension Kit EXB-S or EXB-W

EXB Adjustable Projector Ceiling/Wall Mount Extension Kit

$69.00 $49.01
Peerless EXC-W Adjustable (19.1"-32.9") Ceiling/Wall Extension Kit

Peerless EXC-W Adjustable (19.1"-32.9") Ceiling/Wall Extension Kit

$84.00 $57.06
Peerless AEC Height Adjustable Extension Columns

AEC Adjustable Extension Columns

Call for price
Peerless ACC-M8RI Threaded Insert

ACC-M8RI Threaded Insert

$34.00 $30.60
Frequently Asked Questions

No FAQs available for this product. Have a question? Ask us!

Product Information
  • Model PRS-UNV-S
  • Manufacturer Peerless Mounts
  • Part Number PRS-UNV-S
  • UPC 735029220343
  • Weight 3 lb(s)
  • Color Black, Silver, White
  • Mounting Pattern Up to 17.63" (448 mm)
  • Tilt +5 degree/-20 degree
  • Swivel 360 degree
  • Roll ±10 degree
  • Mounting Surfaces Wood joist, concrete and other structures (Other structures require accessory)
  • Dimensions (W x H x D) 8.5"-17.63" x 3.44"-4.44" x 8.5"-17.63"' (216-448 x 87-113 x 216-448 mm)
  • Weight 2.83 lbs (1.3 kg)
  • Weight Capacity 25 lbs (11 kg)
  • Shipping Dimensions 12.25" x 9.63" x 4" (311 x 244 x 102 mm)
  • Shipping Weight 3.5 lb (1.6 kg)
  • Mounting Options Ceiling
