The below item has been discontinued. See above for similar products that we offer instead. We apologize for this inconvenience.

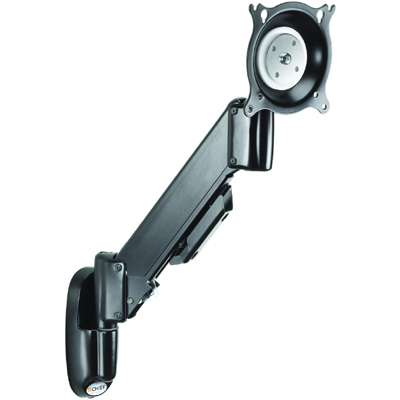

Chief KWV110B Height Adjustable Single Arm Wall Mount
Description
Chief KWV110 attaches small flat panel monitors to the wall and provides ergonomic viewing height.
- Ergonomic solution for the home or office providing excellent adjustability
- Folds in close to the wall for a low-profile appearance

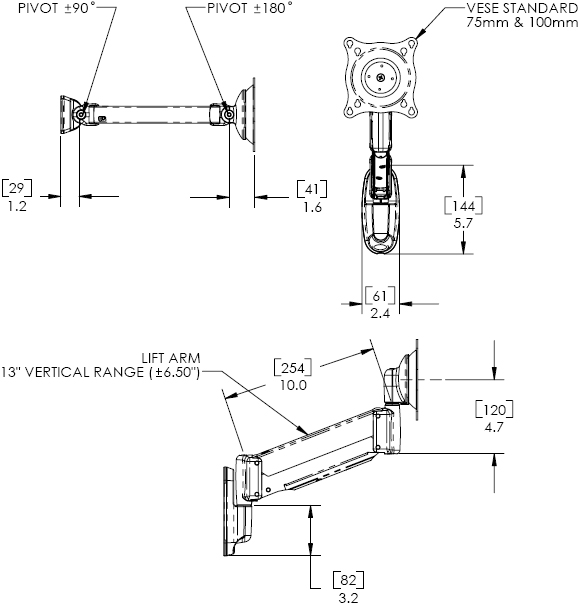

Technical Drawing
Features
- Fingertip height adjustment up to 13.25" (337 mm) to achieve optimal viewing height
- Centris Technology provides smooth, fingertip tilt in all directions
- Easy installation - Attach wall plate to single stud. Slide mount onto plate. Attach display to mount. Secure hardware
- Sleek, attractive design hides all hardware
- Independently adjustable tension at pivot points for customized control
- Tension can be optimized for touchscreen use
- Compatible with all Chief custom OFB Office Furniture interface brackets Ships fully assembled
- VESA 75 x 75 mm, 100 x 100 mm compatible (custom interfaces also available)
Technical Specifications
|
Color |
Black |
|
Compatible with OFB Furniture Brackets |
Yes |
|
Dynamic Height Adjustment |
13.25" |
|
Maximum Extension |
12.8" (325.1mm) |
|
Minimum Depth |
2.19" (55.6mm) |
|
Mounting Pattern Compatibility (Universal Versions) |
75 x 75mm,100 x 100mm |
|
Number of Monitors |
1 |
|
Orientation |
Landscape, Portrait |
|
Overall Dimensions (H x W x D) |
10.5" x 4.6" x 13.0" (266 x 116 x 329mm) |
|
Post-Installation Leveling (Roll) |
Yes |
|
Solution Type |
Universal |
|
Tilt |
+ 15°, - 15° |
|
Typical Screen Sizes |
10 - 30" |
|
Wall Stud Compatibility (inches) |
Single Stud |
|
Weight Capacity |
5 - 25 lbs (2.3 - 11.3kg) |
Product Options/Accessories
31177 Desk/Wall Anti-Theft Lockdown Stand
$119.99
KSA1009 Security Hardware Kit (Height-Adjustable)
Discontinued
$58.00
$27.80
KWK110B Keyboard Wall Mount
$1076.00
$430.40
Chief KSA1022B Wall Track Accessory
$480.00
$192.00
KSA1013 Laptop Tray
Discontinued
$232.00
$92.80
KSA1021 Keyboard Tray
Discontinued
$318.00
$127.20
KSA1002 Desk Clamp Accessory
Discontinued
$240.00
$96.00
KSA1024 Quick Release Bracket
$134.00
$53.60
FSBIB iPad Interface Bracket (100x100 mm)
Discontinued
$47.20
FSBI2B Portable iPad Interface Bracket
Discontinued
$44.00
$26.32
FSBI2TB iPad Secure Interface Bracket
Discontinued
$135.00
$83.20
| Model | KWV110B |
| Manufacturer | Chief Mounts |
| Part Number | KWV110B |
| UPC | 841872043623 |
| Weight | 10.00 lb(s) |
| Color | Black, Silver |
| Dynamic Height Adjustment | 13.25" |
| Maximum Extension | 12.8" (325.1mm) |
| Minimum Depth | 2.19" (55.6mm) |
| Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Overall Dimensions | 10.5" x 4.6" x 13.0" (266 x 116 x 329mm) |
| Tilt | +15 Degree, -15 degree |
| Screen Size | 10 - 30 in |
| Weight Capacity | 5 - 25 lbs (2.3 - 11.3kg) |
| Mounting Options | Wall |
| Monitor Arm Types | 1 Monitor |
| Shipping Weight | 10 lbs |
