Dimensional Diagram for Peerless PPF Flush Ceiling Projector Mount
|
|
|
|
PPF Flush Ceiling Projector Mount:
|
|

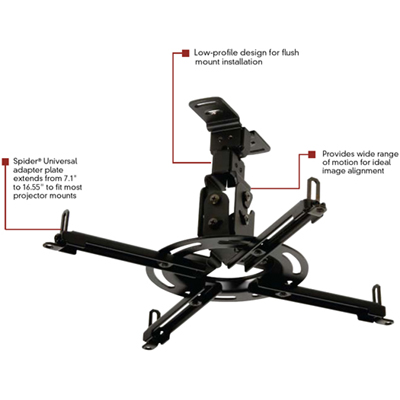

This flush projector mount virtually disappears behind the projector delivering a highly desirable low-profile installation. Designed with enhanced installation simplicity and speed, this out-of-the-box mounting solution enables fast and easy flush mount installations and accommodates virtually all projectors up to 50 lb.
|
|
Features:
-
Low-profile design for flush mount installations
-
Provides wide range of motion for ideal image alignment:
-
Tilt: +30/-5 degree, Swivel: +/-20 degree at mount, Roll: +/-20 degree
-
Spider universal adapter plate extends from 7.1"-16.55" to fit most projector models
-
Internal cable management within channels for clean, clutter-free appearance
-
Includes hardware for installation to a wood joist or concrete
-
UL listed
|
|
Product Information:
|
|
Model Number
|
PPF(-S)(-W) -- (Security Version)
|
|
Projector Adapter
|
Includes Spider universal adapter plate to accommodate projector mounting holes from 7.1 inch to 16.5 inch
|
|
Product Specifications
|
|
Tilt
|
+30/-5 degree
|
|
Swivel
|
+/-20 degree
|
|
Roll
|
+/-20 degree
|
|
Dimension (W x H x D)
|
7.1" - 16.55" x 7.74" x 7.1" - 16.55" ceiling
(18 - 42 x 19.7 x 18 - 42 cm)
|
|
Load Capacity
|
50 lb (22.6 kg)
|
|
Product Weight
|
2.7 lb (1.4 kg)
|
|
Finish
|
Scratch-resistant fused epoxy
|
|
Available Colors
|
PPF: Black
PPF-S: Silver
PPF-W: White
|
|
Package Specifications
|
|
Package Contents
|
Ceiling plate, Spider universal adapter plate, mounting and screen attachment hardware
|
|
Units in Package
|
1
|
|
Package Size (W x H x D)
|
12.25" x 4" x 9.63" (31.1 x 10.1 x 24.4 cm)
|
|
Package Ship Weight
|
4.6 lb (2.1 kg)
|
|
UPC Code
|
735029255475
|
|
Warranty
|
Limited 5-year
|
|
