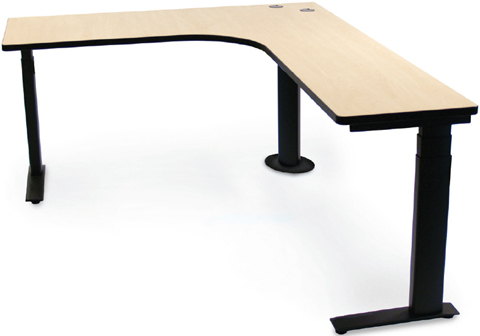

SIS SURF2 Electric 3-Leg CornerFlex Height Adjustable Table and Ergonomic Desk (30" Depth)

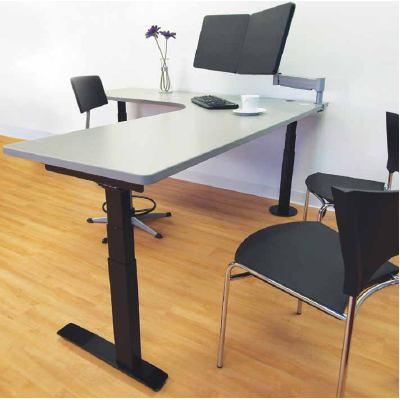

SIS SURF2 s483483 CornerFlex 3-Leg Electric Height Adjustable Workcenter (30" depth)

Technical Drawing for SIS SURF2 CornerFlex 3-leg Electric Adjustable Desk

SIS SURF2 Electric Adjustable Workstation Description:

Workspace design must fit the space and application as well as adjust to fit the user. If it does not, then it’s not the solution for you. When we created the SURF2 line we weren’t interested in offering another basic adjustable table- we wanted to present our customers with Solutions with Unlimited Reliability and Flexibility, SURF2.

SIS surf2 - The standard electrical sit-to-stand workstation with custom features designed specifically for your application. Create maximum leg space by utilizing two, three and four leg frames, in 90° and 120° configurations. Both frame and surface available in 1" increments from 45" to 96" with surface depths starting at 17".

Need more, shape tops around components or enhance the cockpit radius to fit the user’s work reach envelope. Apply surface wire grommets for cabling or mounting flat panel display arms.

Add any of our unique accessories and you’ve completed your current call center environment. SIS will provide you with cost effective solutions for the life of your workstation... resize and reshape without purchasing a new table.

With over 30 years of experience supporting office workers with adjustable desking, SIS-USA designed surf2 electric height adjustable workstations to:

• Offer sit-to-stand workstation adjustment for the entire ANSI-BIFMA recommended range - fitting the 5th percentile female and 95th percentile male - so more people work more comfortably and productively.

• Allow full-depth file pedestal or CPU mounting locations anywhere under the worksurface to support different work styles and needs.

• Enable future flexibility through reconfiguration - simply change crossbars that correspond to different work surface sizes and shapes and you save 90% of your original investment but still have the new work station shape and size you need.

• give you all of this - a full featured sit-to-stand workstation.

surf2 offers unlimited potential for office worker to be comfortable and productive, clients to design their own workstations and facilities managers to choose great solutions today that will continue to be great solutions tomorrow.

Features:

Standard Features:

• No Rear Cross Bar

          - Easily fits full depth box/file ped anywhere under the work surface

             - Greater end-user comfort with increased leg room

• Simple "up-down" arrow touch pad control for no-frills, maintenance free use

• Horizontal wire management to keep underside of work surface neat

• Leveling glides to address uneven floors

• SIS lifetime warranty

Height Range: Adjusts a 1" thick worksurface from 22.1" to 47.8" to fit more people in sitting or standing positions

Adjustment Speed: 1.7"/second so the table moves quickly from sit to stand

Options:

• Two-user four position programmability with or without digital readout

• Create new workstations by simply changing cross bar and worksurface sizes

• Under-desk mounted CPU holder to clear up desk space

• Desk mounted overhead storage to add functional and reachable storage space, optional task light available

• Low-height mobile file pedestal

• Electrical Power supply to reduce the number of cables moving up and down with the desk, standard with 10’ cord

• Vertical wire management to keep the space neat

In addition to a new height range of 22.1" to 48.6", surf2 carries the same great design and functional flexibility of the original surf:

Here is what makes surf2 different

• 22.1" to 48.6" sit-to-stand height range exceeds ANSI/BIFMA recommendations, fitting nearly everyone.

• Two, three or four-leg frames support freestanding corners, returns, "L", and "U" workstations for any application.

• Frames supplied "by the inch" in any width from 24" to 96" offers unparalleled design flexibility.

• Absence of lower cross bar eliminates interference with operator leg room, file pedestals, allows for access from both sides and makes a desk more wheelchair accessible.

• Available in 90°, 120° and custom angle configurations for oddly shaped rooms or correspond to panel systems layouts

• Available as frames used under customers’ existing work surfaces to reduce costs and recycled reusable tops.

• Standard and Heavy-Duty lifting capacities to handle normal office and extra heavy equipment loads of 300 lbs. or 500 lbs.

• Work surfaces made of 1" core and any domestic high pressure laminate with 3 mm plastic edging and 1" ergonomic radius corners.

• Standard work surface depths of 30" and 24" plus 18" depths support conventional work surfaces as well as transaction counters, drafting tables and executive desks.

• SISmate keyboard arms up to 60" wide added to corner and rectilinear work surfaces create additional height and tilt adjustability.

• Frames can be sized to position mobile pedestals and CPUs either inside or outside the leg envelop.

• Cantilevered leg upright and upper cross bars increases the under-desk space for wire management, power supply mounts, keyboard mechanisms, pencil trays, storage devices, CPU holders, etc.

• Easy to reconfigure, rebuild and move - create new workstations by adding a new differently sized work surface and upper crossbar.

• Work surfaces manufactured with one wire management grommet per frame leg.

• Standard up-down arrow switch, optional programmable and digital display switches.

• Height range can be factory pre-programmed with upper or lower limits.

• Black frames in stock; aluminum frame finish available in 8 weeks.

• Optional horizontal and vertical wire management available

• Frames ship partially KD, assembled with simple tools

• SCS certified environmental production

• 1" adjustable leveling glides

• SIS Lifetime Warranty

SURF2 Foot:

Three-leg frames use two 17” feet at the return edges and a “round” foot in the center to increase foot placement comfort, reduce trip hazards, etc.

SURF2 Table Specification Guide:

Adjustment Mechanism:

Electric

Adjustment Speed

Standard : 1.7" second

Heavy Duty: 0.75" second

Height Range

Single Surface: 22.1" - 48.6"

Duplex surface:

keyboard: +6”, -5.75”

Keyboard tilt: +9°, -15°

Leg Style:

Offset "T" leg , cantilevered available

Capacity:

150 lbs per leg - standard

250 lbs per leg - heavy duty

Upgrades:

Casters, CPU holder, computer shelf and voice data receptacles

J-channel horizontal wire management, surface mount power strip with surge protection, 10’ power cord for full range operation

Assembly:

4 & 5mm Allen wrench (supplied)

Phillips screw driver

Model S483483: 48" x 48" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S483543: 48" x 54" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S483603: 48" x 60" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S483663: 48" x 66" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S483723: 48" x 72" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S483783: 48" x 78" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S483843: 48" x 84" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S483903: 48" x 90" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S483963: 48" x 96" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S543483: 54" x 48" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S603483: 60" x 48" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S663483: 66" x 48" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S723483: 72" x 48" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S783483: 78" x 48" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S843483: 84" x 48" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S903483: 90" x 48" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S963483: 96" x 48" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S543543: 54" x 54" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S543603: 54" x 60" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S543663: 54" x 66" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S543723: 54" x 72" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S543783: 54" x 78" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S543843: 54" x 84" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S543903: 54" x 90" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S543963: 54" x 96" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S603543: 60" x 54" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S663543: 66" x 54" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S723543: 72" x 54" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S783543: 78" x 54" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S843543: 84" x 54" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S903543: 90" x 54" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S963543: 96" x 54" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S603603: 60" x 60" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S603663: 60" x 66" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S603723: 60" x 72" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S603783: 60" x 78" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S603843: 60" x 84" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S603903: 60" x 90" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S603963: 60" x 96" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S663603: 66" x 60" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S723603: 72" x 60" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S783603: 78" x 60" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S843603: 84" x 60" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S903603: 90" x 60" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S963603: 96" x 60" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S663663: 66" x 66" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S663723: 66" x 72" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S663783: 66" x 78" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S663843: 66" x 84" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S663903: 66" x 90" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S663963: 66" x 96" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S723663: 72" x 66" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S783663: 78" x 66" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S843663: 84" x 66" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S903663: 90" x 66" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S963663: 96" x 66" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S723723: 72" x 72" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S723783: 72" x 78" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S723843: 72" x 84" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S723903: 72" x 90" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S723963: 72" x 96" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S783723: 78" x 72" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S843723: 84" x 72" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S903723: 90" x 72" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S963723: 96" x 72" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S783783: 78" x 78" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S783843: 78" x 84" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S783903: 78" x 90" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S783963: 78" x 96" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S843783: 84" x 78" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S903783: 90" x 78" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S963783: 96" x 78" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S843783: 84" x 84" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S843903: 84" x 90" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S843963: 84" x 96" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S903843: 90" x 84" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S963843: 96" x 84" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S903903: 90" x 90" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S903963: 90" x 96" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S963903: 96" x 90" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Model S963963: 96" x 96" x 30" x 30" x 22.1" - 48.6" H Surface Dimensions

Standard Up-Down Arrow Switch

(Standard with electronic controls for smooth 1.7"/s adjustment from sit-to-stand positions)

Digital Programmable Switch with Readout

(Digital display and multi-seating controls available for an upcharge)

12 Charcoal

18 Aluminum

SL10

Kensington Maple

SL11

Wild Cherry

SL12

River Cherry

SL13

New Age Oak

SL14

White Nebula

SL15

Fashion Gray

SL16

White Tigris

SL17

Silicon EV

SL18

Nickel EV

SL19

Tungsten EV

SL20

Natural Tigris

SL21

Shadow

SL22

Desert Zephyr

SL23

Canyon Zephyr

SL24

North Sea

SL25

Carbon ev

SL26

Twilight Zephyr

SL27

Morro Zephyr

ED11

Charcoal

ED12

Light Gray

ED13

Birch

ED14

Graphite

ED15

North Sea

ED16

Fusion Maple

ED17

Storm

Standard Frame

Conversion Kit

Literature (Please open the following documents for more technical information)
