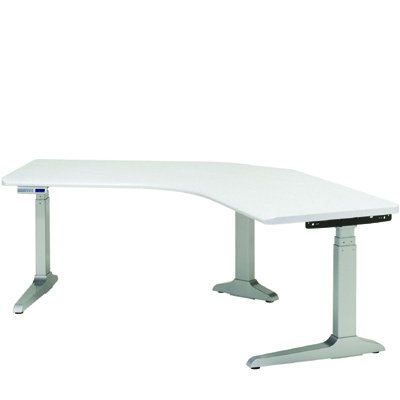

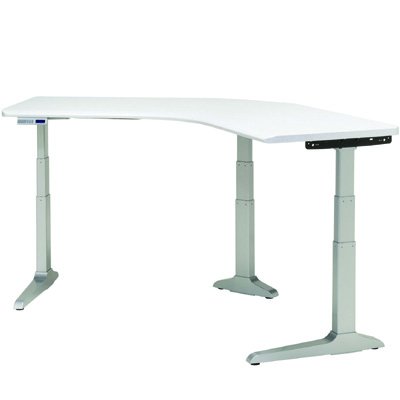

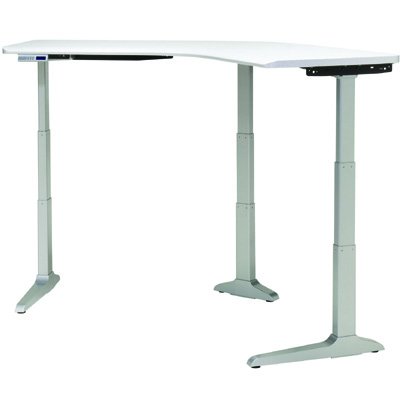

WorkRite Sierra HX Electric 120 Degree Height Adjustable Table

Description

Raise the bar on workcenter comfort. The new Sierra HX is the most innovative adjustable height workcenter for the professional workplace. The standard crossbar has been eliminated to allow maximum leg clearance for worker comfort. Instead, a mount structure under the worksurface provides unmatched stability and plenty of room to attach a CPU holder and keyboard platform and lots of space to position your mobile pedestal.

Sierra HX features our beautiful Silhouette Collection of worksurfaces. These sleek tops are whisper thin at just ½", use GREENGUARD certified material, and are available in a variety of edge treatments.

Sierra HX Electric workcenters will lift your spirits along with your essential worktools. Quiet motors provide over 175 pounds of lifting force per leg, so no matter how heavy your workload, the Sierra Electric HX is there to support you.

Specifications

Height Range, Base and Leg Dimensions

Features

• Hidden crossbar design provides optimum knee clearance and under worksurface access

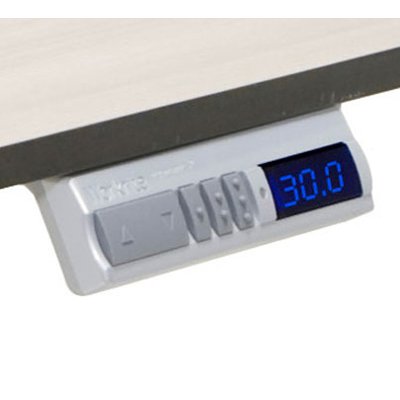

• Electric control with 3 memory pre-sets

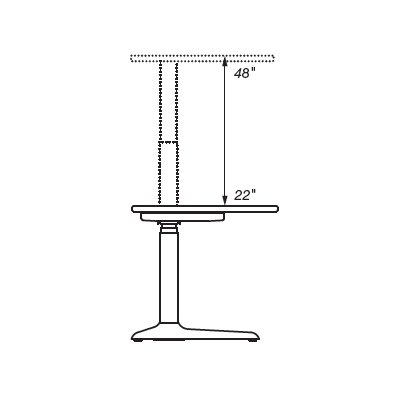

• Height range: 22"-48" at 1.6" per second
• Lifting capacity: 2 leg: 225 lbs, 3 leg: 300 lbs
• Available in 24 worksurface styles in over 60 laminate trim options
• Available in Sierra silver or charcoal finish
• Base only or full workcenter
• Compatible with full line of tool bar and rally system accessories
• Anti-crash feature - an extra sensitive motor that detect if the chair is placed under the table, it would stops and moves up 1/2 inch so the chair can be easily removed
• Colors and patterns for Laminates, Edges and Base Frames are representative only. Actual colors and patterns may vary slightly

Environmental Considerations

• LEED Credit Eligibility

• Material & Resources Credit 4.1–4.2 (1–2 points)

• LEED Base Only: 26–29%

• LEED with laminate: 31–37%

• LEED with Silhouette: 13–18%

• Innovation in Design Credit 1.1–1.4 (1–4 points)

• Standby power use is only 0.1W

• GREENGUARD Silhouette top material

• VOC free powdercoat


Option 1: Surface Dimensions

Option 2: Switch Position

Option 3: Base Frame Colors

Colors and patterns are representative only. Actual colors and patterns may vary slightly

Option 4: Laminate Top Colors

Colors and patterns are representative only. Actual colors and patterns may vary slightly

Option 5: Edge Treatments

Colors and patterns are representative only. Actual colors and patterns may vary slightly

Option 6: Casters

Sierra Locking Casters

Features

• Low profile locking casters 2" W x 1.5" H
• Casters raise work centers by 1" versus installed adjustable glides
• Can be used with all Workrite adjustable work centers, recommended for Sierra workcenters
• Four (4) casters required for 2 leg workcenters, five (5) casters required for 3 leg workcenters

The following Casters are available

• 95234 - 4 casters for 2 leg tables
• 95235 - 5 casters for 3 leg tables

Option 7: Pinch Points

Dimensions provided above are nominal. Actual widths of all tables are reduced by 2" and depths by 1". For example, a nominal 72" × 72" × 24" large corner table has an actual dimension of 70" × 70" × 23", and a 72" × 30" rectangular table has an actual dimension of 70" × 29".

Option 8: HX Spacer

Attach the spacer to the leg motor with the #M6x12 mm Button Cap Screws

Secure the support angle to the table top with the #12x3/4" Pan Head Hex Sheet Metal Screws

Features

• Provides 3" or 5" of additional mounting depth under worksurface for accessories including keyboard platforms.

• 3" spacer can mount to either 24"D or 30"D workcenters; 5" spacer can only be used on 30"D workcenters.

• For 3 leg dual depth workcenters, order spacer for narrowest side.

• Quantity 2 spacers provided.

The following Spacers are available:

• SHX-24SPCR: 3" depth spacer, weight 4 lbs

• SHX-30SPCR: 5" depth spacer, weight 7 lbs

Workcenter Ordering Information

Classic Collection Laminates: 10 working days for quantity 20 or less

Silhouette Collection for only Workrite Sierra HX: 10 working days for quantity 10 or less

Designer Collection Laminates: 20 working days for quantity 10 or less.

Note: Dimensions provided above are nominal. Actual widths of all tables are reduced by 2" and depths by 1"

For example, a nominal 72" × 72" × 24" large corner table has an actual dimension of 70" × 70" × 23", and a 72" × 30" rectangular table has an actual dimension of 70" × 29".

Modular, high strength steel frame mounts to worksurface, exceeds ergonomic knee clearance requirements.

All tables have adjustable glides providing ½" adjustment.

Worksurfaces are pre-drilled with mounting location for bases. Joining kit provided for all two piece tops. Silhouette surfaces include screws to mount accessory items under the worksurface.

Special drill bit required, can be ordered separately.

All tables and bases ship unassembled. Weight information is shipped weight for laminate option only.
