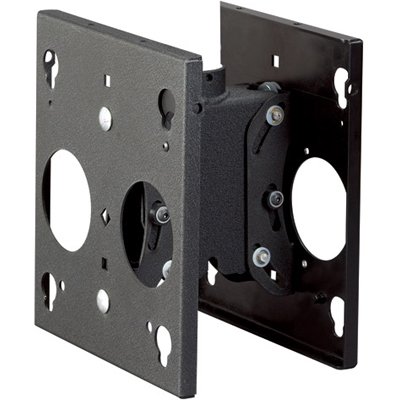

Chief MCD6000B Medium Dual Ceiling Mount (without interface)

Chief MCD6000B Medium Dual Ceiling Mount (without interface)

This product has been discontinued. See below for similar products we offer instead. We apologize for the inconvenience.

View Similar Products



Chief MCD6000 Medium (30"-55") Flat Panel Dual Ceiling Mount (without interface)



Chief MCD6000B Medium (30"-55") Flat Panel Dual Ceiling Mount (without interface)









Features of Chief MCD-6000B:



  • Centris Technology provides fingertip tilt.

  • Screen angle can be tightened down for public applications.

  • ClickConnect Technology provides simple, tool less latching with an audible click.

  • Post-installation leveling with no tools needed.

  • Q-Latch mounting system for quick connect/disconnect.

  • Screen can be installed in portrait or landscape orientation (MAC400 accessory can be used to rotate without removing the screen).

  • Integrated cable management through extension column.

  • Custom and universal options available.






Technical Drawing of Chief MCD6000 Medium Dual Ceiling Mount



Technical Drawing of Chief MCD6000 Medium Dual Ceiling Mount









Description of Chief MCD 6000B:



Provides hassle-free installation for two ceiling-mounted displays.

  • Holds two flat panel displays back-to-back, a great option for digital signage installations.

  • Ceiling plate and extension column (Adjustable and Fixed) are required and must be ordered separately to fit your specific installation requirements.







Specifications of Chief MCD Series:



Certifications:

TUV Approved, UL Listed

Color:

Black

Orientation:

Landscape, Portrait

Overall Dimensions (H x W x D):

11.0" x 10.2" x 8.0" (280 x 258 x 202mm)

Post Installation Leveling (Roll):

Yes

Tilt:

+ 5°, - 20°

Typical Screen Sizes:

30" - 55"

Weight Capacity:

125 lbs (56.7kg)







Literature (Please open the following documents for more technical information)




Chief MCD-6000B Medium Flat Panel Dual Ceiling Mount - Installation Assembly

- pdf
Chief MCD 6000B Medium Flat Panel Dual Ceiling Mount - Technical Drawing

- pdf







Chief Logo



Hyperlink of all Chief products

Product Options/Accessories
Chief CMA700 - 6" Ceiling Plate with Adjustable Column

CMA700 Ceiling Plate with Adjustable Column

$188.00 $150.40
Chief CMA100 - 8" Ceiling Plate with Adjustable Column - 1.5" NPT

CMA100 Ceiling Plate with Adjustable Column

$260.00 $208.00
Chief CMA101 or CMA101W Designer Ceiling Plate

CMA101 Designer 5" Ceiling Plate

$60.00 $48.00
Chief CMA105 - 4" Ceiling Plate for CMS Fixed/Adjustable Columns

CMA105 - 4" Ceiling Plate

$62.00 $49.60
Chief CMA110 - 8" Ceiling Plate for CMS Fixed/Adjustable Columns

CMA110 Ceiling Plate 8"

$94.00 $75.20
Chief CMA115 - 6" Ceiling Plate for CMS Fixed/Adjustable Columns

CMA115 Ceiling Plate 6"

$79.00 $63.20
Chief CMS115 - 6" Speed-Connect Ceiling Plate

CMS115 Speed Connect 6" Ceiling Plate

$79.00 $63.20
Chief MAC400 M-Series 90 degree Rotation Adapter, Medium Display

MAC400 M-Series Rotation Adapter

$234.00 $187.20
Chief MSBVB or MSBVS M-Series VESA Interface Bracket

MSBV Interface Bracket

$157.00 $125.60
Chief CMS006009 Adjustable Extension Column 1.5" OD

CMS006009 Adjustable Extension Column 1.5" OD by Chief

$98.00 $78.40
Chief PACPC1 Flat Panel Power Filter Kit

PACPC1 Power Filter Kit

$270.00 $199.20
Chief MSBUB or MSBUS M-Series Universal Interface Bracket

MSBU Universal Interface Bracket

$192.00 $153.60
Chief PAC715 Video Conferencing 9" Camera Shelf

PAC715 Video Conferencing Camera Shelf

$192.00 $153.60
Chief PAC716 Video Conferencing 14" Camera Shelf

PAC716 Video Conferencing Camera Shelf

$224.00 $179.20
Chief PACCS1 Large Shelf Accessory

PACCS1 Large Shelf Accessory

$184.00 $147.20
Chief MSB6015 M-Series Interface Brackets (30-50")

MSB6015 M-Series Interface Brackets

$115.00 $81.60
Chief MSB6243 M-Series Interface Bracket for M-Series Q-Latch

MSB6243 M-Series Interface Bracket

$30.00 $24.00
Frequently Asked Questions

No FAQs available for this product. Have a question? Ask us!

Product Information
  • Model MCD6000B
  • Manufacturer Chief Mounts
  • Part Number MCD6000B
  • Color Black
  • Overall Dimensions 11.0" x 10.2" x 8.0" (280 x 258 x 202mm)
  • Tilt + 5°, - 20 degree
  • Screen Size 30" and smaller in
  • Weight Capacity 125 lbs (56.7kg)
  • Screen Size 31-45" in
  • Screen Size 46-60" in
