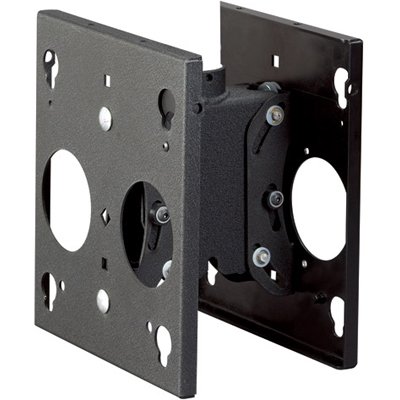

Chief MCDVB Medium Dual Display Ceiling Mount (30-55")

Chief MCDVB Medium Dual Display Ceiling Mount (30-55")

This product has been discontinued.

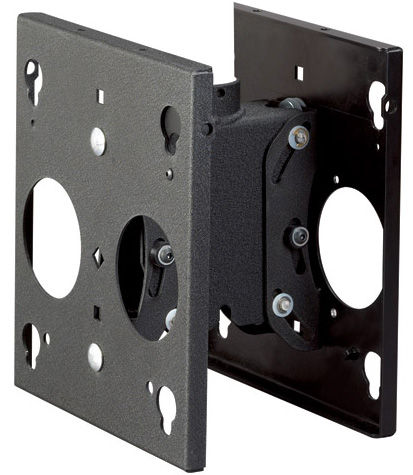

Chief MCDVB Medium (30"-55") Flat Panel Dual Ceiling Mount Black



Chief MCDVB Medium (30"-55") Flat Panel Dual Ceiling Mount Black









Features of Chief MCDV:



  • Centris Technology provides fingertip tilt.

  • Screen angle can be tightened down for public applications.

  • ClickConnect Technology provides simple, tool less latching with an audible click.

  • Post-installation leveling with no tools needed.

  • Q-Latch mounting system for quick connect/disconnect.

  • Screen can be installed in portrait or landscape orientation (MAC400 accessory can be used to rotate without removing the screen).

  • Integrated cable management through extension column.

  • Custom and universal options available.

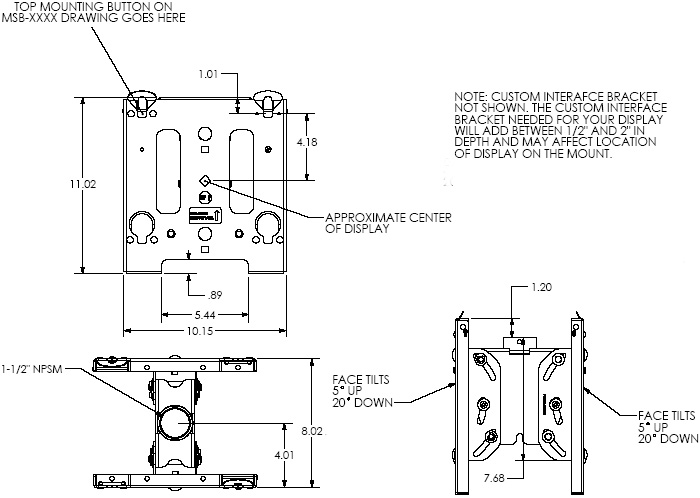

Technical Drawing of Chief MCDV Medium Dual Ceiling Mount



Technical Drawing of Chief MCDV Medium Dual Ceiling Mount





Technical Drawing of Chief MSBV Medium Universal Interface Bracket

Technical Drawing for Chief MSBVB or MSBVS Universal Flat Panel Interface Bracket









Description of Chief MCDVB:



Provides hassle-free installation for two ceiling-mounted displays.

  • Holds two flat panel displays back-to-back, a great option for digital signage installations.

  • Ceiling plate and extension column (Adjustable and Fixed) are required and must be ordered separately to fit your specific installation requirements







Specifications of Chief MCD Series:



Certifications:

TUV Approved, UL Listed

Color:

Black

Mounting Method (Universal Versions):

100 x 100mm, 200 x 100mm, 200 x 200mm, 400 x 200mm

Orientation:

Landscape, Portrait

Overall Dimensions (H x W x D):

11.0" x 10.2" x 8.0" (280 x 258 x 202mm)

Post Installation Leveling (Roll):

Yes

Solution Type:

Universal

Tilt:

+ 5°, - 20°

Typical Screen Sizes:

30" - 55"

Weight Capacity:

125 lbs (56.7kg)







Literature (Please open the following documents for more technical information)




Chief MCDV Medium Flat Panel Dual Ceiling Mount - Installation Assembly

- pdf
Chief MCD Series Medium Flat Panel Dual Ceiling Mount - Technical Drawing

- pdf
Chief MSB-V Medium Flat Panel Universal Interface Bracket - Technical Drawing Interface

- pdf
Chief MSB-V Medium Flat Panel Universal Interface Bracket - Installation Interface

- pdf







Chief Logo



Hyperlink of all Chief products



Product Options/Accessories
Chief CMA700 - 6" Ceiling Plate with Adjustable Column

CMA700 Ceiling Plate with Adjustable Column

$188.00 $150.40
Chief CMA100 - 8" Ceiling Plate with Adjustable Column - 1.5" NPT

CMA100 Ceiling Plate with Adjustable Column

$260.00 $208.00
Chief CMA101 or CMA101W Designer Ceiling Plate

CMA101 Designer 5" Ceiling Plate

$60.00 $48.00
Chief CMA105 - 4" Ceiling Plate for CMS Fixed/Adjustable Columns

CMA105 - 4" Ceiling Plate

$62.00 $49.60
Chief CMA110 - 8" Ceiling Plate for CMS Fixed/Adjustable Columns

CMA110 Ceiling Plate 8"

$94.00 $75.20
Chief CMA115 - 6" Ceiling Plate for CMS Fixed/Adjustable Columns

CMA115 Ceiling Plate 6"

$79.00 $63.20
Chief CMS115 - 6" Speed-Connect Ceiling Plate

CMS115 Speed Connect 6" Ceiling Plate

$79.00 $63.20
Chief MAC400 M-Series 90 degree Rotation Adapter, Medium Display

MAC400 M-Series Rotation Adapter

$234.00 $187.20
Chief CMS006009 Adjustable Extension Column 1.5" OD

CMS006009 Adjustable Extension Column 1.5" OD by Chief

$98.00 $78.40
Chief PACPC1 Flat Panel Power Filter Kit

PACPC1 Power Filter Kit

$270.00 $199.20
Chief PAC715 Video Conferencing 9" Camera Shelf

PAC715 Video Conferencing Camera Shelf

$192.00 $153.60
Chief PAC716 Video Conferencing 14" Camera Shelf

PAC716 Video Conferencing Camera Shelf

$224.00 $179.20
Chief PACCS1 Large Shelf Accessory

PACCS1 Large Shelf Accessory

$184.00 $147.20
Frequently Asked Questions

No FAQs available for this product. Have a question? Ask us!

Product Information
  • Model MCDVB
  • Manufacturer Chief Mounts
  • Part Number MCDVB
  • Color Black
  • Mounting Pattern 100 x 100mm, 200 x 100mm, 200 x 200mm, 400 x 200mm
  • Overall Dimensions 11.0" x 10.2" x 8.0" (280 x 258 x 202mm)
  • Tilt + 5 degree, - 20 degree
  • Screen Size 30" and smaller in
  • Weight Capacity 125 lbs (56.7kg)
  • Screen Size 31-45" in
  • Screen Size 46-60" in
