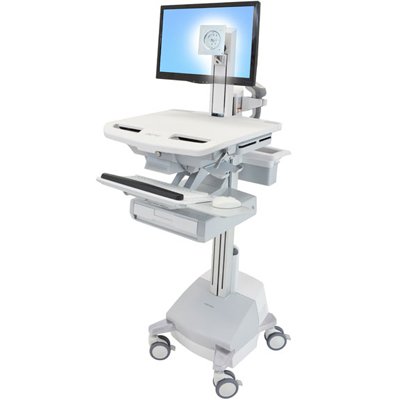

Ergotron SV42-3311-1 SV Cart with LCD Pivot, SLA Powered, 1 Drawer
This product has been discontinued. See below for similar products we offer instead. We apologize for the inconvenience.
Similar Products
Description
Ergotron SV42-3311-1 stays productive and on the go with our certified power system. This innovative, truly ergonomic and easy-to-maneuver healthcare cart features sit-to-stand height adjustment, independent screen positioning and an adjustable back-tilt keyboard tray. Its auto-locking drawer system enables simple and efficient management of non-controlled medication
Technical Drawing
Technical Specifications
|
|
|
|
|
|
|
|
|
LCD Size |
Capacity |
Lift |
Tilt |
Pan |
Rotation |
VESA |
| Up to 22" |
Up to 37 lbs
16.8 kg |
25"
63 cm |
25° | 24° | 90° P/L | MIS-D |
Product Information
|
Part Number |
|
|
Description |
StyleView Cart with LCD Pivot, LiFe Powered, 1 Drawer (white, grey and polished aluminum) |
|
Includes |
|
|
Weight Capacity |
Total maximum load on height-adjustment assembly = 37 lbs (16.8 kg). This is the sum of the following components: LCD pivot = 5–14 lbs (2.3–6.4 kg); worksurface and keyboard tray ≤ 8 lbs (3.6 kg); CPU compartment ≤ 13 lbs (5.9 kg); large drawer ≤ 2 lbs (1 kg) Note: Locking the height of the LCD lift pivot changes the weight capacity to ≤ 20 lbs (9.1 kg), allowing it to accommodate heavier displays and all-in-one computers - contact Ergotron for details Note: If the combined LCD and CPU weight is greater than 27 lbs (12.3 kg) then the CPU must be mounted to the rear of the cart using the Universal CPU Holder accessory (ordered separately) |
|
LCD and Worksurface |
Adjust 20" (51 cm) in tandem; LCD Arm adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (63 cm) |
|
Portrait Screen Orientation |
May be incompatible with widescreen displays > 19" |
|
True Ergonomics |
|
|
Safe |
|
|
Service |
|
| All the Details Covered |
|
| Compatibility and Dimensions |
|
|
Shipping Dimensions |
24.5" x 34" x 56" (62 x 87 x 142 cm) |
|
Shipping Weight |
189 lbs (85.7 kg); actual cart weight = 155 lbs (70.3 kg) |
|
Warranty |
Five (5) years for cart’s mechanical components, two (2) years on power module |
Benefits
- Dependable fifth-generation power system with easy to replace batteries
- For patient and caregiver safety the entire power system and the FULL cart are certified to UL/EN/IEC 60601-1. Complies with EMI limits of FCC Part 15 Class A
- Auto-locking drawer system: Simple and efficient non-controlled medication management at the point-of-care reduces opportunities for errors; security system stores PINs for up to 100 users
- Drawers include position able dividers to create multiple compartments
- Truly ergonomic design accommodates the largest range of nurses and other caregivers; designed for sitting or standing with single-motion fluid adjustment - helps promote caregiver wellness and productivity
- StyleView’s small footprint, with ultra-smooth gliding casters, travels easily across crowded carpet or hard surface floors and is perfect for space constrained areas
- Open-architecture design accommodates multiple configurations: closed notebooks with monitor, CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades
- Surfaces are treated with antimicrobial for product protection

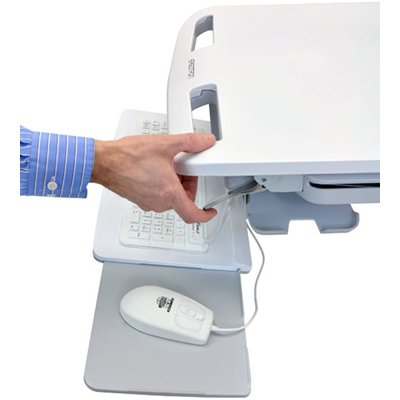

- Keyboard pans fully side-to-side for closer access while interacting with clients
- Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-free sit-to-stand height adjustment
Product Options/Accessories
Frequently Asked Questions
No FAQs available for this product. Have a question? Ask us!
Product Information
- Model SV42-3311-1
- Manufacturer Ergotron
- Part Number SV42-3311-1
- Monitor Size Up to 22"
- Weight Capacity 37 lbs (16.8 kg). This is the sum of the following components: LCD pivot = 5–14 lbs (2.3–6.4 kg); worksurface and keyboard tray ≤ 8 lbs (3.6 kg); CPU compartment ≤ 13 lbs (5.9 kg); large drawer ≤ 2 lbs (1 kg)
- Lift (63 cm) 25 in
- Tilt 25 degree
- Pan 24 degree
- Rotation (P/L) 90 degree
- Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
- Dimensions Internal Dimensions: large drawer = 2.5"H x 12"W x 10.5"D (63.5 x 305 x 267 mm) - includes dividers to configure up to 16 compartments
- Compact Wheel to Wheel Base Dimensions 15.5" x 17" (394 x 432 mm)
- Worksurface Dimensions 22.4"W x 19.75"D (567 x 502 mm)
- Shipping Dimensions 24.5"W x 34"D x 56"H (62 x 87 x 142 cm)
- Shipping Weight 189 lbs (85.7 kg); actual cart weight = 155 lbs (70.3 kg)
- Warranty Five (5) years for cart’s mechanical components, two (2) years on power module
- Product Type LCD Monitor
- Product Type Tablet
- Product Type Laptop
