Ergotron 24-421-062 StyleView Transfer Cart

Ergotron 24-421-062 StyleView Transfer Cart

This product has been discontinued. See below for similar products we offer instead. We apologize for the inconvenience.

Description

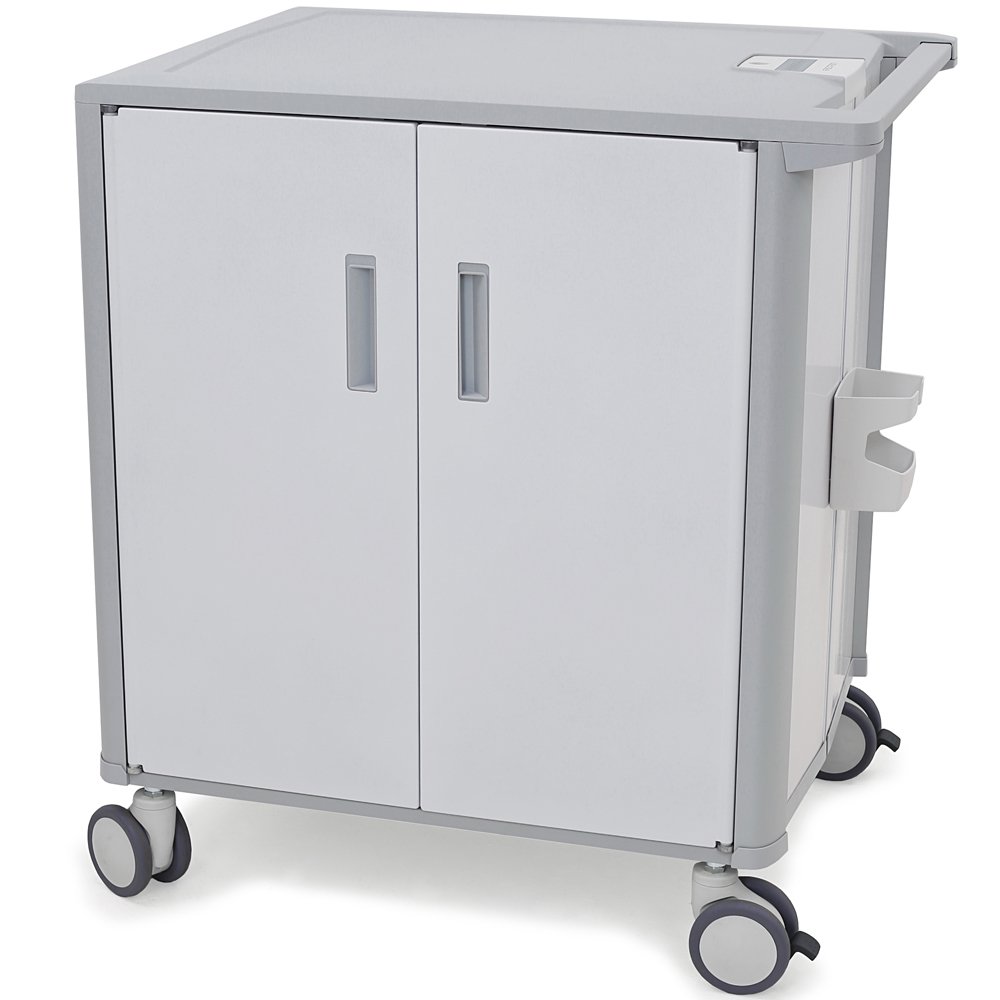

For dependable and secure delivery of medication, Ergotron 24-421-062 cart transports StyleView drawers from pharmacy to the patient floor. The generous capacity holds up to 120 small drawers or 40 large drawers, while the premium 5-inch (13 cm) casters move the cart with ease over thresholds and any floor type.



Technical Drawing

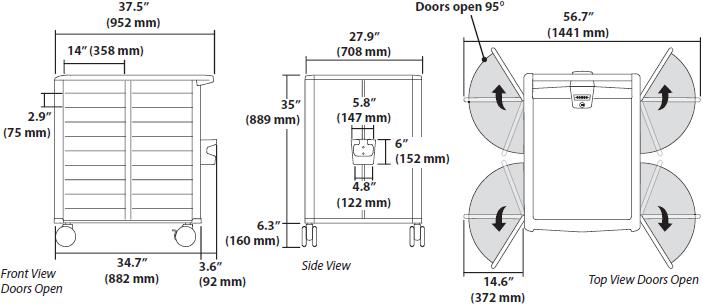

Technical drawing for Ergotron 24-421-062 StyleView Transfer Cart



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Screen

Capacity

Lift

Tilt

Pan

Rotation

VESA

-

Up to 80 lbs

36.3 kg

- - - - -



Product Information

Part Number

24-421-062

Description

StyleView Transfer Cart (white/grey)

Includes

  • Cart
  • 36 removable shelves
  • 4 casters (two locking)

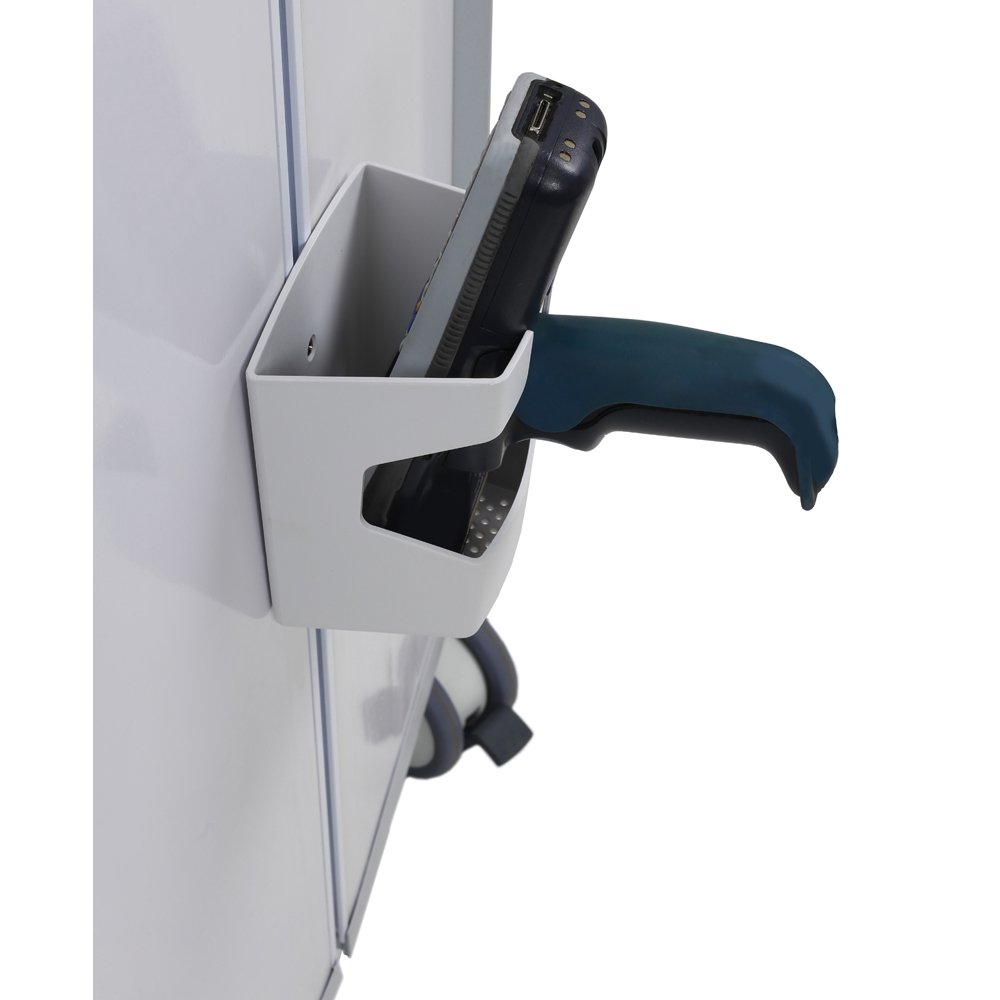

  • Scanner cup

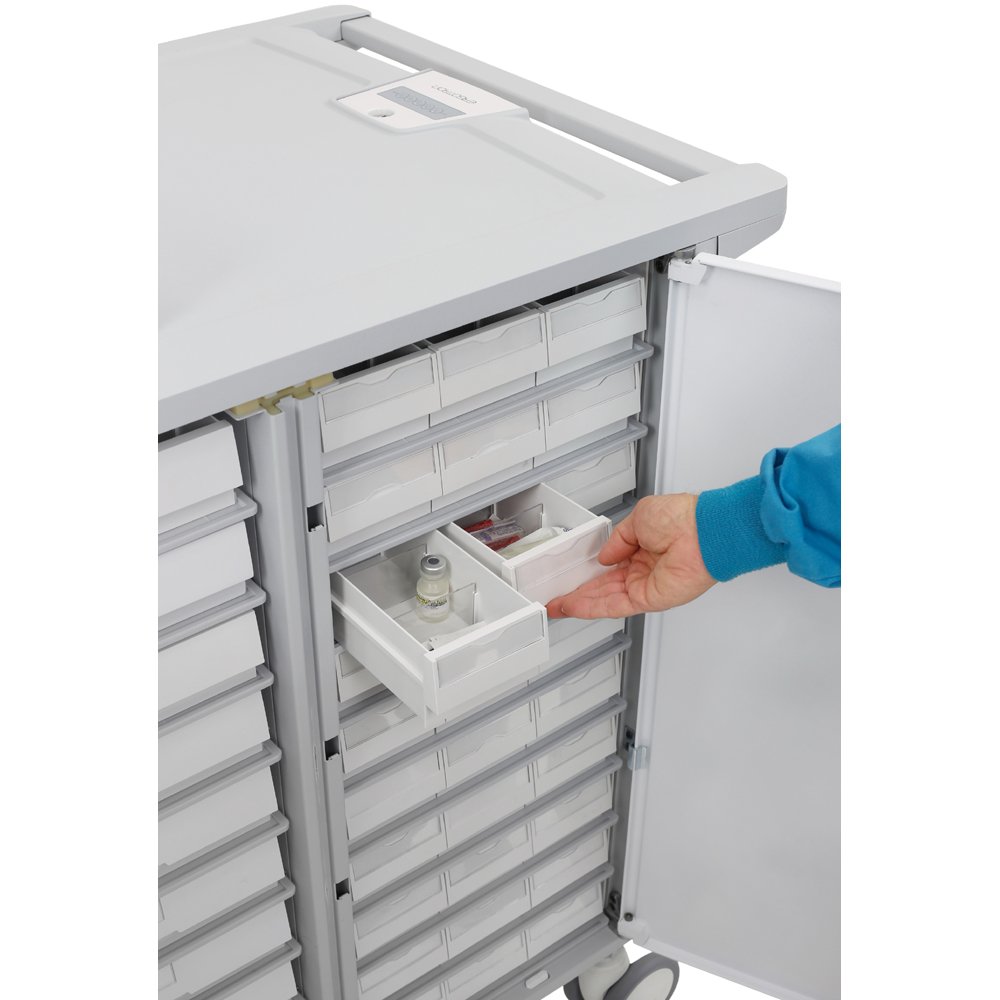

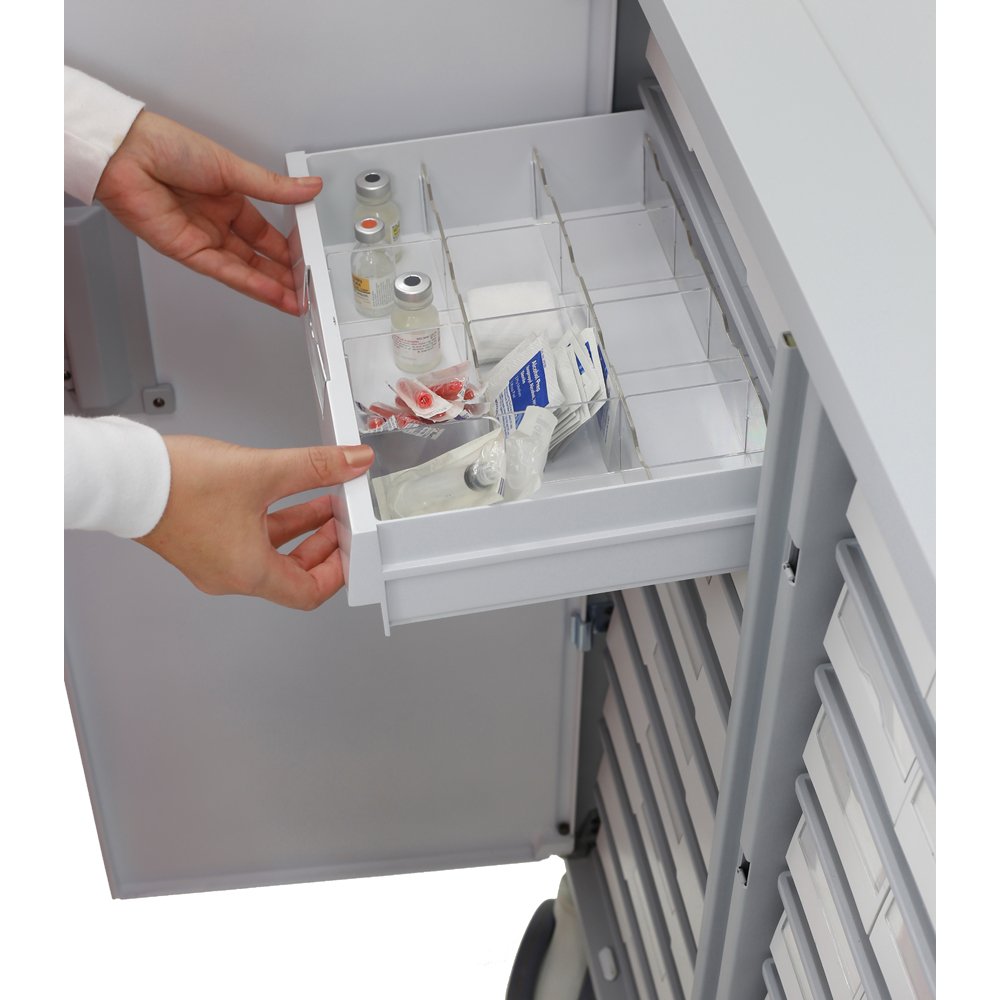

Drawers

Drawers are not included. Use drawers from StyleView point-of-care carts and/or purchase drawers separately to match your workflow needs

Compatible

With drawers from SV41, SV42, SV43 and SV44 series carts. Not compatible with drawers from SV31 or SV32 series carts

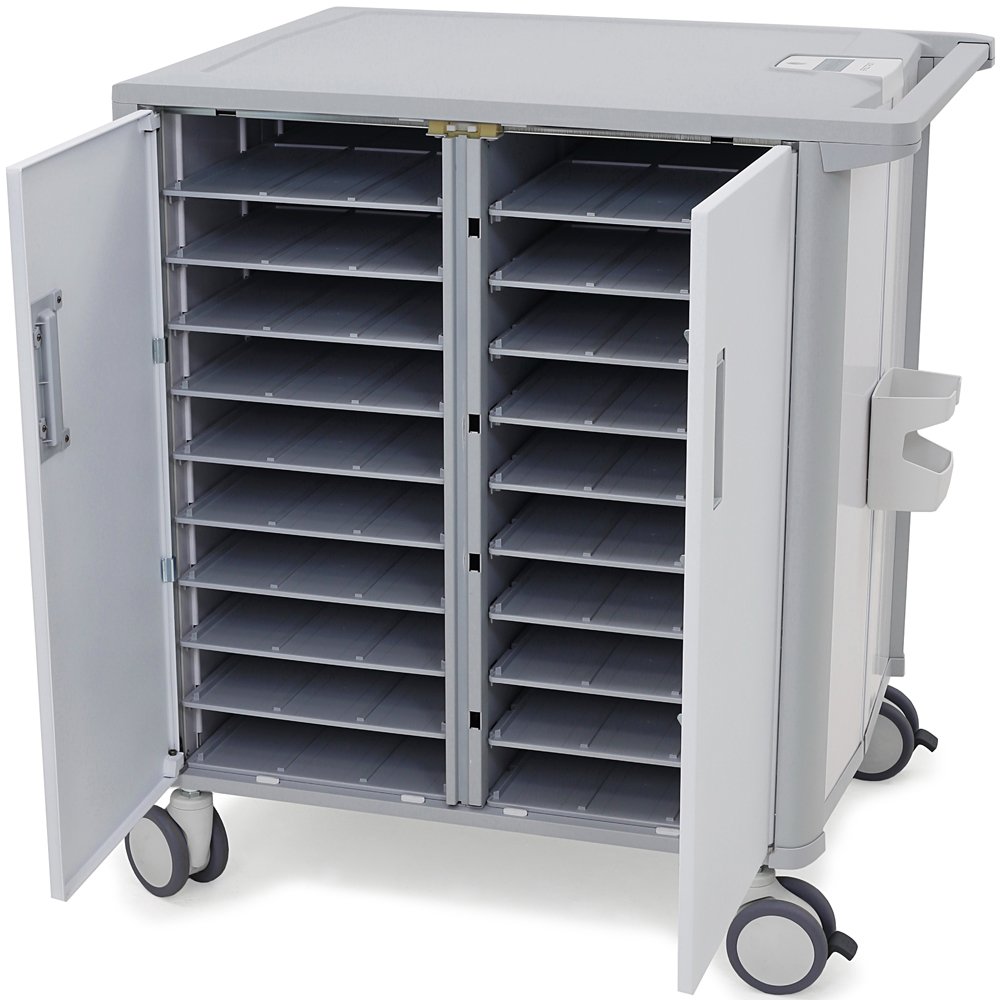

Shelves

  • Shelves may be repositioned or removed to support different-size items

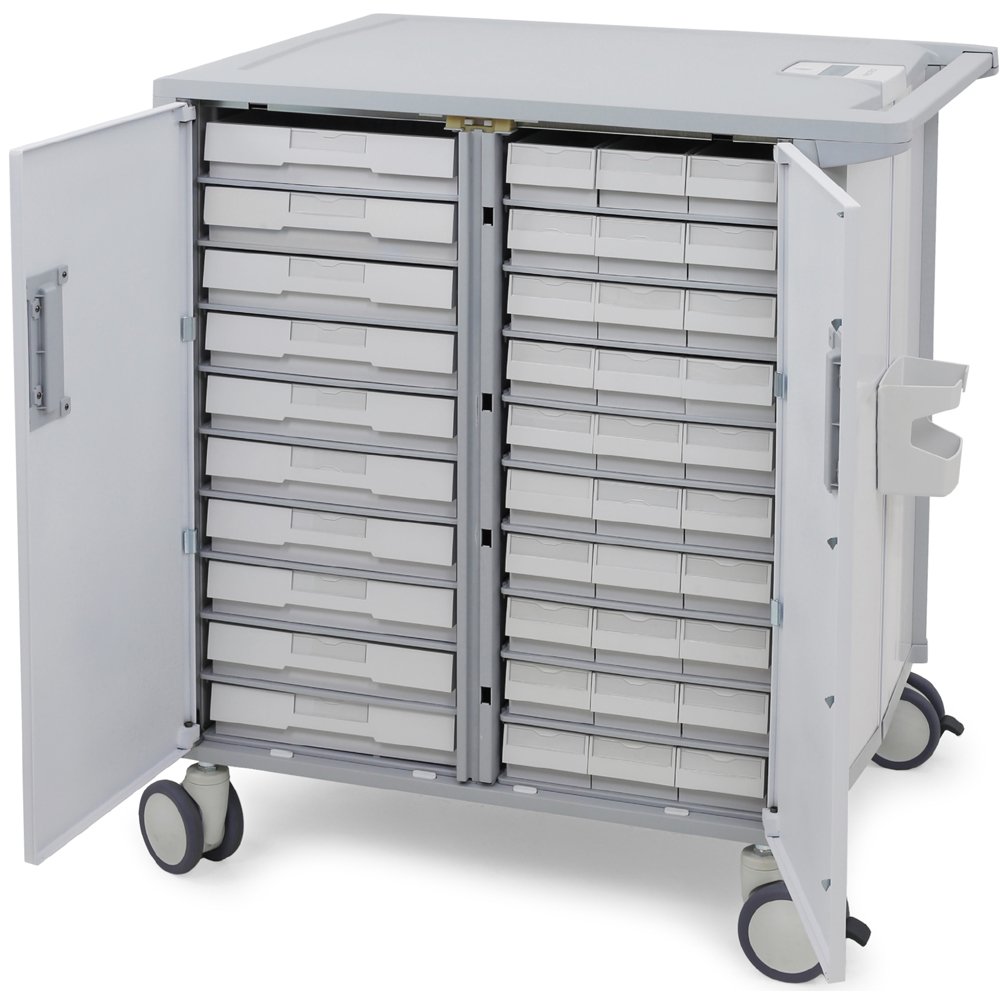

  • There are up to 20 shelves accessible from each side of cart, which allows the cart to accommodate up to 40 large drawers or 120 small drawers in total

Maximum capacity of inner cabinet

80 lbs (36.3 kg), which includes weight of drawers and their contents

Top Cover

Is designed to support up to 25 lbs (11.3 kg)

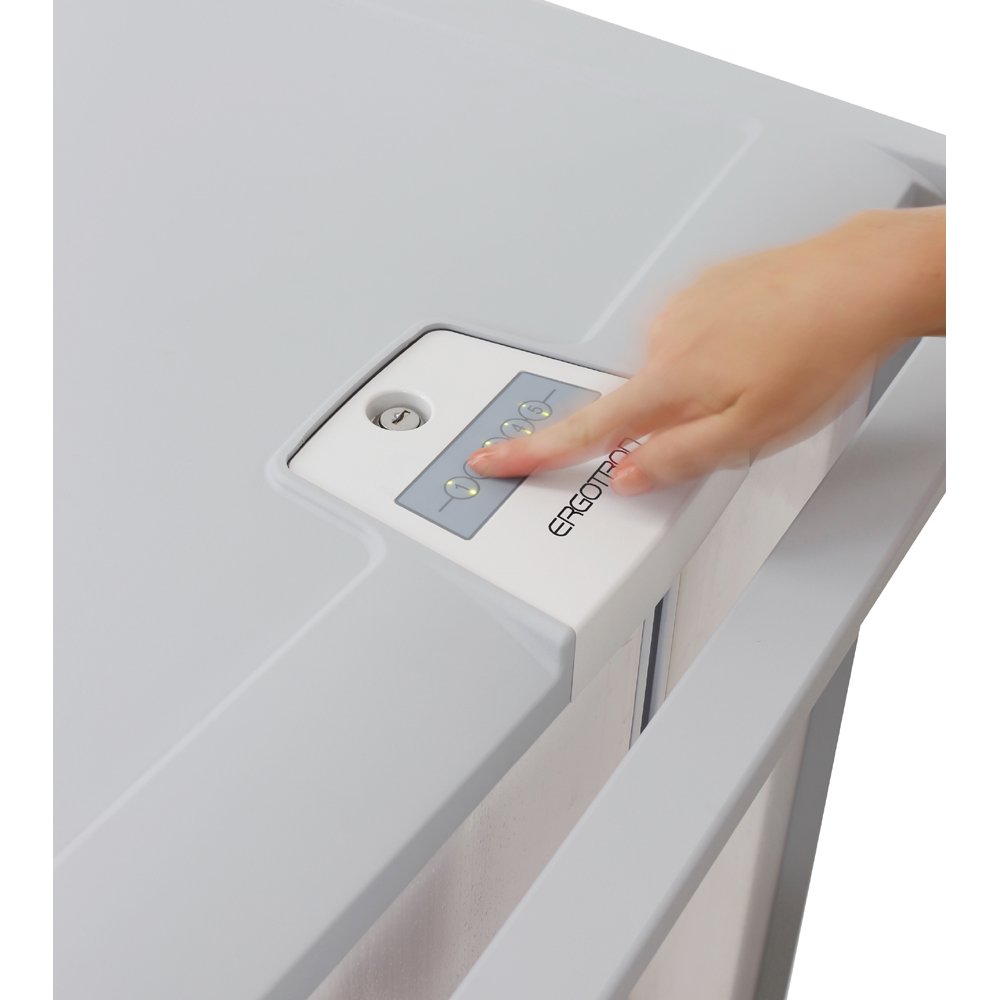

Electronic Lock

Powered by D-cell batteries. Expected life is 6–9 months. The #4 button on the keypad flashes when batteries are low

Ships

Cart ships fully assembled (drawers not included)

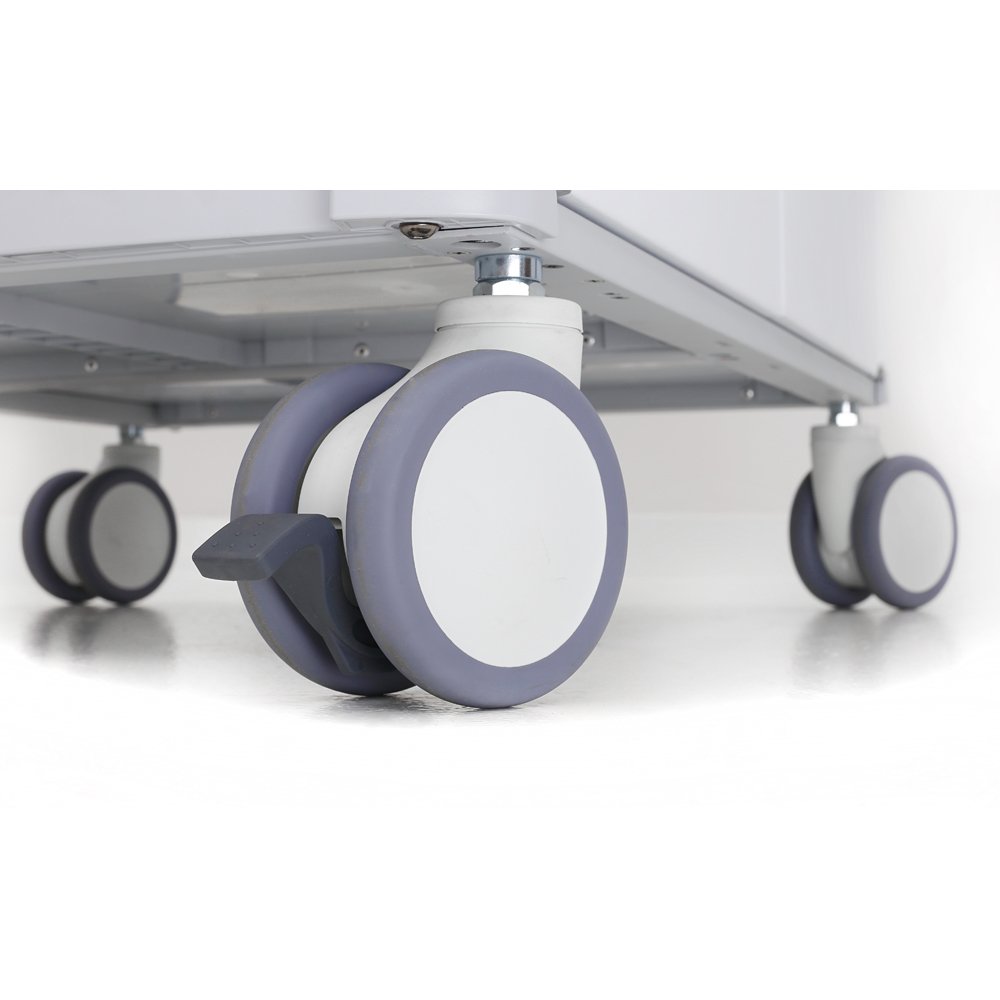

Casters

5-inch (13 cm) bearing, dual casters require low user forces to move cart

Accessories

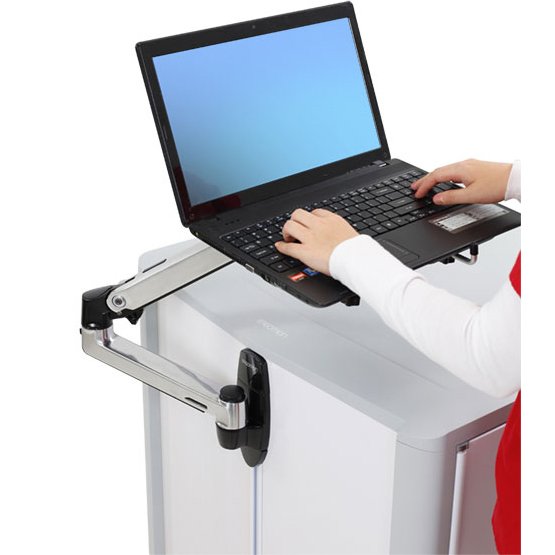

Accessories may be added to the cart via the t-slot channel located on either end of the cabinet. For example, an LX Wall Mount Arm with Laptop Tray may be attached using the SV T-Nut Kit (this configuration could provide convenient computer network access for technicians or nurses)

Cart Dimensions

37.5" x 27.9" x 41.3" (95 x 71 x 105 cm)

Shipping Dimensions

43.9" x 33.3" x 48.4" (111.5 x 84.5 x 123 cm)

Shipping Weight

283 lbs (128.5 kg)

Warranty

Five (5) years



Benefits

  • Supports 20 or more point-of-care carts depending on drawer configuration
  • Superior maneuverability: 5-inch (13 cm) swiveling casters for easy movement over thresholds and floors; smooth push/pull action

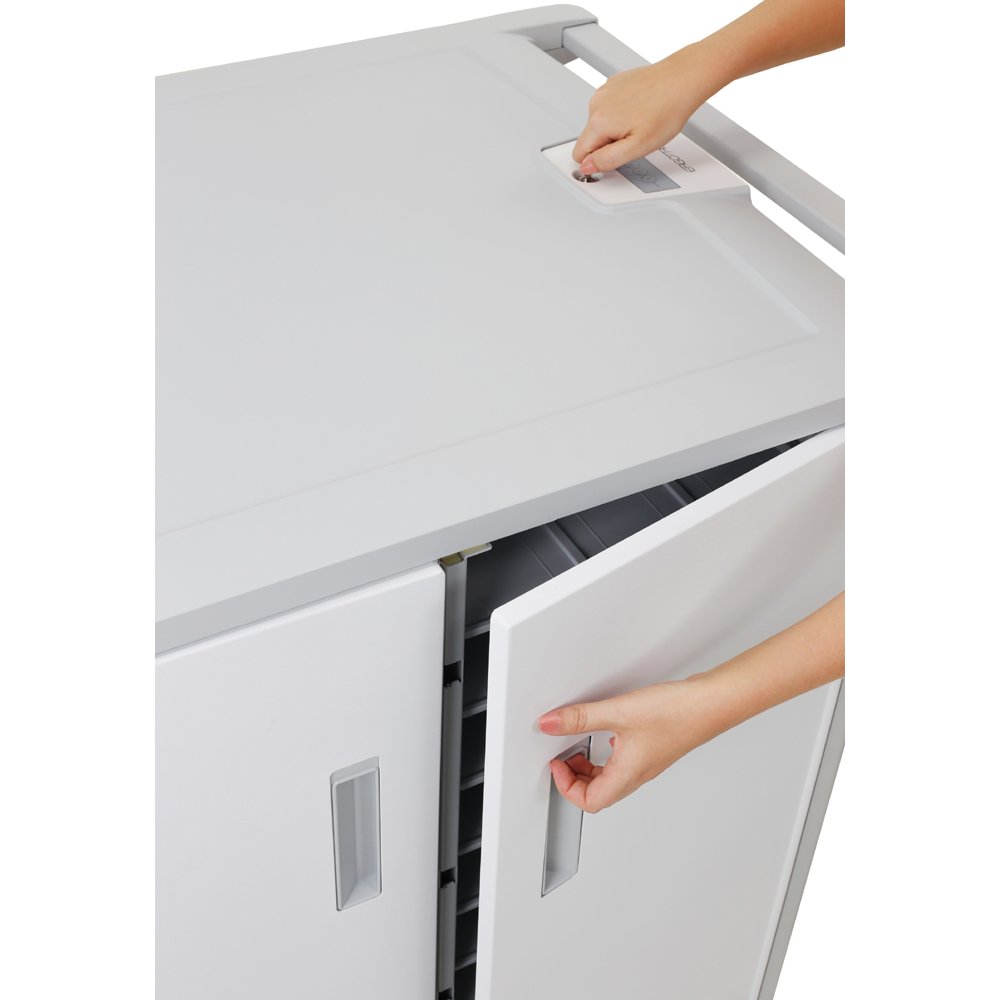

  • Secure access: Doors unlock electronically using programmable 5-digit PIN or via manual lock
  • Flexible design adapts to your workflow: Shelves are removable and reposition able to support envelope drawer or other taller items; drawers may be accessed from either side of cart
  • Top-cover designed to support work: 41-inch (105 cm) high surface is a convenient operational height when standing; raised edges prevent spills
  • Smooth exterior surface with no exposed ribs for easy cleaning

Frequently Asked Questions

No FAQs available for this product. Have a question? Ask us!

Product Information
  • Model 24-421-062
  • Manufacturer Ergotron
  • Part Number 24-421-062
  • UPC 698833040418
  • Color White/grey
  • Weight Capacity Up to 80 lbs (36.3 kg)
  • Compatible With drawers from SV41, SV42, SV43 and SV44 series carts
  • Dimensions 37.5" x 27.9" x 41.3" (95 x 71 x 105 cm)
  • Shipping Dimensions 43.9" x 33.3" x 48.4" (111.5 x 84.5 x 123 cm)
  • Shipping Weight 283 lbs (128.5 kg)
  • Warranty Five (5) years
  • Power Type Non-powered
