$334.00

Innovative 7000 Flexible Flat Panel Radial Arm - 23.4" Reach

Now includes Next Generation Tilter 8500. Please see Description for more details.
Product ID 15713
HIGHLIGHTS
Innovative 7000 Flexible Flat Panel Radial Arm - 23.4" Reach

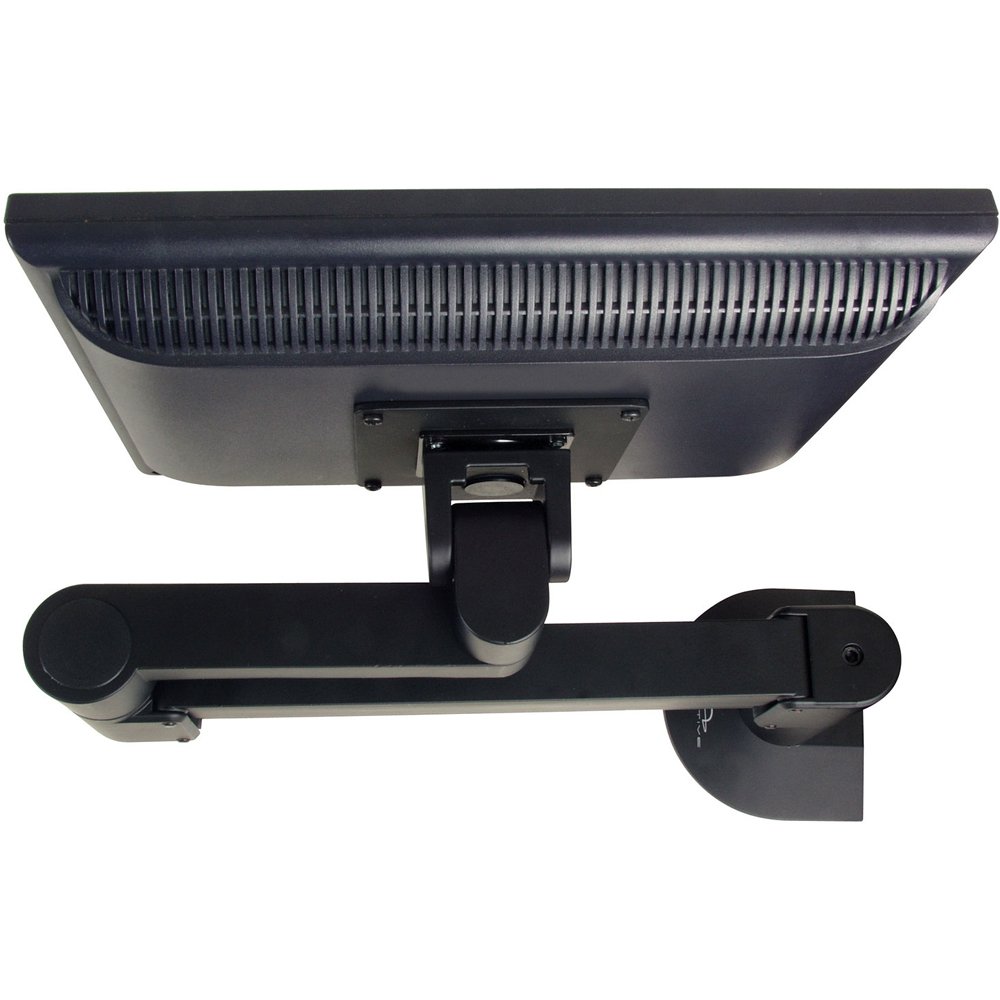

Folds up to occupy just 3'' of space

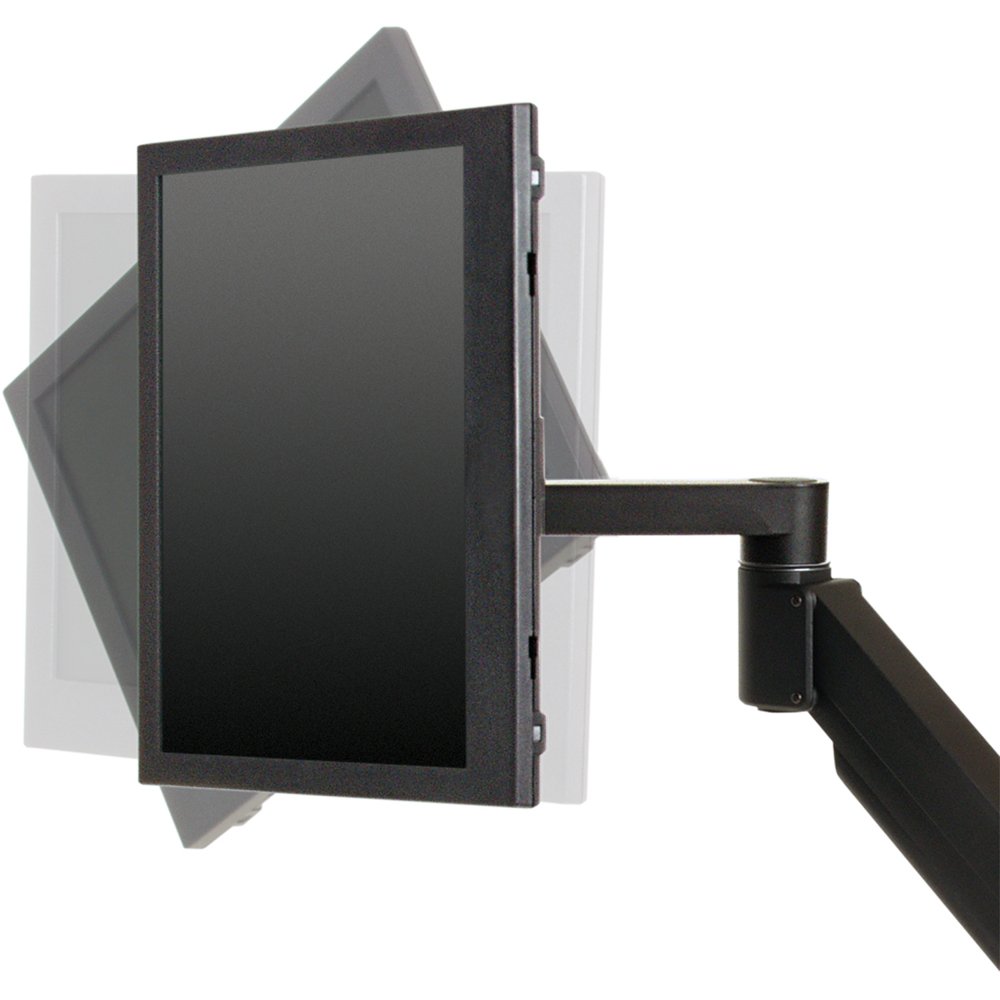

Pivots from landscape to portrait
Innovative FLEXmount
Innovative 7000 Flexible Flat Panel Radial Arm - 23.4" Reach
Innovative 7000 Flexible Flat Panel Radial Arm - 23.4" Reach
Innovative 7000 Flexible Flat Panel Radial Arm - 23.4" Reach
Innovative 7000 Flexible Flat Panel Radial Arm - 23.4" Reach
Innovative 7000 Flexible Flat Panel Radial Arm - 23.4" Reach
Folds up to occupy just 3'' of space
Pivots from landscape to portrait
Innovative FLEXmount
Innovative 7000 Flexible Flat Panel Radial Arm - 23.4" Reach
Innovative 7000 Flexible Flat Panel Radial Arm - 23.4" Reach
Innovative 7000 Flexible Flat Panel Radial Arm - 23.4" Reach
Innovative 7000 Flexible Flat Panel Radial Arm - 23.4" Reach

Highlights

  • Monitor arm that can mount a monitor as well as a tablet
  • Mounting: Variety of mounting options available
  • Reach: Extends 23.4" horizontally
  • Vertical adjustment: 16" range - 8" up and down from horizontal level
  • Foldability: Retracts to occupy 3" space
  • 3 Models: Cover monitors weighing in the range 2-30 lbs.
  • Please see, if you want a dual monitor arm or want to mount an iPad

Description

The 7000 LCD Arm suspends your flat panel above your desk, allowing you to quickly change the position of the monitor with just one hand. Reclaim your desk top, while you work in greater ergonomic comfort.  A gas cylinder provides the counterbalance force, which provides a smooth and silent operation.

Please note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded two separate parts.

Tilter - A tilter is the part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot and tilt to desired position.  This monitor arm is now available with Next Gen Tilter 8500. This new tilter apart from being slim and sleek has a quick release bracket, which makes installation and release easy and fast. It has a 30 lb weight capacity. However please bear in mind that the Next Gen Tilter 8500 comes with 100mm VESA adapter unlike the earlier standard tilter which comes with 75mm and 100mm adapter plate. If your monitor has only 75x75mm VESA pattern, please contact us through monitor arm finder. We will find the best monitor arm that matches your needs.
Innovative 8500 Quick Release Monitor Tilter
8500 Quick Release Monitor Tilter
Innovative 8336 Standard Monitor Tilter Head
8336 Standard Monitor Tilter

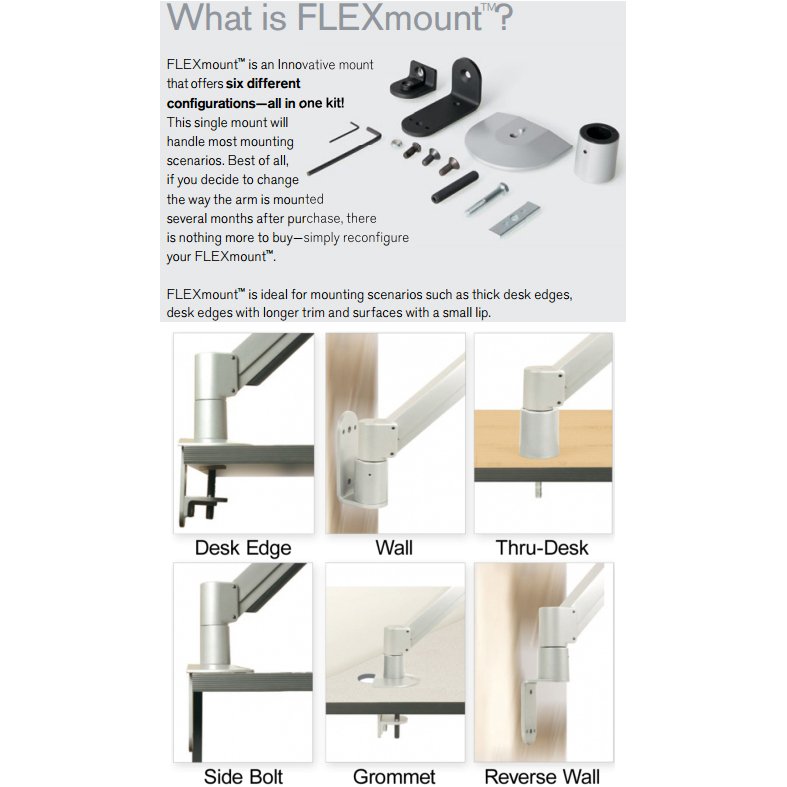

Mount – Mount is the part that attaches the monitor arm to the desk or wall. The new mount, is called Top Down mount, Innovative 8524. It functions as a clamp or grommet mount for desk installation and allows you to install the arm from above the desk without having to crawl underneath the desk. The FLEXmount, shown below, offers 6 mounting options including desk edge, wall mount, thru-desk, side bolt, grommet and reverse wall mount. Please see Mounting Options.

8524 Top Down Mount



Innovative 8524 Top Down Mount



Innovative FLEXmount

Related Products

Part Number Description
7000-500-NM Vertical range: 16", Horizontal range: 24", Weight range: 2 - 13 lbs, No Mount
7000-800-NM Vertical range: 16", Horizontal range: 24", Weight range: 7.5 - 25 lbs, No Mount
7000-1000-NM Vertical range: 16", Horizontal range: 24", Weight range: 12 - 31 lbs, No Mount

Technical Drawing

Dimensional Diagram for 7000 Flexible Flat Panel Radial Arm with 24 inch reach

Technical Specifications

Color 104 - Vista Black, 124 - Silver and 248 - Flat White
Monitor Size Up to 32"
Height Adjustment 16" (+/- 8" from horizontal)
Extension Range 24"
Monitor Pivot Landscape / Portrait
Rotation 360 degrees at three joints
Monitor Tilt 200 degrees
Cable Management Cables are concealed in arm
Mount Configurations Top Down Mount & FlexMount among others
Standard VESA Compatibility 100 x 100mm, adapter included
Warranty 10 Years

Features

  • 24" of horizontal range

  • 16" of vertical range (8" up and down from horizontal)

  • Folds up to occupy just 3'' of space

  • Rotates 360 degrees at three joints

  • Monitor tilter mechanism can tilt over 200 degrees

  • VESA-monitor compatible - 100mm & 100mm VESA adapter included. Please call for non-VESA options

  • Optional upgrade to quick install/release monitor bracket. Consult your sales rep for details

  • Optional 6" extender tube available to raise monitor (see Extender Tubes under Available Accessories)

Model 7000-500-NM-104 or 7000-800-NM-104 or 7000-1000-NM
Manufacturer Innovative LCD Arms
Part Number 7000-500-NM-104 or 7000-800-NM-104 or 7000-1000-NM
Weight lb(s)
Mounting Options Desk
Monitor Arm Types 1 Monitor
Number of Monitors 1 Monitor
Monitor Size Up to 32"
Color 104 - Vista Black, 124 - Silver and 248 - Flat White
Height Adjustment 16"
Extension 23.4"
Pivot Landscape/Portrait
Rotation At three joints 360 degree
Mounting Pattern VESA 100mm
Warranty 10 Years
Weight Capacity 2 - 30 lbs (0.9 - 14.1 kg)
