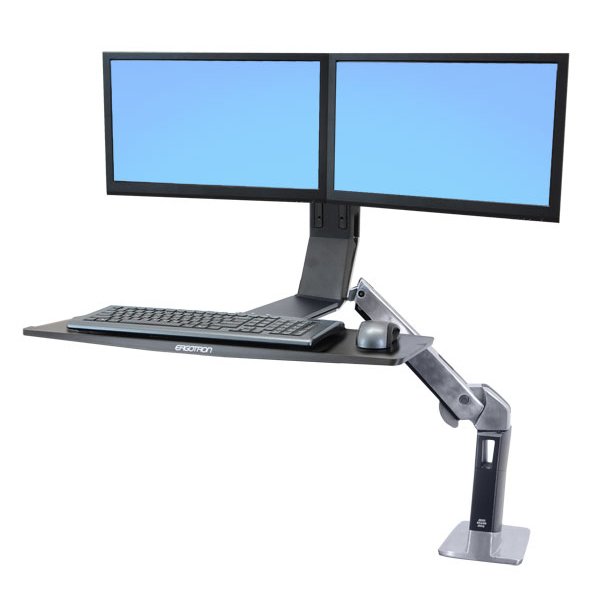

Ergotron 24-312-026 WorkFit-A, Dual Monitor Sit-Stand Workstation
Description
Ergotron 24-312-026 is an ideal solution for corner workstations. This WorkFit-A clamps to rear of the desk, clearing space in the front. You can fold the keyboard up and swing the arm out of the way when you need your desk surface for non-computer work.
This workstation comes with dual benefits - its lets you alternate between sitting and standing at work and it has two displays. Both these benefits together provide ergonomic relief as well as increase productivity.
Ideal for corner workstations or confined areas, WorkFit-A attaches to the rear or side of most surfaces while keeping the keyboard upon the desktop when sitting. Featuring an unprecedented range of motion for a standing desk solution, you can swing your system left, right, up or down.
The height-adjustable arm moves the keyboard and monitor in one simple motion, allowing you to easily sit down or stand up as you work. Fold the keyboard up and push the arm out of the way when you need your desk surface. With its extra vertical reach, this model is well suited for taller users.
Technical Drawing
Technical Specifications
 |
 |
 |
 |
 |
 |
 |
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 24" |
Up to 25 lbs 11.3 kg |
20" 51 cm |
- | 180° | 360° | MIS-D |
Product Information
| Part Number | 24-312-026 |
| Description | WorkFit-A, Dual Monitor Sit-Stand Workstation (polished aluminum/black) |
| Includes |
|
| Display Size |
Maximum outside width of display is 24.5" (62 cm) when display is 2" (5 cm) thick. This range accommodates most displays with screens up to 24" as well as some displays with screens as large as 26". Actual allowable width of displays will vary slightly depending on display thickness. Note that older versions of this product used a narrower crossbar, which accommodated monitors with screens of up to 22" |
| Weight Capacity |
Maximum total load on height-adjustment assembly ≤ 25 lbs (11.3 kg). LCD weight = 4.5–12 lbs (2.0–5.5 kg) each, keyboard tray ≤ 2 lbs (.9 kg). For proper operation the total maximum weight when added together should not exceed 25 lbs (11.3 kg) |
| Desk Clamp | Attaches to surface edge 0.78" to 2.6" (2 to 6.5 cm) thick |
| Note |
|
| Arm | Extends up to 42" (107 cm) from back of desk and pushes back to within 18.25" (46 cm) when fully retracted |
| Keyboard Tray Dimensions | 27" x 9.75" (68 x 24.8 cm) |
| Keyboard Tray | Can be installed in 3 different positions: centered, offset right or offset left |
| Cable Management | Routes and hides cords |
| Mounting Standards | VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm) |
| Conversion Kit | Can be configured to hold a laptop alongside a monitor: order Conversion Kit (97-617) |
| Washington State Analysis | A Washington State analysis of case studies related to office ergonomics showed a median productivity increase of 12% following an ergonomic intervention. New studies from the Office Ergonomics Research Committee (OERC) suggest that employees who are provided with well-designed ergonomic furniture and are trained to use it see an average productivity increase of 18% |
| Certified | This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds) |
| Shipping Dimensions | 37" x 21" x 11.5" (940 x 533 x 292 mm) |
| Shipping Weight | 48.5 lbs (22 kg) |
| Warranty | Five (5) years |
Benefits
For Computer Users
- On-demand sit-stand workstation - improve your energy and productivity by standing or sitting as you work, and then switch positions whenever you choose. Standing a little more each day burns extra calories, tones muscles, improves posture, increases blood flow and ramps up metabolism
- Safe, easy to use - simple installation and effortless operation
- Easily and simultaneously lift keyboard and screens to proper height for unsurpassed ergonomic comfort
- Double your view - and move it too! With two monitors you can save time by using multiple applications at once - eliminate toggling back and forth between documents and programs
- Patented Constant Force lift technology provides fluid, one-touch adjustments of the keyboard and monitor
- Fold keyboard up and swing arm and monitors out of the way when you need your desk surface
For IT and Facilities Staff
- Flexible, open-architecture design is scalable for future computer equipment
- Modify existing office spaces or cubes by simply clamping a WorkFit on an existing worksurface, without the cost of expensive professional installers
- Safe and neat routing of cables
- For HR/Risk Management and Company Cost Savings
Manage the cost of healthcare premiums by promoting wellness in the daily work routine
- Provide standing work platforms for employees without having to buy expensive height-adjustable chairs
- Comfortable computing offers provable ROI on investment - healthcare costs associated with unhealthy computing and missed time are reduced while productivity increases
- Standing supports healthy neck and back conditions. According to the 2007 OE Medicine Journal, back and neck pain are cited as the most costly conditions affecting employees
- Studies in office ergonomics show productivity increases of 12%–18% following an ergonomic intervention where employees are provided with well-designed ergonomic furniture
Product Options/Accessories
Frequently Asked Questions
Certainly. Here's a single monitor LD version, which can carry a monitor up to 15 lbs in weight and 24" in screen size.
| Model | 24-312-026 |
| Manufacturer | Ergotron |
| Part Number | 24-312-026 |
| UPC | 698833025637 |
| Color | Polished aluminum/black |
| Monitor Size | Up to 24" |
| Weight Capacity | Up to 25 lbs (11.3 kg) |
| Lift | (51 cm) 20 in |
| Pan | 180 degree |
| Rotation | 360 degree |
| Mounting Pattern | VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm) |
| Desktop Thickness Range | Desk Clamp attaches to surface edge 0.78" to 2.6" (2 to 6.5 cm) thick |
| Extend/Retract Range | Arm extends up to 42" (107 cm) from back of desk and pushes back to within 18.25" (46 cm) when fully retracted |
| Keyboard Tray Dimensions | 27" x 9.75" (68 x 24.8 cm) |
| Shipping Dimensions | 37" x 21" x 11.5" (940 x 533 x 292 mm) |
| Shipping Weight | 48.5 lbs (22 kg) |
| Warranty | Five (5) years |
| Mounting Options | Desk |
| Monitor Arm Types | Sit-Stand Workstation |
| Monitor Arm Types | 2 Monitors |
| Monitor Arm Types | LCD & Laptop |
| Price | $400 - $499 |
