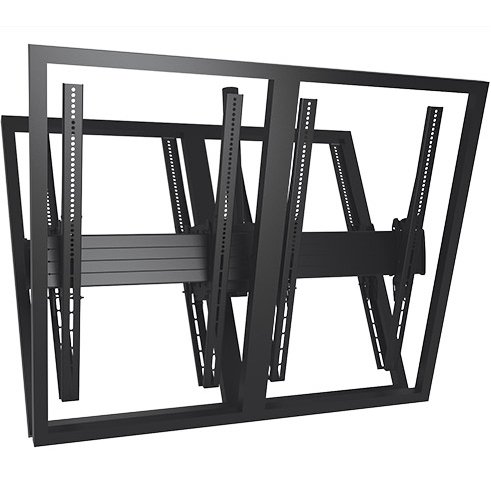

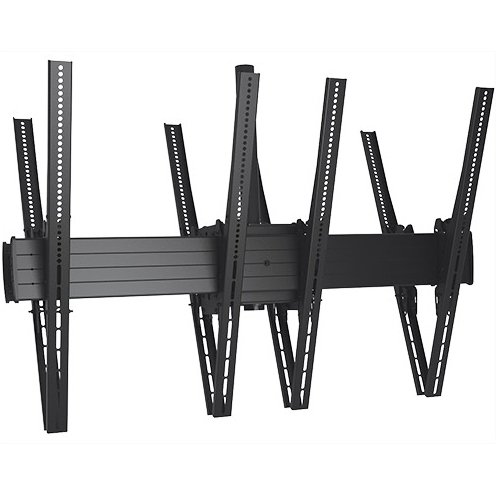

Chief LCB2X1UP FUSION Large Ceiling Portrait Back to Back Menu Board

Product ID 18013


Chief's LCB2X1UP Fusion ceiling mounted solutions make it possible to construct menu boards in prominent locations where walls aren't available. Combine to easily create longer menu boards. Great for digital signage installations.

  • Screen array configuration: screens wide x screens high.

  • Confirm screen compatibility with MountFinder

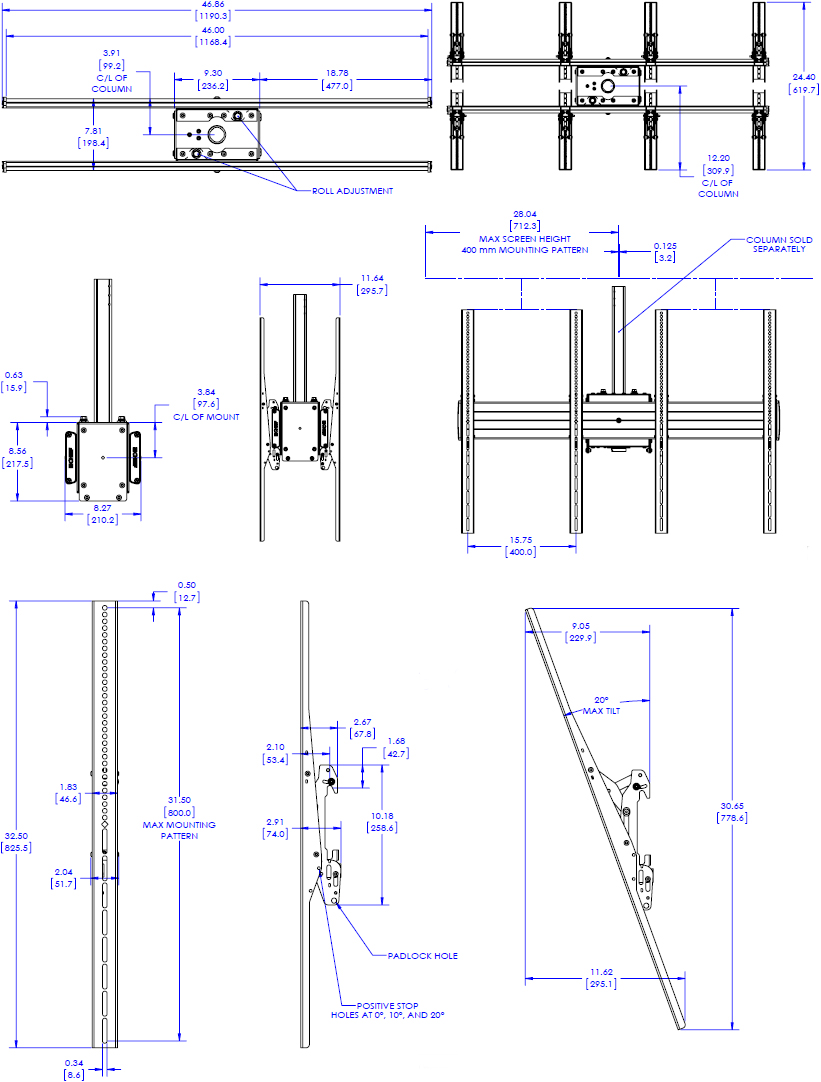

Technical Drawing

Technical Drawing for Chief LCB2X1UP FUSION Large Ceiling Portrait Back to Back Menu Board


Certifications UL Listed
Color Black
Mounting Pattern Compatibilty (Universal Versions) Any height x 100 - 400 mm
Notes Weight capacity is per display
Number of Monitors 4
Post-Installation Leveling Roll +/- 3°
Screen Array Configuration 2 x 1
Shipping Weight 82 lbs (37.19 kg)
Solution Type Universal
Tilt + 5°, - 20°
Typical Screen Sizes 40 - 55" (up to 65" with FCAX extension brackets)
Weight Capacity 100 lbs (45.4 kg)
Orientation Portrait


  • Single drop for fast installation

  • Micro adjustable roll for perfect leveling +/- 3 degrees

  • 360 degree swivel for optimal viewing angles

  • Single horizontal extrusion keeps screens aligned

  • Tilting interfaces with Centris technology makes for easy adjustment for +5 / -20 degrees

  • Tool-free screen engagement

  • Secure displays with optional pad-lock security

  • Fits screens 40 - 55" diagonals, add FCAX extension brackets for larger screens up to 65

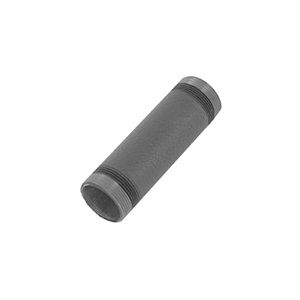

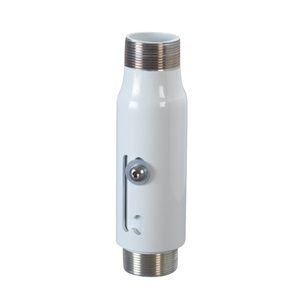

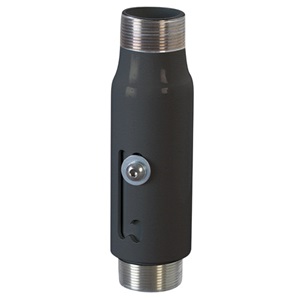

  • Ceiling Plate and Extension Column are required and must be ordered separately. Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems. Ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility. CPA ceiling plates and CPA columns for pin connection compatibility.

  • TAA Compliant

Model LCB2X1UP
Manufacturer Chief Mounts
Part Number LCB2X1UP
UPC 841872158969
Color Black
Mounting Pattern Any height x 100 - 400 mm
Roll +/- 3°
Shipping Weight 82 lbs (37.19 kg)
Tilt + 5 degree, - 20 degree
Monitor Size 40 - 55" (up to 65" with FCAX extension brackets)
Weight Capacity 100 lbs (45.4 kg)
Orientation Portrait
Number of Monitors 4 Monitors
