Chief MWH6000 Medium Swing Arm Wall Mount (without interface)

Chief MWH6000 Medium Swing Arm Wall Mount (without interface)

This product has been discontinued. See below for similar products we offer instead. We apologize for the inconvenience.

View Similar Products

Chief MWH6000B or MWH6000S Medium (30"-55") Swing Arm Wall Mount - 25" Extension



General Information



Image of Warranty and Returns

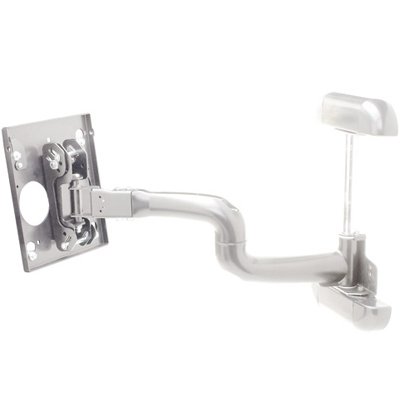

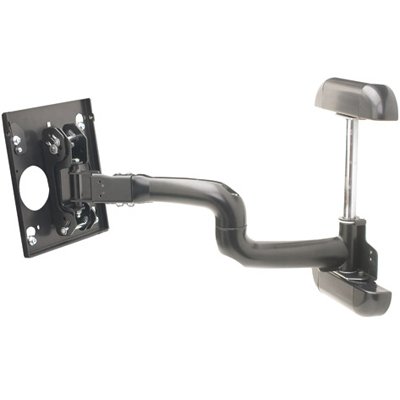

Chief MWH6000 Medium Flat Panel Swing Arm Wall Mount



Chief MWH6000 Medium Flat Panel Swing Arm Wall Mount









Features of Chief MWH-6000B or MWH-6000S:



  • Single stud mounting with up to 4.5 " lateral shift.

  • Extends 24.88 " (632 mm) from wall and remains low profile in the home position.

  • Chief exclusive ClickConnect mounting system provides simplified tooless latching with an audible click.

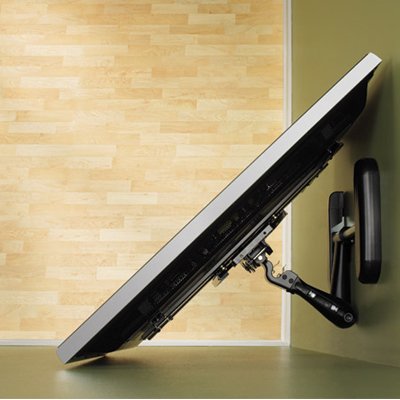

  • Centris Technology provides smooth, fingertip tilt adjustments.

  • Screen can be installed in portrait or landscape orientation (MAC400 accessory can be used to rotate without removing the screen).

  • Mounting guides provided for a hassle-free installation.

  • Provides positive latch in home position to keep screen tight to wall.

  • CableTrac System provides a fast and effective way to route cables.






Technical Drawing of Chief MWH-6000 Medium Swing Arm Wall Mount



Technical Drawing of Chief MWH-6000 Medium Swing Arm Wall Mount









Description of Chief MWH 6000B or MWH 6000S:

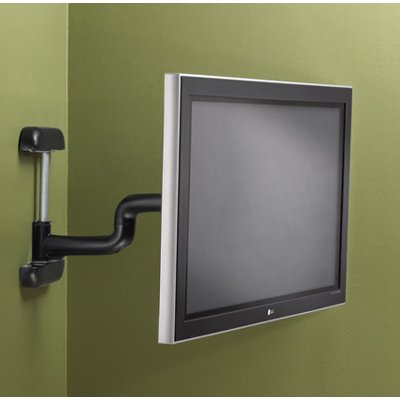

This swing arm wall mount is great solution for flat panel display installations requiring more viewing flexibility.

  • Mounts to a single stud for a more discrete installation.







Specifications of Chief MWH6000S or MWH6000B:



Certifications:

UL Listed

Color:

Black, Silver

Lateral Shift:

4.5" (114.3mm)

Maximum Extension:

24.88" (632.mm)

Minimum Depth:

3.43" (87.1mm)

Notes:

Depth and Extension do not include interface bracket (adds 0.5 - 1.5")

Orientation:

Landscape, Portrait

Overall Dimensions (H x W x D):

18.0" x 23.6" x 3.4" (457 x 600 x 87mm)

Post Installation Leveling (Roll):

Yes

Tilt:

+ 5°, - 15°

Typical Screen Sizes:

30 - 55"

Wall Stud Compatibility (inches):

Single Stud

Weight Capacity:

100 lbs (45.4kg)







Literature (Please open the following documents for more technical information)




Chief MWH 6000B or MWH 6000S Medium Flat Panel Swing Arm Wall Mount - Installation Assembly

- pdf
Chief MWH-6000 Medium (30-55") Swing Wall Mount Arm - 25" Extension - Technical Drawing

- pdf







Chief Logo



Hyperlink of all Chief products



Product Options/Accessories
Chief MAC400 M-Series 90 degree Rotation Adapter, Medium Display

MAC400 M-Series Rotation Adapter

$234.00 $187.20
Chief MSBVB or MSBVS M-Series VESA Interface Bracket

MSBV Interface Bracket

$157.00 $125.60
Chief PACCC1 Center Channel Speaker Adapter (30-50")

PACCC1 Center Channel Speaker Adapter

$192.00 $153.60
Chief PACLR1 Left or Right Speaker Adapter (30-50")

PACLR1 Left/Right Speaker Adapter

$270.00 $216.00
Chief MSBUB or MSBUS M-Series Universal Interface Bracket

MSBU Universal Interface Bracket

$192.00 $153.60
Chief PAC715 Video Conferencing 9" Camera Shelf

PAC715 Video Conferencing Camera Shelf

$192.00 $153.60
Chief PAC716 Video Conferencing 14" Camera Shelf

PAC716 Video Conferencing Camera Shelf

$224.00 $179.20
Chief PACCS1 Large Shelf Accessory

PACCS1 Large Shelf Accessory

$184.00 $147.20
Chief MSB6015 M-Series Interface Brackets (30-50")

MSB6015 M-Series Interface Brackets

$115.00 $81.60
Chief PAC522 Flat Panel Pre-Wire In-Wall Box

PAC522 Pre-Wire In-Wall Box

$61.00 $38.40
Chief PAC521P In-Wall Box with Power Outlet Conditioner

PAC521P In-Wall Box

$259.00 $172.80
Chief MSB6243 M-Series Interface Bracket for M-Series Q-Latch

MSB6243 M-Series Interface Bracket

$30.00 $24.00
Frequently Asked Questions

No FAQs available for this product. Have a question? Ask us!

Product Information
  • Model MWH6000
  • Manufacturer Chief Mounts
  • Part Number MWH6000
  • Color Black, Silver
  • Lateral Shift 4.5" (114.3mm)
  • Maximum Extension 24.88" (632.mm)
  • Minimum Depth 3.43" (87.1mm)
  • Overall Dimensions 18.0" x 23.6" x 3.4" (457 x 600 x 86mm)
  • Tilt + 5 degree, - 15 degree
  • Screen Size 30 - 55 in
  • Weight Capacity 100 lbs (45.4kg)
