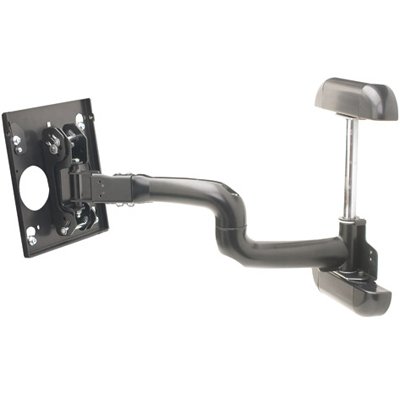

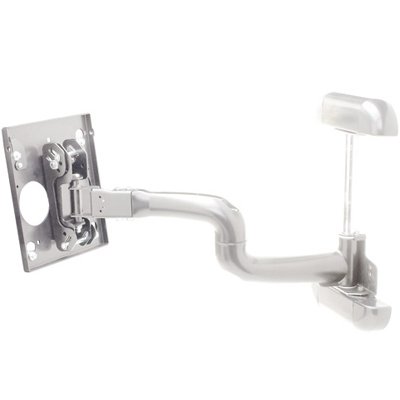

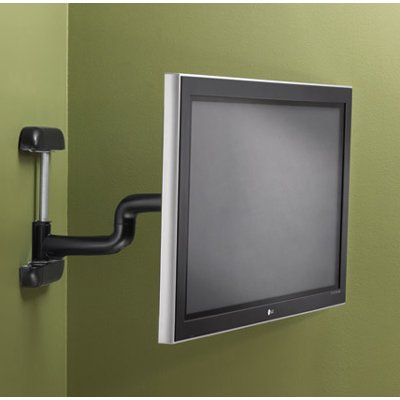

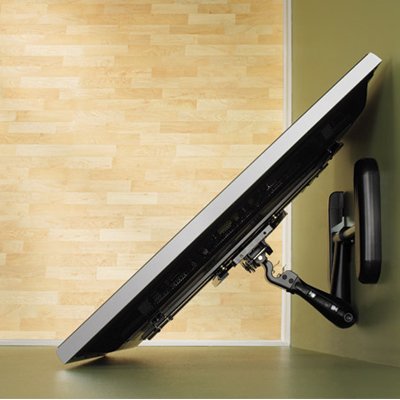

Chief MWHVB or MWHVS Medium (30"-55") Swing Arm Wall Mount - 25" Extension



General Information



Image of Warranty and Returns








Chief MWHV Medium Flat Panel Swing Arm Wall Mount



Chief MWHV Medium Flat Panel Swing Arm Wall Mount









Features of Chief MWH-VB or MWH-VS:



  • Single stud mounting with up to 4.5 " lateral shift.

  • Extends 24.88 " (632 mm) from wall and remains low profile in the home position.

  • Chief exclusive ClickConnect mounting system provides simplified tooless latching with an audible click.

  • Centris Technology provides smooth, fingertip tilt adjustments.

  • Screen can be installed in portrait or landscape orientation (MAC400 accessory can be used to rotate without removing the screen).

  • Mounting guides provided for a hassle-free installation.

  • Provides positive latch in home position to keep screen tight to wall.

  • CableTrac System provides a fast and effective way to route cables.






Technical Drawing of Chief MWHV Medium Swing Arm Wall Mount



Technical Drawing of Chief MWHV Medium Swing Arm Wall Mount





Technical Drawing of Chief MSBVB or MSBVS Medium (30"-55") Interface Bracket



Technical Drawing for Chief MSBVB or MSBVS Universal Flat Panel Interface Bracket









Description of Chief MWH VB or MWH VS:



This swing arm wall mount is great solution for flat panel display installations requiring more viewing flexibility.

  • Mounts to a single stud for a more discrete installation.







Specifications of Chief MWHVS or MWHVB:



Certifications:

UL Listed

Color:

Black, Silver

Lateral Shift:

4.5" (114.3mm)

Maximum Extension:

24.88" (632.mm)

Minimum Depth:

3.43" (87.1mm)

Mounting Pattern (Universal Versions):

100 x 100mm ,200 x 100mm, 200 x 200mm, 400 x 200mm

Notes:

Depth and Extension do not include interface bracket (adds 0.5 - 1.5")

Orientation:

Landscape, Portrait

Overall Dimensions (H x W x D):

18.0" x 23.6" x 3.4" (457 x 600 x 87mm)

Post Installation Leveling (Roll):

Yes

Solution Type:

Universal

Tilt:

+ 5°, - 15°

Typical Screen Sizes:

30 - 55"

Wall Stud Compatibility (inches):

Single Stud

Weight Capacity:

100 lbs (45.4kg)







Literature (Please open the following documents for more technical information)




Chief MWHVB or MWHVS Medium Flat Panel Swing Arm Wall Mount - Installation Assembly

- pdf
Chief MWHV Medium (30-55") Swing Wall Mount Arm - 25" Extension - Technical Drawing

- pdf
Chief MSBVB or MSBVS Medium (30-55") Universal Interface Bracket - Installation

- pdf
Chief MSBV Medium Flat Panel Universal Interface Bracket - Technical Drawing

- pdf







Chief Logo



Hyperlink of all Chief products



Product Options/Accessories
Chief MAC400 M-Series 90 degree Rotation Adapter, Medium Display

MAC400 M-Series Rotation Adapter

$234.00 $187.20
Chief PACCC1 Center Channel Speaker Adapter (30-50")

PACCC1 Center Channel Speaker Adapter

$192.00 $153.60
Chief PACLR1 Left or Right Speaker Adapter (30-50")

PACLR1 Left/Right Speaker Adapter

$270.00 $216.00
Chief PAC715 Video Conferencing 9" Camera Shelf

PAC715 Video Conferencing Camera Shelf

$192.00 $153.60
Chief PAC716 Video Conferencing 14" Camera Shelf

PAC716 Video Conferencing Camera Shelf

$224.00 $179.20
Chief PACCS1 Large Shelf Accessory

PACCS1 Large Shelf Accessory

$184.00 $147.20
Chief PAC522 Flat Panel Pre-Wire In-Wall Box

PAC522 Pre-Wire In-Wall Box

$61.00 $38.40
Chief PAC521P In-Wall Box with Power Outlet Conditioner

PAC521P In-Wall Box

$259.00 $172.80
Frequently Asked Questions

No FAQs available for this product. Have a question? Ask us!

Product Information
  • Model MWHV
  • Manufacturer Chief Mounts
  • Part Number MWHV
  • Color Black, Silver
  • Lateral Shift 4.5" (114.3mm)
  • Maximum Extension 24.88" (632.mm)
  • Minimum Depth 3.43" (87.1mm)
  • Mounting Pattern 100 x 100mm ,200 x 100mm, 200 x 200mm, 400 x 200mm
  • Overall Dimensions 18.0" x 23.6" x 3.4" (457 x 600 x 87mm)
  • Tilt + 5 degree, - 15 degree
  • Screen Size 30 - 55 in
  • Weight Capacity 100 lbs (45.4kg)
