Chief MCSV Medium Single Display Ceiling Mount (30-55")

Chief MCSV Medium Single Display Ceiling Mount (30-55")

This product has been discontinued.

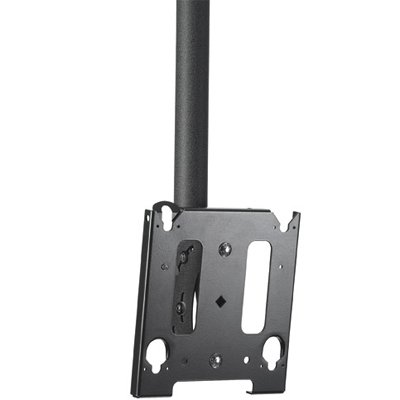

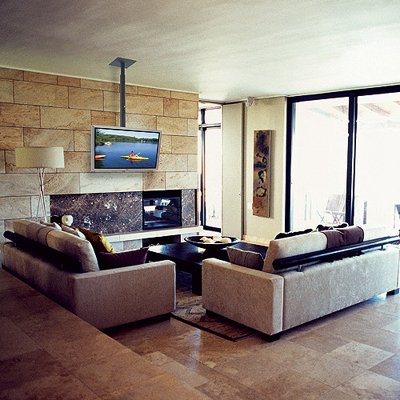

Chief MCSV Medium (30"-55") Flat Panel Single Ceiling Mount Black



Chief MCSV Medium (30"-55") Flat Panel Single Ceiling Mount Black









Features of Chief MCS Series:



  • Centris Technology provides fingertip tilt.

  • Screen angle can be tightened down for public applications.

  • ClickConnect Technology provides simple, tool less latching with an audible click.

  • Post-installation leveling with no tools needed.

  • Q-Latch mounting system for quick connect/disconnect.

  • Screen can be installed in portrait or landscape orientation (MAC400 accessory can be used to rotate without removing the screen).

  • Integrated cable management through extension column.

  • Custom and universal options available.






Technical Drawing of Chief MCS-V Medium Single Ceiling Mount



Technical Drawing of Chief MCS-V Medium Single Ceiling Mount





Technical Drawing of Chief MSBV Medium Universal Interface Bracket

Technical Drawing for Chief MSBVB or MSBVS Universal Flat Panel Interface Bracket









Description of Chief MCS V:

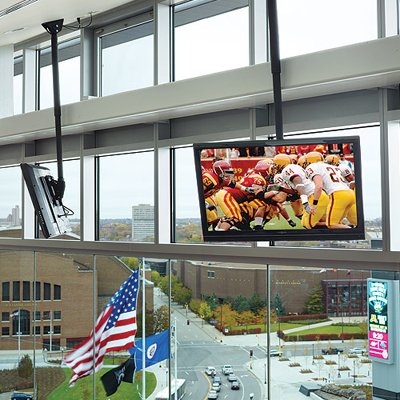

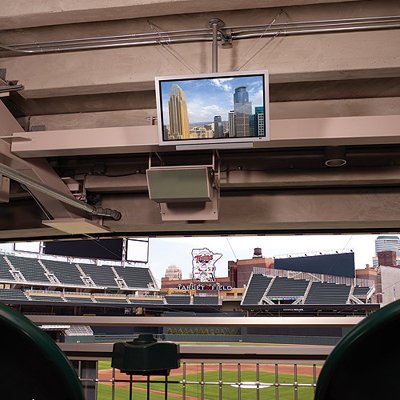

Provides hassle-free installation for a ceiling-mounted flat panel display and is a great option for digital signage installations.

  • Ceiling plate and extension column (Adjustable and Fixed) are required and must be ordered separately to fit your specific installation requirements.







Specifications of Chief MCS Series:



Certifications:

TUV Approved, UL Listed

Color:

Black

Mounting Pattern (Universal Versions):

100 x 100mm, 200 x 100mm, 200 x 200mm, 400 x 200mm

Orientation:

Landscape, Portrait

Overall Dimensions (H x W x D):

11.0" x 10.2" x 4.3" (280 x 258 x 108mm)

Post Installation Leveling (Roll):

Yes

Solution Type:

Universal

Tilt:

+ 5°, - 20°

Typical Screen Sizes:

30 - 55"

Weight Capacity:

125 lbs (56.7kg)







Literature (Please open the following documents for more technical information)




Chief MCSV Medium Flat Panel Single Ceiling Mount - Installation Assembly

- pdf
Chief MCS Series Medium Flat Panel Single Ceiling Mount - Technical Drawing

- pdf
Chief MCS Series Medium (30-55") Flat Panel Single Ceiling Mount - Catalog Page

- pdf
Chief MSB-V Medium Flat Panel Universal Interface Bracket - Technical Drawing Interface

- pdf
Chief MSB V Medium Flat Panel Universal Interface Bracket - Installation Interface

- pdf
Chief MCS V Medium (30-55") Flat Panel Single Ceiling Mount - Digital Signage

- pdf
Chief MCS-V Medium Flat Panel Single Ceiling Mount - Quick Reference Guide

- pdf
Chief MCSV Medium Flat Panel Ceiling Mount - Ceiling Mount Accessories Guide

- pdf







Chief Logo



Hyperlink of all Chief products



Product Options/Accessories
Chief CMA700 - 6" Ceiling Plate with Adjustable Column

CMA700 Ceiling Plate with Adjustable Column

$188.00 $150.40
Chief CMA100 - 8" Ceiling Plate with Adjustable Column - 1.5" NPT

CMA100 Ceiling Plate with Adjustable Column

$260.00 $208.00
Chief CMA101 or CMA101W Designer Ceiling Plate

CMA101 Designer 5" Ceiling Plate

$60.00 $48.00
Chief CMA105 - 4" Ceiling Plate for CMS Fixed/Adjustable Columns

CMA105 - 4" Ceiling Plate

$62.00 $49.60
Chief CMA110 - 8" Ceiling Plate for CMS Fixed/Adjustable Columns

CMA110 Ceiling Plate 8"

$94.00 $75.20
Chief CMA115 - 6" Ceiling Plate for CMS Fixed/Adjustable Columns

CMA115 Ceiling Plate 6"

$79.00 $63.20
Chief CMS115 - 6" Speed-Connect Ceiling Plate

CMS115 Speed Connect 6" Ceiling Plate

$79.00 $63.20
Chief MAC400 M-Series 90 degree Rotation Adapter, Medium Display

MAC400 M-Series Rotation Adapter

$234.00 $187.20
Chief CMS006009 Adjustable Extension Column 1.5" OD

CMS006009 Adjustable Extension Column 1.5" OD by Chief

$98.00 $78.40
Chief PACCC1 Center Channel Speaker Adapter (30-50")

PACCC1 Center Channel Speaker Adapter

$192.00 $153.60
Chief PACLR1 Left or Right Speaker Adapter (30-50")

PACLR1 Left/Right Speaker Adapter

$270.00 $216.00
Chief PACPC1 Flat Panel Power Filter Kit

PACPC1 Power Filter Kit

$270.00 $199.20
Chief PAC715 Video Conferencing 9" Camera Shelf

PAC715 Video Conferencing Camera Shelf

$192.00 $153.60
Chief PAC716 Video Conferencing 14" Camera Shelf

PAC716 Video Conferencing Camera Shelf

$224.00 $179.20
Chief PACCS1 Large Shelf Accessory

PACCS1 Large Shelf Accessory

$184.00 $147.20
Frequently Asked Questions

No FAQs available for this product. Have a question? Ask us!

Product Information
  • Model MCSV
  • Manufacturer Chief Mounts
  • Part Number MCSV
  • Color Black
  • Mounting Pattern 100 x 100mm, 200 x 100mm, 200 x 200mm, 400 x 200mm
  • Overall Dimensions 11.0" x 10.2" x 4.3" (280 x 258 x 108mm)
  • Tilt + 5 degree, - 20 degree
  • Screen Size 31-45" in
  • Weight Capacity 125 lbs (56.7kg)
  • Screen Size 46-60" in
