Chief VCMU Series Heavy Duty Ceiling Projector Mount

The VSMU mount includes the universal HBU bracket that is compatible with most heavy duty projectors.

Product ID 15337

Chief VCM Heavy Duty LCD or CRT Projector Ceiling Mount


Chief VCM series mount provides the strong support you need for mounting heavy LCD/CRT projectors. Micro adjustments allow you to quickly achieve registration. The VCMU mount includes the universal HBU bracket that is compatible with most heavy duty projectors.


Technical Drawing

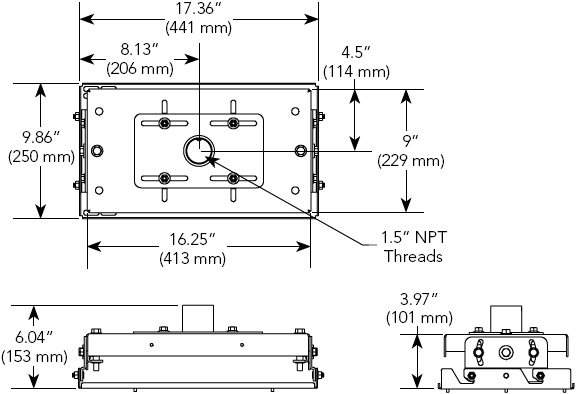

Technical Drawing for Chief VCM Heavy Duty LCD or CRT Projector Ceiling Mount




  • Roll: 5°
  • Pitch: 20°
  • Yaw: 360°


UL Listed



Overall Dimensions (H x W x D)

3.8" x 17.0" x 9.3" (97 x 432 x 235 mm)

Shipping Weight

43.35 lbs

Solution Type


Weight Capacity

250 lbs (113.4 kg)



  • Independent roll, pitch and yaw adjustments for quick and precise projector registration
  • Multiple installation options: flush mount to ceiling, use 0.5" threaded rods, use a 1.5" NPT extension column
  • Quick connect/disconnect for convenient lamp and filter access on most projectors
  • Cable management through top of the mount without additional accessories
  • Easy 3-Step Installation
    1) Assemble legs to projector
    2) Fasten legs to universal bracket
    3) Hook bracket onto VCM mount
  • Heavy Duty Steel Construction
  • Weight Capacity: 250lbs
  • Universal bracket also sold separately (HBU)

Frequently Asked Questions

q How do I know when to order the VCM Mount rather than the RPA?

Chief's cross-reference chart tells you exactly which mount to order for your projector.

q Do I need to order the HB bracket separately?

No, the assembly ships complete when you order a VCM ceiling mount. The HB bracket as a separate part number is used only for Chief lifts. One VCM part number includes both the universal top and HB bracket.

q How much assembly is required?

None. Just attach the HB bracket to your projector.

q How much height will it add to my installation?

The VCM top is only 4" high plus various HB bracket heights.

q How much weight does the mount hold?

Each mount is custom designed to support the weight of the projector models specified. However, your ceiling must hold at least 5x the total weight of your installation.

q Do I need any additional accessories to install the VCM?

Yes. The VCM can be flush mounted to the ceiling with the LPK1 Low-Profile Mounting Kit. However, often times you will need to lower your projector from the ceiling a specific distance and you will want to order the appropriate accessories. Choose the right solution for your installation.

Model VCM Series
Manufacturer Chief Mounts
Part Number VCM Series
UPC 841872154350
Weight lb(s)
Mounting Options Ceiling
Color Black
Pitch 20°
Yaw 360°
Overall Dimensions 3.8" x 17.0" x 9.3" (97 x 432 x 235 mm)
Weight Capacity 250 lbs (113.4 kg)
Shipping Weight 43.35 lbs
