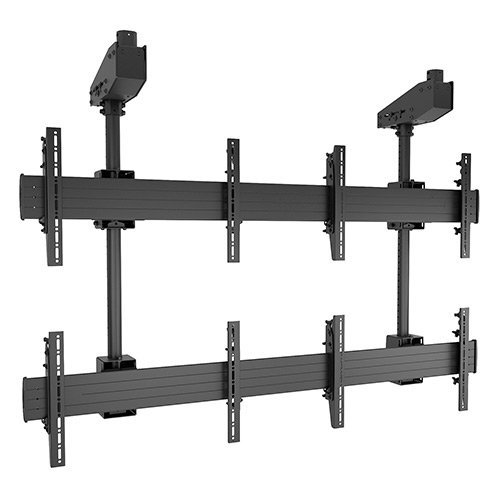

Chief LCM2X2U Fusion Large Ceiling Mounted 2x2 Video Wall

Please make sure that the combined weight of all components attached to the ceiling plates do not exceed the sum of the ceiling plate weight ratings

Product ID 17524


  • Ideal for Digital Signage installation
  • ceiling mount solution for 2 x 2 landscape video wall system
  • UL Listed
  • Weight Capacity: 125 lbs per screen
  • Screen Sizes: 42 - 50"

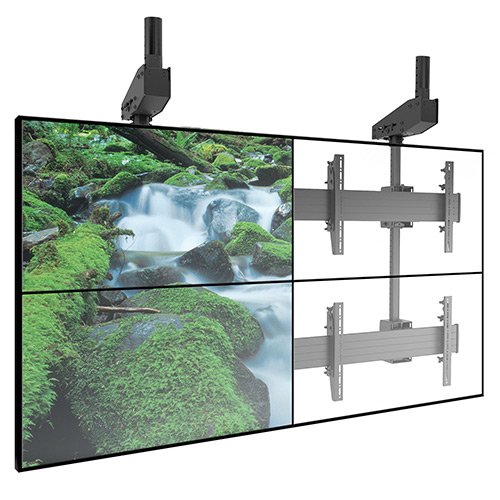

Chief's LCM2X2U FUSION ceiling mounted solutions make it possible to construct video walls in prominent locations where walls aren't available. Great for digital signage installations.

  • Screen array configuration: screens wide x screens high

  • Confirm screen compatibility with MountFinder

Provide aesthetic covering to the rear side of the displays, components and mount using the Chief Fusion Universal Back Covers.

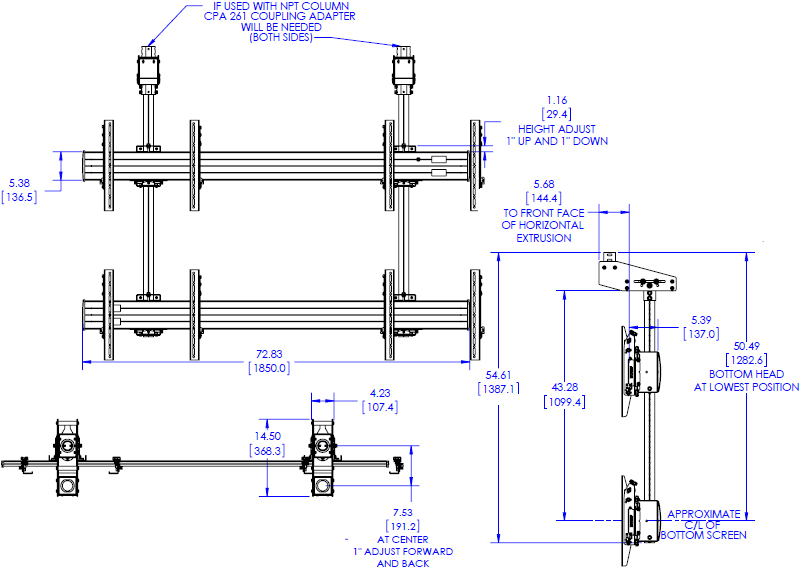

Technical Drawing

Technical Drawing for Chief LCM2X2U Fusion Large Ceiling Mounted 2x2 Video Wall


Adjustments Micro-Adjustments of 2" at structural intersection points
Certifications UL Listed
Color Black
Manual height Adjustment 1" (25 mm) increments at structural intersections
Mounting Pattern Compatibility (Universal Versions) Any width x 100 mm - 400 mm
Notes Weight capacity is per display
Number of Monitors 4
Plumb Adjustment Micro-adjustment up to 0.75" (19 mm)
Screen Array Configuration 2 x 2
Shipping Weight 152 lbs (68.95 kg)
Solution Type Universal
Typical Screen Sizes 42" - 50" (102 - 127 cm)
Weight Capacity 125 lbs (56.7 kg)
Orientation Landscape


  • Precise Screen Alignment - Easily align displays with independent knobs for height and plumb adjustments, no tools required

  • Controlzone Leveling - Micro-height and leveling adjustment at all column intersection points

  • Infinite Screen Positioning - Infinite vertical and lateral adjustments provide tight display rows and columns

  • Heavy-Duty Construction - Solid construction supports displays up to 55" and 125 lbs (56.7 kg) per screen

  • Configurable - Add configurations side by side to create any video wall arrangements up to 3 screens tall

  • Ceiling Plate and Extension Column are required and must be ordered separately. Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems. Ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility. CPA ceiling plates and CPA columns for pin connection compatibility

Model LCM2X2U
Manufacturer Chief Mounts
Part Number LCM2X2U
UPC 841872155012
Color Black
Adjustments Micro-Adjustments of 2" at structural intersection points
Manual Height Adjustment 1" (25 mm) increments at structural intersections
Mounting Pattern Any width x 100 mm - 400 mm
Plumb Adjustment Micro-adjustment up to 0.75" (19 mm)
Monitor Size 42" - 50" (102 - 127 cm)
Weight Capacity Each 125 lbs (56.7 kg). Total 500 lbs (226.8 kg)
Shipping Weight 152 lbs (68.95 kg)
Number of Monitors 4 Monitors
Orientation Landscape
