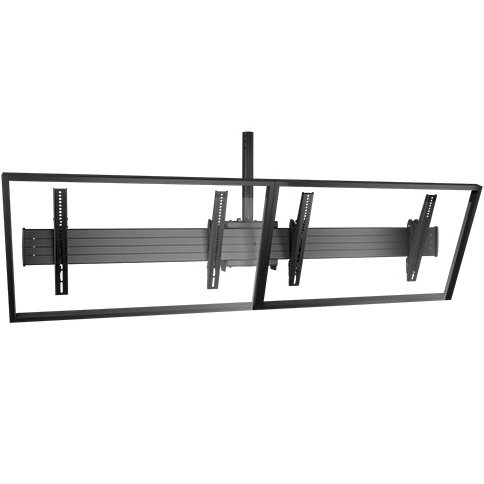

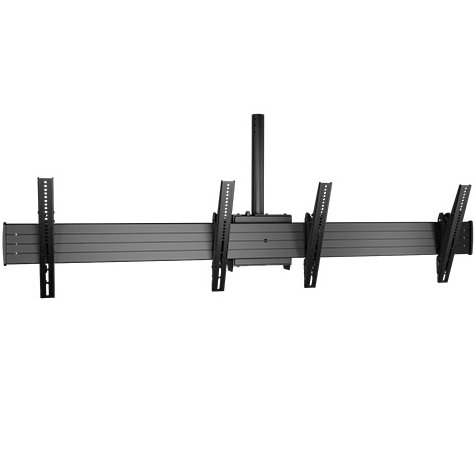

Chief LCM2X1U FUSION Large Ceiling Mounted 2x1 Menu Board

Product ID 18003
Chief LCM2X1U FUSION Large Ceiling Mounted 2x1 Menu Board
Chief LCM2X1U FUSION Large Ceiling Mounted 2x1 Menu Board
Chief LCM2X1U FUSION Large Ceiling Mounted 2x1 Menu Board
Chief LCM2X1U FUSION Large Ceiling Mounted 2x1 Menu Board


Chief's LCM2X1U Fusion ceiling mounted solutions make it possible to construct menu boards in prominent locations where walls aren't available. Combine to easily create longer menu boards. Great for digital signage installations.

  • Screen array configuration: screens wide x screens high.

  • Confirm screen compatibility with MountFinder

Provide aesthetic covering to the rear side of the displays, components and mount using the Chief Fusion Universal Back Covers.

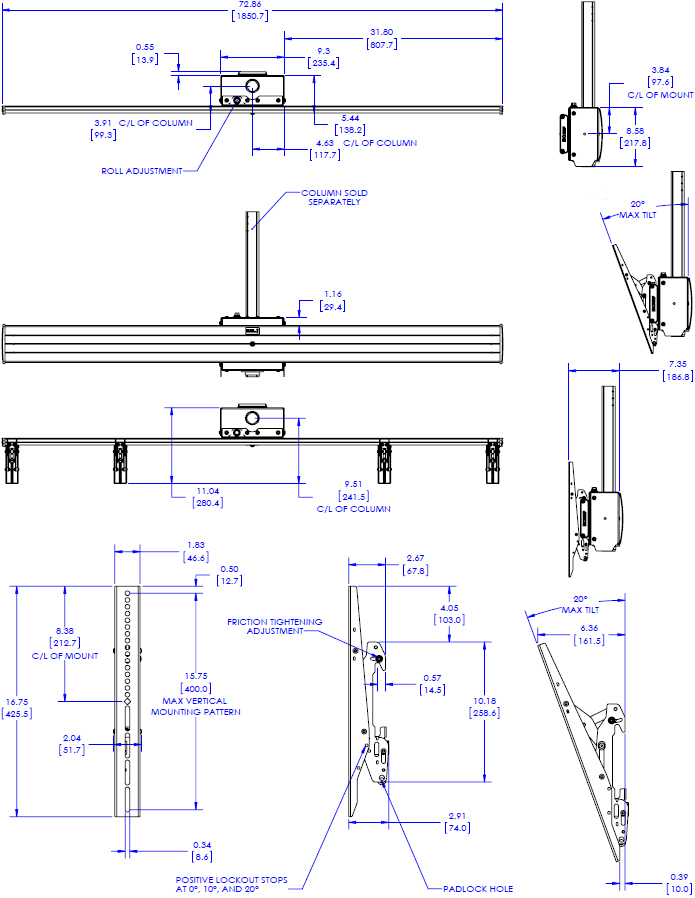

Technical Drawing

Technical Drawing for Chief LCM2X1U FUSION Large Ceiling Mounted 2x1 Menu Board


Certifications UL Listed
Color Black
Mounting Pattern Compatibility (Universal Versions) Any width x 100 - 400 mm
Notes Weight capacity is per display
Number of Monitors 2
Post-Installation Leveling Roll +/- 3°
Screen Array Configuration 2 x 1
Shipping Weight 50 lbs (22.68 kg)
Solution Type Universal
Tilt + 5°, - 20°
Typical Screen Sizes 40 - 55" (up to 65" with FCAX extension brackets)
Weight Capacity 125 lbs (56.7 kg)
Orientation Landscape


  • Single drop for fast installation

  • Micro adjustable roll for perfect leveling +/- 3 degrees

  • 360 degree swivel for optimal viewing angles

  • Single horizontal extrusion keeps screens aligned

  • Tilting interfaces with Centris technology makes for easy adjustment for +5 / -20 degrees

  • Tool-free screen engagement

  • Secure displays with optional pad-lock security

  • Fits screens 40 - 55" diagonals, add FCAX extension brackets for larger screens up to 65

  • Ceiling Plate and Extension Column are required and must be ordered separately. Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems. Ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility. CPA ceiling plates and CPA columns for pin connection compatibility.

  • TAA Compliant

Model LCM2X1U
Manufacturer Chief Mounts
Part Number LCM2X1U
UPC 841872158778
Color Black
Mounting Pattern Any width x 100 - 400 mm
Roll +/- 3°
Shipping Weight 50 lbs (22.68 kg)
Tilt + 5 degree, - 20 degree
Monitor Size 40 - 55" (up to 65" with FCAX extension brackets)
Weight Capacity 125 lbs (56.7 kg) per display
Orientation Landscape
Number of Monitors 2 Monitors
