Innovative 9112-S Articulating LCD 12 inch Pole Mount - 14 inch Horizontal Range

Innovative 9112-S Articulating LCD 12 inch Pole Mount - 14 inch Horizontal Range

This product has been discontinued. See below for similar products we offer instead. We apologize for the inconvenience.

View Similar Products



Click on the functions (Height Adjustment, Tilt LCD, Rotate at Forearm, Rotate at LCD, Rotate at Mount, Fold the Arm) to the left side of the image below to see the  arm movements

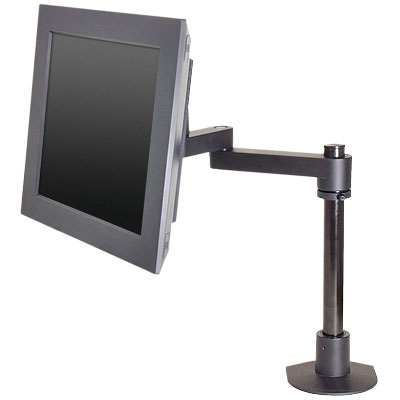

Innovative 9112-S-12-FM Articulating LCD Pole Mount Arm extends up to 14 inch

Arm extends up to 14"





General Information



Image of Warranty and Returns






Innovative 9112-S-12-FM Articulating LCD Pole Mount

 with 12" Standard Pole and Horizontal Range (14 inch)

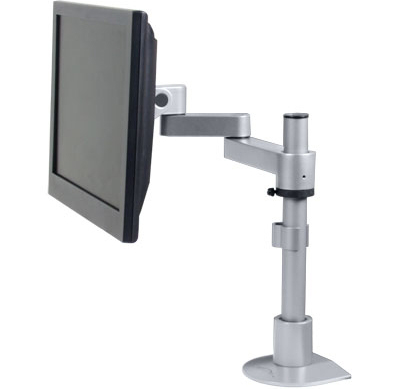

Innovative 9112-S-12-FM Articulating LCD Pole Mount Arm









Features of innovative 9112S12FM Pole Mount:

    1.  12" standard pole, custom pole lengths are available.



    2.  Rotates 360 degrees at three joints.



    3.  Monitor tilter mechanism can tilt over 200 degrees.



    4.  Adjustable tension at joints - ideal for touch-screen applications



    5.  Ideal for slatwall mounting, can be combined with all Innovative mount options (sold separately)



    6.  VESA-monitor compatible - 75mm & 100mm VESA adapters included. Please call for non-

         VESA options.



    7.  Optional upgrade to quick install/release monitor bracket. Consult your sales rep for details.

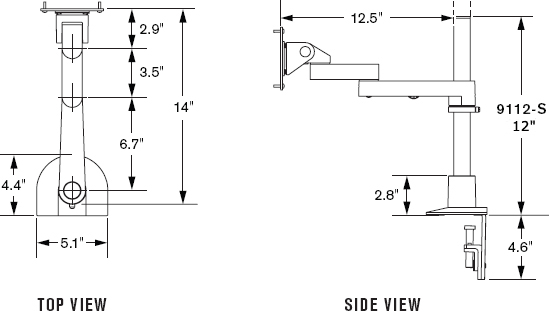

Technical Drawing for Innovative 9112-S-12-FM Articulating LCD Pole Mount



Technical Drawing for Innovative 9112-S-12-FM Articulating LCD Pole Mount









Description of Innovative 9112SFM LCD Pole Mount:

Model 9112 features foldable arms which adjust vertically up and down a 12" pole. The arms can fold up to fit in about 3" of space and extend out 14". Various pole lengths and extensions are available or can be designed to fit any application you may be looking for. Unique cable management allows cables to tucked under the forearm extensions.







Specifications:

Horizontal Range:

14" from back of pole

Pole Size:

Useable Pole length is 12" but 13.6" is before mount

Monitor Tilt:

200 degrees

Monitor Pivot:

Landscape to portrait

Monitor Compatibility:

VESA 75mm and 100mm

Mounting Options:

FLEXmount, Slatwall, Wall, Thru-Desk

Monitor Weight:

Up to 40 lbs









More Images:

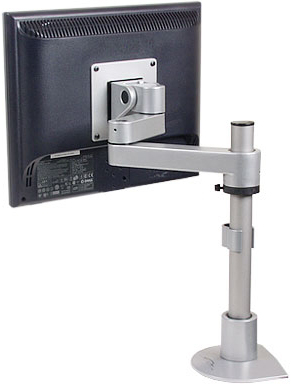

Innovative 9112-S-FM Articulating LCD Pole Mount Arm

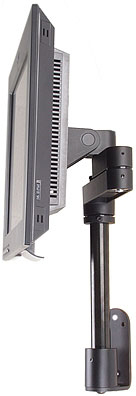

Innovative 9112-S-12-FM Articulating LCD Pole Mount Folded

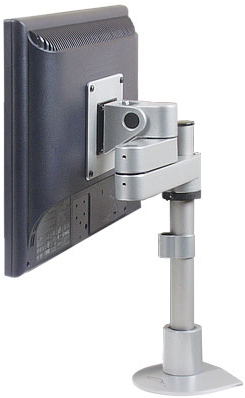

Innovative 9112-S-12-FM Articulating LCD Pole Mount folds into 3 inch of space

Folds into 3" of space




Mounting Options:

Innovative 8325 Wall Mount

Model 8325 -  Wall Mount



This heavy-duty wall mount will provide rock-solid security for your arm and monitor. Mounts vertically to your wall surface.  Not recommended for dry wall, sheet rock or plaster surfaces

Model 8312 - Through Desk Mount



Model 8312 - Through Desk Mount



Bolt through your desk. Requires a 3/8" hole



Model 8246 - Slatwall Mount

Model 8246 - Slatwall Mount



Conserve desk space by mounting your monitor arm directly to your slatwall. The Innovative Slatwall Mount features secure attachment as well as fast installation. Cables can be routed between the mount and slatwall, helping to keep them neat and out of the way

Model 8111 - FLEXmount

Model 8111 - FLEXmount



The ideal mounting solution. It's Innovative! Choose from six different configurations in 1 kit:

  • Desk Edge Clamp Mount

  • Panel System Rear Edge

  • Grommet Hole Clamp Mount

  • Thru-Desk Mount

  • Wall Mount

  • Reverse Wall Mount






Literature (Please open the following documents for more technical information)

Description

File Type

Innovative 9112-S-FM LCD Pole Mount Arm - Brochure

- pdf

Innovative 9112-S-12-FM Articulating Pole Mount Arm - Installation Instructions

- pdf

Innovative 9112-S Articulating LCD Pole Mount Arm - Capabilities

- pdf










Innovative LCD Arms Logo



Hyperlink of All Innovative Products







Innovative Returns Policy
All returns must be labeled with a valid Return Authorization (R/A) number, which can be obtain by contacting Ergodirect.com, on the outside of packaging.  Restocking fee of 20% will be applied on all returns.  Products must be in brand new, saleable condition, and never installed. Defective items may be returned within limits of the Warranty.  Non-defective Custom-configured Items are not returnable.  All return must be made within 30 days of receipt
Privacy Notice:
ErgoDirect.com fully respects and protects your privacy. With the exception of arranging for delivery of the products ordered, we do not sell, share or rent any personal information (including your name, address, telephone number or e-mail address) to other parties for any reason; nor do we contact you by telephone or e-mail to solicit additional products or services.

Credit Card Security:
We use SSL security to protect all transactions so your credit card information is completely safe.



Product Options/Accessories
Innovative 5501 Tablet PC/Laptop Holder

5501 Tablet PC/Laptop Holder

$80.00 $56.00
Innovative 8209 Flip-Up Keyboard Tray/LCD Holder

8209 Flip-Up Keyboard Tray

$564.00 $394.80
Innovative 8336-QR Descending Head Tilter with VESA Plate

8336-QR Monitor Tilter with VESA Plate (2-45 lbs)

$98.00 $78.40
Innovative 7VESA1x2 VESA Adapter Plate 100x200 mm

7VESA1x2 VESA Adapter Plate 100x200 mm

$50.00 $35.00
Innovative 7VESA2x2 VESA Adapter Plate 200x200 mm

7VESA2x2 VESA Adapter Plate 200x200 mm

$127.00 $88.90
Innovative 8335-SM Small Vertical CPU Holder

Small Vertical CPU Holder - Innovative 8335-SM

$257.00 $179.90
Innovative 8171-6 - 6" Extender Arm Tube

8171-6 Extender Tube

$124.00 $86.80
Innovative 8171-6 - 6" Extender Arm Tube

8171-6 Extender Tube

$124.00 $86.80
Innovative 8312 Through Desk Mount

8312 Through Desk Mount

$88.00 $61.60
Innovative 8325 Heavy-Duty Large Wall Mount

8325 Large Wall Mount

$89.00 $62.30
Innovative 8246 Slatwall Mount

8246 Slatwall Mount

$102.00 $71.40
Innovative 8111 Flexmount Mount for 7000 Series

8111 FlexMount Mount

$95.00 $66.50
Innovative 8409 Ergonomic Monitor Handle Set

8409 Monitor Handle Set

$213.00 $149.10
Frequently Asked Questions

No FAQs available for this product. Have a question? Ask us!

Product Information
  • Model 9112-S-12-FM or 9112-S-12-FM-104 or 9112-S-12-FM-124 or 9112-S-12-FM-232
  • Manufacturer HAT Design Works (Innovative)
  • Part Number 9112-S-12-FM or 9112-S-12-FM-104 or 9112-S-12-FM-124 or 9112-S-12-FM-232
  • UPC 895026000352
  • Weight 10 lb(s)
