Chief PCM2000B Large Flat Panel Ceiling Mount with Angled Column

Chief PCM2000B Large Flat Panel Ceiling Mount with Angled Column

This product has been discontinued. See below for similar products we offer instead. We apologize for the inconvenience.

View Similar Products

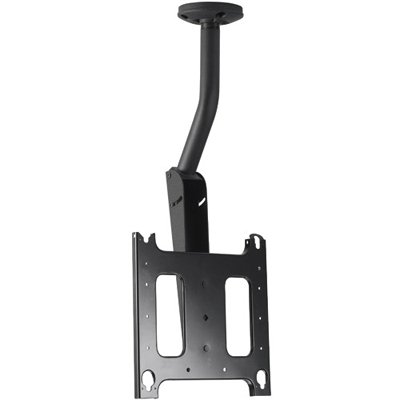

Chief PCM-2000B Large (42-60") Ceiling Mount with Angled Column (without interface)



Chief PCM-2000B Large (42-60") Ceiling Mount with Angled Column (without interface)









Features of Chief PCM 2000B:



  • Centris Technology provides fingertip tilt for effortless screen adjustment.

  • ClickConnect Technology provides simplified tool less latching with an audible click.

  • Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen).

  • Full line of accessories available to accommodate almost any type of ceiling.

  • Through-pipe cabling can be accomplished with the appropriate accessory (see CMA330 and CMS115).

  • PAC140 Q-Clamp accessory included.

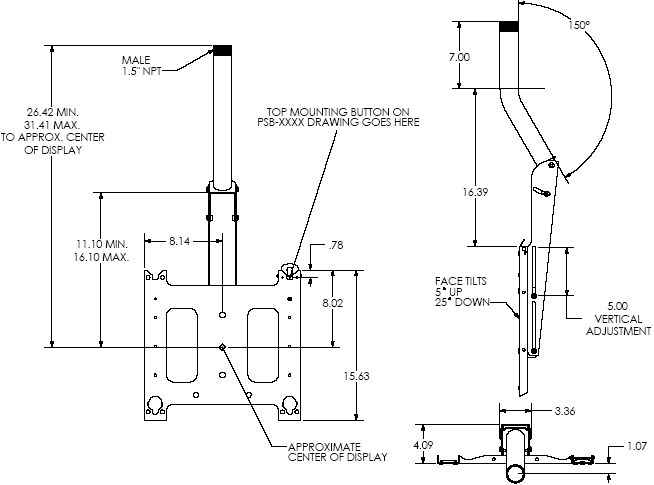

Technical Drawing of Chief PCM2000 Large Ceiling Mount with Angled Column



Technical Drawing of Chief PCM2000 Large Ceiling Mount with Angled Column









Description of Chief PCM 2000:



This ceiling mount uses a TV's natural center of gravity to provide a stable, durable installation.

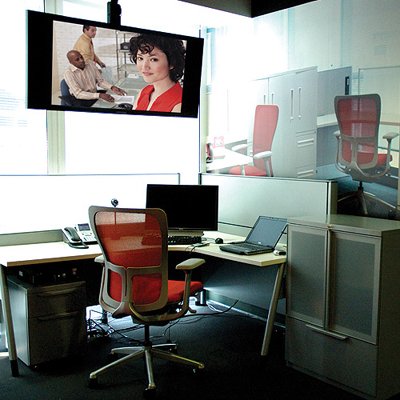

  • Great for digital signage applications.

  • Ceiling plate is required and must be ordered separately, vertical extension column may also be required for your installation.







Specifications of Chief PCM-2000:



Certifications:

UL Listed

Color:

Black

Manual Height Adjustment:

5"

Mounting Pattern (Universal Versions):

200 x 200mm - 862 x 517mm

Orientation:

Landscape, Portrait

Overall Dimensions (H x W x D):

34.4" x 16.3" x 6.2" (875 x 414 x 158mm)

Post Installation Leveling (Roll):

Yes

Tilt:

+ 5°, - 25°

Typical Screen Sizes:

42 - 60"

Weight Capacity:

200 lbs (90.7kg)







Literature (Please open the following documents for more technical information)




Chief PCM2000B Large Flat Panel Ceiling Mount with Angled Column - Installation Assembly

- pdf
Chief PCM 2000B Large Flat Panel Ceiling Mount with Angled Column - Technical Drawing

- pdf







Chief Logo



Hyperlink of all Chief products

Product Options/Accessories
Chief CMA101 or CMA101W Designer Ceiling Plate

CMA101 Designer 5" Ceiling Plate

$60.00 $48.00
Chief CMA105 - 4" Ceiling Plate for CMS Fixed/Adjustable Columns

CMA105 - 4" Ceiling Plate

$62.00 $49.60
Chief CMA110 - 8" Ceiling Plate for CMS Fixed/Adjustable Columns

CMA110 Ceiling Plate 8"

$94.00 $75.20
Chief CMA115 - 6" Ceiling Plate for CMS Fixed/Adjustable Columns

CMA115 Ceiling Plate 6"

$79.00 $63.20
Chief CMS115 - 6" Speed-Connect Ceiling Plate

CMS115 Speed Connect 6" Ceiling Plate

$79.00 $63.20
Chief PAC400 P-Series 90 degree Rotation Adapter for Large Mount

PAC400 P-Series Rotation Adapter

$401.00 $320.80
Chief PACCC1 Center Channel Speaker Adapter (30-50")

PACCC1 Center Channel Speaker Adapter

$192.00 $153.60
Chief PACLR1 Left or Right Speaker Adapter (30-50")

PACLR1 Left/Right Speaker Adapter

$270.00 $216.00
Chief PACPC1 Flat Panel Power Filter Kit

PACPC1 Power Filter Kit

$270.00 $199.20
Chief PSB2020 P-Series Interface Bracket for Large Display Mount

Chief PSB2020 P-Series Interface Bracket

$196.00 $144.00
Chief PSB2021 P-Series Interface Bracket for Large Display Mount

PSB2021 P-Series Interface Bracket

$155.00 $114.40
Chief PSBUB Universal Interface Bracket for Large Display

PSBU P-Series Interface Bracket

$222.00 $177.60
Chief PAC715 Video Conferencing 9" Camera Shelf

PAC715 Video Conferencing Camera Shelf

$192.00 $153.60
Chief PSB2022 P-Series Interface Bracket for Large Display Mount

PSB2022 P-Series Interface Bracket

$155.00 $114.40
Chief PAC716 Video Conferencing 14" Camera Shelf

PAC716 Video Conferencing Camera Shelf

$224.00 $179.20
Chief PACCS1 Large Shelf Accessory

PACCS1 Large Shelf Accessory

$184.00 $147.20
Chief PSB2243 P-Series Interface Bracket for Large (37-65")

PSB2243 P-Series Interface Bracket

$222.00 $177.60
Frequently Asked Questions

No FAQs available for this product. Have a question? Ask us!

Product Information
  • Model PCM2000B
  • Manufacturer Chief Mounts
  • Part Number PCM2000B
  • Color Black
  • Manual Height Adjustment 5"
  • Mounting Pattern 200 x 200mm - 862 x 517mm
  • Overall Dimensions 34.4" x 16.3" x 6.2" (875 x 414 x 158mm)
  • Tilt + 5 degree, - 25 degree
  • Screen Size 31-45" in
  • Weight Capacity 200 lbs (90.7kg)
  • Screen Size 46-60" in
