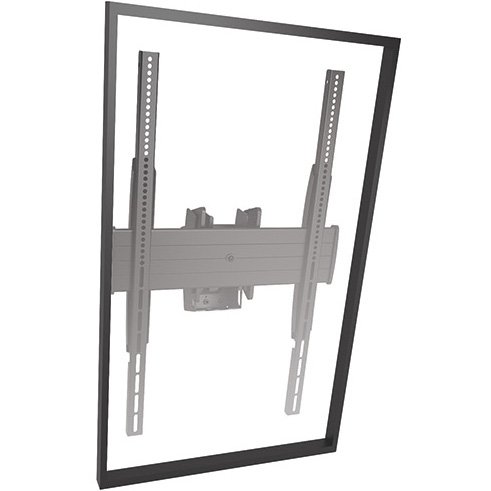

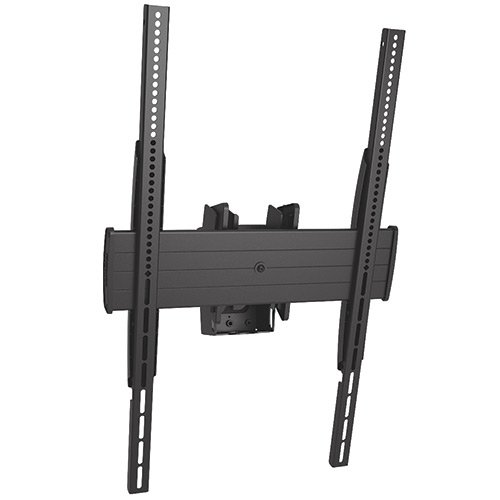

Chief LCM1UP FUSION Large Portrait Flat Panel Ceiling Mount

Product ID 18034
Chief LCM1UP FUSION Large Portrait Flat Panel Ceiling Mount
Chief LCM1UP FUSION Large Portrait Flat Panel Ceiling Mount
Chief LCM1UP FUSION Large Portrait Flat Panel Ceiling Mount
Chief LCM1UP FUSION Large Portrait Flat Panel Ceiling Mount


Chief's LCM1UP FUSION Flat Panel Ceiling Mounts are installer inspired and offer perfect TV positioning and flexible adjustments for large flat panel screens. Great for digital signage installations.

  • Ceiling Plate and extension column are required and must be ordered separately

  • Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems

  • Ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility

  • CPA ceiling plates and CPA columns for pin connection compatibility

Technical Drawing

Technical Drawing for Chief LCM1UP FUSION Large Portrait Flat Panel Ceiling Mount


Adjustments (Roll) +/- 3°
Certifications UL Listed, TAA Compliant
Color Black
Mounting Pattern Compatibility (Universal Versions) 200 x 100 - 460 x 800 mm
Number of Monitors 1
Shipping Weight 26 lbs (11.79 kg)
Tilt + 5°, - 20°
Typical Screen Sizes 32 - 65"
Weight Capacity 125 lbs (56.7 kg)
Orientation Portrait


  • Repeatability - Continuous tilt ranges with four set locking points to eliminate guess work when adjusting multiple screens

  • Accessibility - Simple on/off connection for ease of installation and service

  • Centris Fingertip Tilt - Effortlessly adjust display using Centris fingertip tilt technology

  • Simple & Secure - Tool free screen engagement with optional padlock security

  • Flexibility - Mount swivels to any preferred viewing angle. Set screws lock in desired angle

  • Portrait - FUSION rail is 400mm wide and the TV uprights reach patterns up to 800mm tall

  • TAA Compliant

Model LCM1UP
Manufacturer Chief Mounts
Part Number LCM1UP
UPC 841872159096
Color Black
Roll +/- 3 degree
Weight Capacity 125 lbs (56.7 kg)
Mounting Pattern 200 x 100 - 460 x 800 mm
Shipping Weight 26 lbs (11.79 kg)
Tilt + 5 degree, - 20 degree
Monitor Size 32 - 65"
Orientation Portrait
Number of Monitors 1 Monitor

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)


With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.

Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
