Chief XCB1U X-Large Single Pole Back to Back Ceiling Mount

Product ID 18030

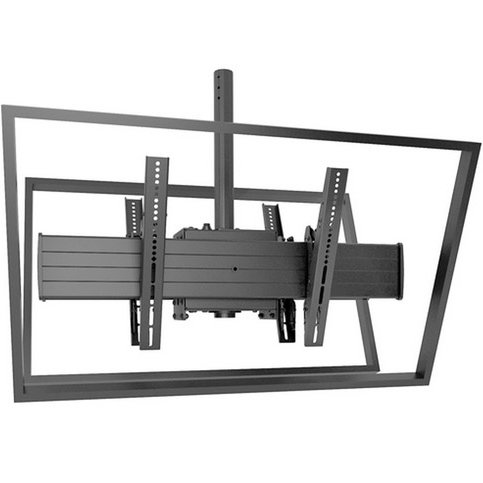

Chief XCB1U X-Large Single Pole Back to Back Ceiling Mount
Chief XCB1U X-Large Single Pole Back to Back Ceiling Mount


Chief's FUSION Flat Panel Ceiling Mounts are installer inspired and offer perfect display positioning and flexible adjustments for X-large flat panel screens. Great for digital signage applications. Chief XCB1U is the back-to-back single pole drop ceiling mount perfect for XL displays 5" deep and thinner. For deeper and heavier displays, see Chief's XCB7000 for a dual drop solution.

  • Ceiling plate and extension column are required and must be ordered separately

  • Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems

  • Ceiling Plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility

  • CPA ceiling plates and CPA columns for pin connection compatibility

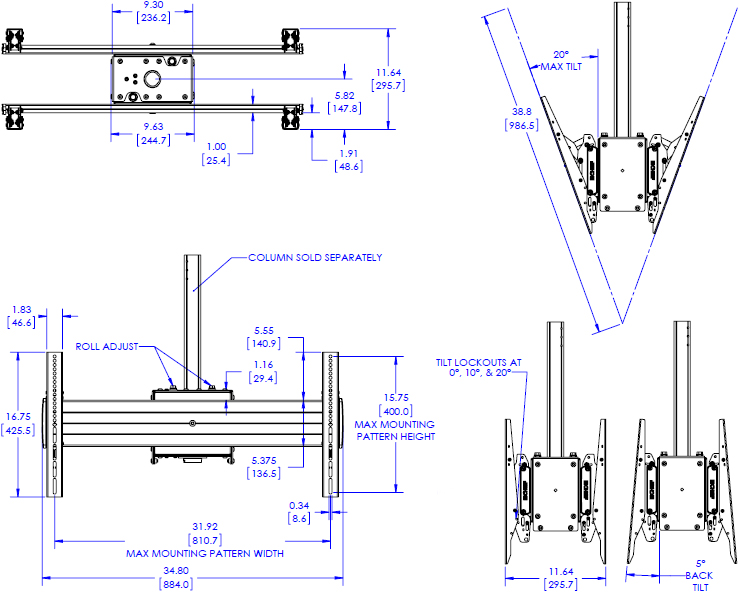

Technical Drawing

Technical Drawing for Chief XCB1U X-Large Single Pole Back to Back Ceiling Mount


Certifications UL Listed, TAA Compliant
Color Black
Mounting Pattern Compatibility (Universal Versions) 200 x 100 - 800 x 400 mm
Overall Dimensions 16.6 x 34.8 x 11.8" (425 x 884 x 300 cm)
Notes Weight capacity is per display
Number of Monitors 2
Post-Installation Leveling Roll Yes
Shipping Weight 44 lbs (19.96 kg)
Tilt +5, -20° for screens up to 38.8" tall
Typical Screen Sizes 55 - 100"
Weight Capacity 200 lbs (90.7 kg)
Orientation Landscape


  • Repeatability - Continuous tilt ranges with four set locking points to eliminate guess work when adjusting multiple screens

  • Accessibility - Simple on/off connection for ease of installation and service

  • Centris Fingertip Tilt - Effortlessly adjust display using Centris fingertip tilt technology

  • Simple & Secure - Tool free screen engagement with optional padlock security

  • Flexibility - Mount swivels to any preferred viewing angle

  • TAA compliant

Model XCB1U
Manufacturer Chief Mounts
Part Number XCB1U
UPC 841872159409
Color Black
Mounting Pattern 200 x 100 - 800 x 400 mm
Overall Dimensions 16.6 x 34.8 x 11.8" (425 x 884 x 300 cm)
Shipping Weight 44 lbs (19.96 kg)
Tilt +5 degree, -20 degree
Monitor Size 55 - 100"
Weight Capacity 200 lbs (90.7 kg)
Post-Installation Leveling Roll Yes
Number of Monitors 2 Monitors
Orientation Landscape
