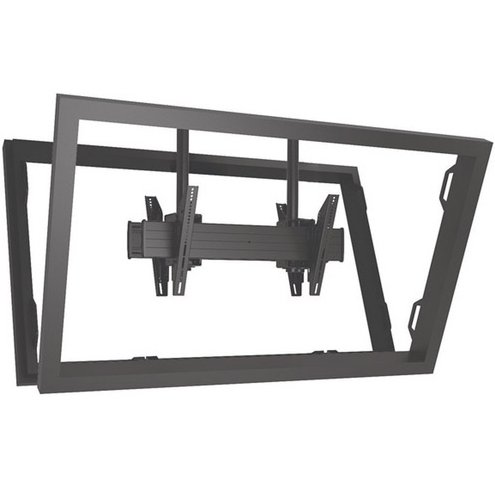

Chief XCB7000 X-Large Dual Pole Back to Back Ceiling Mount

Product ID 18031
Chief XCB7000 X-Large Dual Pole Back to Back Ceiling Mount
Chief XCB7000 X-Large Dual Pole Back to Back Ceiling Mount


Chief's FUSION Flat Panel Ceiling Mounts are installer inspired and offer perfect display positioning and flexible adjustments for X-large flat panel screens. Great for digital signage applications. Chief's XCB7000 is a dual pole drop ceiling mount for XL displays over 5" deep. See the Cheif XCB1U for back-to-back single pole ceiling mount for lighter and thinner XL displays.

  • Ceiling plate and extension column are required and must be ordered separately

  • Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems

  • Ceiling Plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility

  • CPA ceiling plates and CPA columns for pin connection compatibility

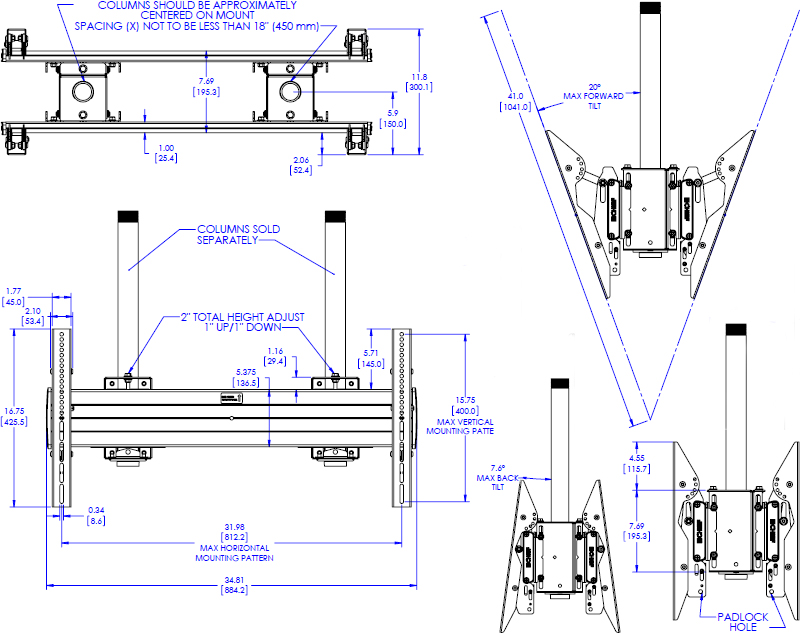

Technical Drawing

Technical Drawing for Chief XCB7000 X-Large Dual Pole Back to Back Ceiling Mount


Certifications UL Listed, TAA Compliant
Color Black
Mounting Pattern Compatibility (Universal Versions) 200 x 100 - 800 x 400 mm
Overall Dimensions 16.6 x 34.8 x 11.8" (425 x 884 x 300 cm)
Notes Weight capacity is per display
Number of Monitors 2
Post-Installation Leveling Roll Yes
Shipping Weight 51 lbs (23.13 kg)
Tilt +7.5, -20°
Typical Screen Sizes 55 - 100"
Weight Capacity 300 lbs (136.1 kg)
Orientation Landscape


  • Repeatability - Continuous tilt ranges with four set locking points to eliminate guess work when adjusting multiple screens

  • Accessibility - Simple on/off connection for ease of installation and service

  • Centris Fingertip Tilt - Effortlessly adjust display using Centris fingertip tilt technology

  • Simple & Secure - Tool free screen engagement with optional padlock security

  • Flexibility - Mount swivels to any preferred viewing angle

  • TAA compliant

Model XCB7000
Manufacturer Chief Mounts
Part Number XCB7000
UPC 841872159768
Color Black
Mounting Pattern 200 x 100 - 800 x 400 mm
Overall Dimensions 16.6 x 34.8 x 11.8" (425 x 884 x 300 cm)
Shipping Weight 51 lbs (23.13 kg)
Tilt +7.5 degree, -20 degree
Monitor Size 55 - 100"
Weight Capacity 300 lbs (136.1 kg)
Number of Monitors 2 Monitors
Post-Installation Leveling Roll Yes
Orientation Landscape
