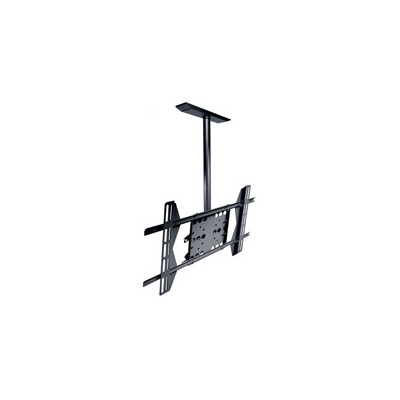

Straight Column Ceiling Mount Description:
|
|
The Straight Column Ceiling Mount offers a straight column from the ceiling attachment point to the flat panel screen. The straight column ceiling mount is ideal for sports facilities, airports, lobbies or retail environments. It delivers 20° of adjustable tilt and 360° of swivel. This mount ships complete with 2.5’ fixed length extension column and theft resistant security fasteners. Model-specific or Universal style PLP adapter plates are available to match your screen make and model, both are sold separately. For screens larger than 60" a dedicated plate must be purchased.
|
|
Load Weight Capacity Chart:
|
|
Model
|
Width
|
Height
|
Depth
|
Max. Load
|
Ship Weight
|
|
PLCM-UNL-CP
|
30.75" (78.1 cm)
|
42.63" (108.2 cm)
|
4.43" (11.2 cm)
|
200 lb (90.7 kg)
|
33.3 lb (15.1 kg)
|
|
PLCM-UNL
|
30.75" (78.1 cm)
|
41.54" (105.5 cm)
|
4.43" (11.2 cm)
|
200 lb (90.7 kg)
|
30.30 lb (13.7 kg)
|
|
PLCM-UN1-CP
|
27.5" (69.8 cm)
|
40.00" (101.6 cm)
|
3.92" (9.9 cm)
|
125 lb (56.6 kg)
|
30.10 lb (13.6 kg)
|
|
PLCM-UN1
|
27.5" (69.8 cm)
|
38.91" (98.8 cm)
|
3.92" (9.9 cm)
|
125 lb (56.6 kg)
|
27.40 lb (12.4kg)
|
|
PLCM-1CP
|
18" (45.7 cm)
|
34.59" (87.8 cm)
|
3.61" (9.1 cm)
|
225 lb (102.0 kg)
|
18.70 lb (8.4 kg)
|
|
PLCM-1
|
10.24" (20.0 cm)
|
33.5" (85.0 cm)
|
3.25" (8.2 cm)
|
225 lb (102.0 kg)
|
16 lb (7.2 kg)
|
|
PLCM-2
|
**
|
**
|
**
|
225 lb (102.0 kg)
|
**
|
|
|
** - Width, Height, Depth and Shipping Weight vary with ceiling plate, extension column and adapter plate used
Features:
-
0° to 20° adjustable tilt and 360° swivel
-
Screen mounts vertically or horizontally
-
Uses standard 1 1/2" – 11.5 NPT schedule 40 pipe
-
Additional length can be added for lowering
-
Theft-resistant security fasteners secure the screen to the mount
-
Sold with or without ceiling plate
-
Cord management
-
Complete detailed installation instructions for wood and
-
Concrete structures
-
Has EXT103 or EXT103S - 3 feet (0.9 m) fixed extension column
-
Color : Black
|
|
Universal Models: Security Fasteners - Includes theft resistant hardware for attaching screen to mount
-
PLCM-UNL-CP - Black
-
PLCM-UNL - Black
-
PLCM-UN1-CP - Black
-
PLCM-UN1 - Black
PLCM-UNL models include screen adapter to accommodate mounting holes spaced up to 28.75" horizontally and 17.05" vertically. PLCM-UN1 models include screen adapter to accommodate mounting holes spaced up to 27.6" horizontally and 17" vertically
Dedicated Models: Dedicated adapter plates come in flat black and include security fasteners
-
PLCM-1 - Black
-
PLCM-1CP - Black
-
PLCM-2 - Black
Requires screen-specific adapter to be sold separately
|
|
All PLCM Products:
|
|
|
|
Models
|
PLCM-1
|
PLCM-1CP
|
PLCM-2
|
|
Tilt
|
20°
|
20°
|
20°
|
|
Swivel
|
360°
|
360°
|
360°
|
|
Mounting Surfaces
|
Wood joist, concrete and various other applications
|
Wood joist, concrete and various other applications
|
Wood joist, concrete
and various other applications
|
|
Needed
|
Requires screen-specific adapter and ceiling plate, both sold separately.
|
Requires screen-specific adapter, sold separately. Includes structural ceiling plate.
|
Requires appropriate extension column, screen-specific adapter and ceiling plate for various ceilings, all sold separately
|
|
|
|
|
|
|
Models
|
PLCM-UN1
|
PLCM-UN1-CP
|
PLCM-UNL
|
PLCM-UNL-CP
|
|
Tilt
|
20°
|
20°
|
20°
|
20°
|
|
Swivel
|
360°
|
360°
|
360°
|
360°
|
|
Mounting Surfaces
|
Wood joist, concrete and various other applications
|
Wood joist, concrete and various other applications
|
Wood joist, concrete and various other applications
|
Wood joist, concrete and various other applications
|
|
Needed/
Included
|
Requires ceiling plate, sold separately.
Includes universal screen adapter plate.
|
Includes structural ceiling plate and universal screen adapter plate.
|
Requires ceiling plate, sold separately.
Includes universal screen adapter plate for landscape mounting only.
|
Includes structural ceiling plate and universal screen adapter plate.
|
|
