Chief RPMA1 or RPMB1 or RPMC1 RPA Elite Projector Security Mount

Product ID 15873
Chief RPMA1 or RPMB1 or RPMC1 RPA Elite Projector Security Mount
Chief RPMA1 or RPMB1 or RPMC1 RPA Elite Projector Security Mount

Related Products

Part Number

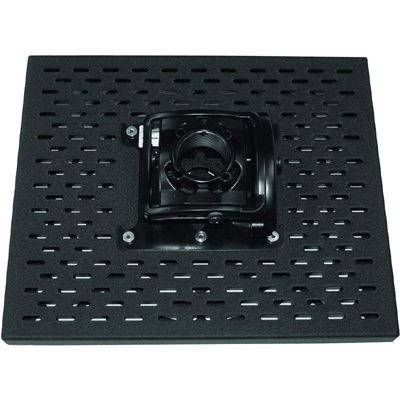

Black RPA Elite Projector Security Mount (Lock A)

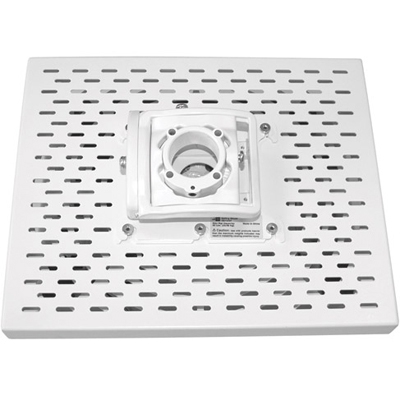

White RPA Elite Projector Security Mount (Lock A)


White RPA Elite Projector Security Mount (Lock B)


Black RPA Elite Projector Security Mount (Lock C)


White RPA Elite Projector Security Mount (Lock C)

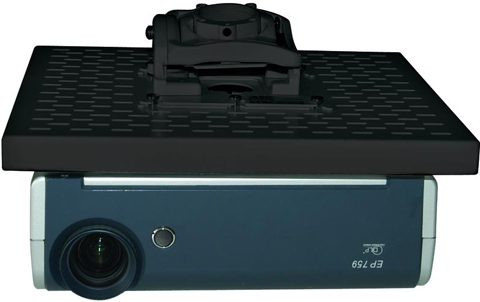

Chief RPMA1 - RPA Elite Universal Security Mount with projector


Chief RPA Elite all-in-one security projector mounts are designed to speed up installation and maximize projector security. Available in three locking options: RPMA1, RPMB1, RPMC1.

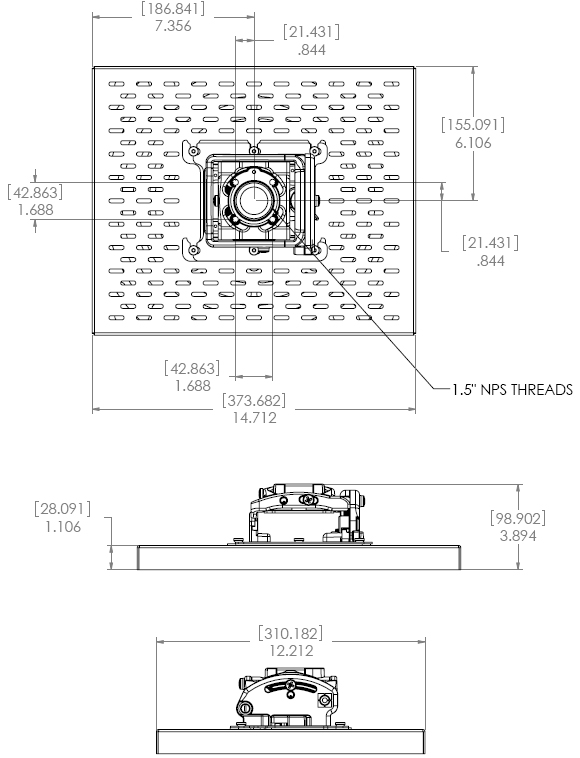

Technical Drawing

Technical Drawing for Chief RPMA1 - RPA Elite Projector Security Mount




Black and White


Roll: 3°
Pitch: 20°
Yaw: 360°


TV Certified

Overall Dimensions (H x W x D)

3.4" x 16.2" x 12.1" (86 x 411 x 307 mm)

Shipping Weight

12.75 lbs

Solution Type


Weight Capacity

50 lbs (22.7 kg)



  • Microzone Adjustments make projector registration fast and precise (including flush mount installations)
  • Centris Technology enables effortless fingertip positioning and self-adjusts to support different projector weights
  • Quick connect/disconnect for convenient lamp and filter access on most projectors
  • Maintains registration when disconnected and doesn't affect preset adjustments
  • Cable management without additional accessories
  • Complete security with a universal mounting interface with secured mounting points for high-risk environments

Frequently Asked Questions

q Do I need any special tools to operate the MicroZone?

No, use a standard #2 screwdriver to quickly align the projected image to the screen.

q How does Centris Technology make installation easier?

Centris allows you to easily align the projector to the screen with fingertip adjustments. When you let go of the projector, the image stays aligned to the screen.

q Do all Elite mounts include Q-Lock Security?

No. The standard version of the RPA Elite Series (RPM-xxxx) includes All-Points Security. For enhanced security order the RPA Elite with Q-Lock (RPMA, RPMB, RPMC).

q Can I order different key options for the Elite with Q-Lock?

Yes, simply add an "A," "B," or "C" to the product number to designate one of the key options.

Manufacturer Chief Mounts
UPC 841872101910
Weight lb(s)
Mounting Options Ceiling
Color Black and White
Roll 3 degree
Pitch 20 degree
Yaw 360 degree
Overall Dimensions 3.4" x 16.2" x 12.1" (86 x 411 x 307 mm)
Shipping Weight 12.75 lbs
Weight Capacity 50 lbs (22.7 kg)

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)


With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.

Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
