The below item has been discontinued. See above for similar products that we offer instead. We apologize for this inconvenience.
Chief FDP4100B or FDP4100S Dual Monitor Pole Mount VESA 100x100
Related Products
|
Part Number |
Description |
|
FDP4100B |
Black Small Flat Panel Dual Display Pole Mount for 10 to 26 inch Displays |
|
FDP4100S |
Silver Dual Display Pole Mount for 10 to 26 inch Small Flat Panel Displays |
Description

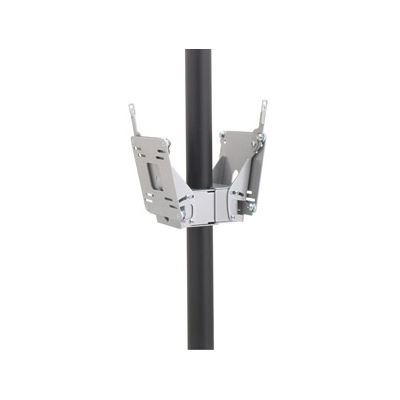

Chief FDP4100 dual display pole mount installs 2 displays back-to-back and attaches to any 1.5-2" (38 - 51mm) outer diameter pole.
Displays can be installed in portrait or landscape orientation
A great solution for viewing two small flat panel TVs, LCDs or monitors from opposing angles
Ideal for digital display or retail signage
Intended for use with displays with VESA 100x100 mounting pattern

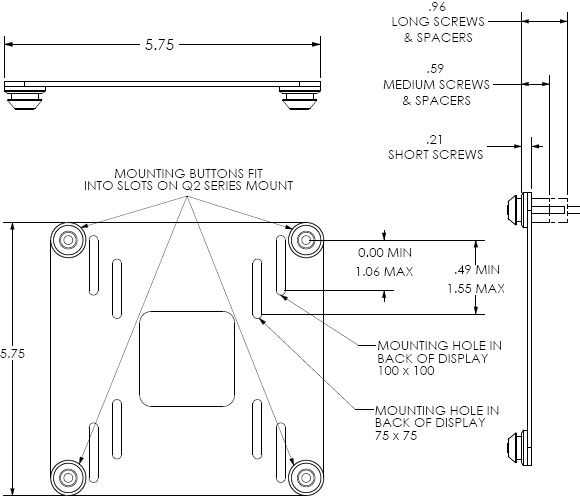

Technical Drawing
Specifications
|
Color |
Black and Silver |
|
Minimum Depth |
1.88" (47.8mm) |
|
Mounting Pattern Compatibility (Universal Versions) |
75 x 75mm, 100 x 100mm |
|
Number of Monitors |
2 |
|
Orientation |
Landscape |
|
Overall Dimensions (H x W x D) |
6.9" x 5.6" x 3.8" (175 x 143 x 95mm) |
|
Pole Diameter Range |
1.5 - 2" (38 - 51mm) |
|
Post-Installation Leveling (Roll) |
Yes |
|
Shipping Weight |
6.00 lbs |
|
Solution Type |
Universal |
|
Tilt |
+ 10°, - 25° |
|
Typical Screen Sizes |
10 - 30" |
|
Weight Capacity |
45 lbs (20.4kg) per side |
Features
- Quick installation
- Pole can be vertical or horizontal
- Easy tilt and yaw adjustments for viewing flexibility
- Screen tilt can be set for touchscreen use
- Display installs in portrait/landscape views
- Universal clamp attaches to any 1.5-2" (38-51mm) outer diameter pole
- Includes pole clamp and interface brackets
- Exclusive Q-Latch Mounting System secures display with a lockable latch
- Intended for use with displays with VESA 200x100 mounting pattern
- Pole not included (see Chief's CMA Adjustable and Fixed Columns)
Product Options/Accessories
CMA700 Ceiling Plate with Adjustable Column
$205.00
$132.00
CMA100 Ceiling Plate with Adjustable Column
$261.00
$181.60
CMA101 Designer 5" Ceiling Plate
$40.50
$21.60
CMA105 - 4" Ceiling Plate
$79.00
$43.20
CMA110 Ceiling Plate 8"
$90.00
$65.60
CMA115 Ceiling Plate 6"
$91.00
$55.20
CMS115 Speed Connect 6" Ceiling Plate
$91.00
$55.20
KSA1005 Security Hardware Kit (non Height-Adjustable)
Discontinued
$77.00
$30.80
KSA1013 Laptop Tray
Discontinued
$232.00
$92.80
Adjustable Column 1.5" OD, Various Lengths
$98.00
$68.80
KSA1024 Quick Release Bracket
$134.00
$53.60
CMA360 I-Beam Clamp
$386.00
$279.20
CMA106 Junction Box Ceiling Plate (102x102 mm)
$91.00
$55.20
CMA330 Offset 8" Ceiling Plate
$79.00
$58.40
CMA345 Structural Ceiling Plate
$261.00
$181.60
CMA395 or CMA395W Angled Ceiling Plate
$105.00
$58.40
Fixed Column 1.5" OD, Various Lengths
$26.50
$19.20
CMA165 Internal Joist Ceiling Kit
$198.00
$128.80
CMA362 C-Clamp Structural Adapter
$177.00
$118.40
CMA365 Truss Ceiling Adapter
$105.00
$58.40
CMA366 Architectural Spanning Adapter
$205.00
$132.00
CMA372 Offset Unistrut Structural Adapter
$105.00
$58.40
CMA385 Internal Joist Mount
$177.00
$118.40
FSA1000 Lockable Latch
Discontinued
$29.00
$15.20
| Model | FDP4100B or FDP4100S |
| Manufacturer | Chief Mounts |
| Part Number | FDP4100B or FDP4100S |
| UPC | 841872015521 |
| Weight | 6.00 lb(s) |
| Mounting Options | Pole |
| Monitor Arm Types | 2 Monitors |
| Color | Black and Silver |
| Minimum Depth | 1.88" (47.8mm) |
| Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Overall Dimensions | 6.9" x 5.6" x 3.8" (175 x 143 x 95mm) |
| Pole Diameter | 1.5 - 2" (38 - 51mm) |
| Shipping Weight | 6.00 lbs |
| Tilt | + 10 degree, - 25 degree |
| Screen Size | 30" and smaller in |
| Weight Capacity | 45 lbs (20.4kg) |
