The below item has been discontinued. See above for similar products that we offer instead. We apologize for this inconvenience.

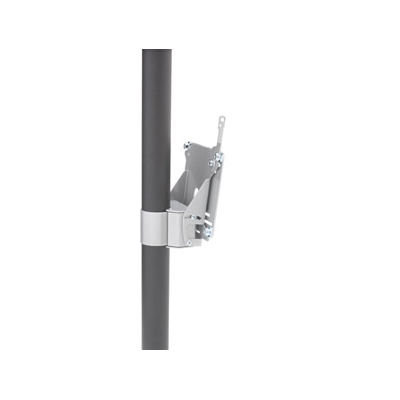

Chief FSP4100B or FSP4100S Single Display Pole Mount

Pole Mount LCD Monitor Arm. Pole is not included (Purchase separately)
0 out of 5 (based on 0 review). Be the first to review this product
Product ID: 15682
Recommended Accessories
List Price: $195.00
Our Price: $139.20
Shipping: $10.00 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States

Related Products

Part Number

Description

FSP4100B

Black Small Flat Panel Single Display Pole Mount for 10 to 26 inch Displays

FSP4100S

Silver Single Display Pole Mount for 10 to 26 inch Small Flat Panel Displays

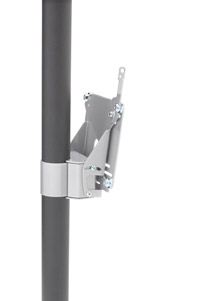

Chief FSP4100B Single Display Pole Mount for Small LCD Flat Panel Display

Description

Chief FSP4100 is an innovative alternative to wall mounting, this flat panel mount allows you to attach a small flat panel TV, LCD or monitor to a pole.

  • Pole (not included) can be installed vertically or horizontally

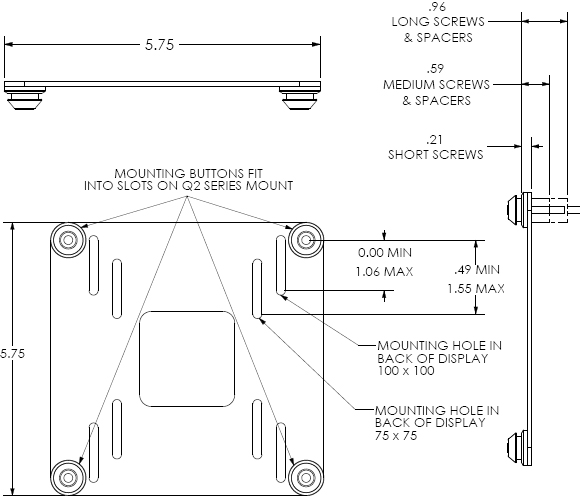

Technical Drawing

Technical Drawing for Chief FSP4100 Single Display Pole Mount Arm



Specifications

Color

Black and Silver

Minimum Depth

1.88" (47.8mm)

Mounting Pattern Compatibility (Universal Versions)

75 x 75mm, 100 x 100mm

Notes

TAA Compliant

Number of Monitor

1

Orientation

Landscape, Portrait

Overall Dimensions (H x W x D)

6.9" x 5.6" x 3.8" (175 x 143 x 95mm)

Pole Diameter Range

1.5 - 2" (38 - 51mm)

Post-Installation Leveling (Roll)

Yes

Shipping Weight

4.00 lbs

Solution Type

Universal

Tilt

+ 10°, - 25°

Typical Screen Sizes

10 - 30"

Weight Capacity

45 lbs (20.4kg)



Features

  • Quick installation
  • Easy tilt and yaw adjustments for viewing flexibility
  • Screen tilt can be set for touch screen use
  • Display installs in portrait/landscape views
  • Universal clamp attaches to any 1.5 - 2" (38 - 51mm) outer diameter pole
  • Includes pole clamp and interface brackets
  • Exclusive Q-Latch Mounting System secures display with a lockable latch
  • VESA 75 x 75 mm and 100 x 100 mm compliant
  • Pole not included (See Chief's CMA Adjustable and Fixed Columns)

Product Options/Accessories

Chief CMA700 - 6" Ceiling Plate with Adjustable Column CMA700 Ceiling Plate with Adjustable Column $205.00 $132.00 Chief CMA100 - 8" Ceiling Plate with Adjustable Column - 1.5" NPT CMA100 Ceiling Plate with Adjustable Column $261.00 $181.60 Chief CMA101 or CMA101S or CMA101W Designer Ceiling Plate CMA101 Designer 5" Ceiling Plate $40.50 $21.60 Chief CMA105 - 4" Ceiling Plate for CMS Fixed/Adjustable Columns CMA105 - 4" Ceiling Plate $79.00 $43.20 Chief CMA110 - 8" Ceiling Plate for CMS Fixed/Adjustable Columns CMA110 Ceiling Plate 8" $90.00 $65.60 Chief CMA115 - 6" Ceiling Plate for CMS Fixed/Adjustable Columns CMA115 Ceiling Plate 6" $91.00 $55.20 Chief CMS115 - 6" Speed-Connect Ceiling Plate CMS115 Speed Connect 6" Ceiling Plate $91.00 $55.20 Chief KSA1005B Security Hardware Kit KSA1005 Security Hardware Kit (non Height-Adjustable) Discontinued $77.00 $30.80 Chief KSA1013B Laptop Tray Adapter KSA1013 Laptop Tray Discontinued $232.00 $92.80 Chief Pole-Mount Grommet Accessory KTA1000B or KTA1000S KTA1000 Array Grommet Accessory $168.00 $67.20 Chief Array Desk Clamp Accessory KTA1004B or KTA1004S KTA1004 Array Desk Clamp $168.00 $67.20 Chief KTA1014 or KTA1028 or KTA1036 or KTA1042 Pole Accessory KTA1014 Array 14" Pole $106.00 $42.40 Chief Adjustable Extension Column 1.5" OD, Various Lengths Adjustable Column 1.5" OD, Various Lengths $98.00 $68.80 Chief Centris Quick Connect Bracket KSA1024B KSA1024 Quick Release Bracket $134.00 $53.60 Chief CMA360 I-Beam Clamp CMA360 I-Beam Clamp $386.00 $279.20 Chief FSBIB Portable iPad 1 Interface Bracket (VESA 100x100 mm) FSBIB iPad Interface Bracket (100x100 mm) Discontinued $47.20 Chief FSBI2B Portable iPad Interface Bracket (VESA 100x100 mm) FSBI2B Portable iPad Interface Bracket Discontinued $44.00 $26.32 Chief CMA106 Junction Box Assembly Ceiling Plate CMA106 Junction Box Ceiling Plate (102x102 mm) $91.00 $55.20 Chief CMA330 - 8" (203 mm) Offset Ceiling Plate CMA330 Offset 8" Ceiling Plate $79.00 $58.40 Chief CMA345 Structural Ceiling Plate CMA345 Structural Ceiling Plate $261.00 $181.60 Chief CMA395 or CMA395W Angled Ceiling Plate CMA395 or CMA395W Angled Ceiling Plate $105.00 $58.40 Chief Speed-Connect Fixed Column 1.5" OD, Various Lengths Fixed Column 1.5" OD, Various Lengths $26.50 $19.20 Chief CMA165 Internal Joist Ceiling Kit CMA165 Internal Joist Ceiling Kit $198.00 $128.80 Chief CMA362 C-Clamp Structural Adapter CMA362 C-Clamp Structural Adapter $177.00 $118.40 Chief CMA365 Truss Ceiling Adapter CMA365 Truss Ceiling Adapter $105.00 $58.40 Chief CMA366 Architectural Spanning Ceiling Adapter CMA366 Architectural Spanning Adapter $205.00 $132.00 Chief CMA372 Offset Unistrut Structural Adapter CMA372 Offset Unistrut Structural Adapter $105.00 $58.40 Chief CMA385 Internal Joist Structural Adapter Mount CMA385 Internal Joist Mount $177.00 $118.40 Chief FSBI2TB iPad Secure Interface Bracket FSBI2TB iPad Secure Interface Bracket Discontinued $135.00 $83.20 Chief FSA1000B or FSA1000S Lockable Latch FSA1000 Lockable Latch Discontinued $29.00 $15.20
Model FSP4100B or FSP4100S
Manufacturer Chief Mounts
Part Number FSP4100B or FSP4100S
UPC 841872015224
Weight 4.00 lb(s)
Mounting Options Pole
Monitor Arm Types 1 Monitor
Color Black and Silver
Minimum Depth 1.88" (47.8mm)
Mounting Pattern 75 x 75mm, 100 x 100mm
Overall Dimensions 6.9" x 5.6" x 3.8" (175 x 143 x 95mm)
Pole Diameter 1.5 - 2" (38 - 51mm)
Shipping Weight 4.00 lbs
Tilt + 10 degree, - 25 degree
Screen Size 10 - 30 in
Weight Capacity 45 lbs (20.4kg)
